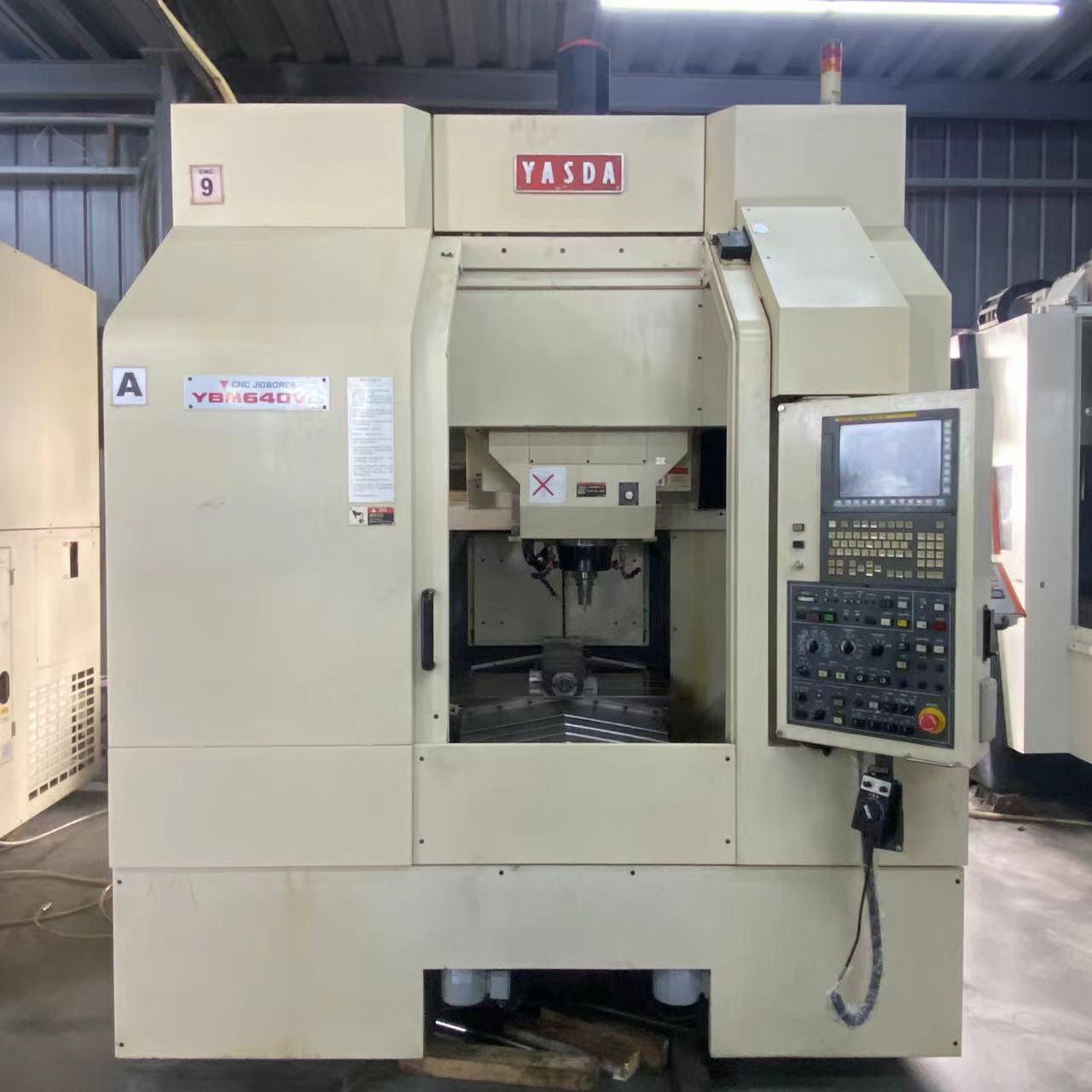

YASDA YBM-640V Vertical Machining centre
[Product Information]:
- Inventory number：460135
- Brand：YASDA
- Model：YBM-640V
- Origin：Japan
- Location：China
- Year：
- Create Time：2024-07-29
Specifications:

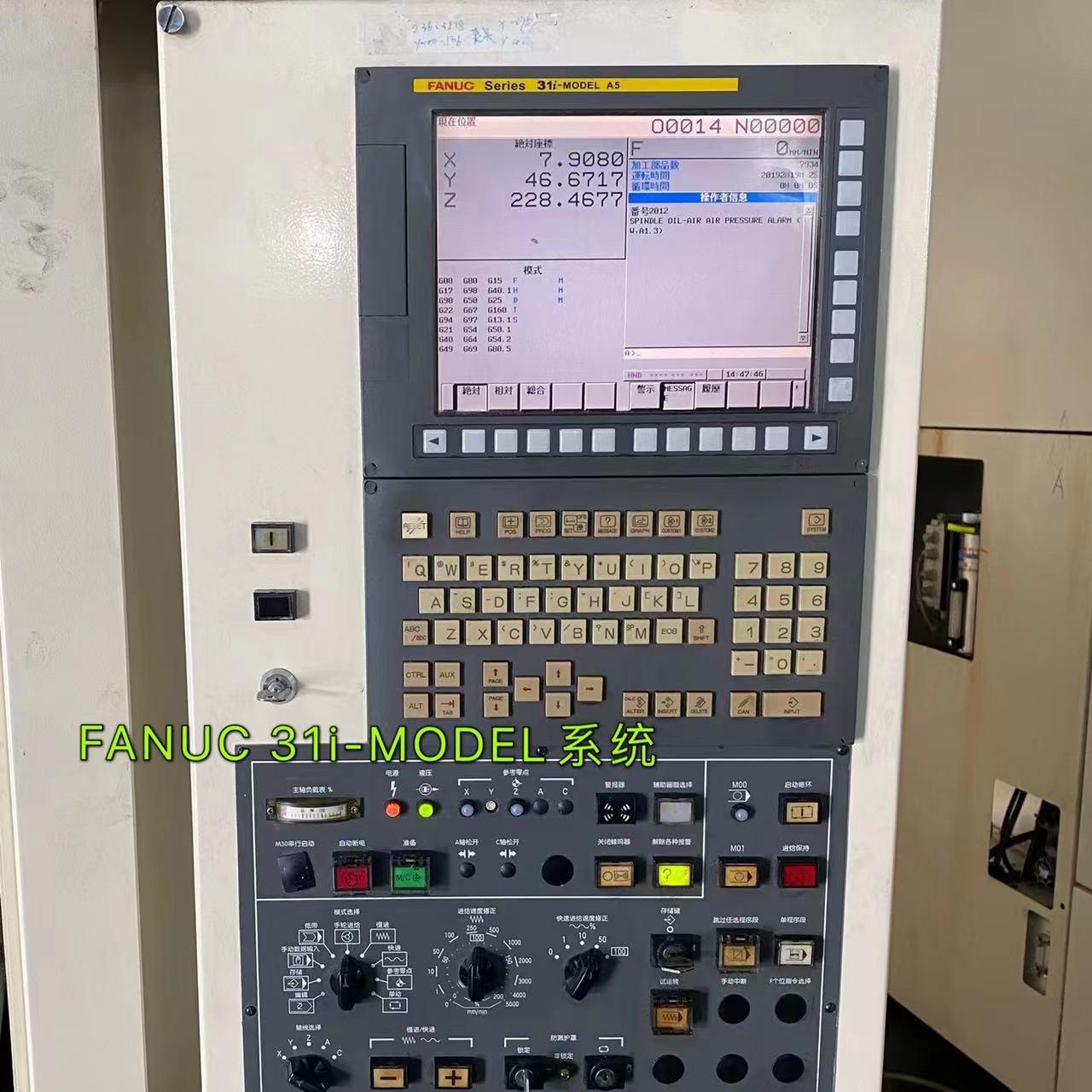

CNC System: Fanuc31I
Three axes travel: 600*400*350mm
Spindle speed: 2000rpm
Spindle taper: 40
Tool magazine: 30
Distance from spindle nose to worktable surface: 150~500 mm

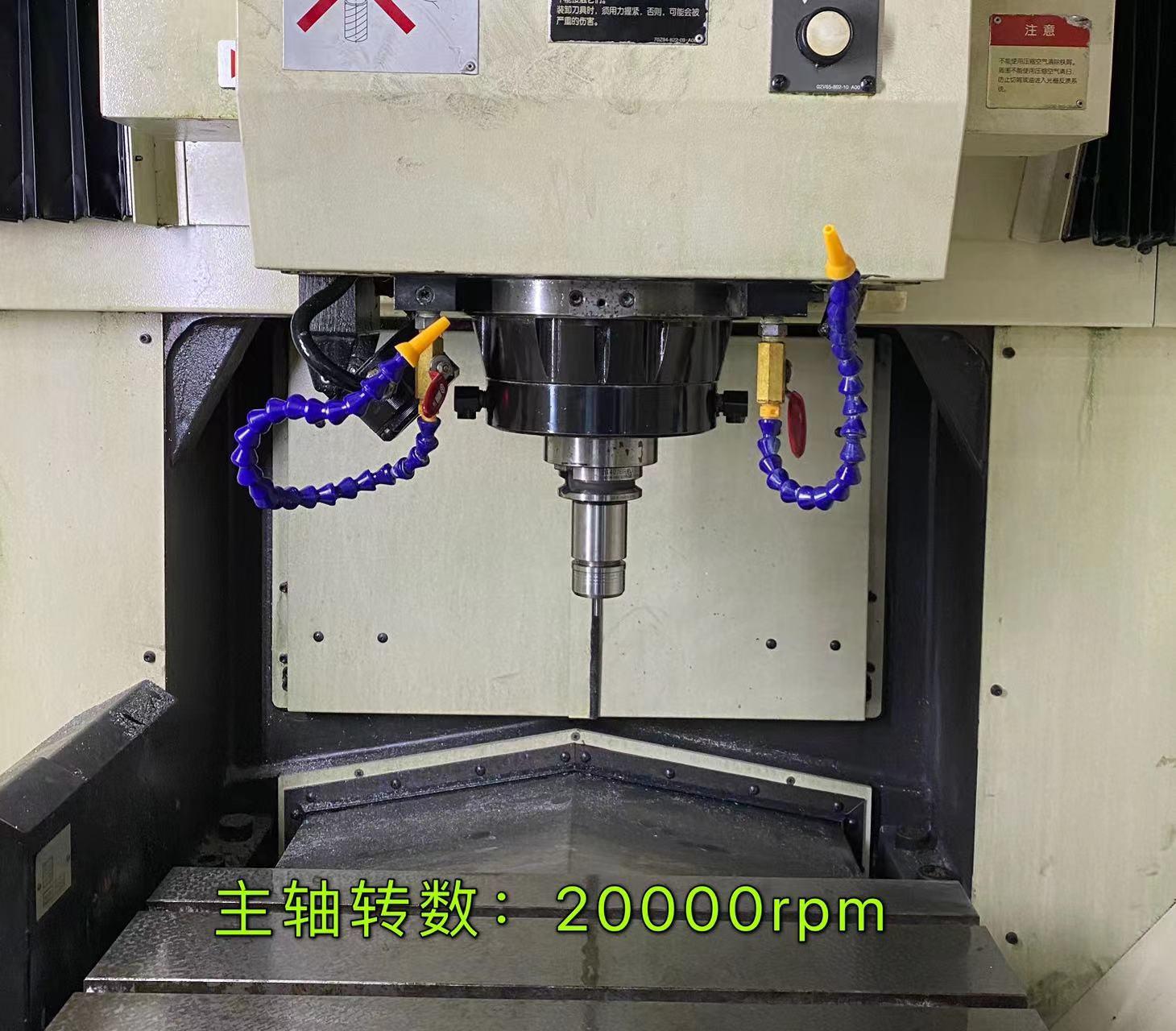

Spindle speed :20000rpm
Tool magazine :30
Worktable size: 700*450mm
Worktable load :300kg
Spindle power: AC18.5/22kw
Maximum diameter of tool: 100mm
Maximum length of tool: 250mm
Maximum tool weight: 7kg
Machine weight: 8000kg
Power supply: 39KVA
Three axes with glass scale
