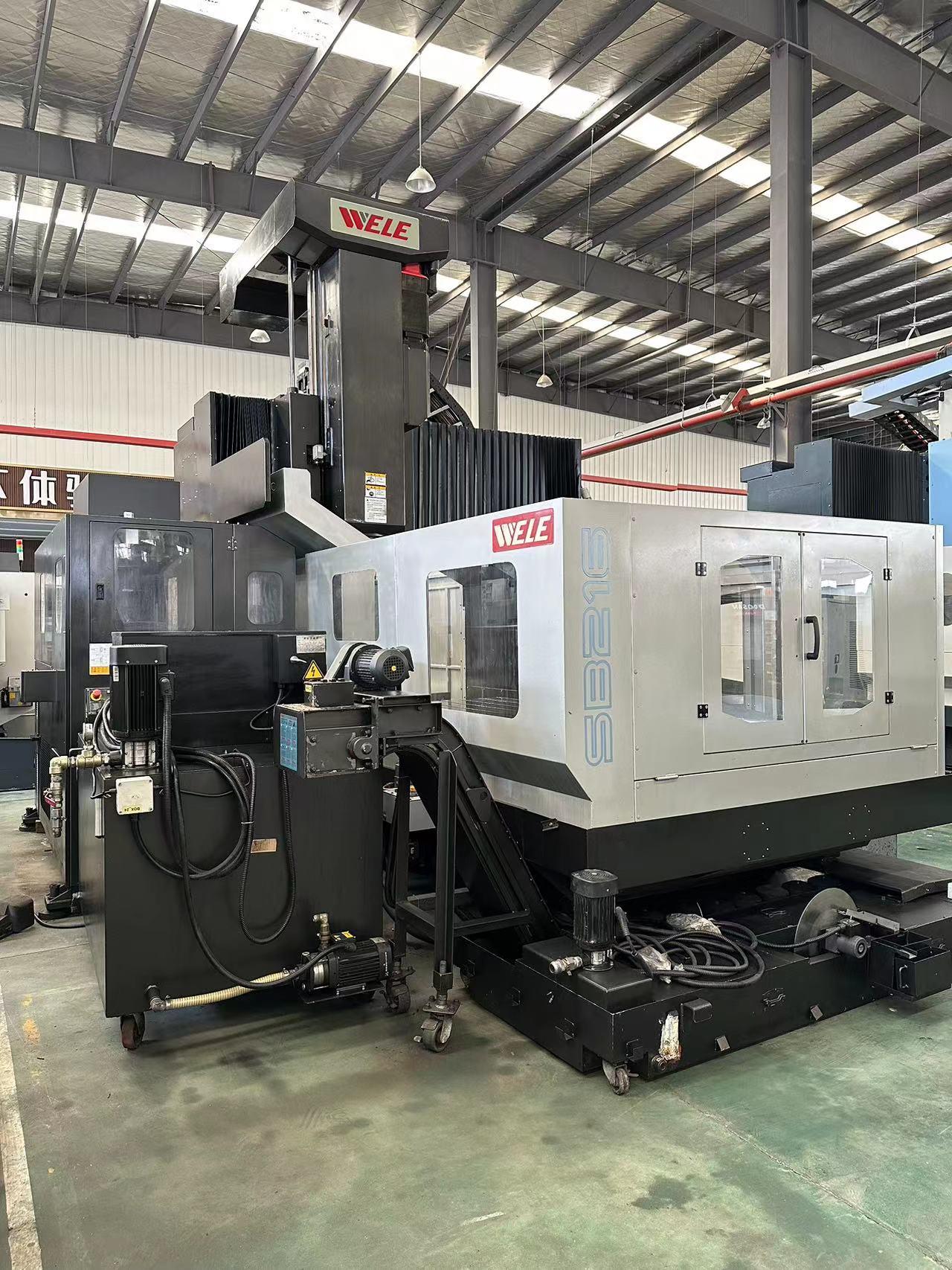

WELE SB-216 Gantry machining centre

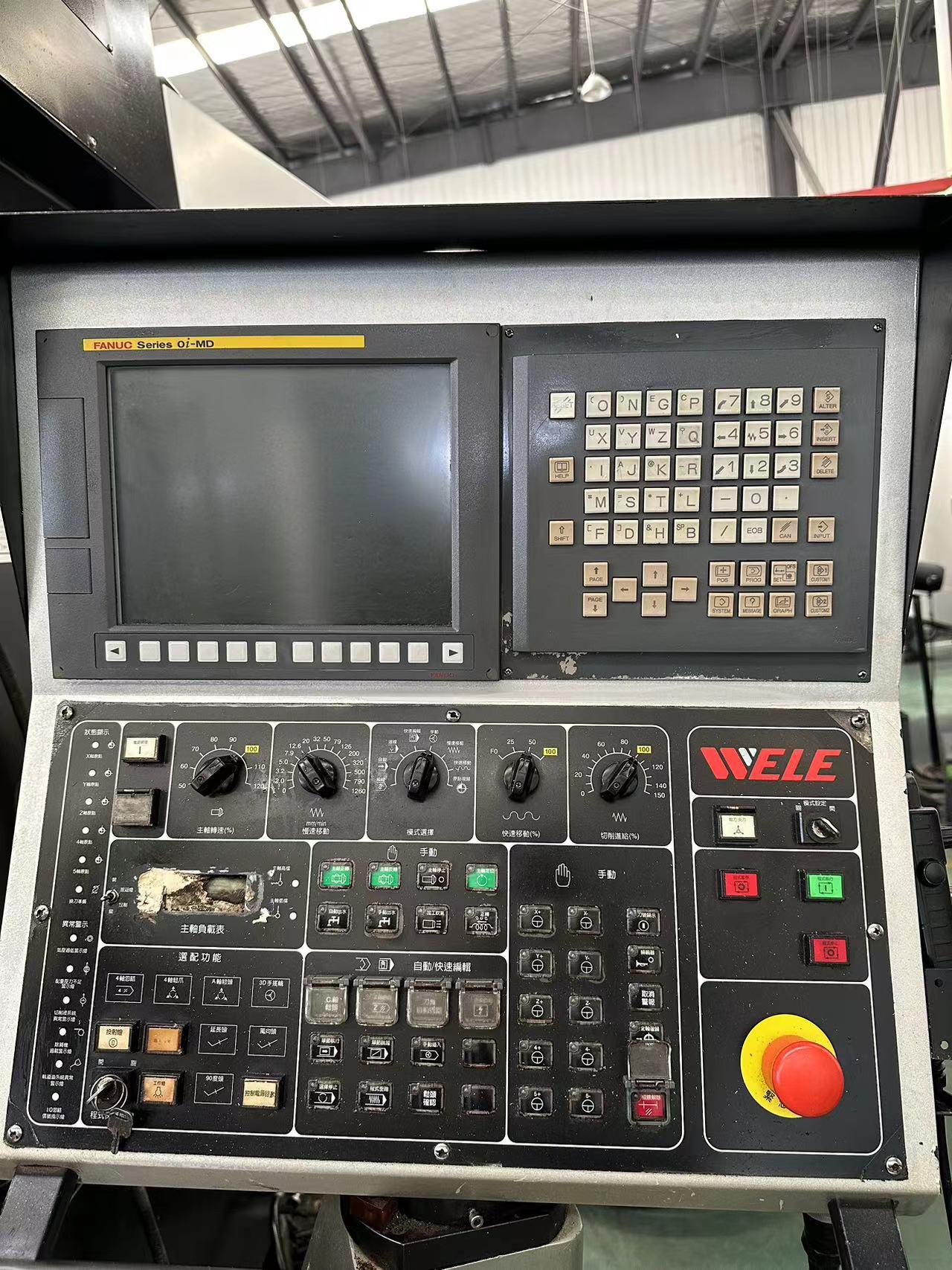

CNC System: Fanuc oi-MD

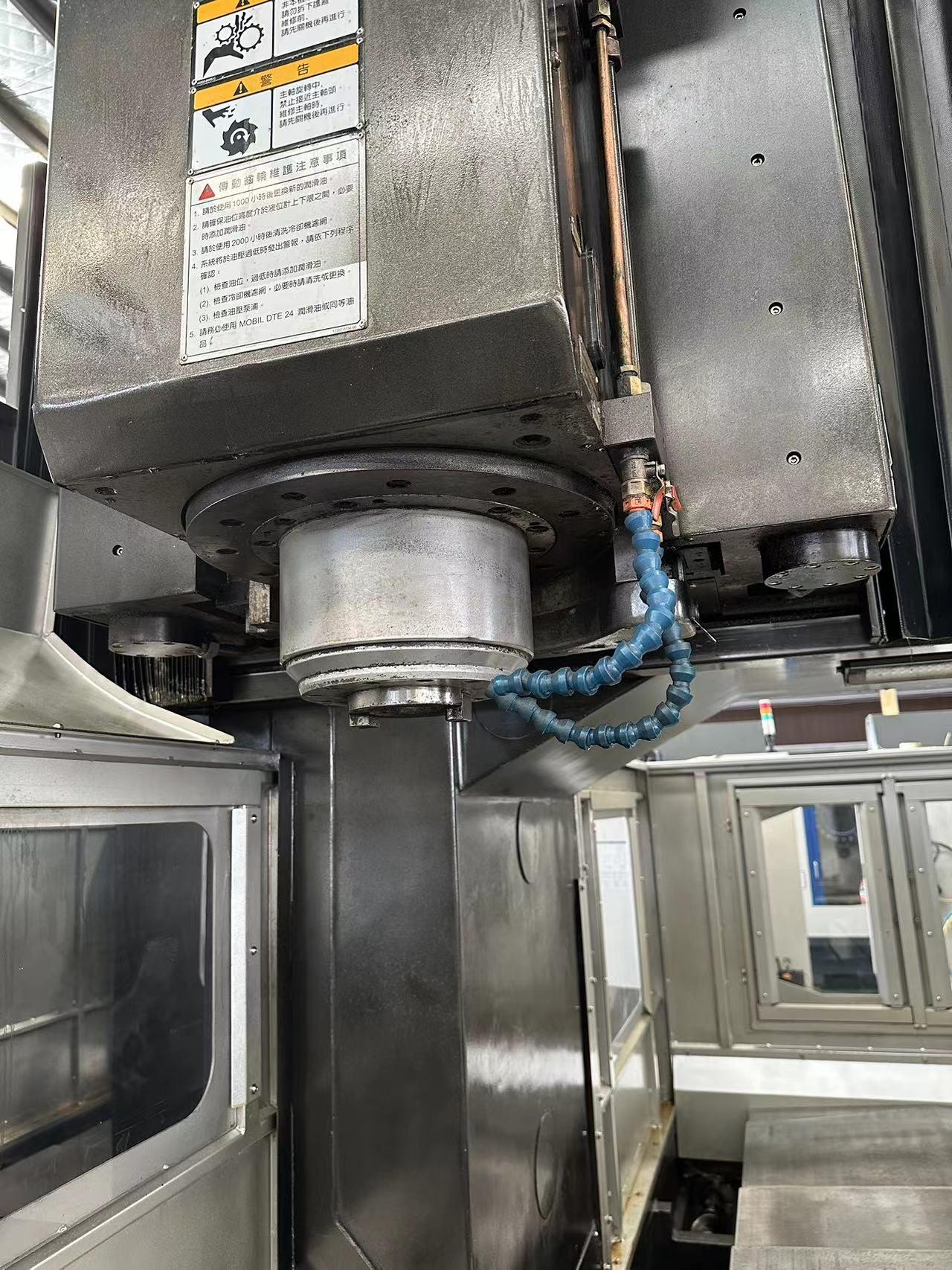

Spindle taper: BT50

Spindle speed: 6000rpm

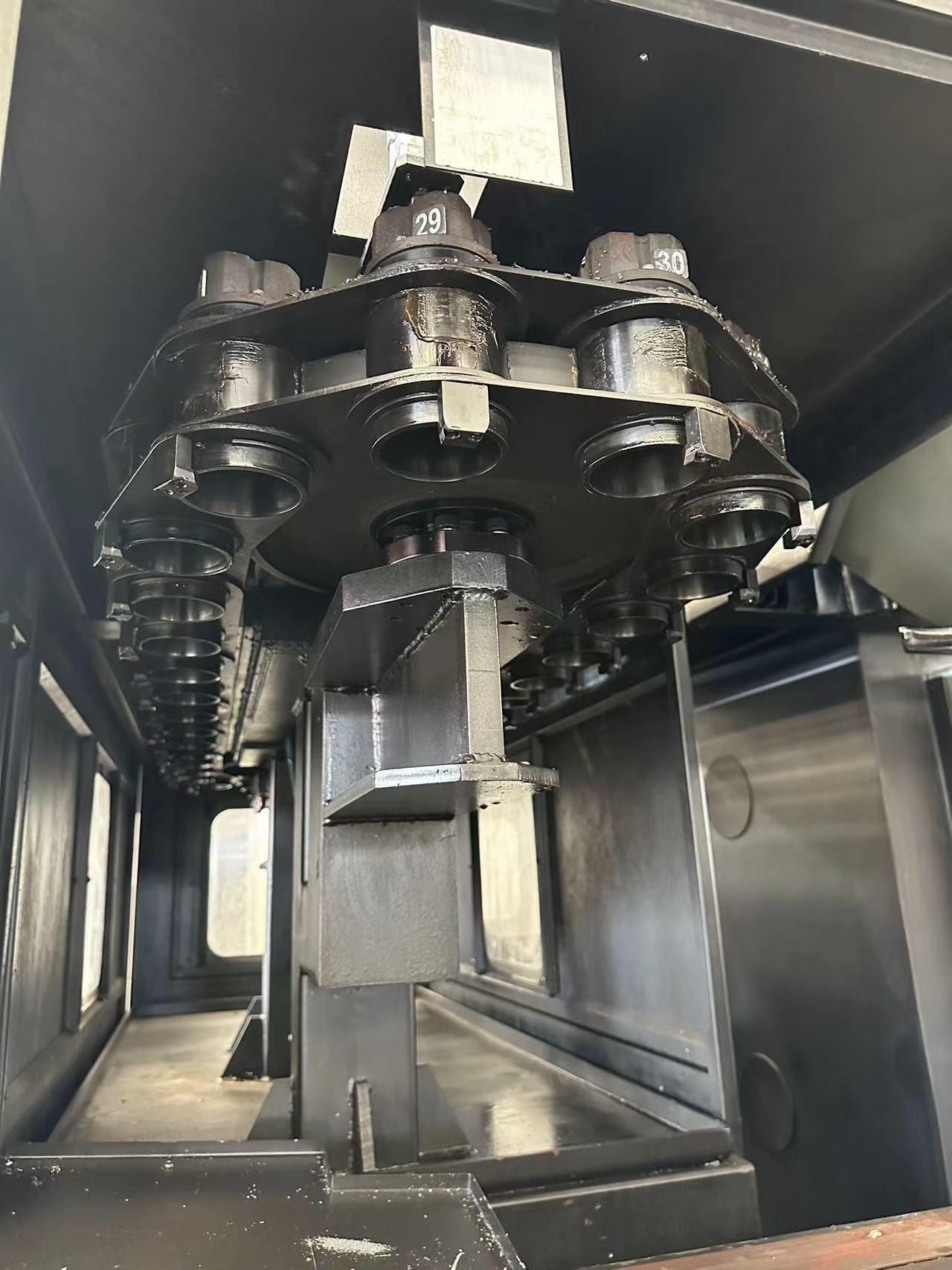

Tool magazine: 32

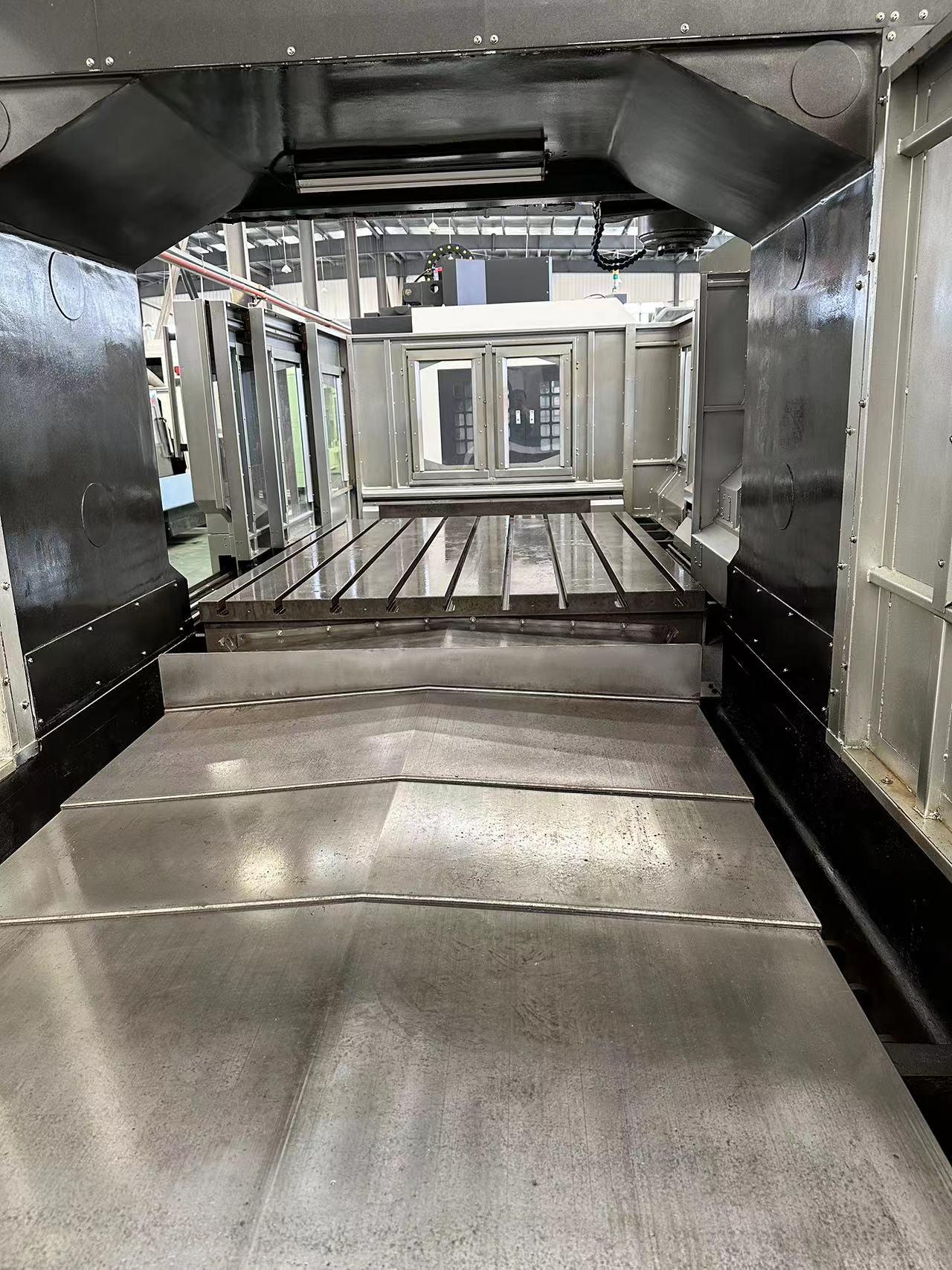

Worktable size: 2000*1500mm

Three axes travel: 2120*1600*800mm

X*Y axis feed rate: 24000mm/min

Z-axis feed rate: 15000mm/min

Gantry width: 1700mm

Gantry height: 1100mm

Distance between columns: 1700mm

Distance from spindle nose to worktable: 200-1000mm

Dimensions: 6250*4650*4350mm

Maximum load：8000kg

With chip conveyor

With center flushing
