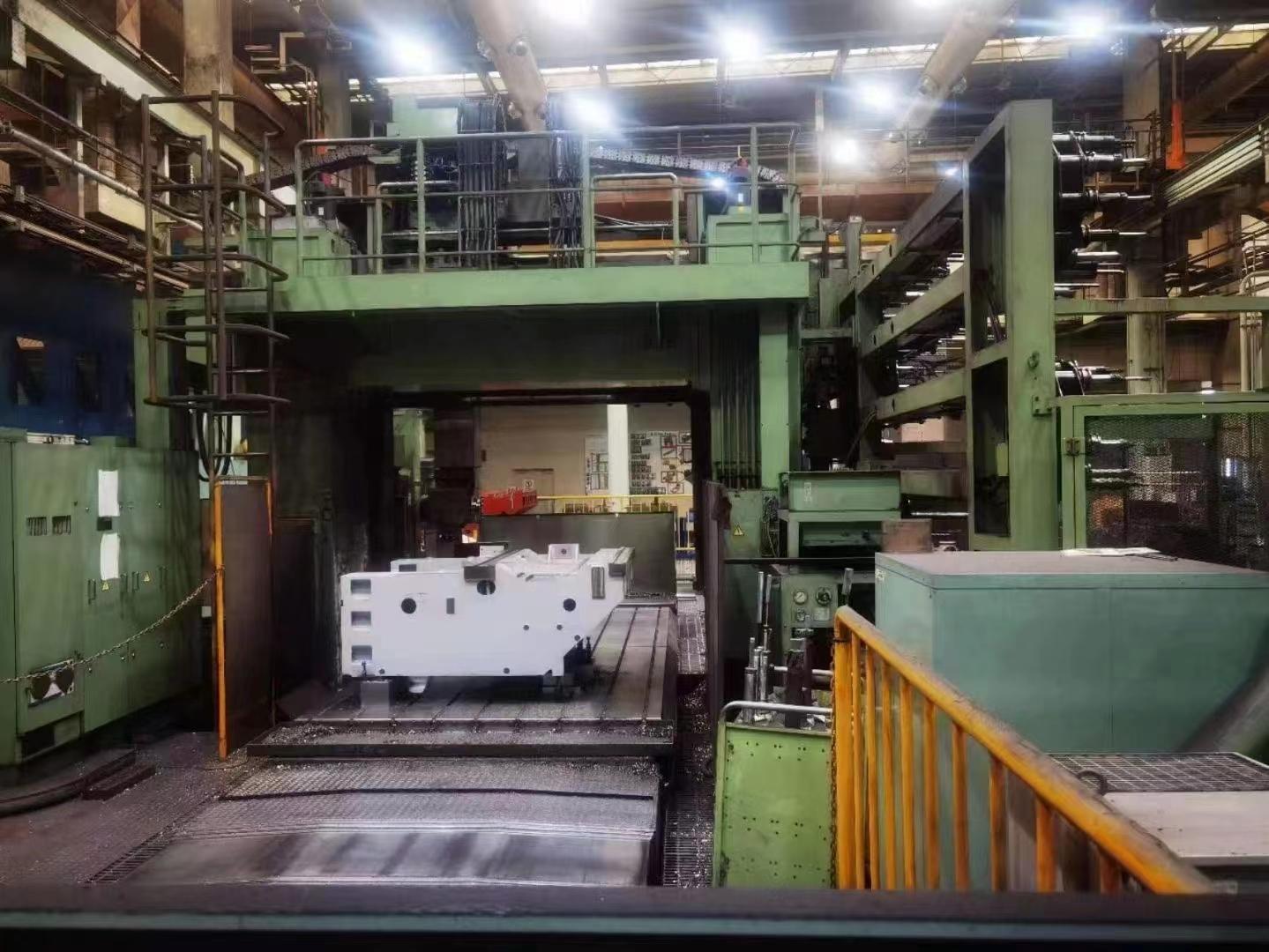

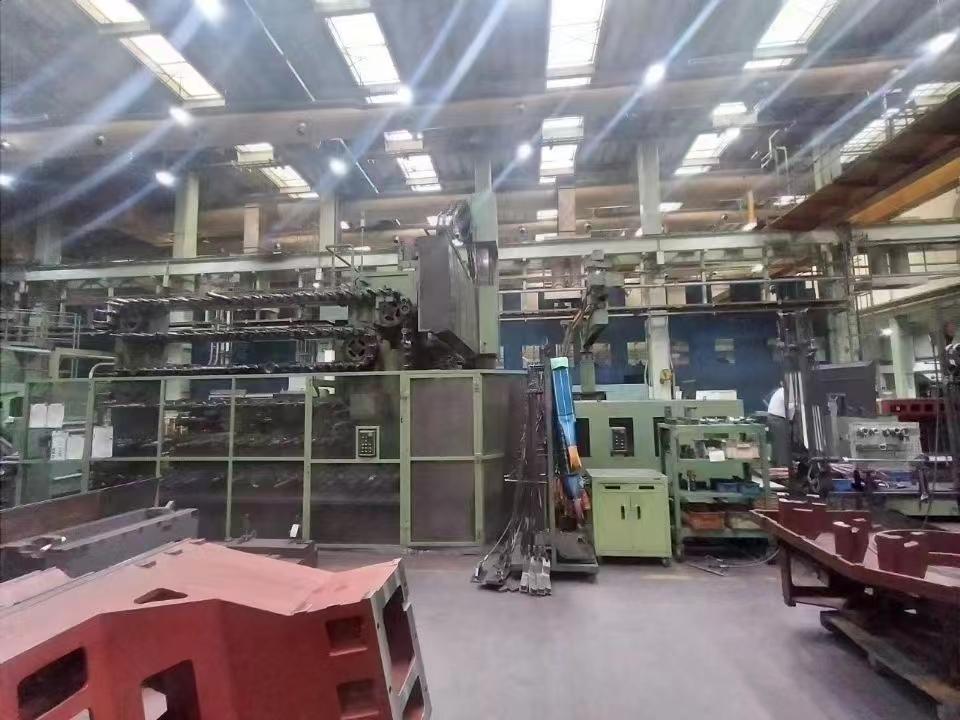

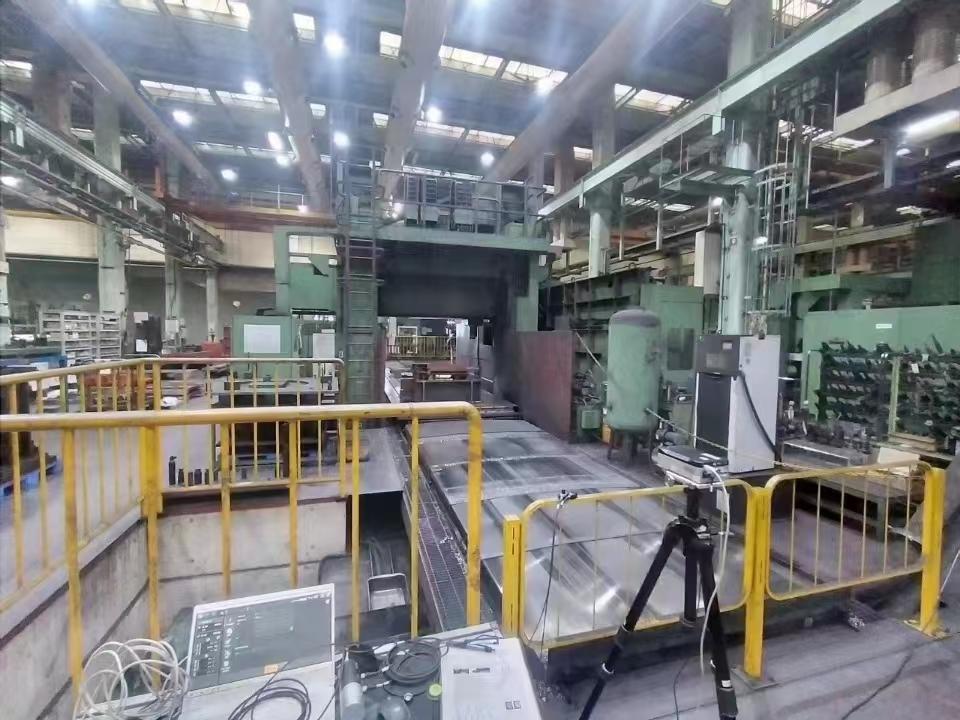

Toshiba MPH-2665S Gantry machining centre

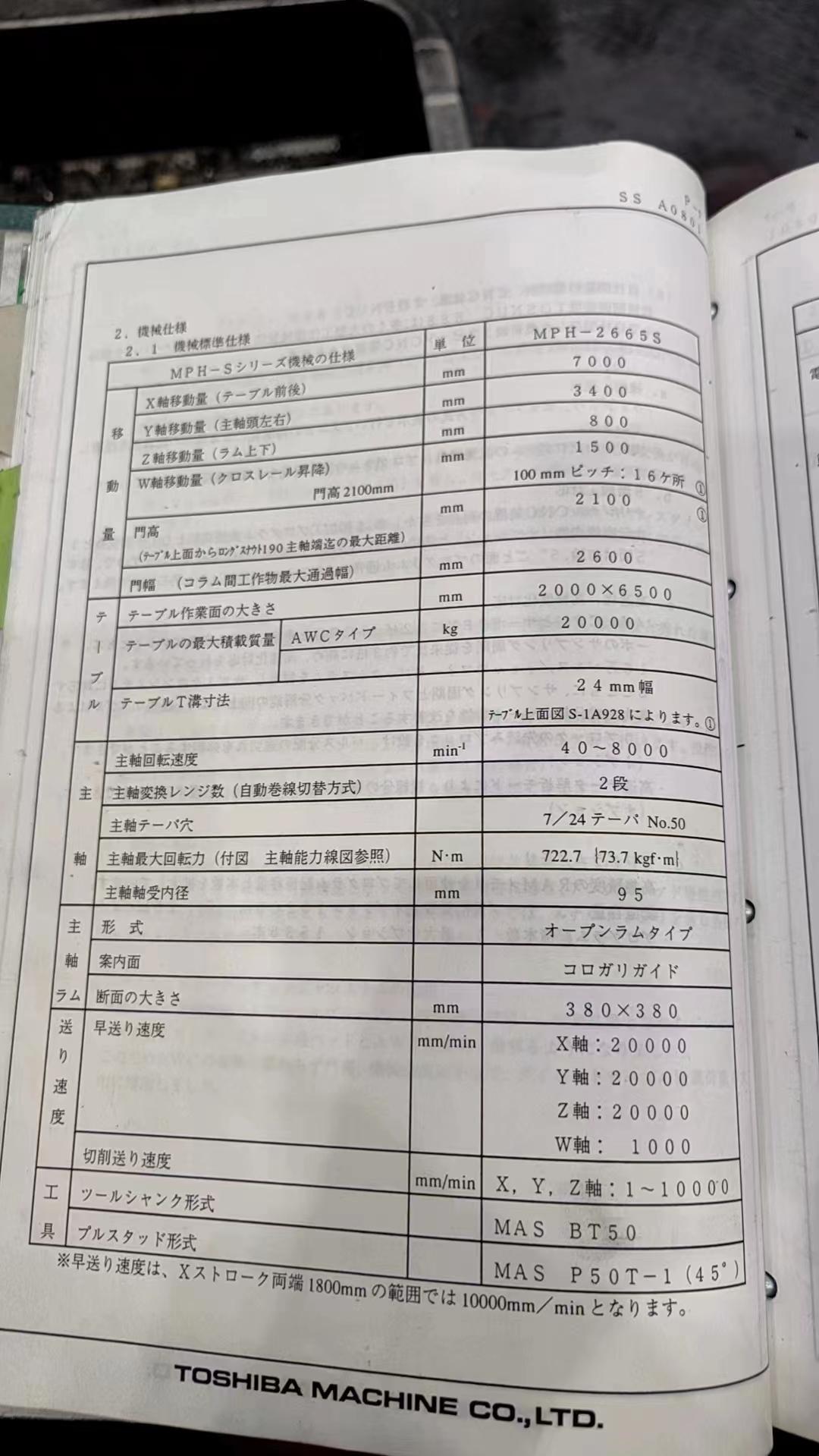

X*Y*Z*W axis travel:7000*3400*800*1500mm

X/Y/Z/W axis fast feed rate: 20000/20000/20000/1000 mm/min

Cutting feed rate X*Y*Z axis :1~10000mm/min

Maximum spindle torque: 722.7N ·m(173.7kgf ·m)

Spindle bearing internal diameter:9.5mm

Gantry height:2100mm

Maximum gantry height:2600mm

Worktable size:2000x6500mm

Spindle speed:40~8000rpm

Spindle speed in 2 gears

Spindle through hole:7/24 spindle No.50

Square ram size:380x380mm

Weight:20000 kg

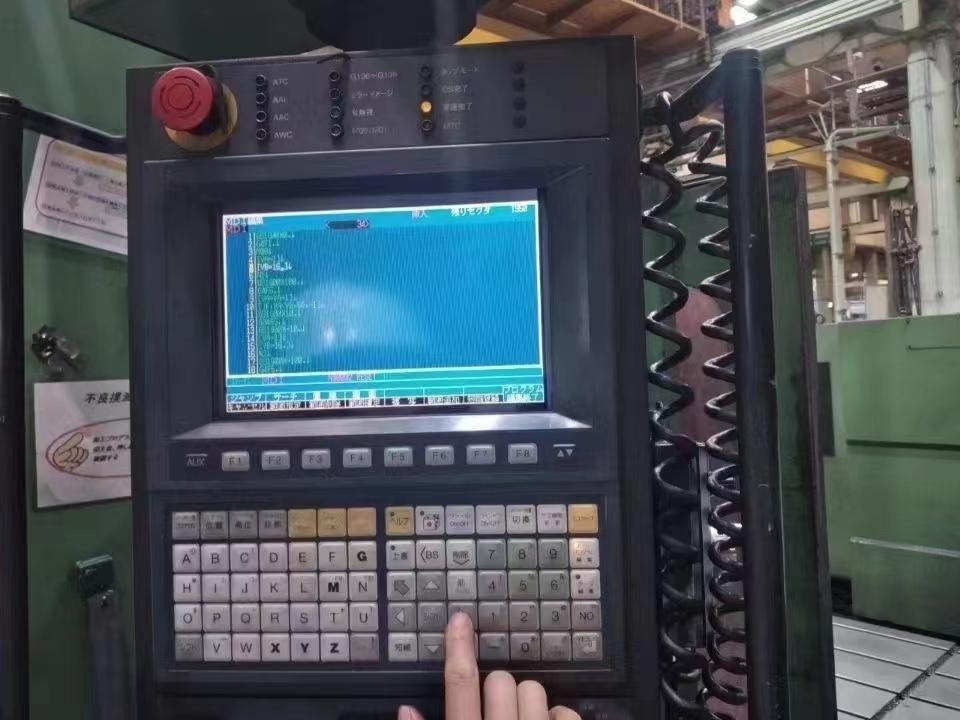

Toshiba -888 CNC System

ATC: 120

Machine weight :90tons

4 milling heads

Five-axis machining

1 60-deg angle milling head

1 extented head

1 lengthened angle milling head
