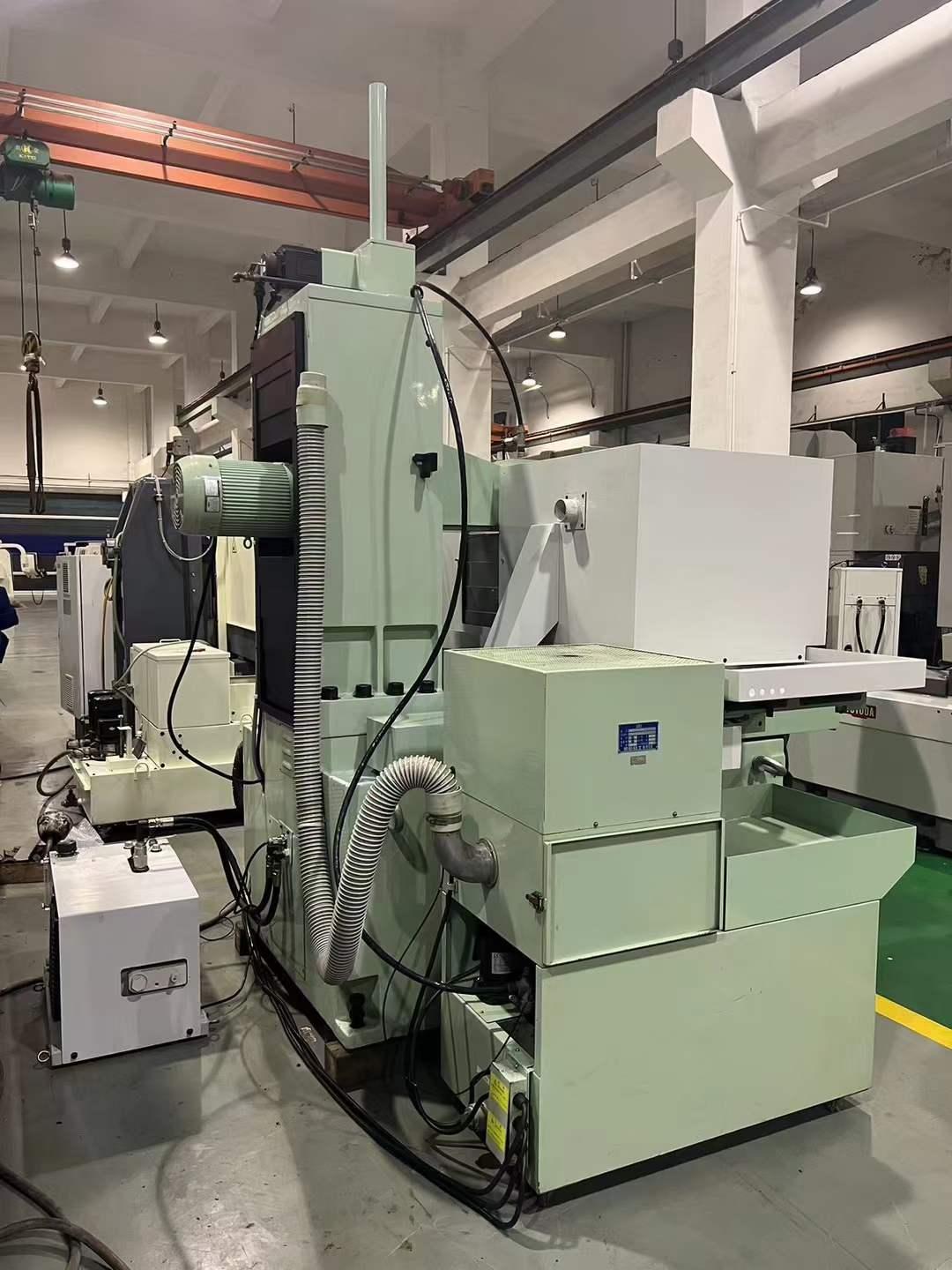

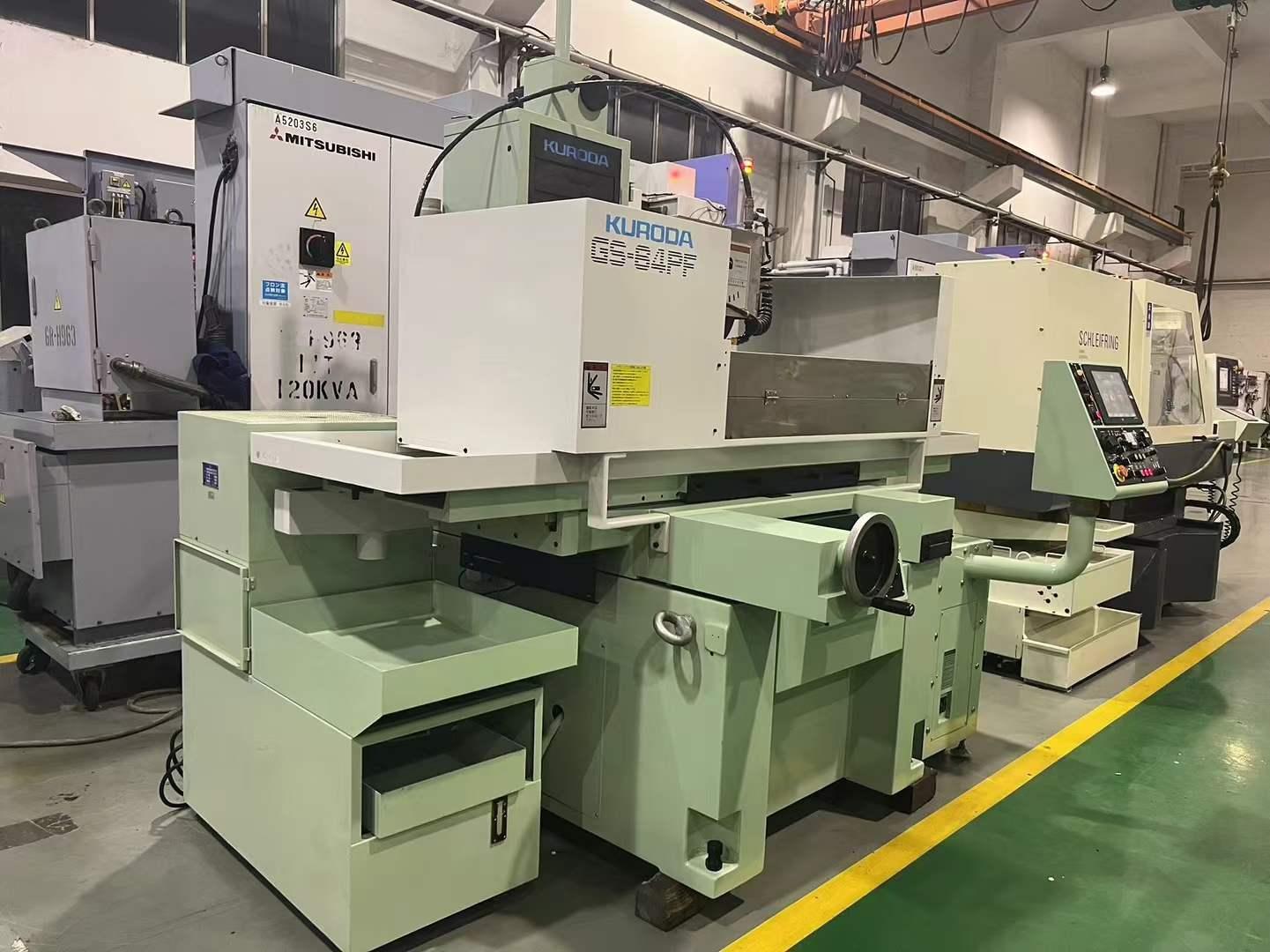

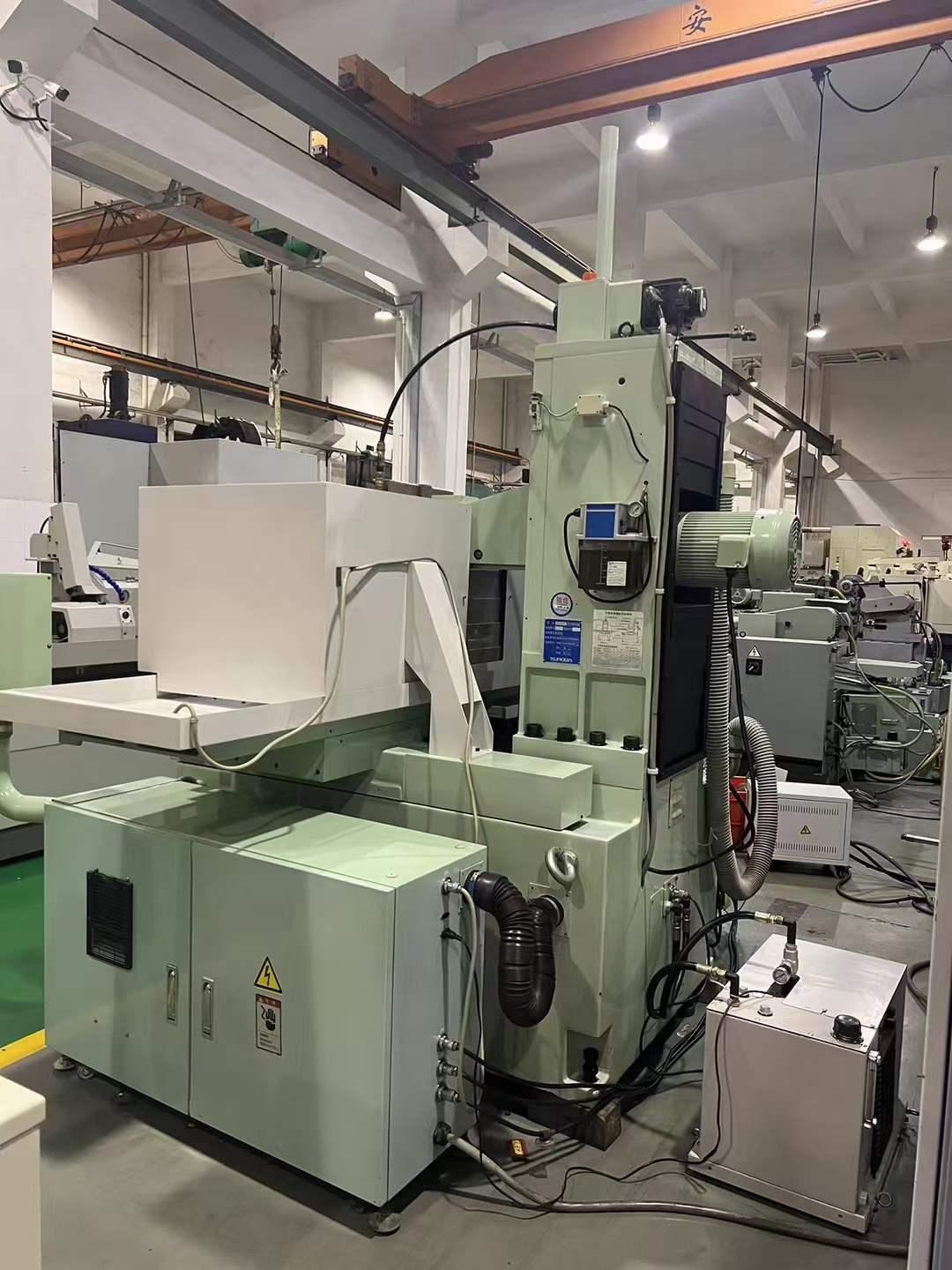

KURODA GS-64PF Surface grinder

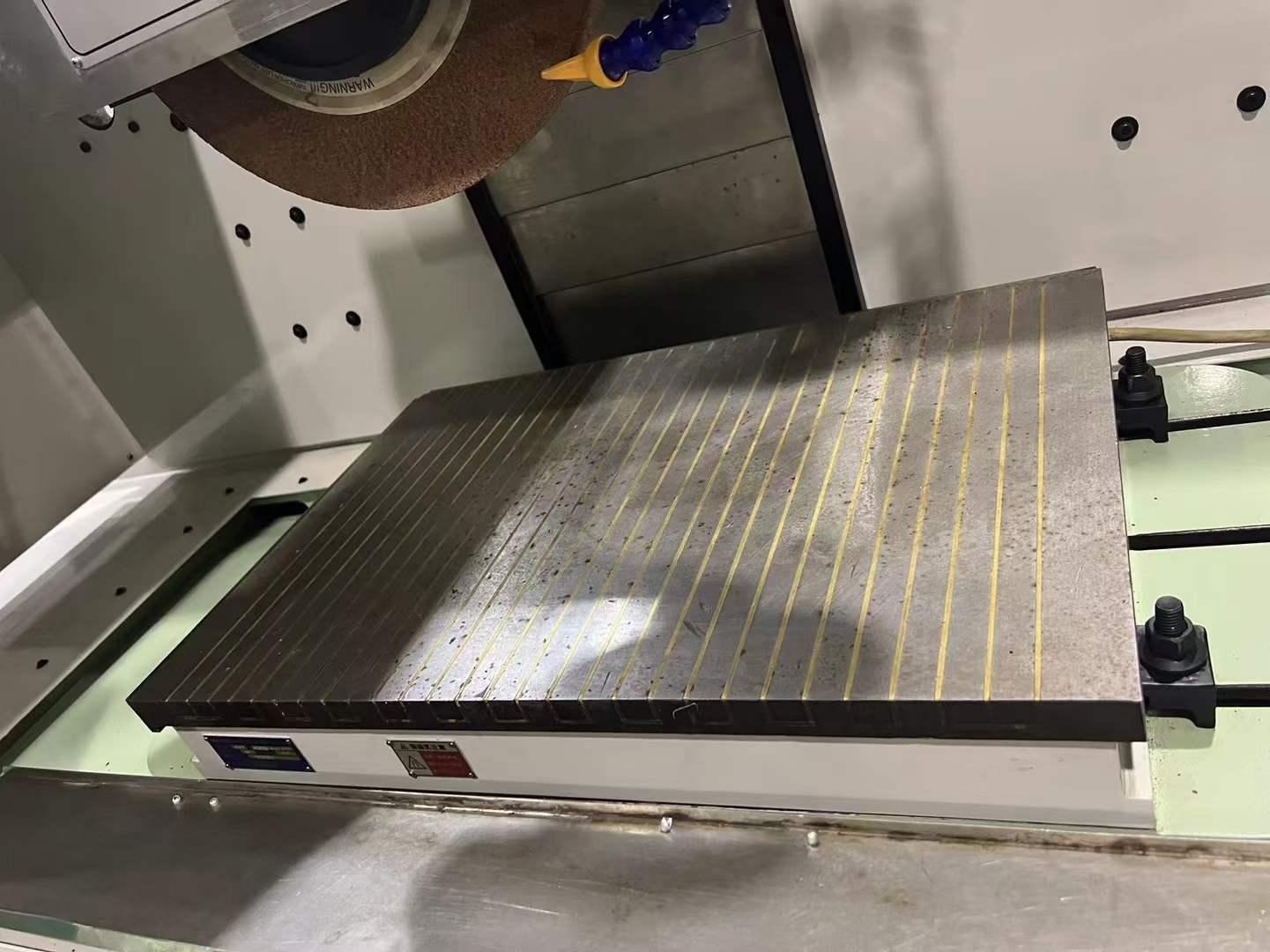

Disk size: 600 x 400mm

travel: 760*440mm

Distance from the top of workWorktable to the center of the sand wheel shaft: 487.5mm

WorkWorktable load: 400kg

Longitudinal feed per resolution: 62.8mm

feed rate (hydraulic pressure) : 3 ~ 25m

Manual feed: 0.0001, 0.001, 0.05mm

Fast feed rate: 50 ~ 1000mm/min

Manual feed up and down: 0.0001, 0.001, 0.01mm

Fast feed rate: 50 ~ 1000mm/min

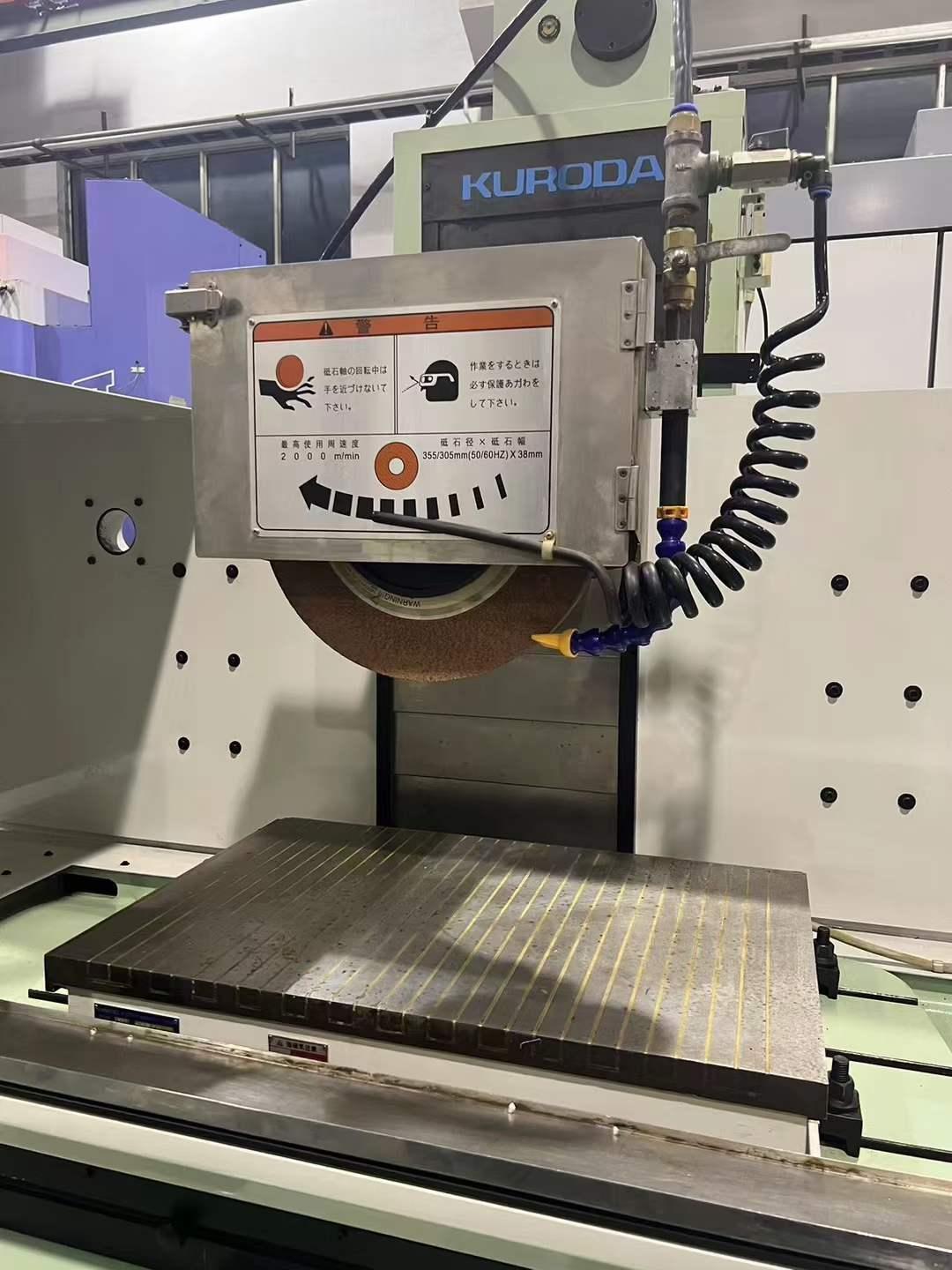

grinding wheel size: 355*38*127mm

Spindle speed: 500 ~ 2000rpm (inverter control)

Machine weight: 3500kg
