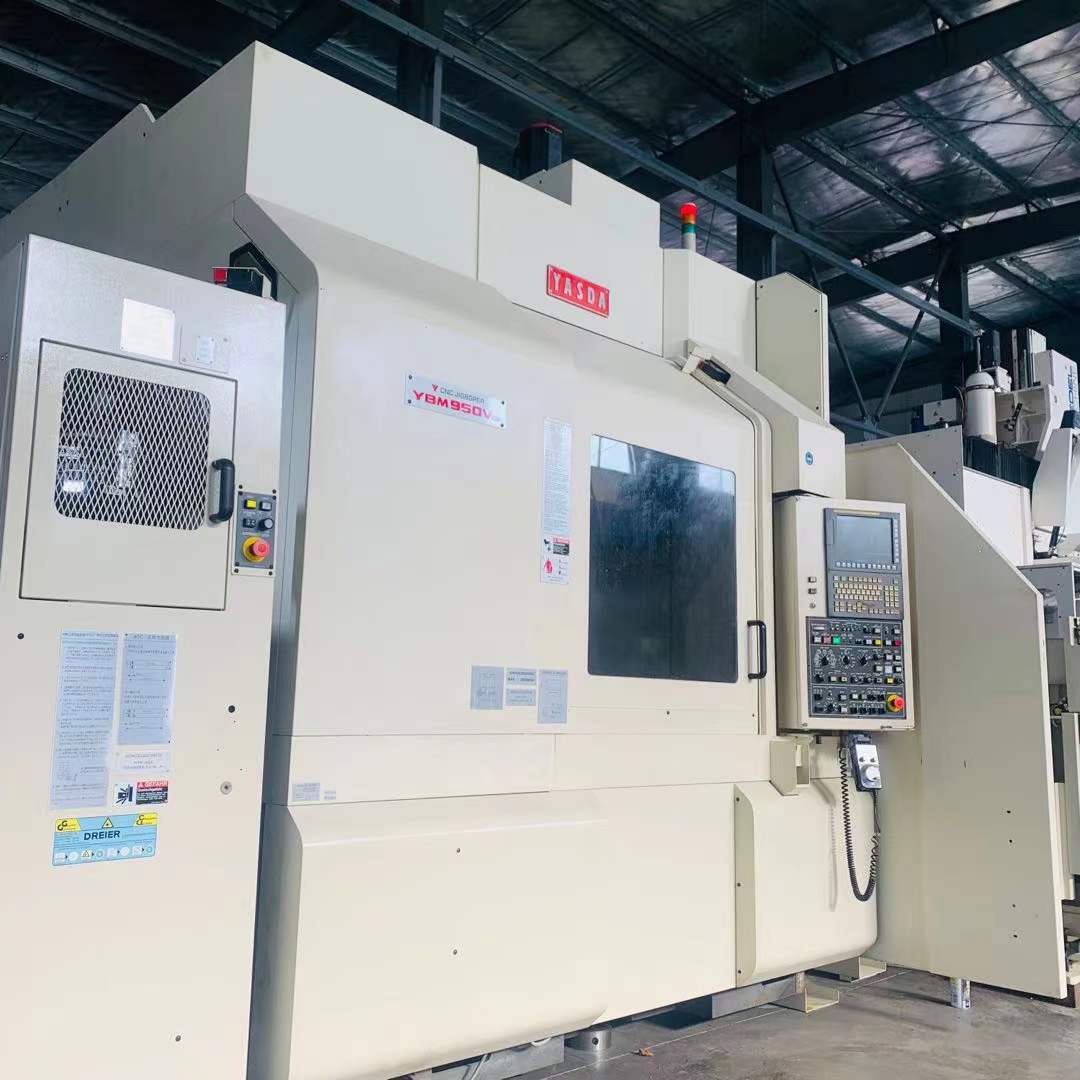

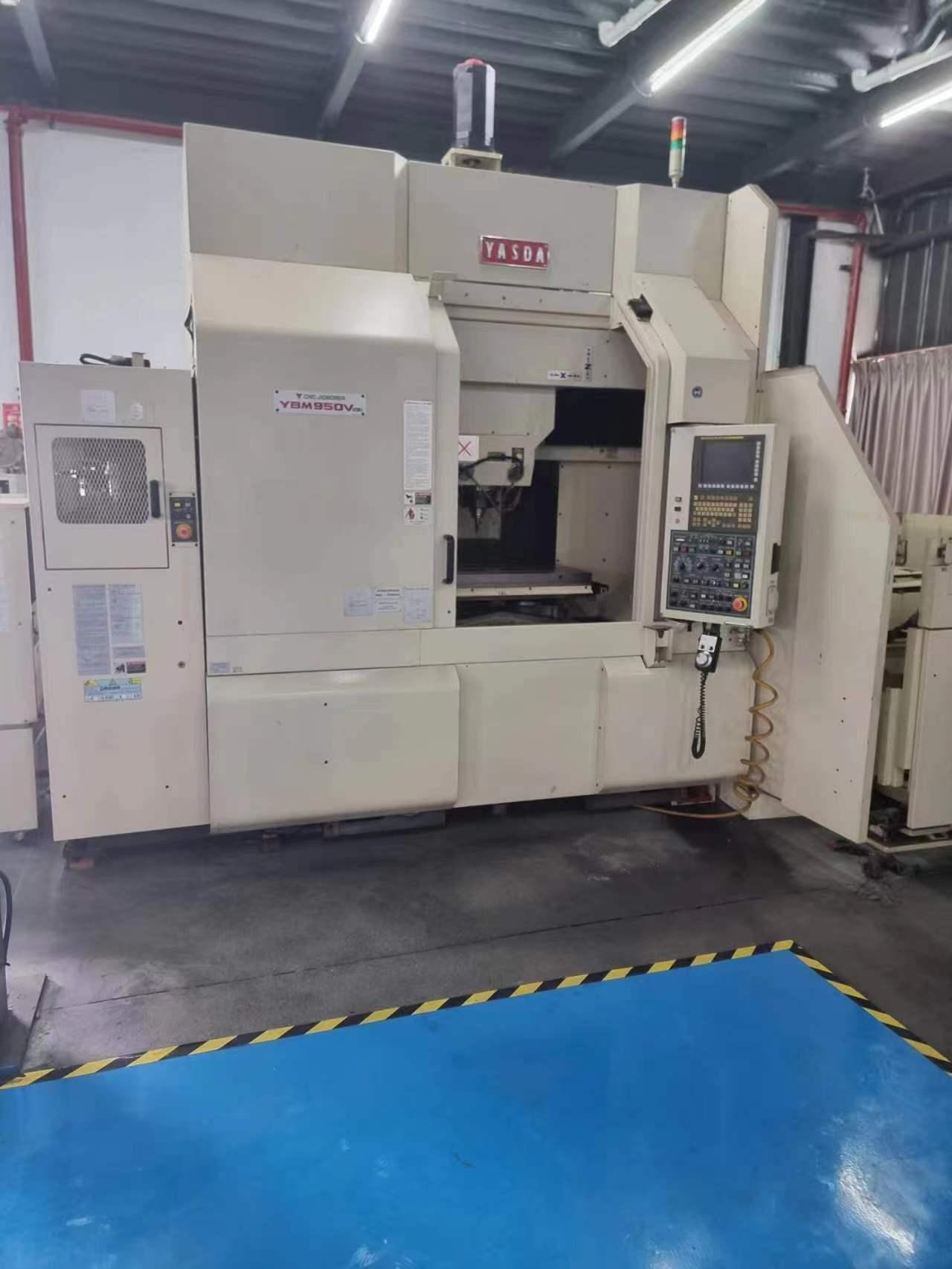

YASDA YBM950Vver.III Machining centre

CNC System: Fanuc 31i

X-axis travel: 1080mm

Y-axis travel: 556mm

Z-axis travel: 350mm

Distance from worktable surface to spindle nose: 200-550mm

Worktable size: 900*500mm

Maximum load: 800kg

Spindle speed: 20000rpm

Spindle taper: HSK-A63

Fast feed rate: 20000mm/min

Cutting feed rate: 1-5000mm/min

Tool magazine: 100 (double tool magazine)

Accessories: Contact type automatic tool aligner, automatic center probe, chip conveyor, double tool magazine, twin worktable, oil chiller
