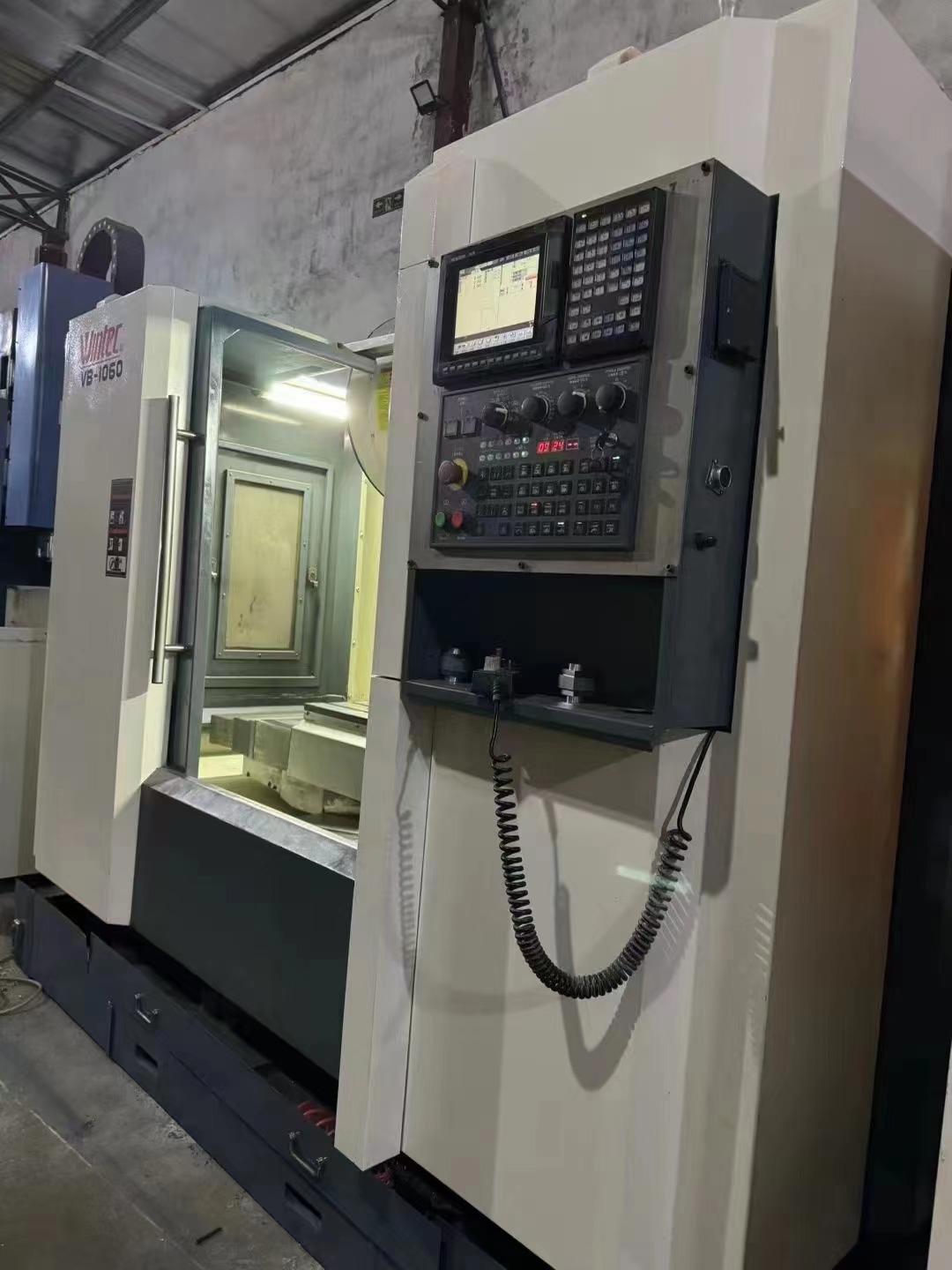

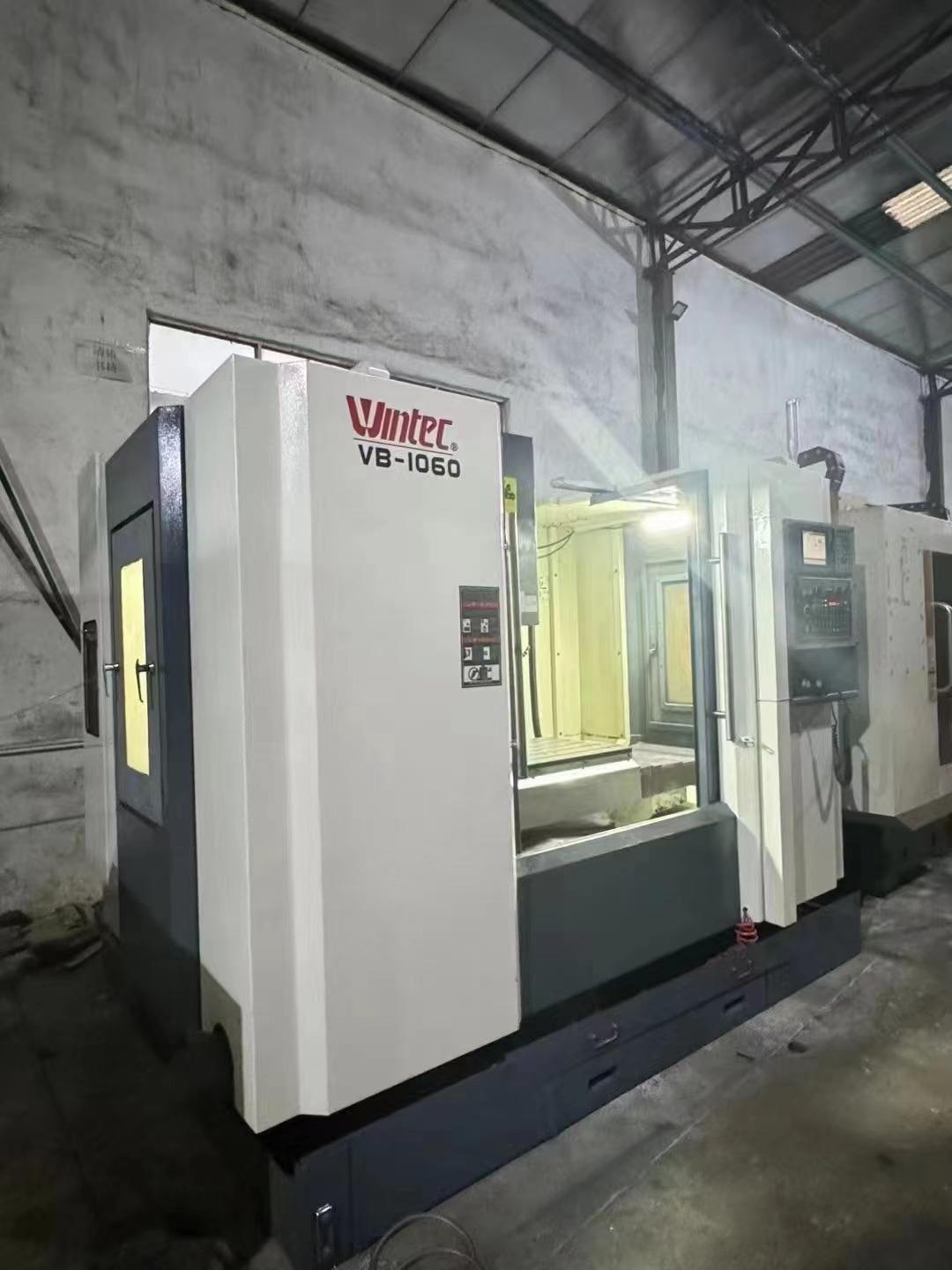

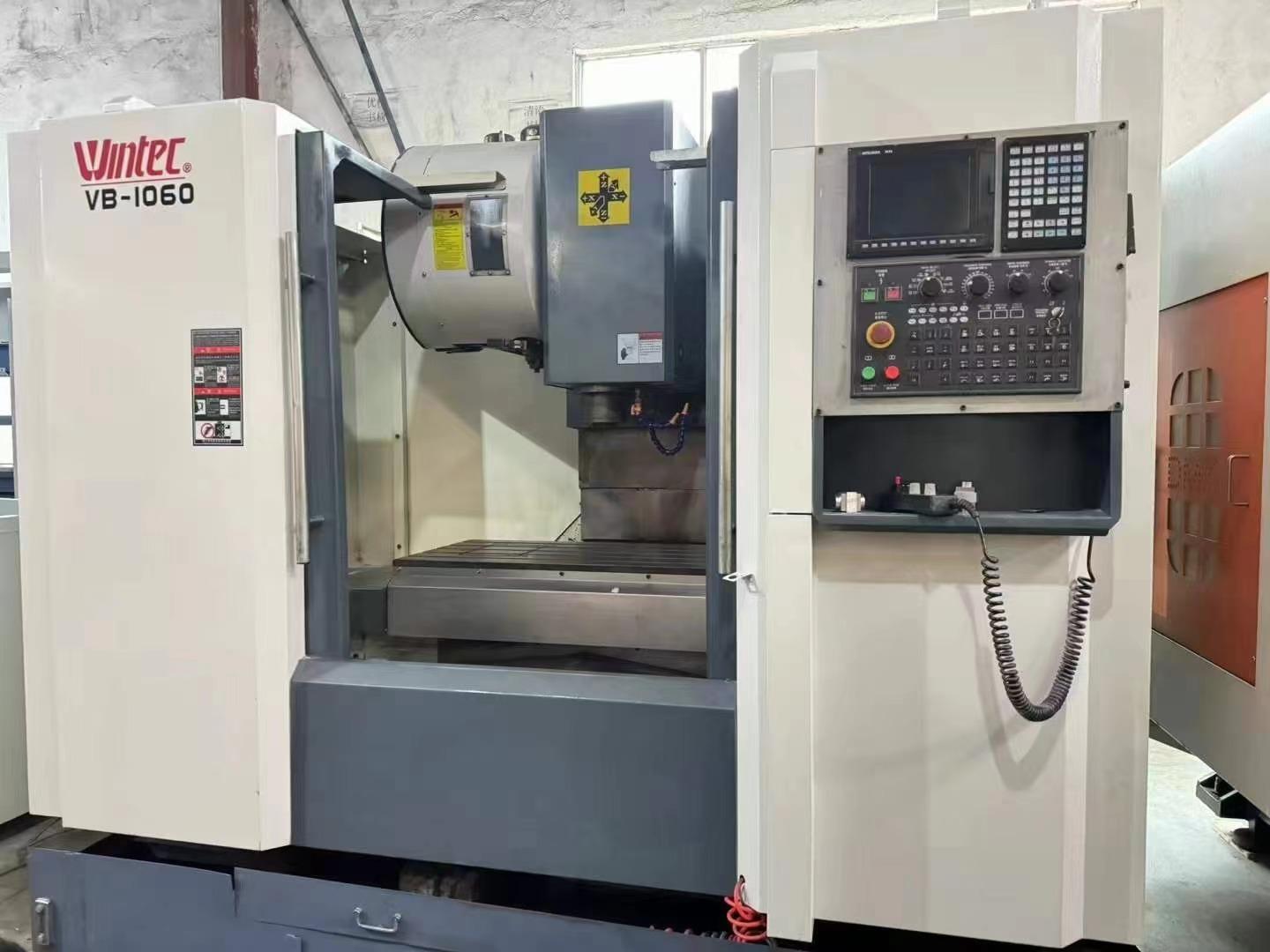

WINTEC VB-1060 Machining centre

[Product Information]:

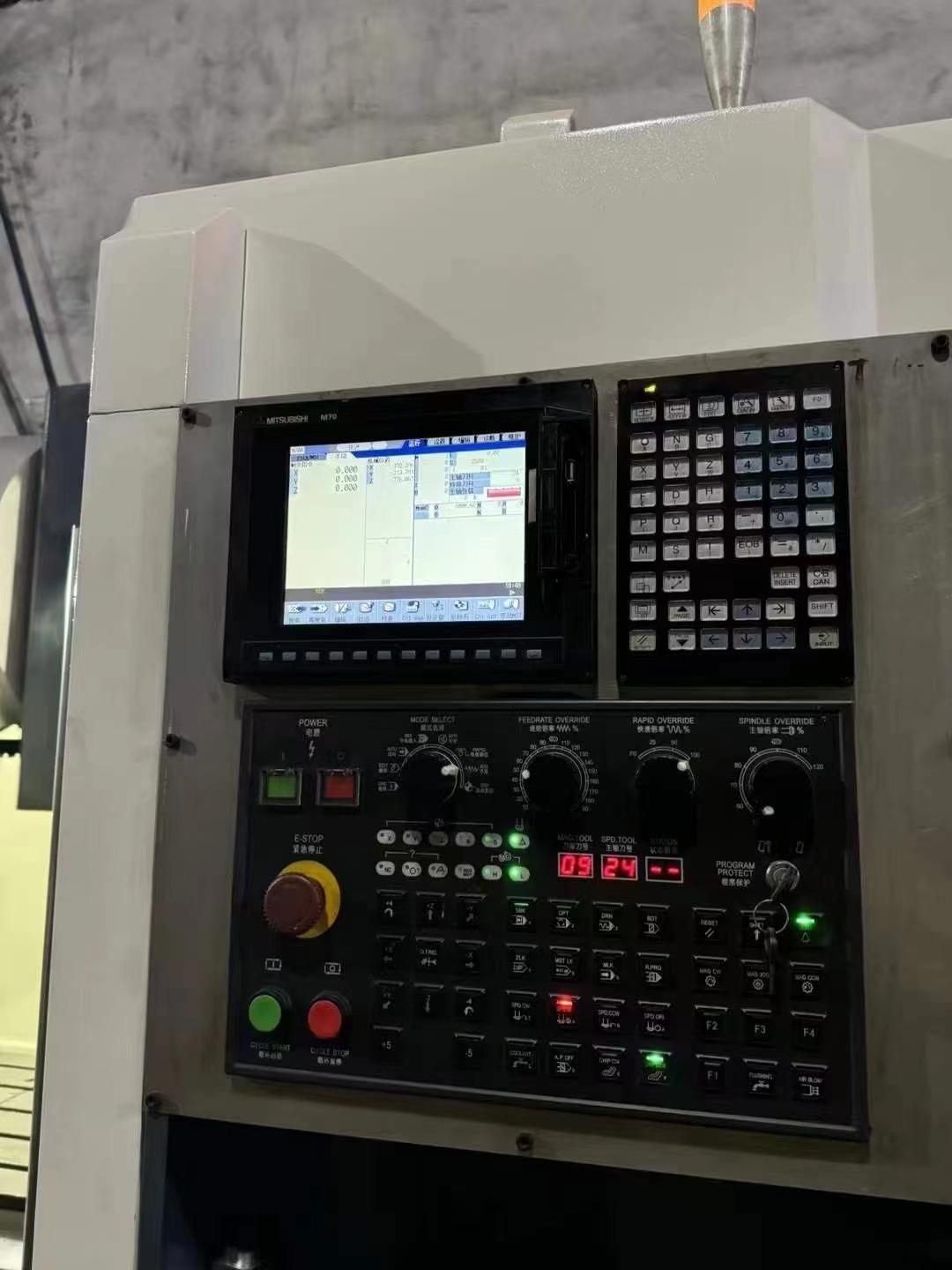

CNC System: Mitsubishi M70A

Spindle taper: BT40

Spindle motor power: 11kw

Spindle speed: 8000rpm

X*Y*Z axis travel: 1000*600*600mm

Worktable size: 1200*600mm

Maximum worktable load: 650kg

Distance from spindle nose to worktable:130-730mm

Dimensions: 4300*2740*2580mm

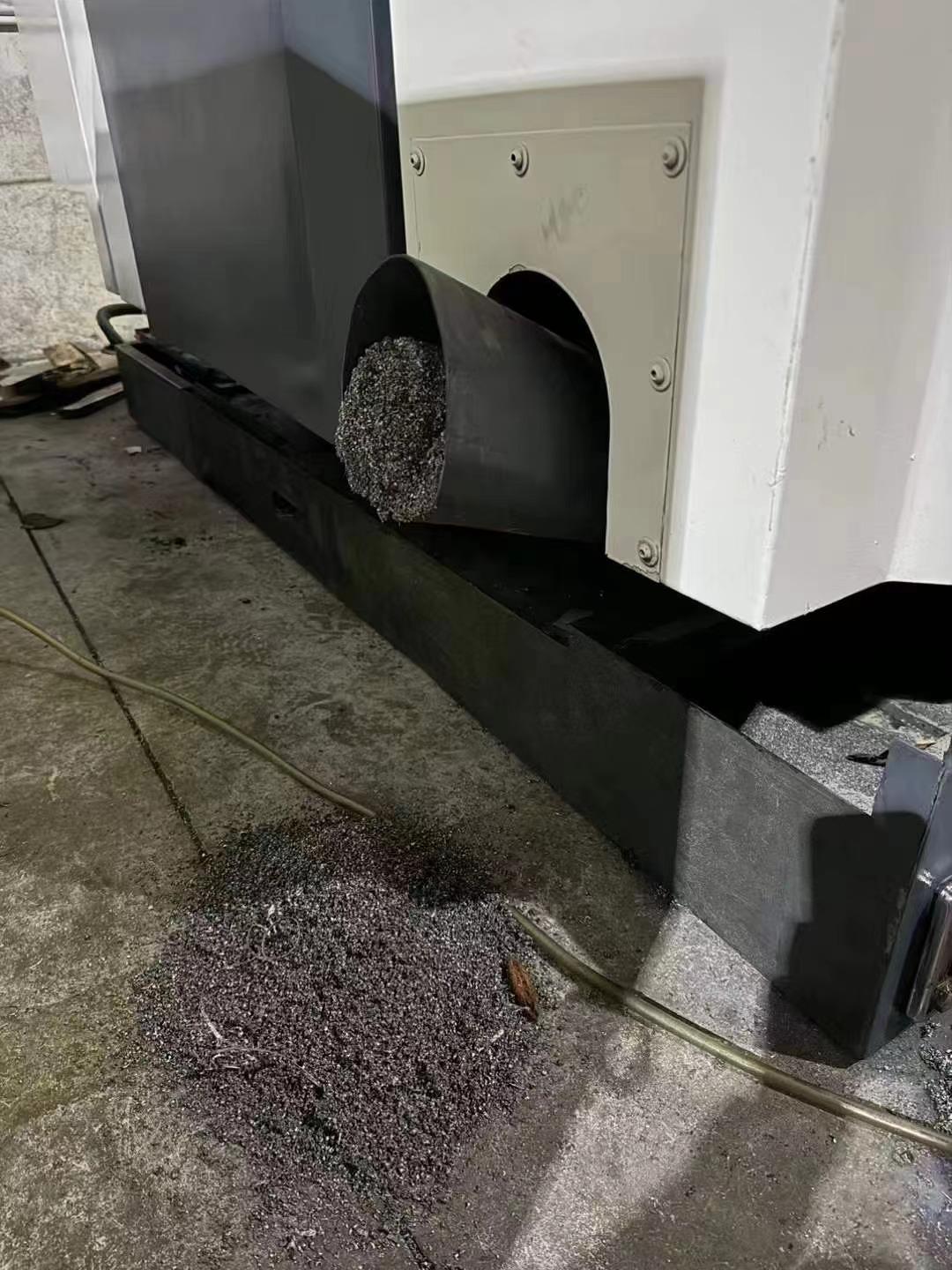

With chip conveyor
