Taikan G-2840R2 Gantry machining centre

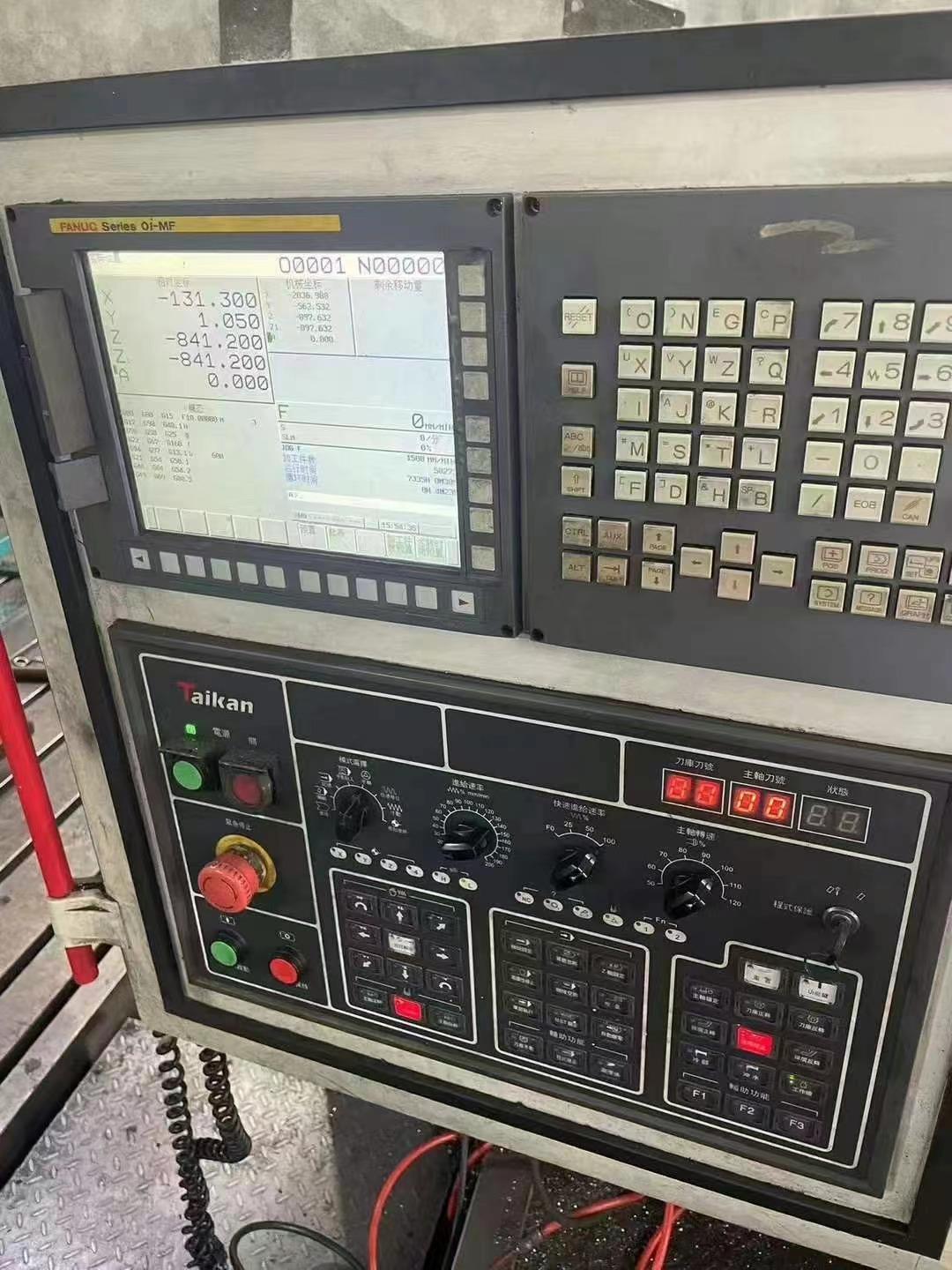

CNC System: FANUC oi-MF

Gantry width: 2800mm

Gantry height: 1500mm

With center flushing

Three-axis travel :4200*2880*1000mm

Distance from spindle end to worktable: 200-1200mm

Effective gantry width :2750mm

Worktable size :2000*4000mm

Worktable load :20000kg

T-slot width :28mm

Spindle motor power :22/26kw

Spindle speed: 20-6000rpm

Ram cross-sectional area :400*400mm

Cutting feed rate range :8000*8000*8000mm/min

Fast moving rate :12000*12000*16000mm/min

Dimensions :11000*5800*5150mm

Weight: 5000kg
