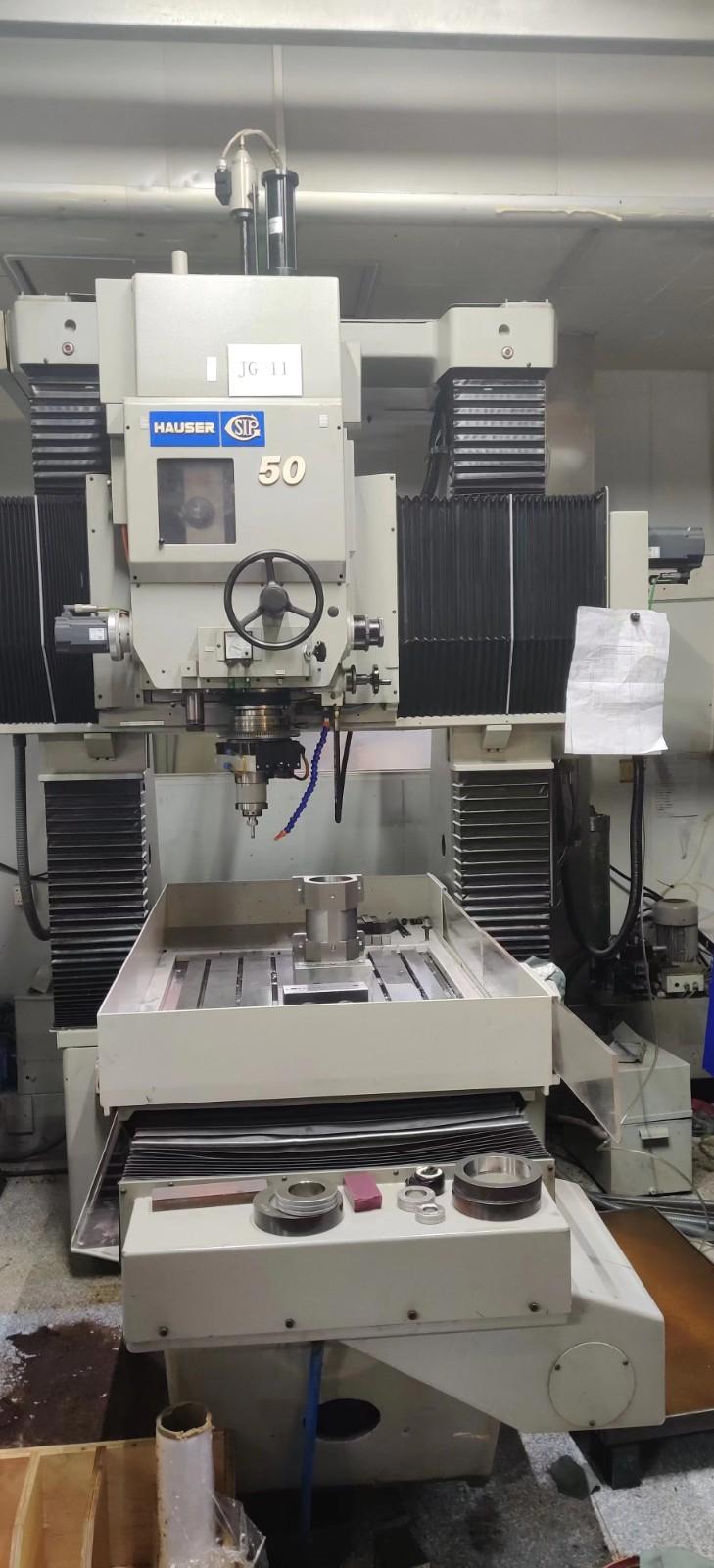

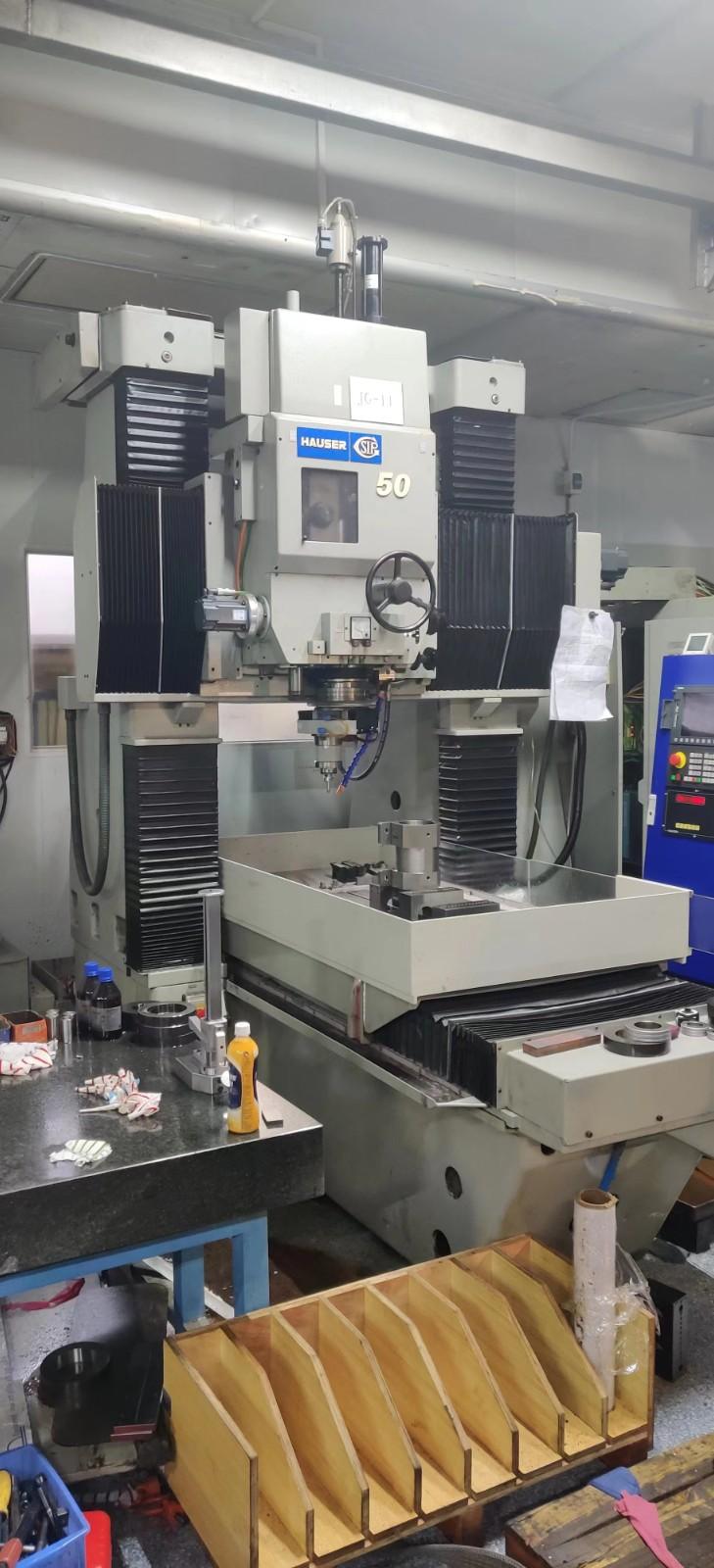

Hauser S50-CNC 314 Jig grinding machine

[Product Information]:

Brand: Hauser

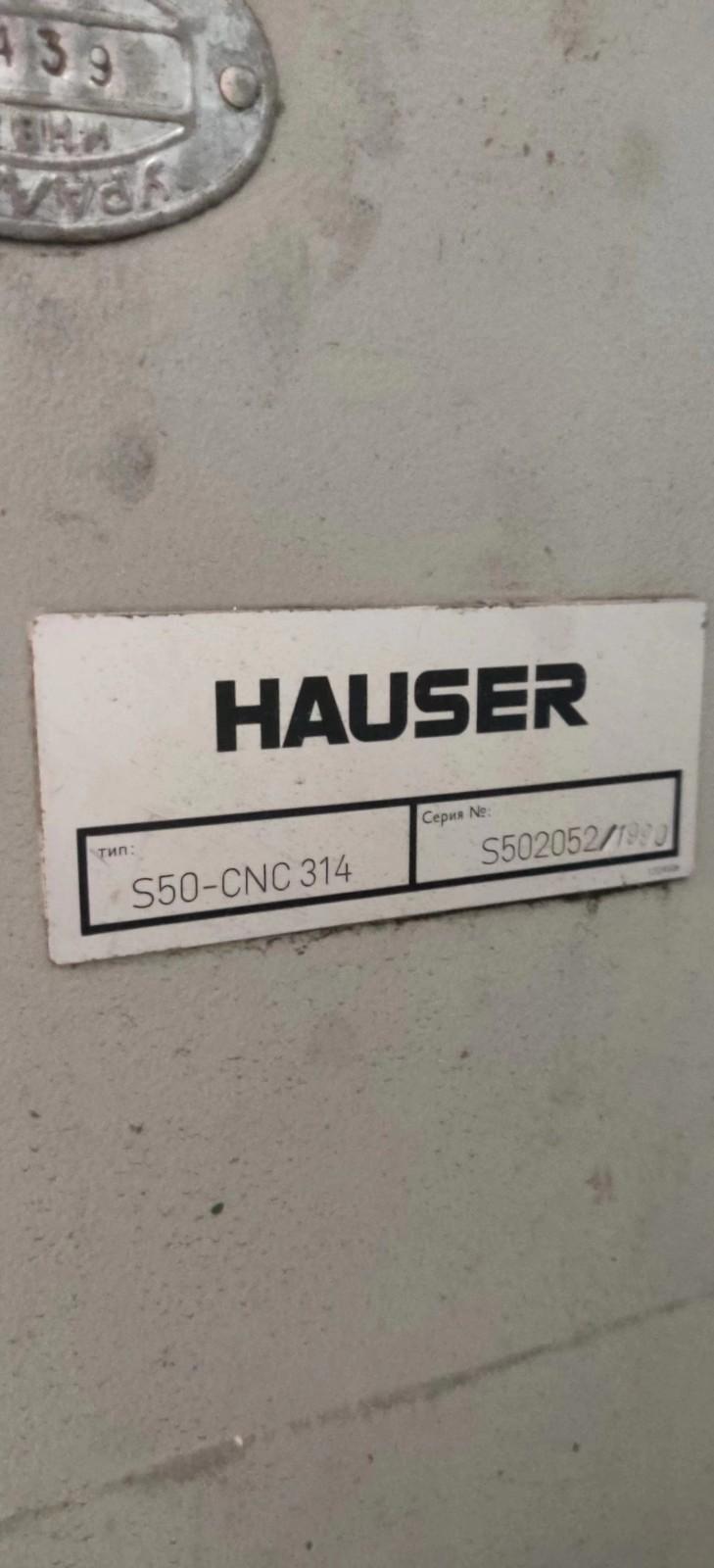

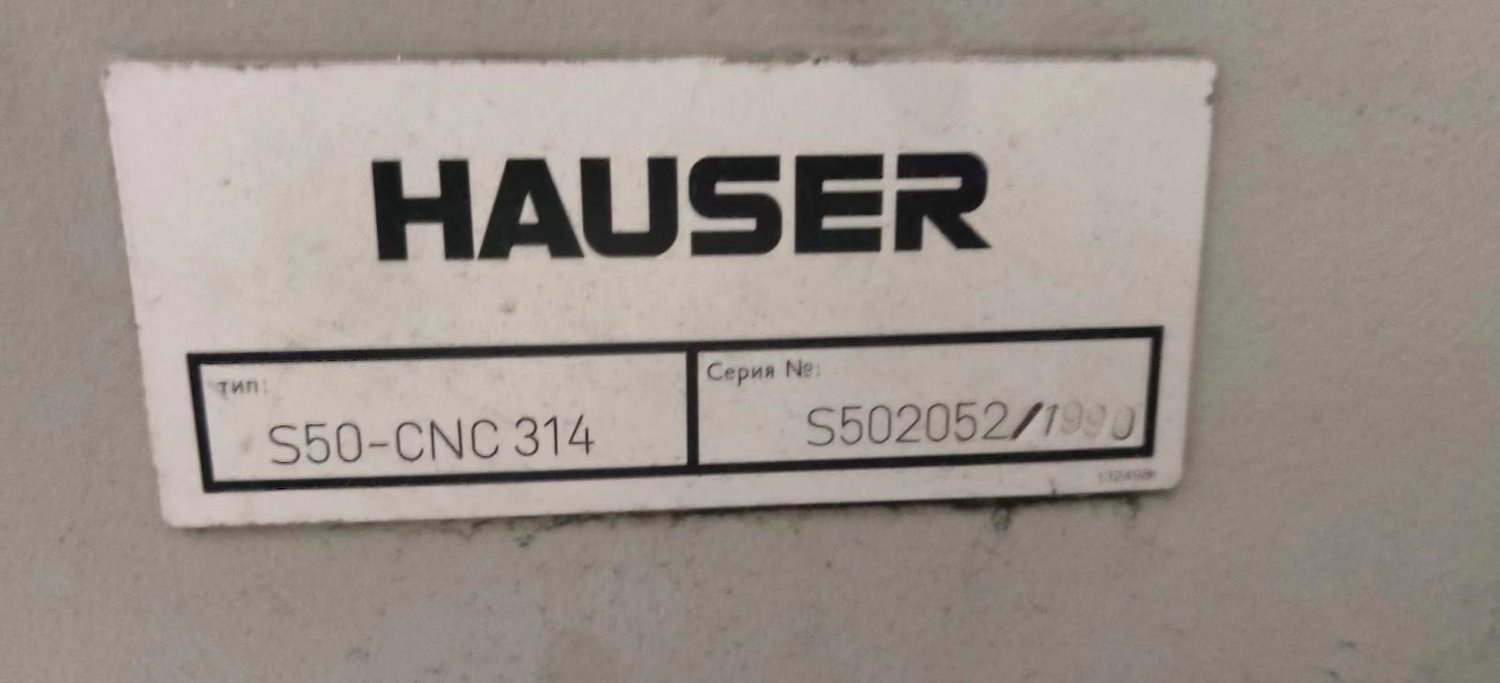

Model: S50-CNC 314

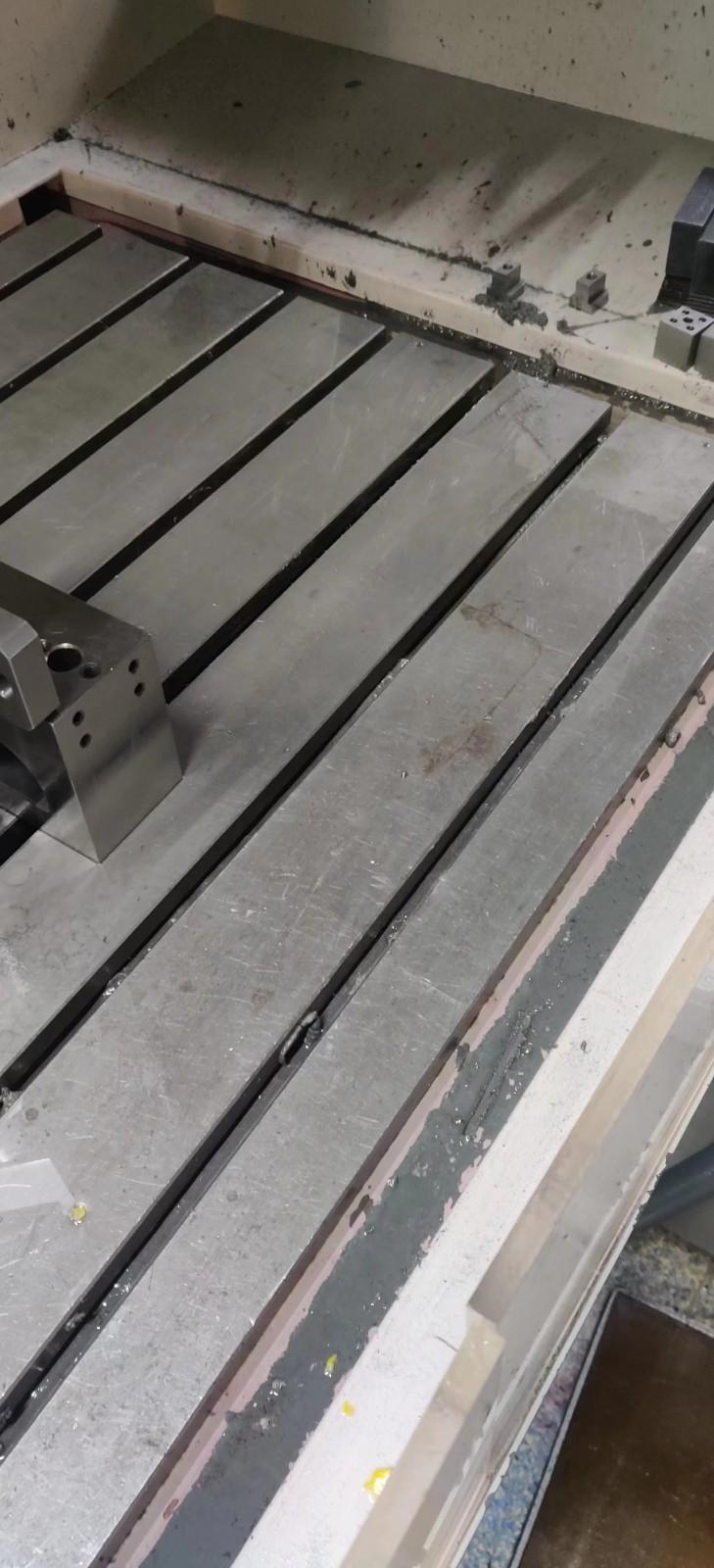

Worktable size: 1020x860mm

X travel: 900 mm

Y travel: 600 mm

Beam travel(W) : 635 mm

Max distance between columns: 950 mm

Max. load: 800 kg

Max. Feed rate：3000 mm/min

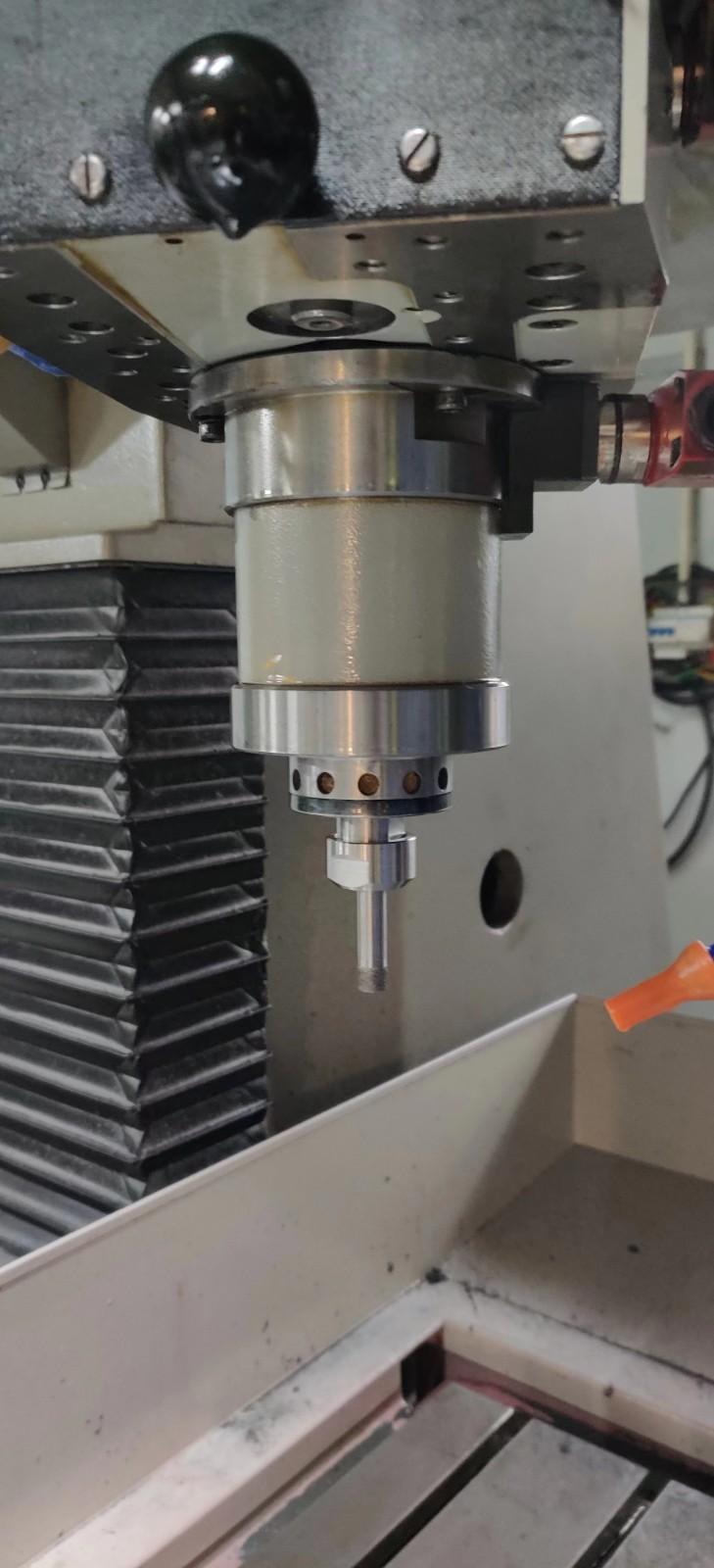

Grinding spindle travel: 180 mm

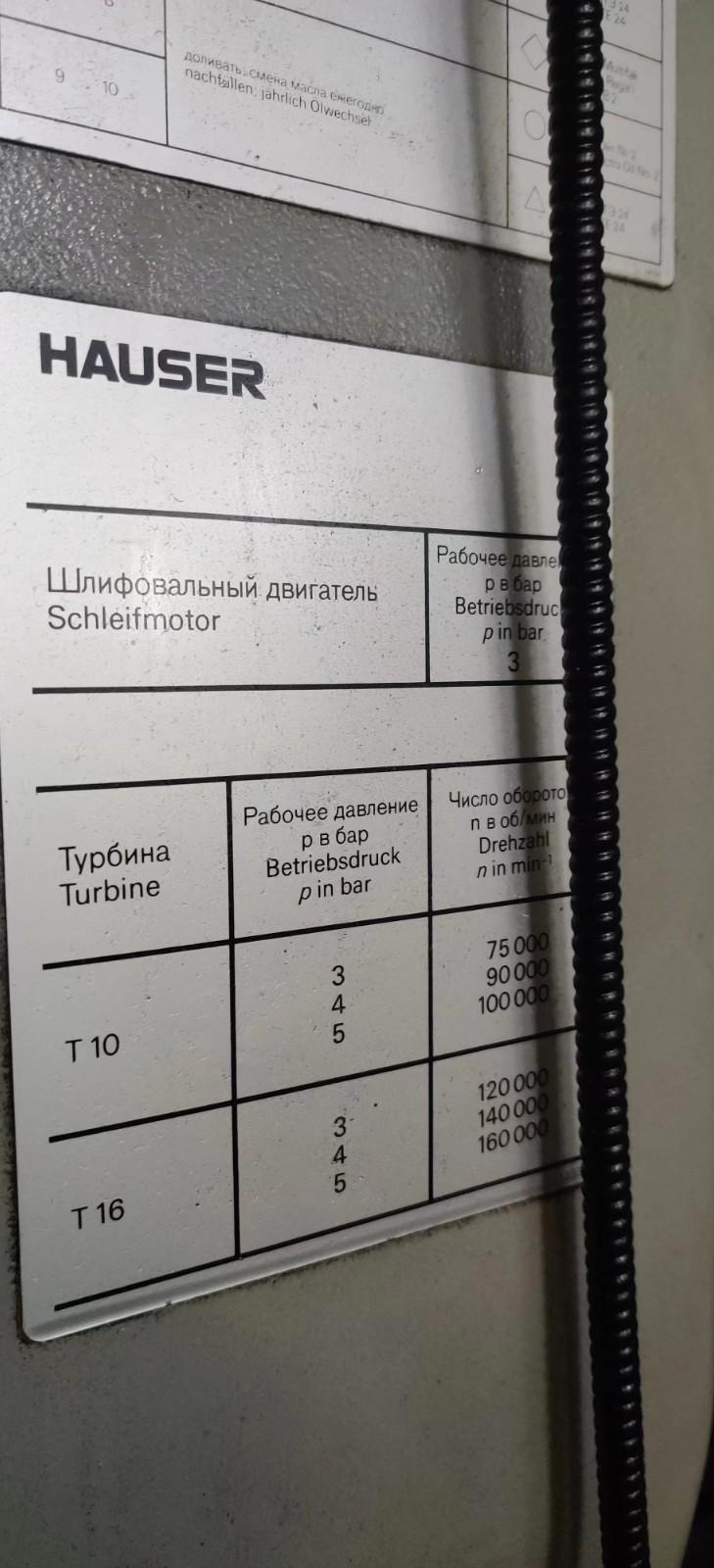

Head speed: 50-280rpm

Machine Footage: 3600x5300mm

Machine weight: 8000 kg
