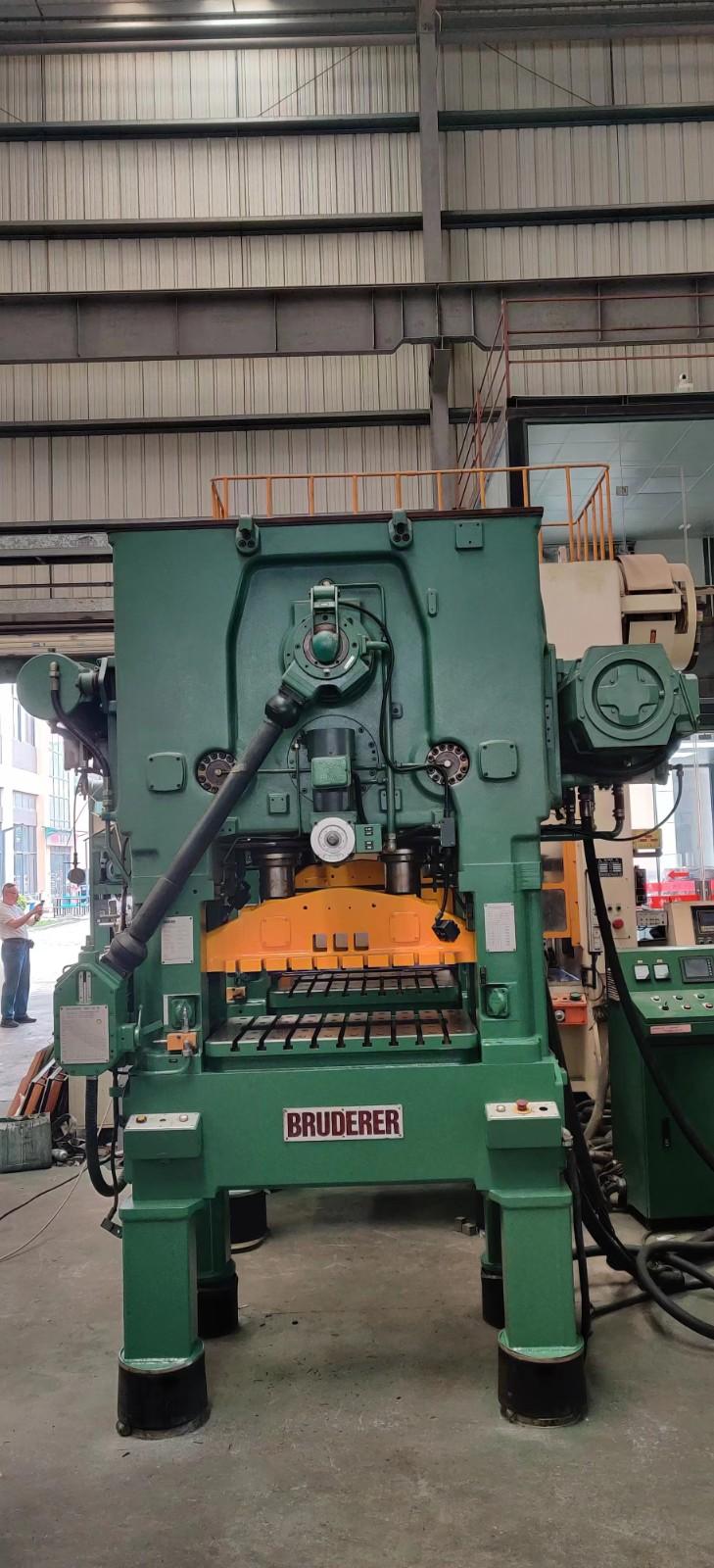

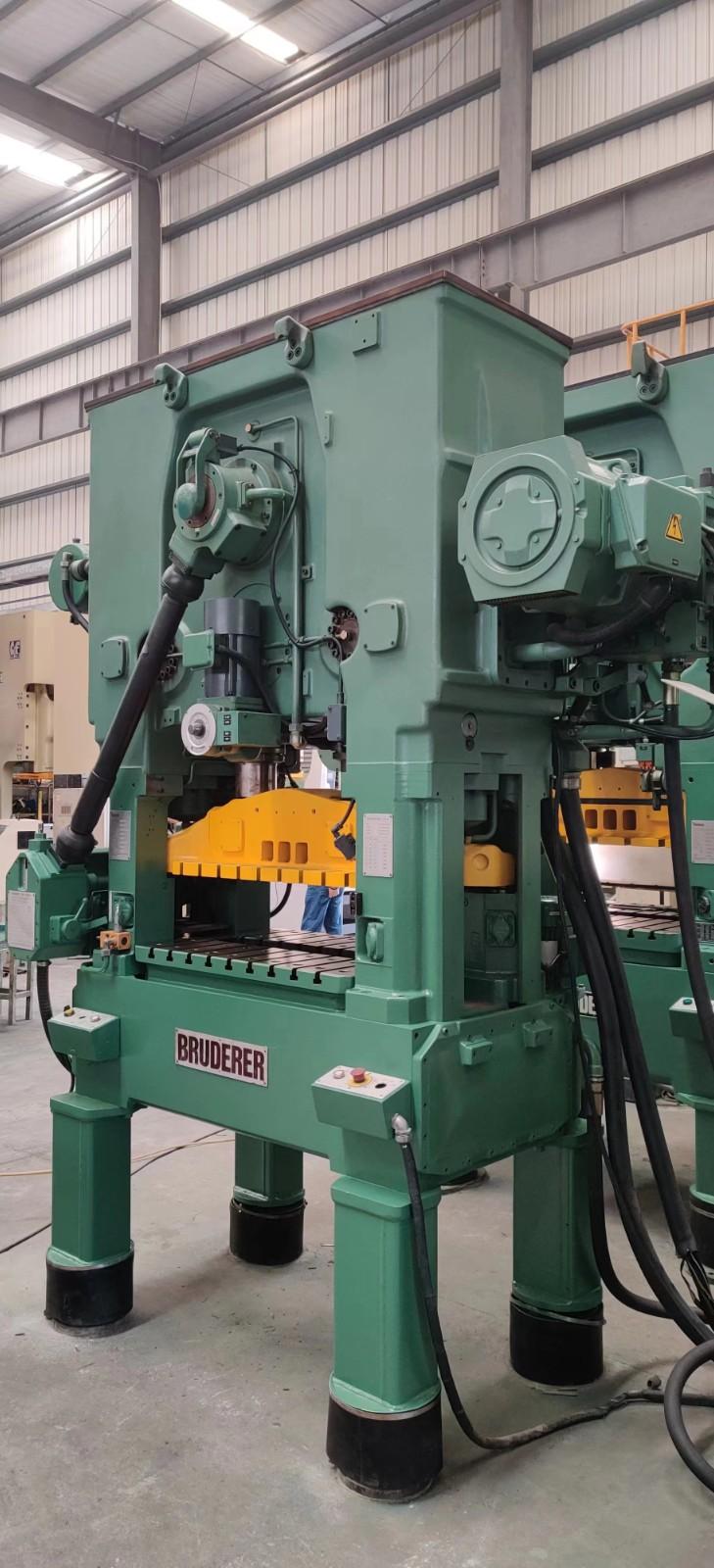

BRUDERER 50T High speed punch

Brand：BRUDERER

Model: 50T

Max. Pressure: 500 kN (50 T).

Speed range: 100 – 1200 spm.

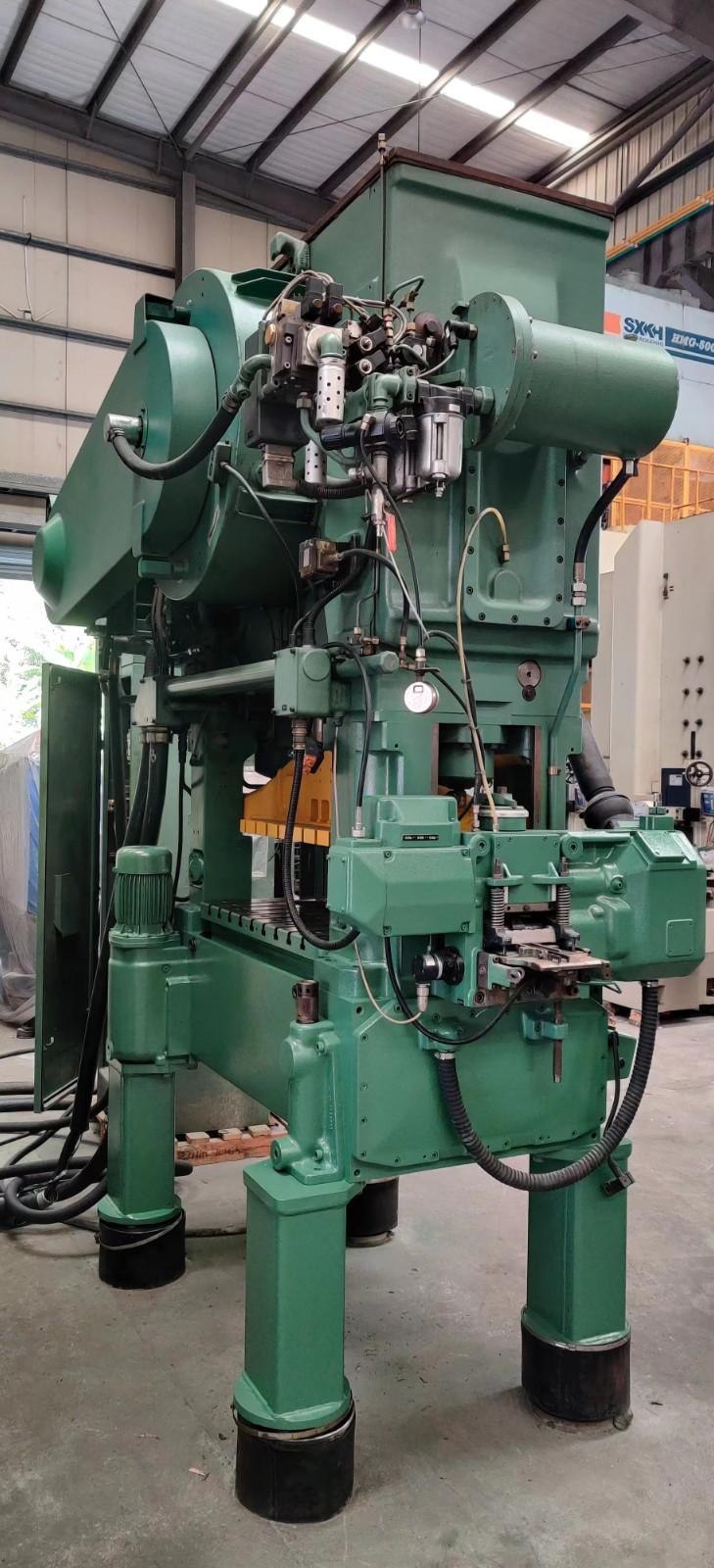

Fitted with roller-gripper feed unit BBV 202/120 on left-hand side.

Max. strip width: 203 mm.

Max. strip thickness: 6 mm.

Max. feeding pitch: 120 mm.

Adjustable stroke: 16; 19; 25; 32; 38; 44; 51.

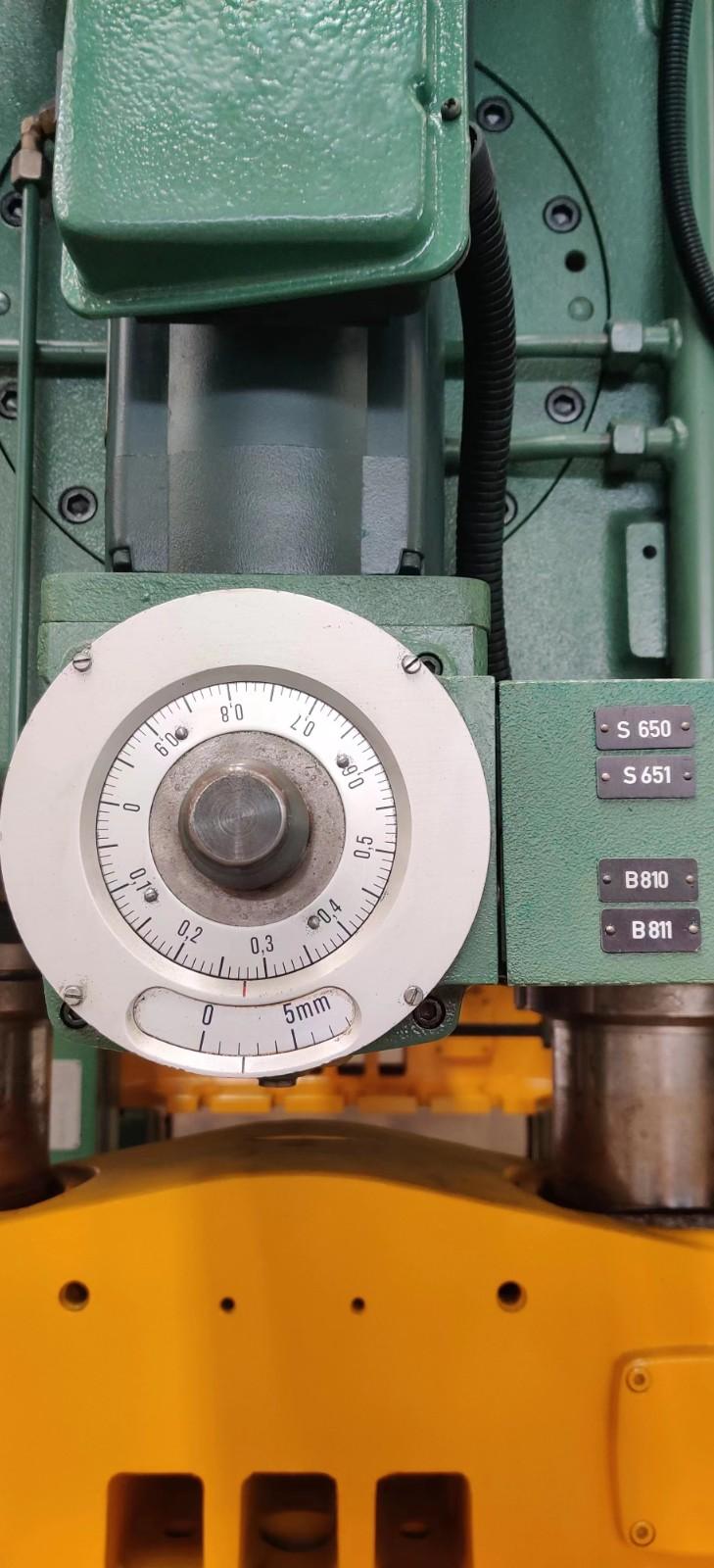

Ram height adjustment: 60 mm.

Max. Tool width clearance between columns: 770 mm.

Max. Strip clearance width: 203 mm.

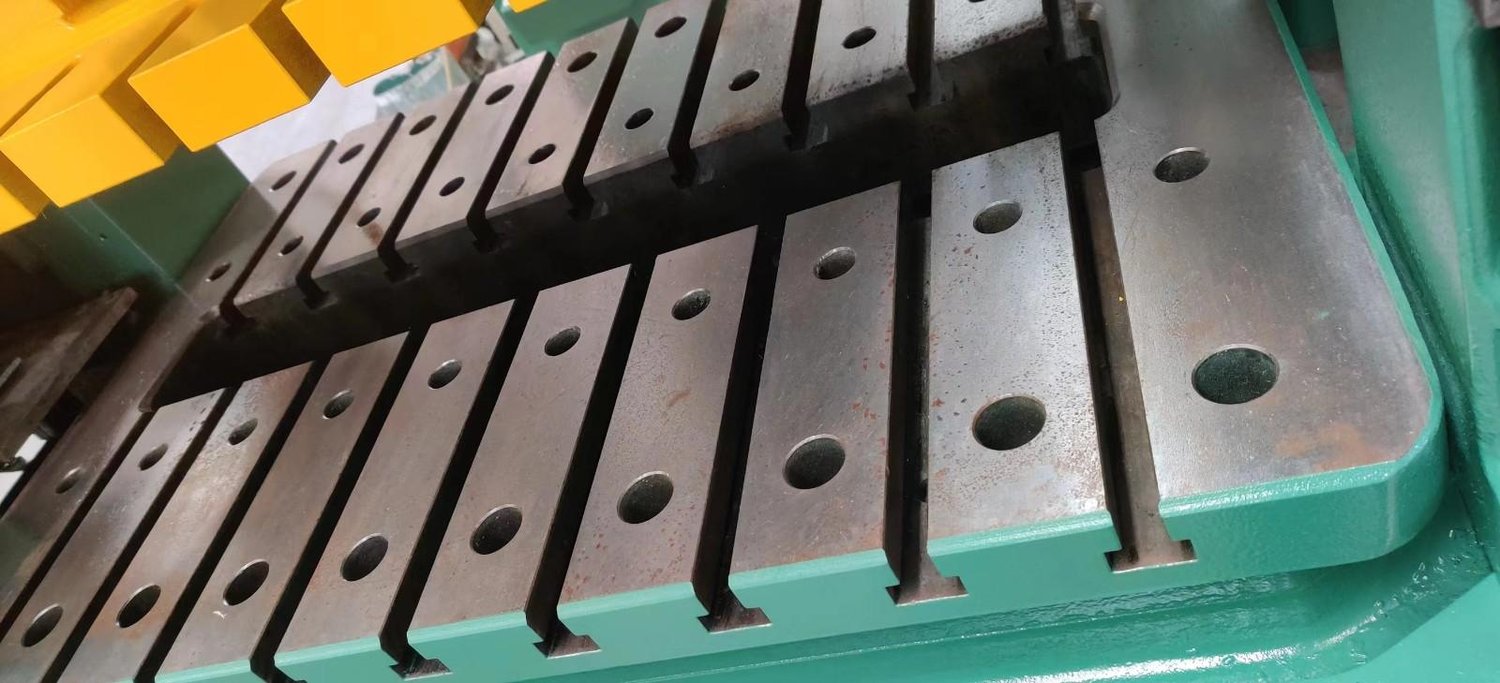

Bed opening: 730 x 250 mm.

Connected load: 28 kw.

Machine dimensions: H 3040 x W 2710 x D 1820 mm.

Weight of machine: cca. 7800 kg.

Electrical cabinet and control.

Oil pump. Oil cooler.

Fitted with spring feet dampers.

Front and rear safety guards with inspection glass.
