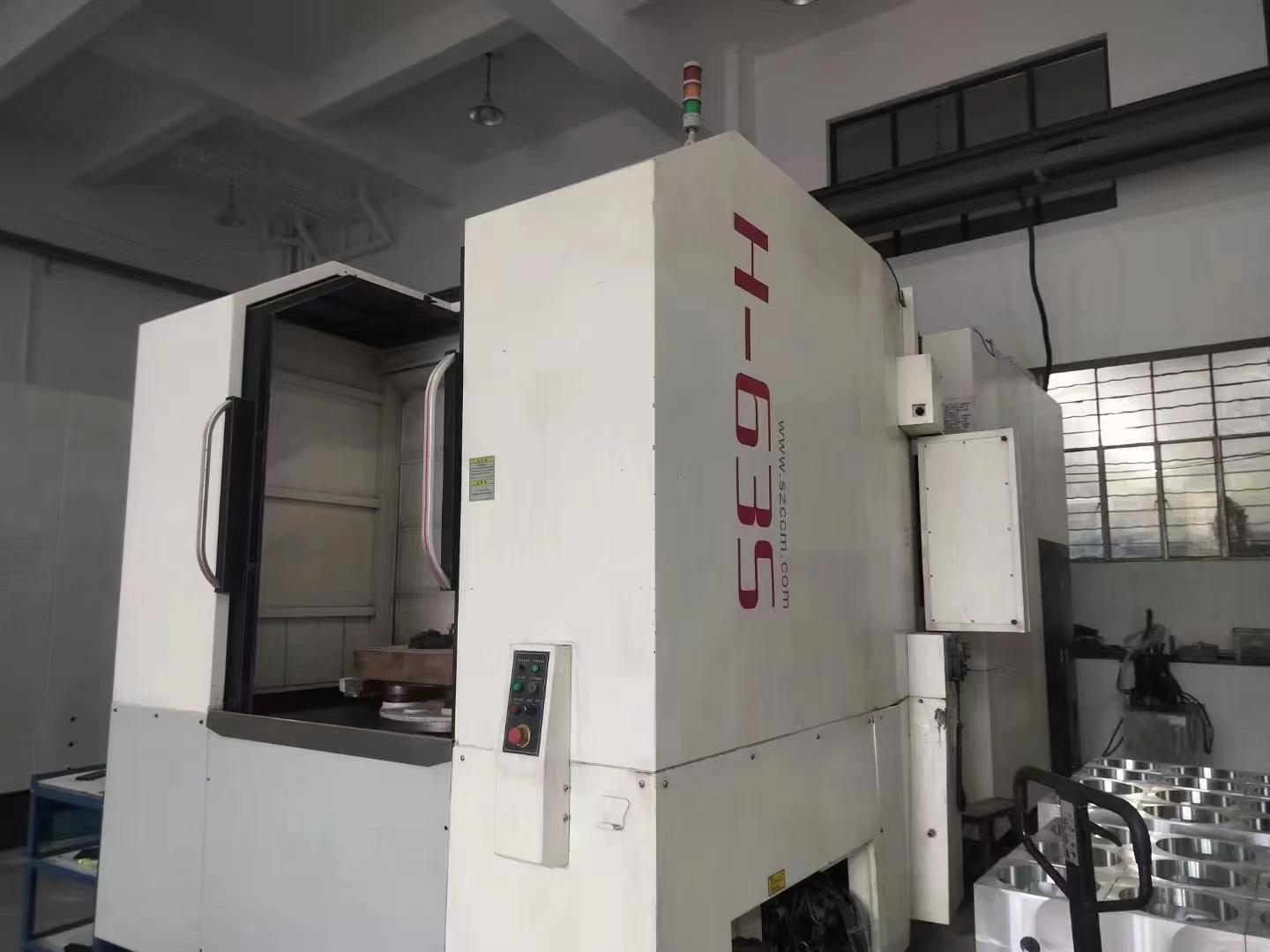

Taikan TH-63S Horizontal Machining centre
[Product Information]:
- Inventory number：61360
- Brand：Taikan

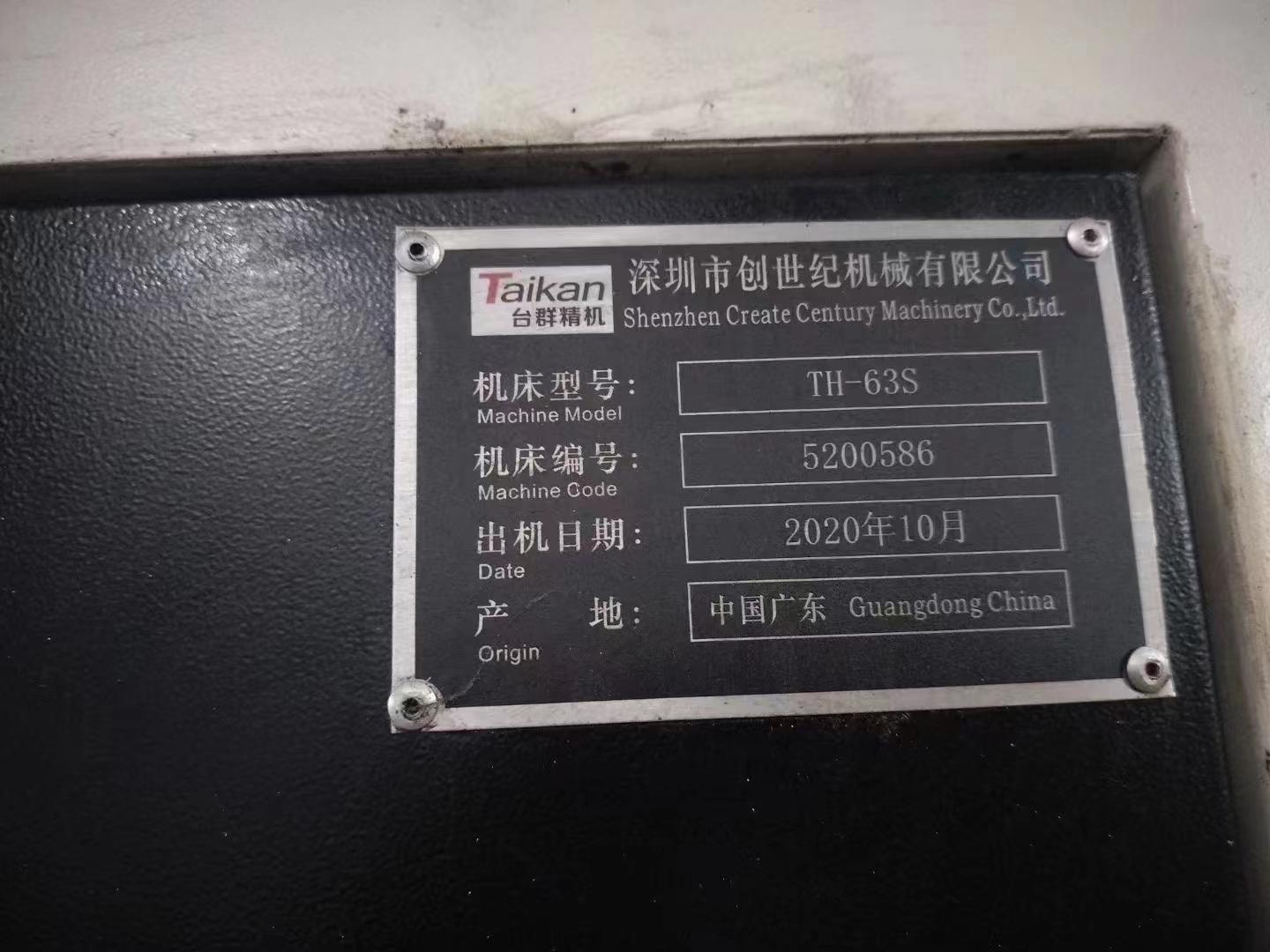

- Model：TH-63S
- Origin：Taiwan of China
- Location：China
- Year：2020
- Create Time：2024-06-29
Specifications:
Three axes travel: 1100*850*900mm
Distance from spindle nose to worktable center: 100-1000mm
Distance from spindle center to worktable surface: 50-900mm
Maximum workpiece rotating diameter: 1000mm
Worktable size: 630*630mm

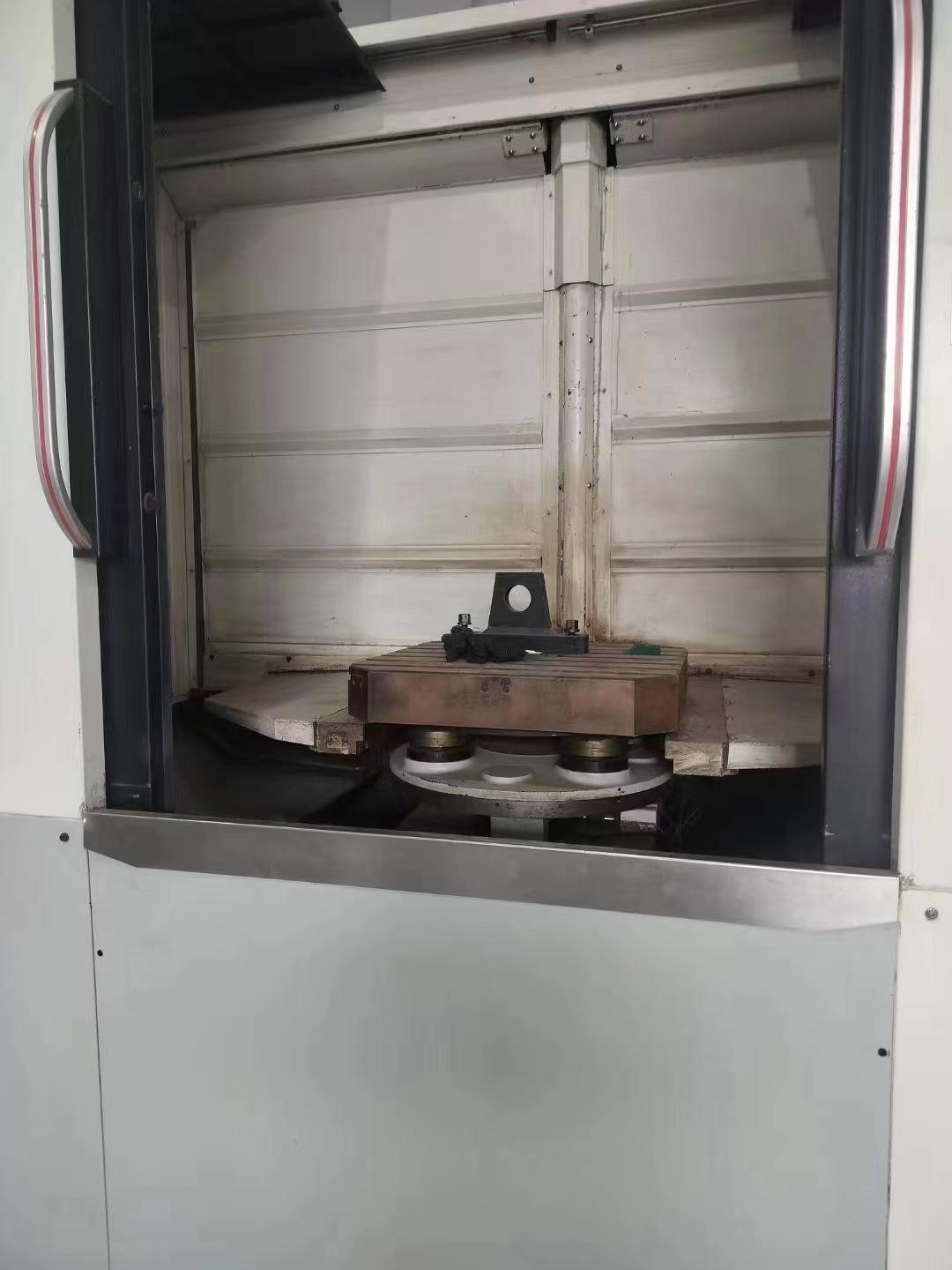

Twin worktables
Worktable load: 1200kg
T-slot: 7*18*80mm
Spindle motor power: 15/18.5kw
Spindle speed: 6000rpm
Spindle diameter: 190mm
BT50 tool holder
Three axes fast feed rate: 24m/min

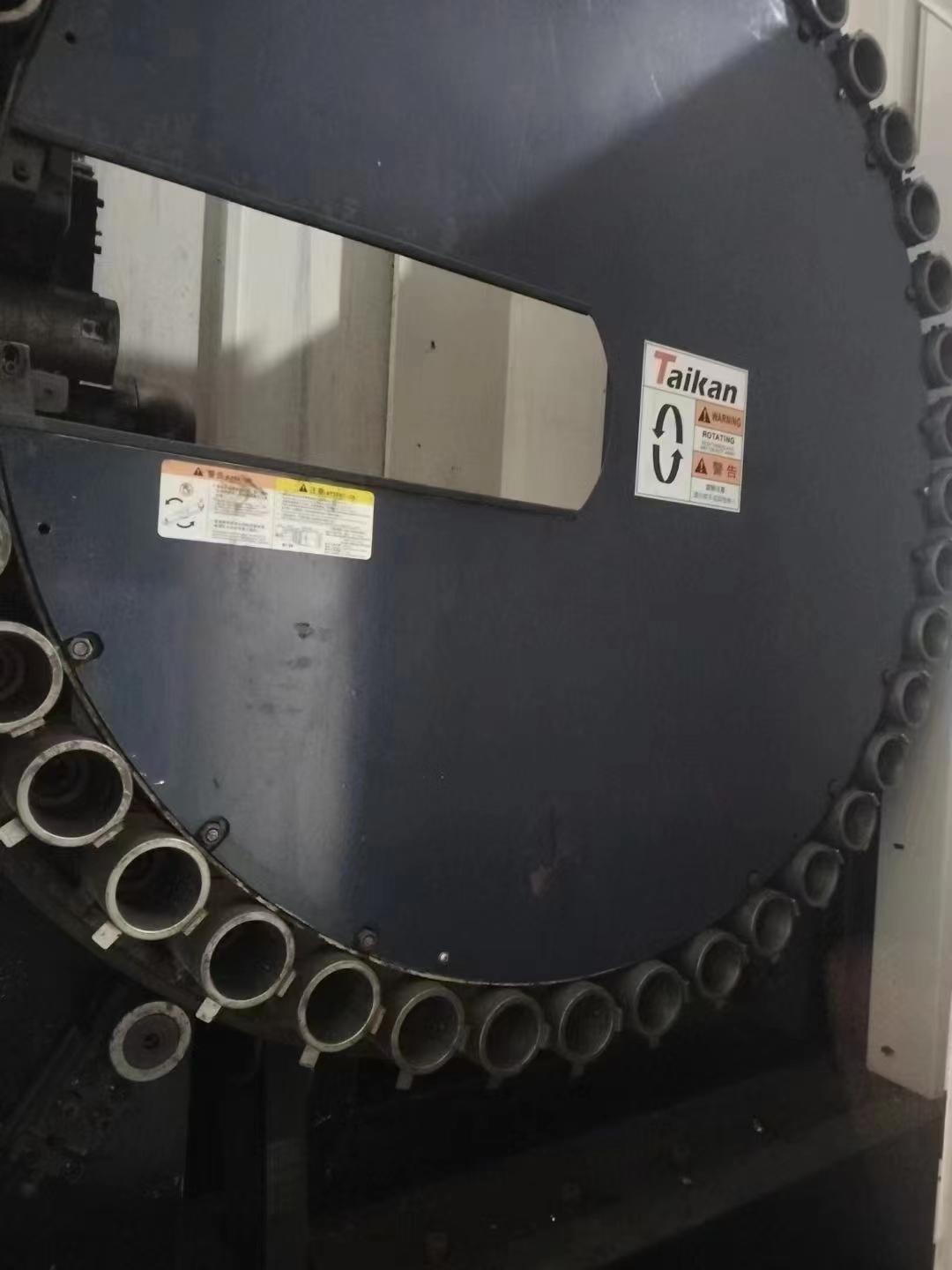

Tool magazine: 40
Tool weight: 20kg
Tool length: 400mm
Maximum tool diameter: 140/240mm
Machine dimension: 7250*3900*3620mm
Machine weight: 19500kg
