DELANG VMC-1580 Machining centre

[Product Information]:

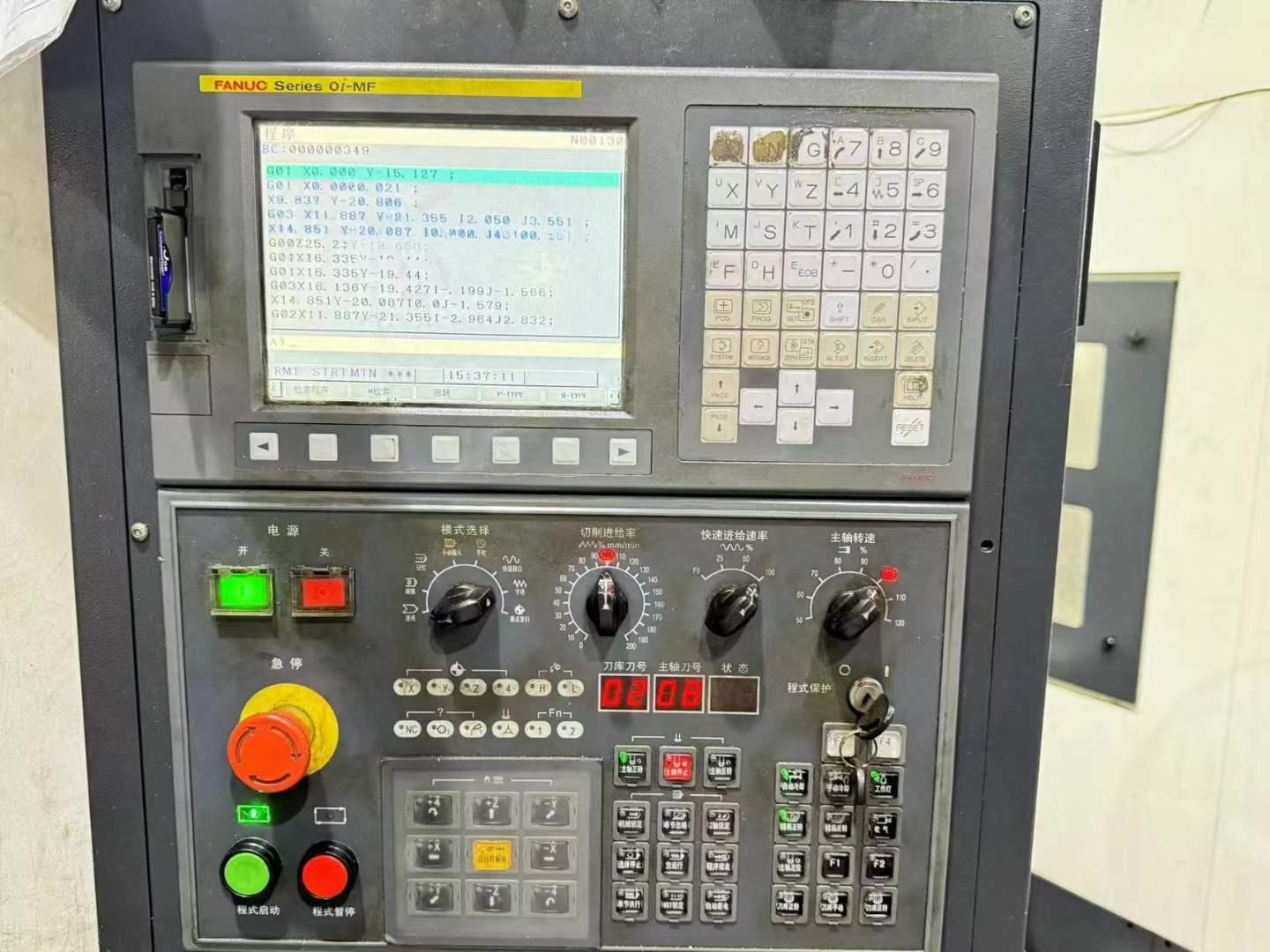

Fanuc MF CNC system

Worktable size: 1700*800mm

Maximum worktable load: 1500kg

T-slot: 7*18*110mm

Three axes travel: 1500*800*700mm

Distance from spindle nose to worktable surface: 130-830mm

Spindle speed: 8000/6000rpm

Spindle motor power: 18.5/22kw

Three axes fast feed rate: 20m/min

Tool magazine: 24

Positioning accuracy: 0.012mm

Repositioning accuracy: 0.008mm

Machine weight: 12000kg

Machine dimension: 4300*3000*3500kg
