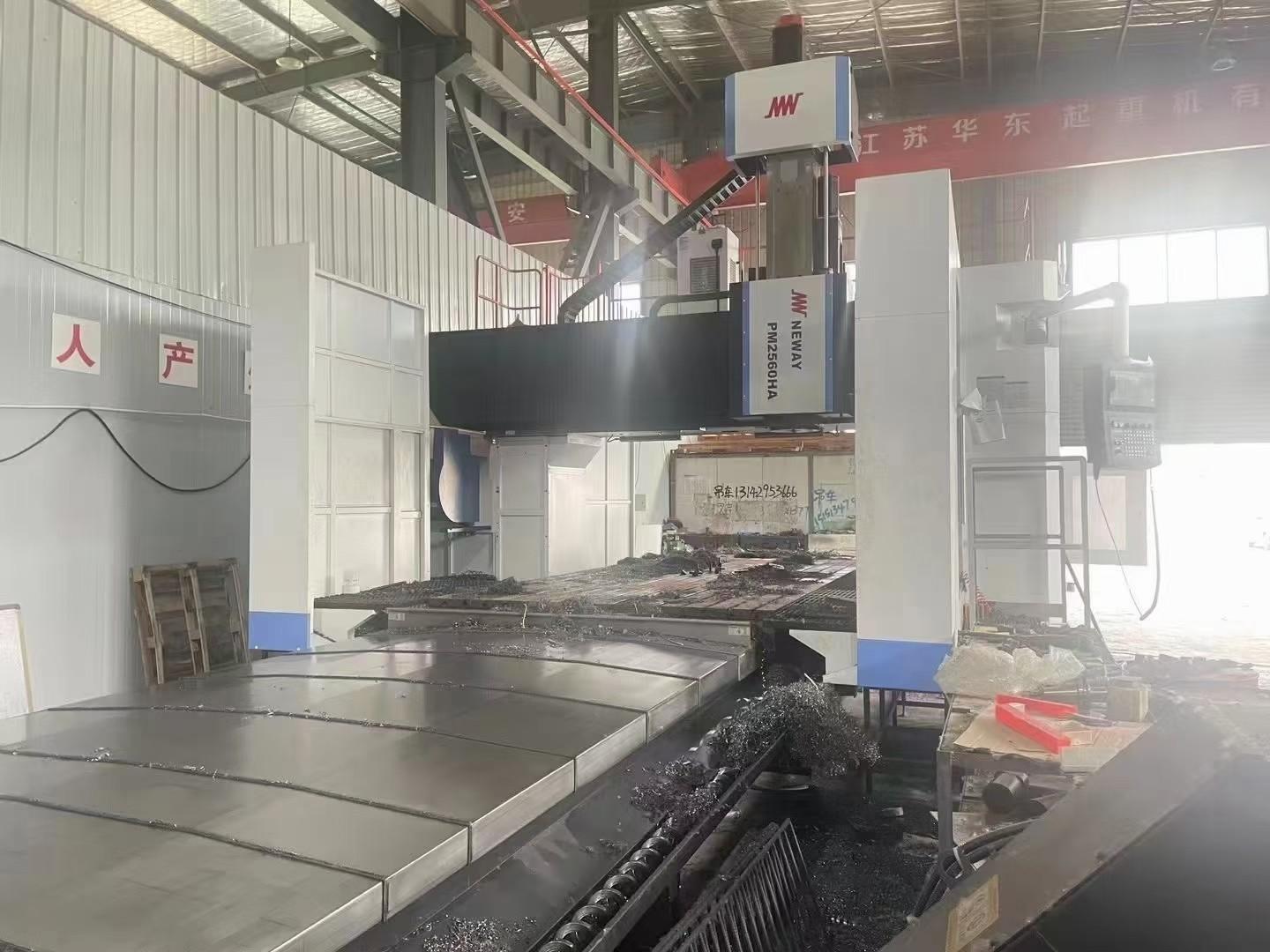

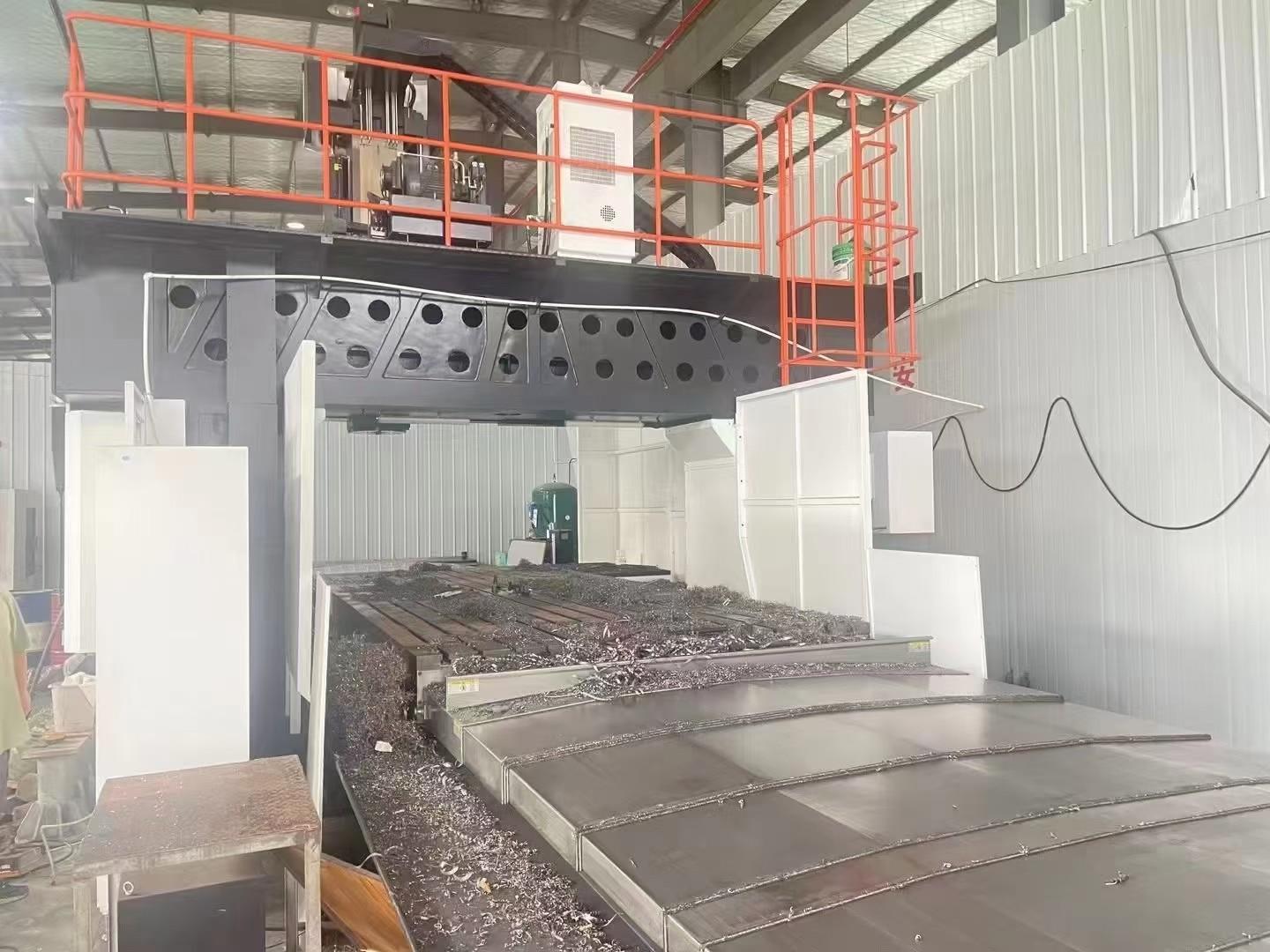

Neway PM2560HA Gantry machining centre

[Product Information]:

Three axes travel: 6200*3700*1000mm

Worktable size: 2500*6000mm

Worktable load: 30000kg

Distance from spindle nose to worktable surface: 200-1200mm

Tool holder: BT50

Spindle speed: BT50

Maximum torque: 770/910N.m

Spindle motor power: 22/26kw

Three axes fast feed rate: 12m/min

Machine weight: 65000kg
