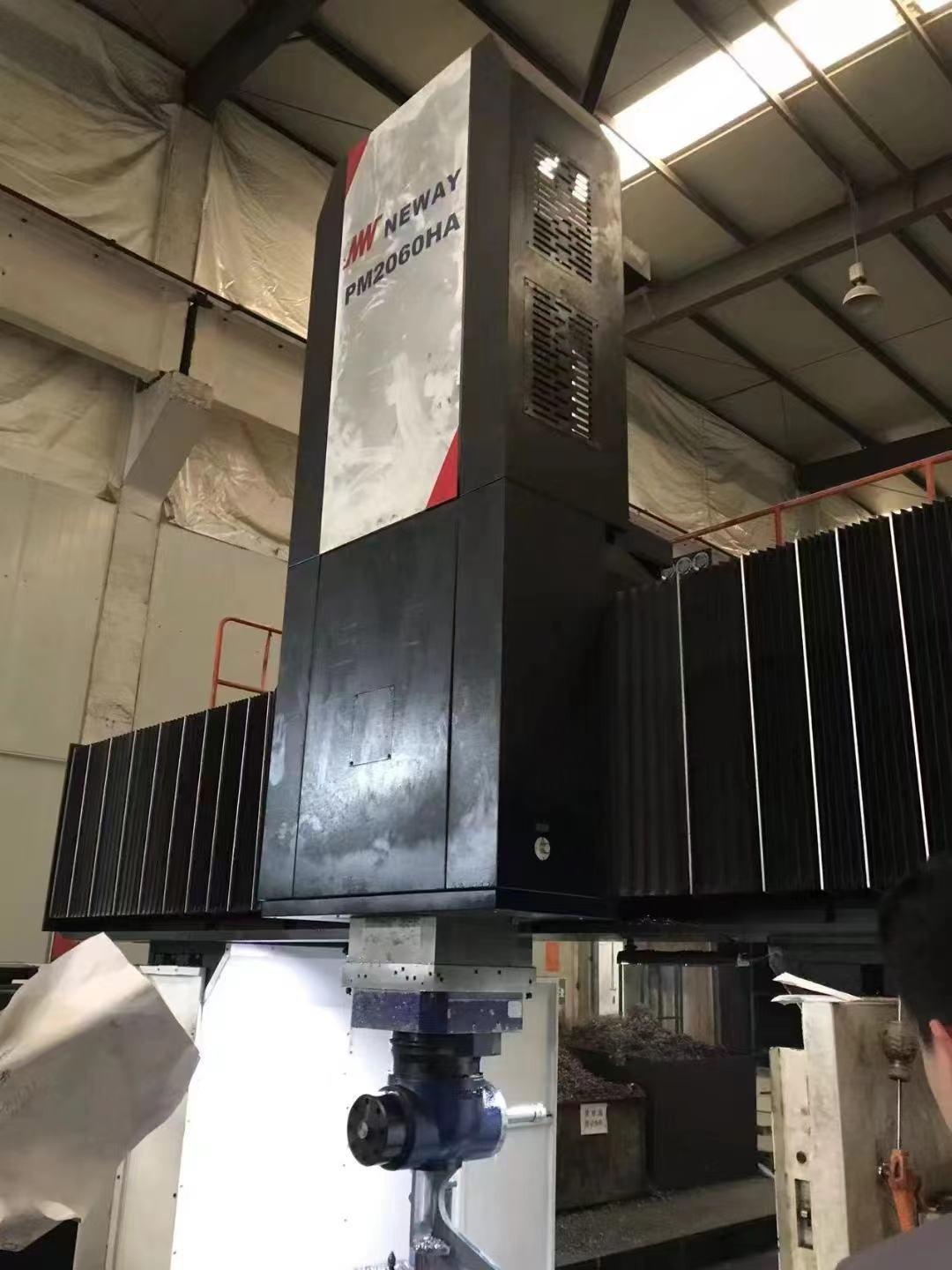

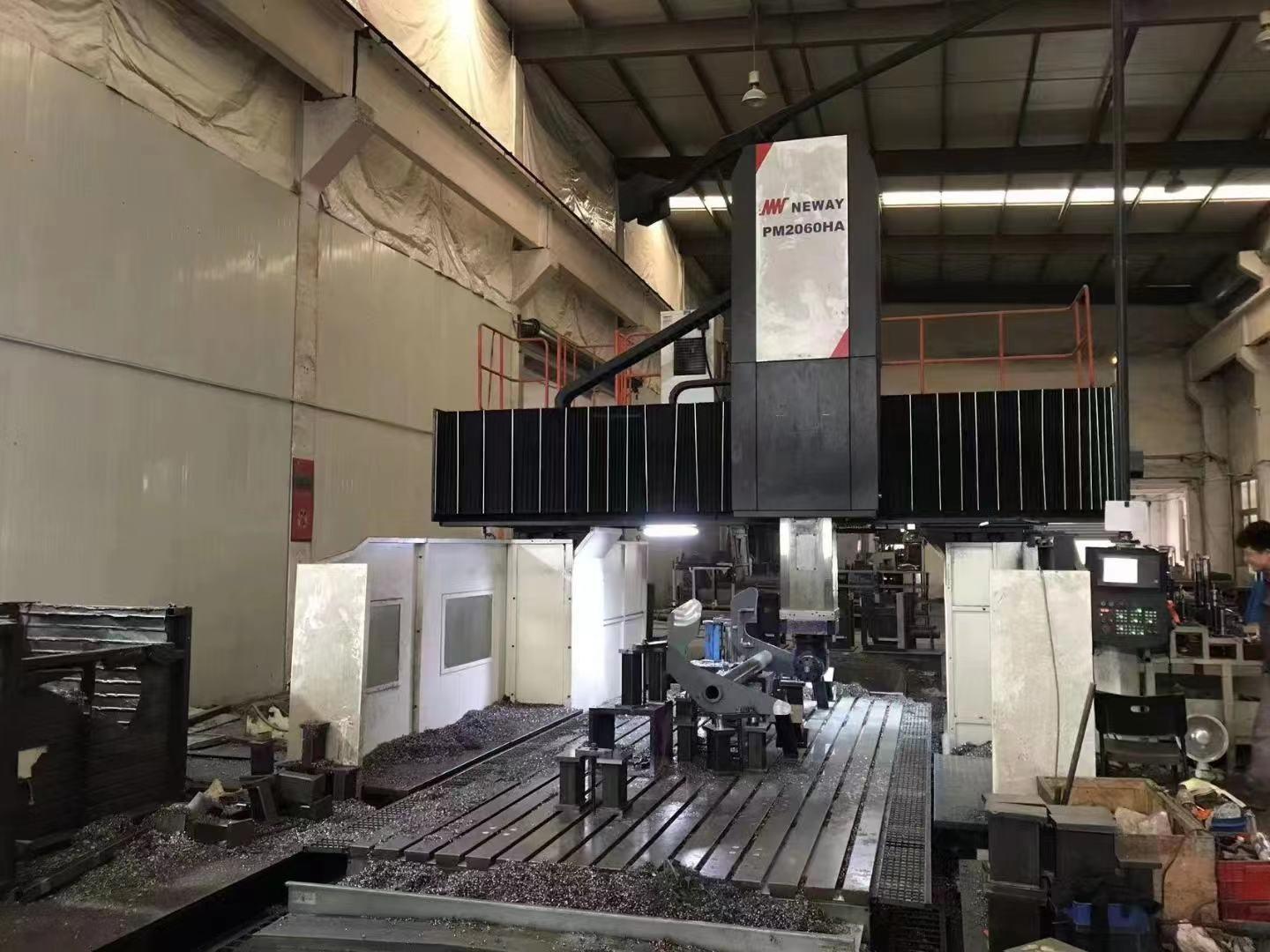

Neway PM2060HA Gantry machining centre

[Product Information]:

Three axes travel :6200x2700x1250mm

Distance from spindle nose to worktable :1500mm

Gantry width :3200mm

Machining height: 1300mm

Square ram :420x420mm

Worktable size :2000x6000mm

Worktable load :26000kg

Spindle speed :4500rpm

Main motor power :22-26kw

Machine footage :15000x6000x5400mm

Machine weight :55000kg
