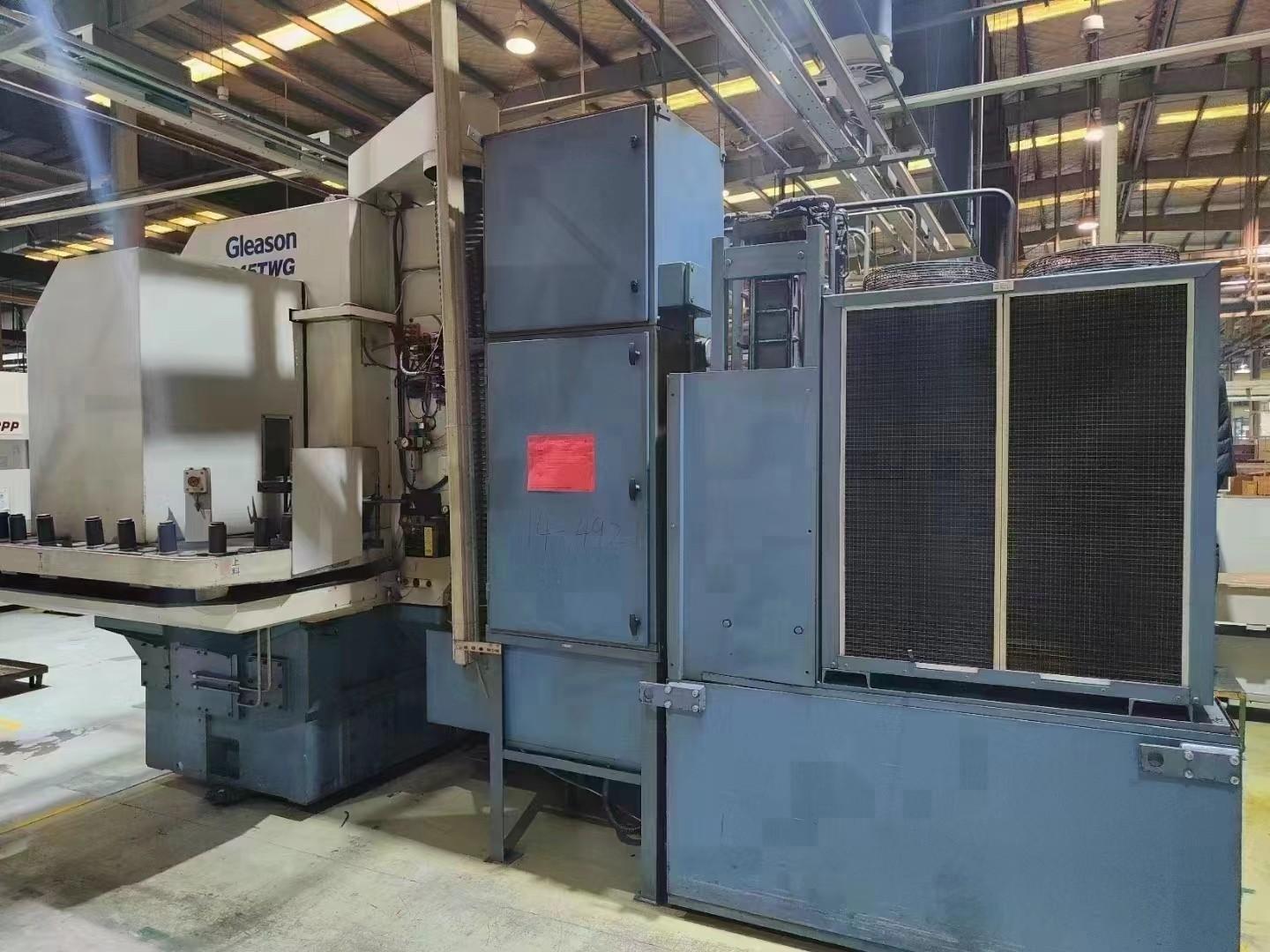

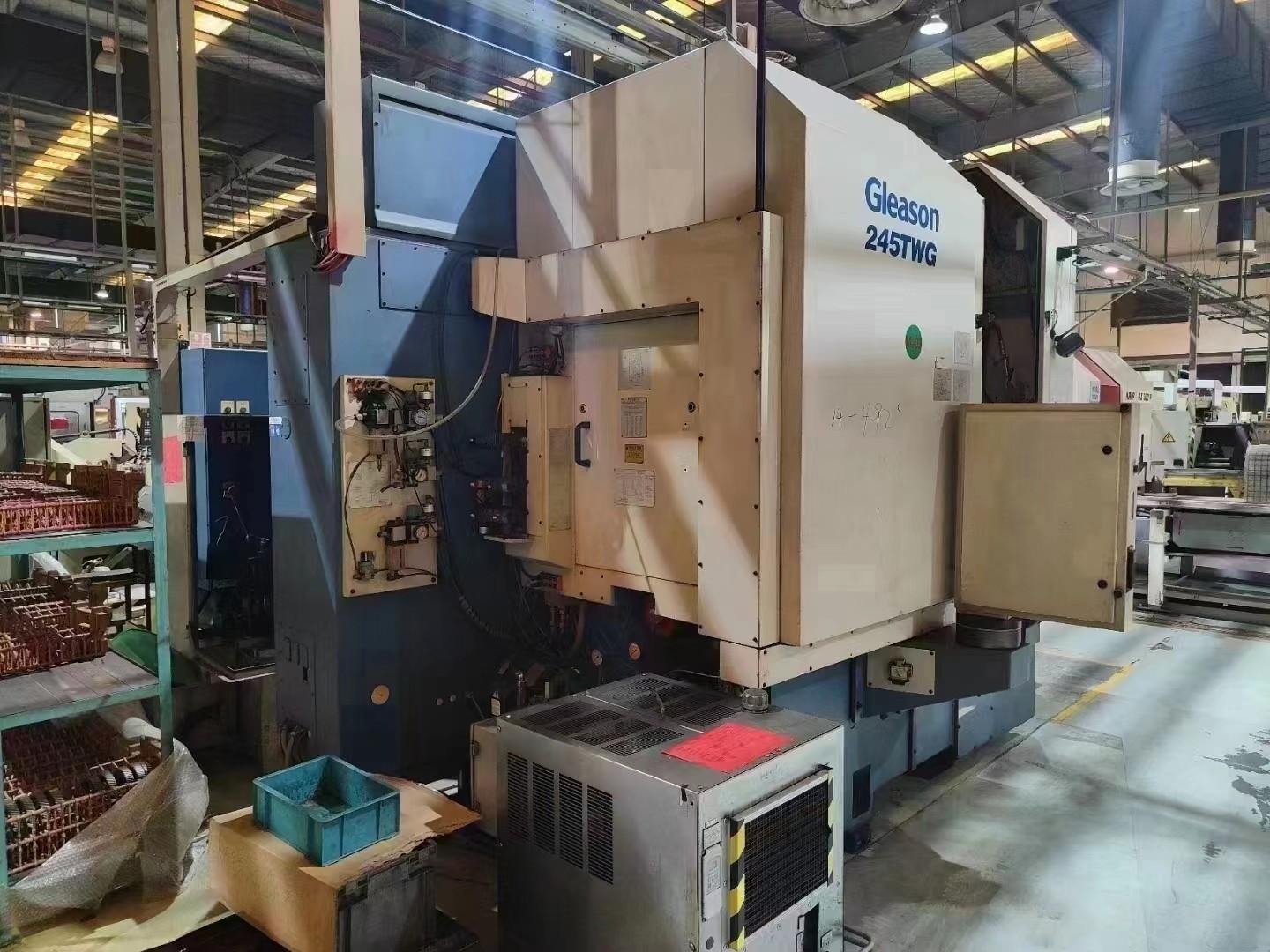

Gleason Pfauter 245TWG Gear grinding machine

Maximum modulus: 6

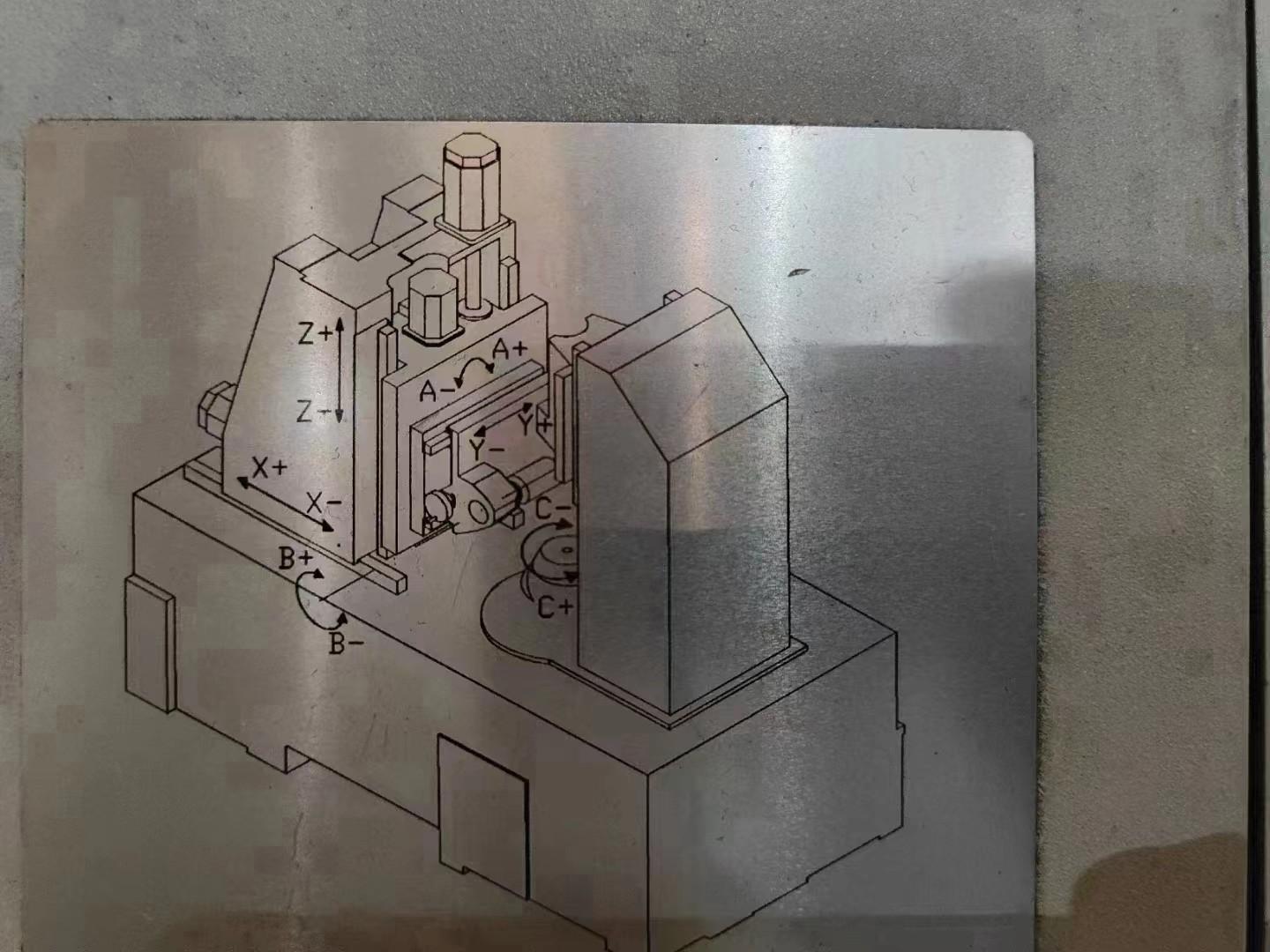

Maximum turning angle: ±45°

Maximum grinding wheel axis speed: 12000rpm

Maximum grinding wheel diameter: 180 mm

Minimum grinding wheel diameter: 136 mm

Maximum grinding depth: 150 mm

Worktable diameter: 158.7mm

Worktable load: 500kg

Maximum worktable rotating speed: 1000 RPM

Maximum machining diameter: 260 mm

Maximum machining diameter: 15 mm

Grinding wheel with automatic dressing

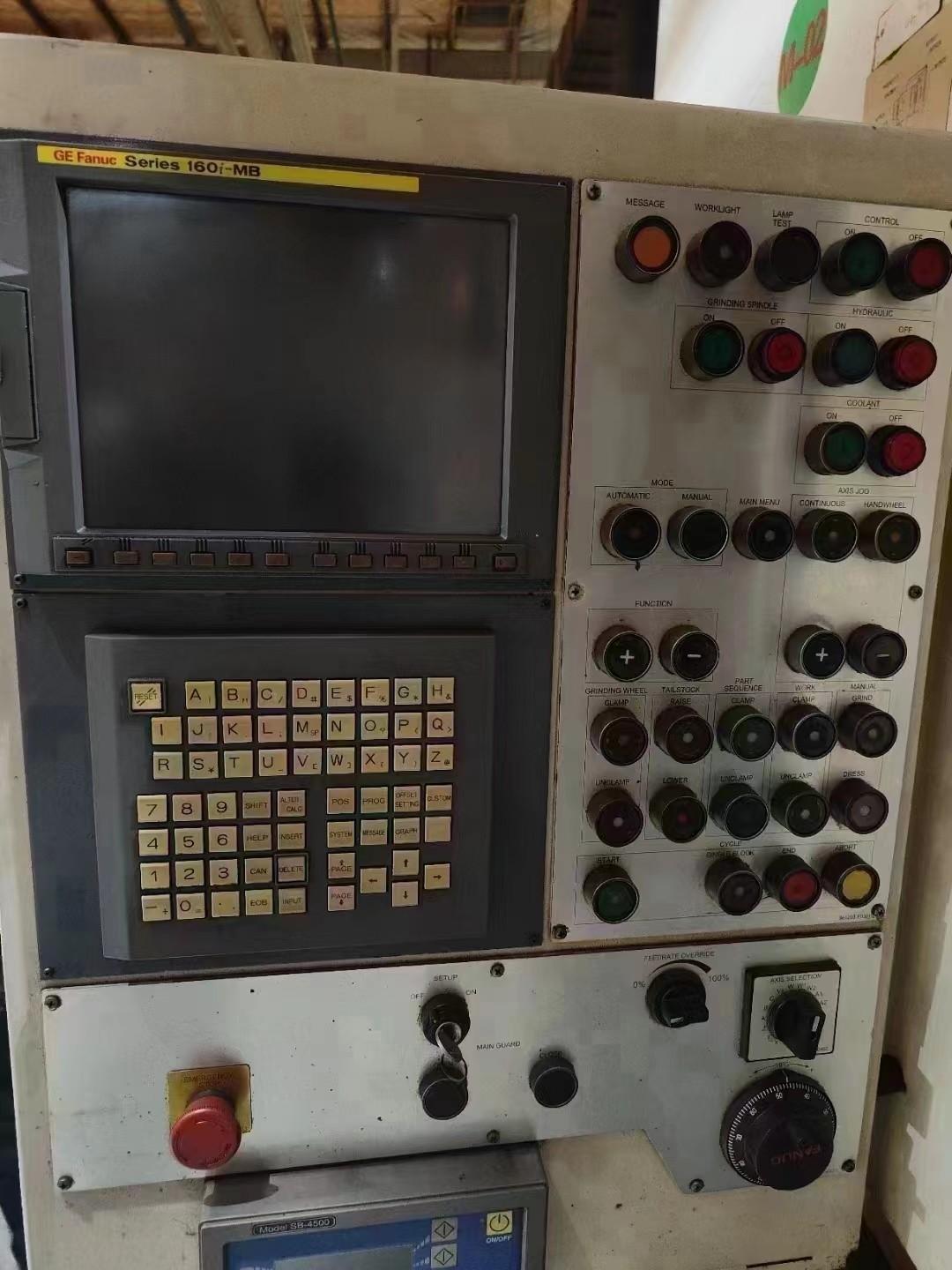

Fanuc CNC System

Automatic loading and unloading
