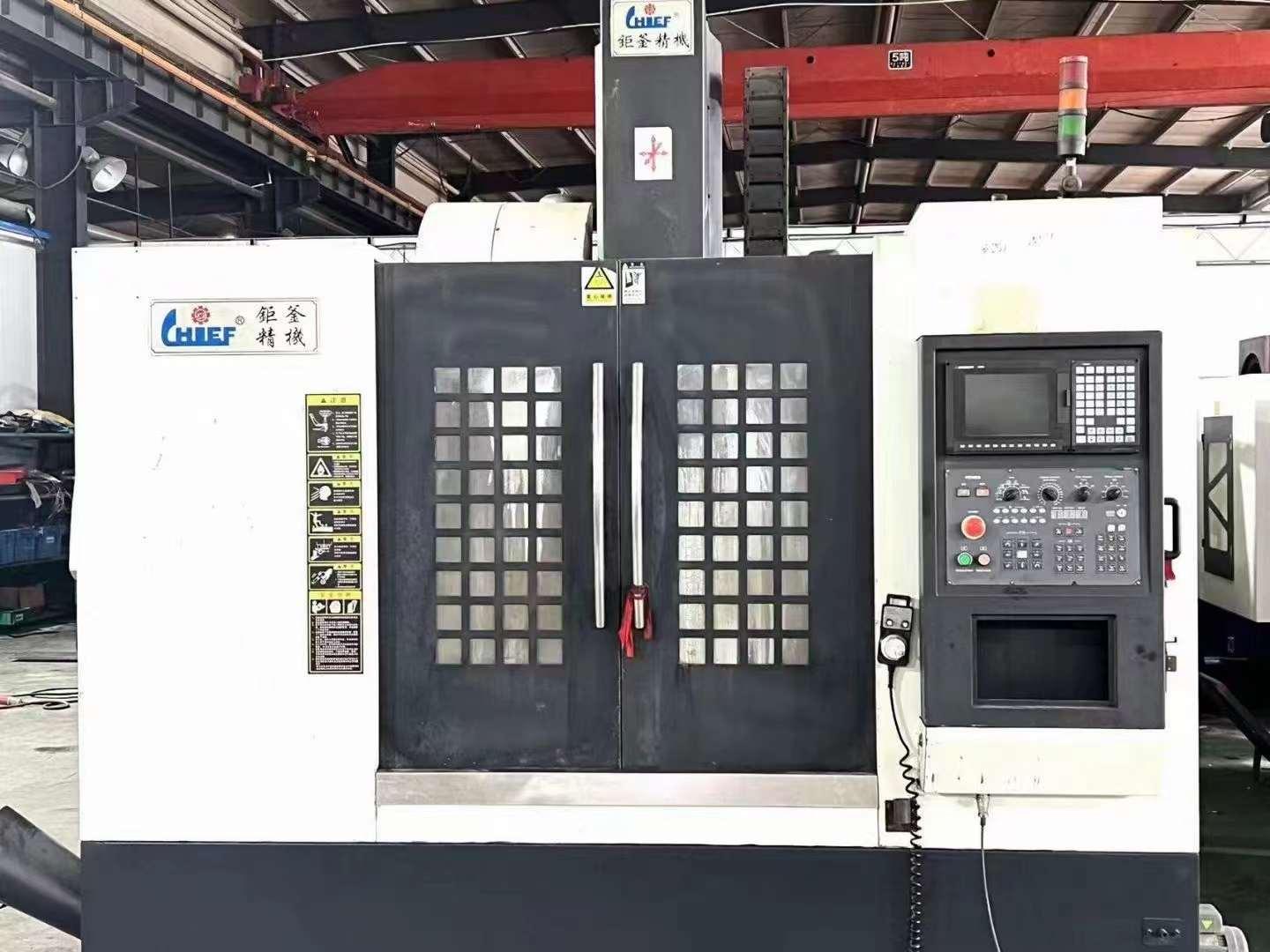

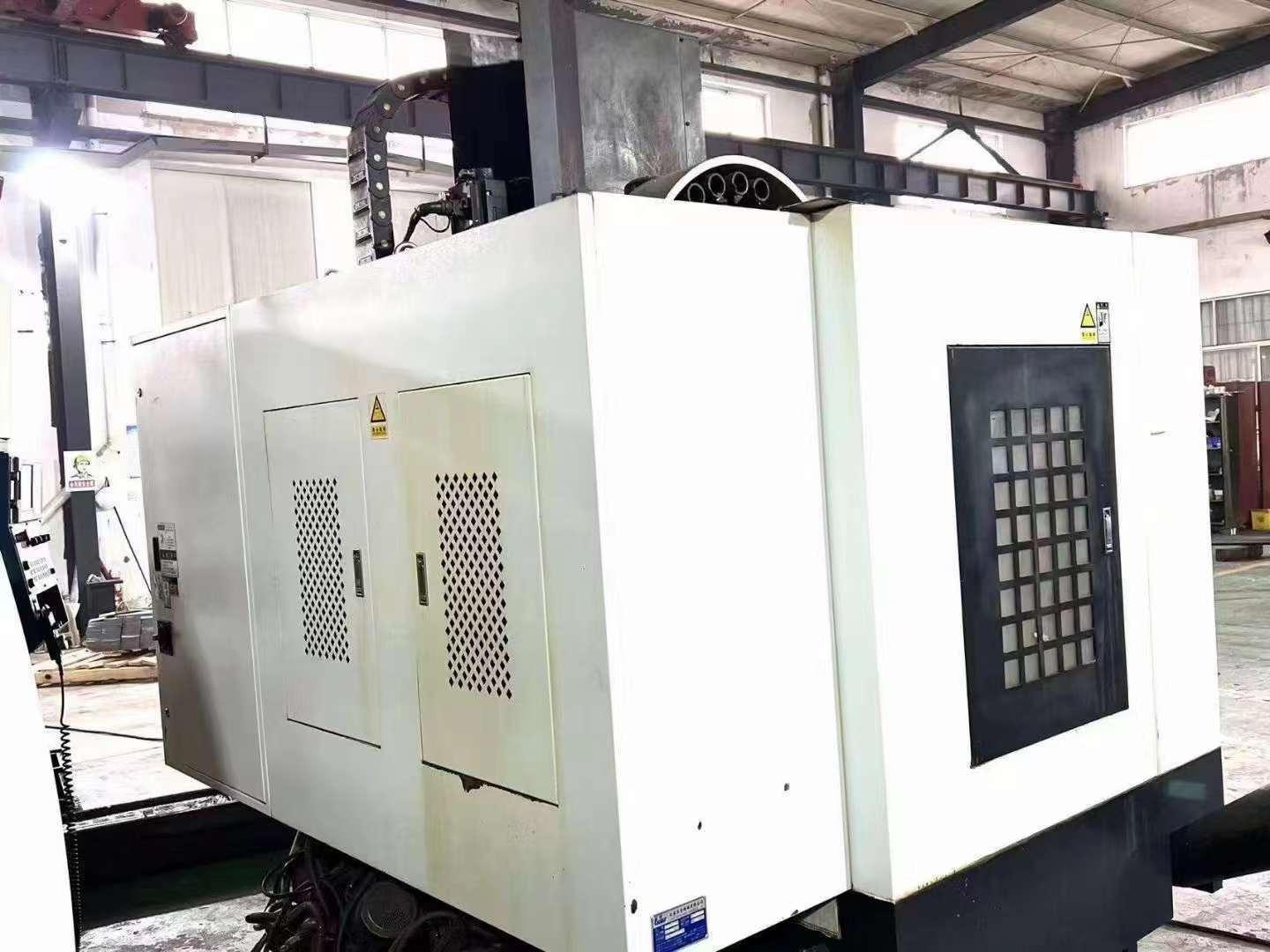

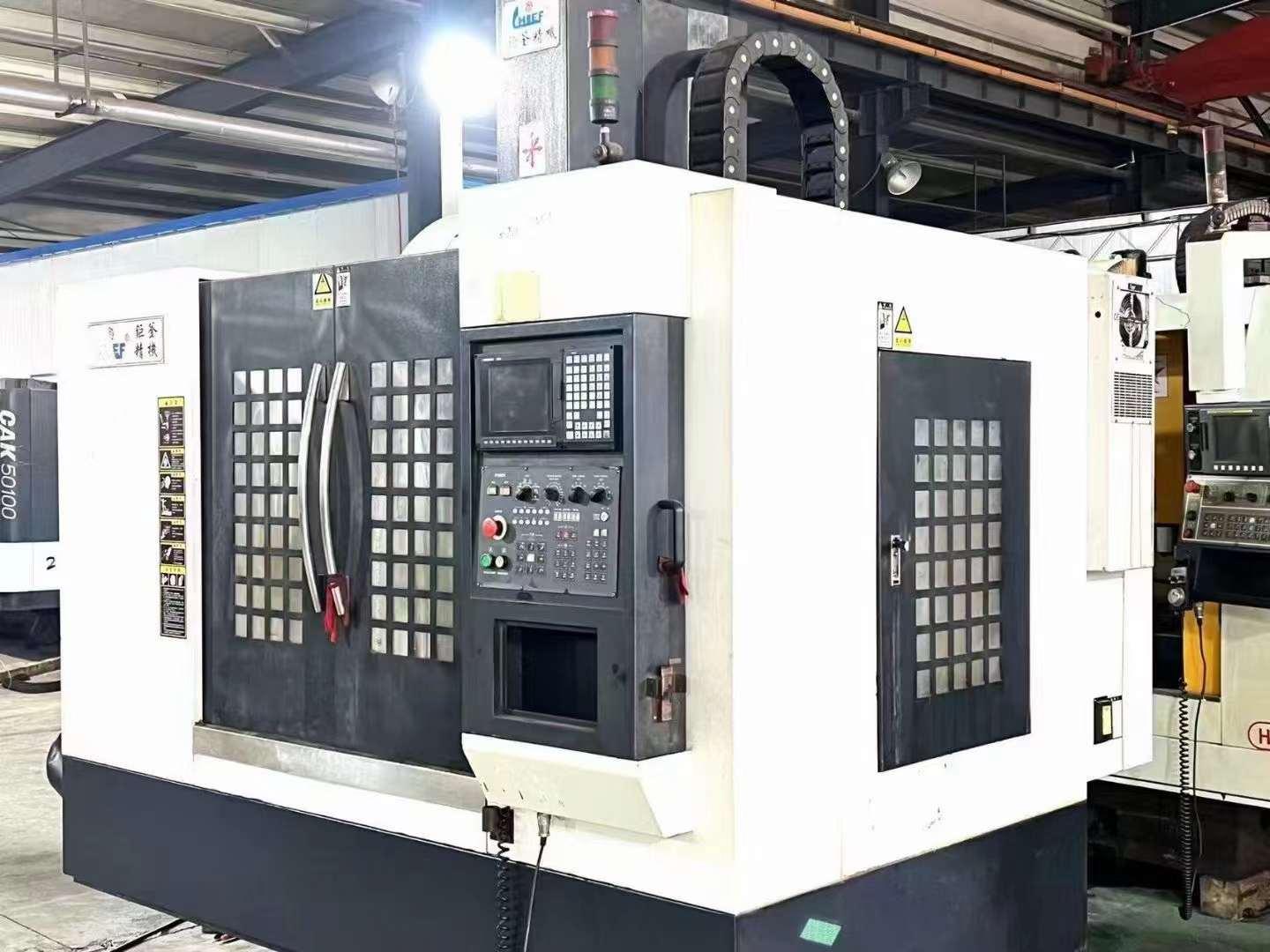

CHIEF LV-850 Vertical Machining centre

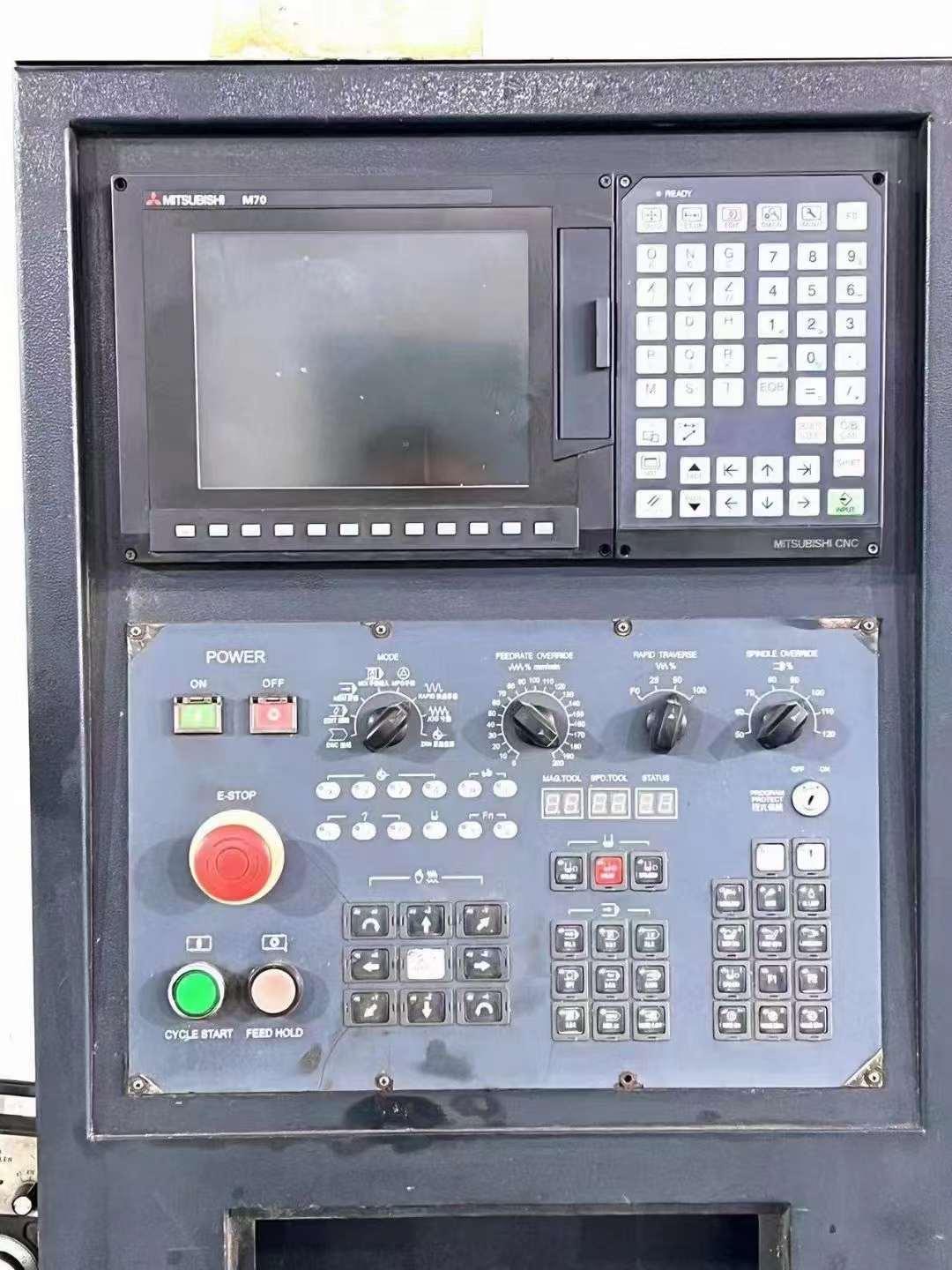

Mitsubishi M70 CNC system

Worktable size: 1000*510mm

Three axes travel: 800*500*500mm

Three axes linear guideways

BT40 spindle

Distance from spindle center to column guideway: 570mm

Distance from spindle nose to worktable surface: 100-600mm

T-slot: 18*5*90mm

Fats feed rate: 36m/min

Positioning accuracy: ±0.005/300mm

Repositioning accuracy: ±0.003/300mm

Worktable load: 600kg

Machine dimension: 2380*1880*2230mm

Machine weight: 5500kg
