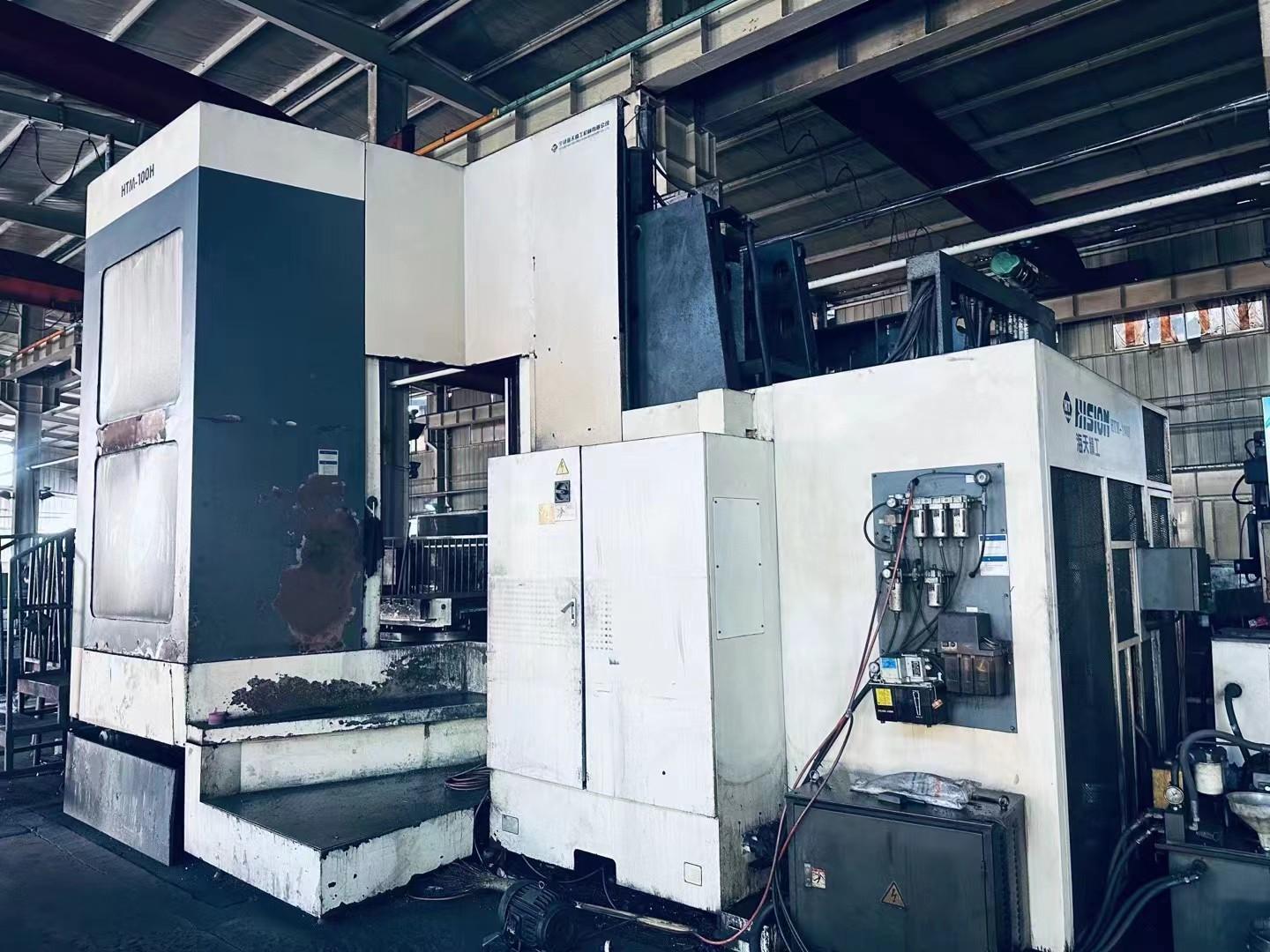

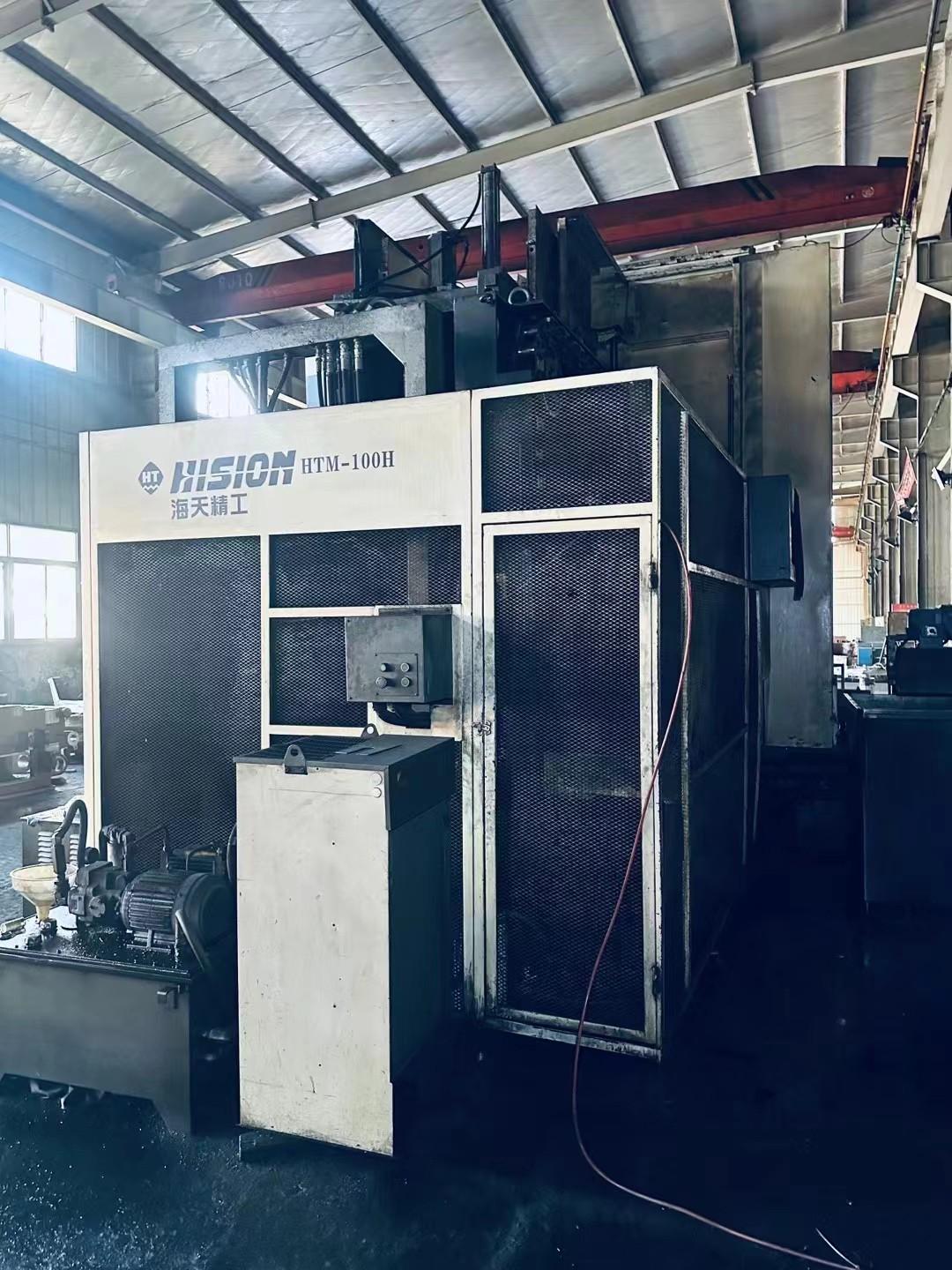

Hision HTM-100H/D Horizontal Machining centre
[Product Information]:
- Inventory number：61220
- Brand：Hision
- Model：HTM-100H/D
- Origin：China
- Location：China
- Year：2011
- Create Time：2024-06-08
Specifications:
X-axis travel: 2000mm
Y-axis travel: 1000mm
Z-axis travel: 1200mm
W-axis travel: 500mm
Boring bar diameter: 130mm

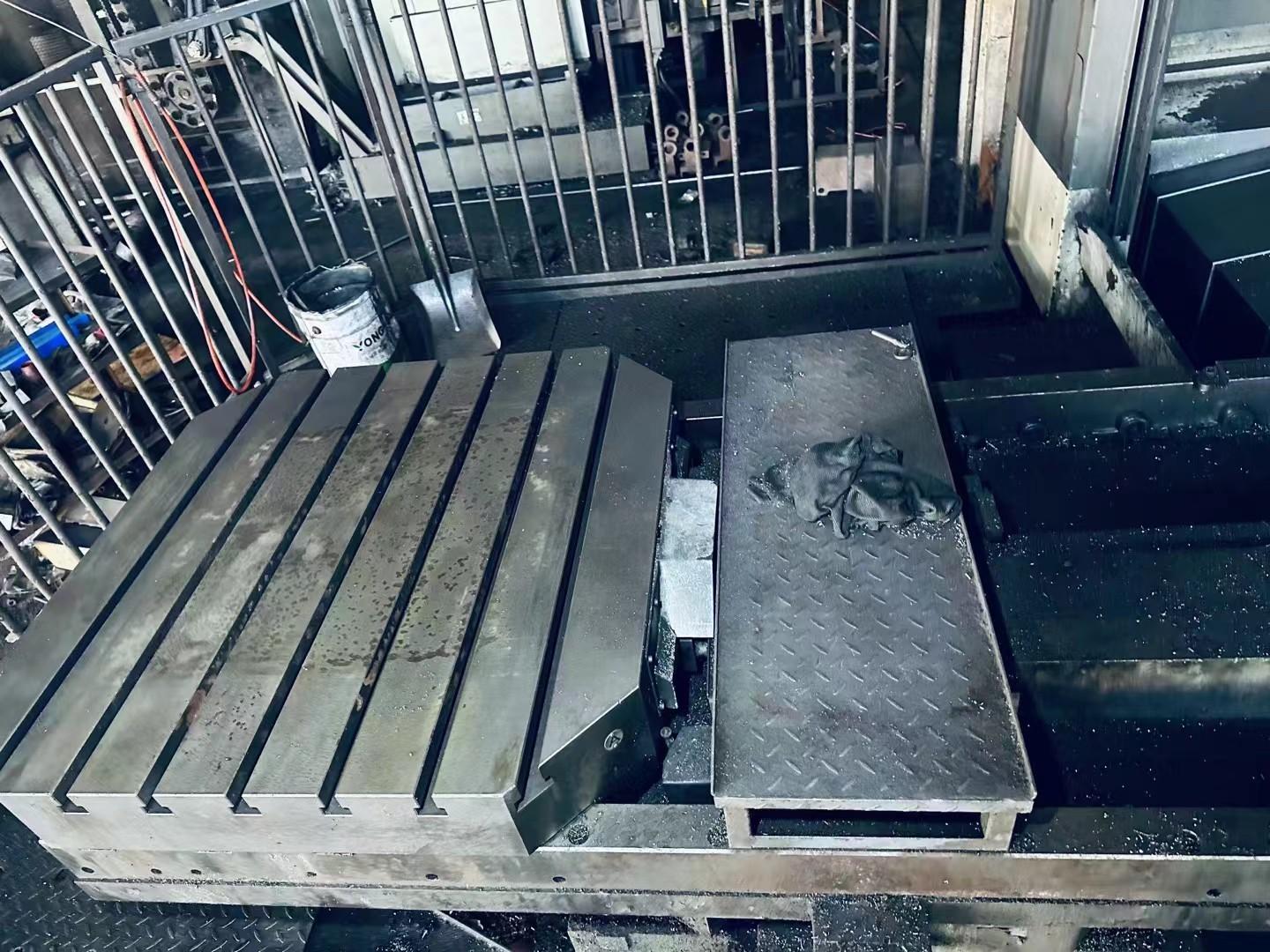

Worktable size: 1000*1000mm
Worktable maximum load: 5000kg
Spindle motor power: 22/18.5kw
Spindle speed: 20-4500rpm
Spindle maximum torque: 837Nm
Tool holder: BT50
Tool magazine: 60

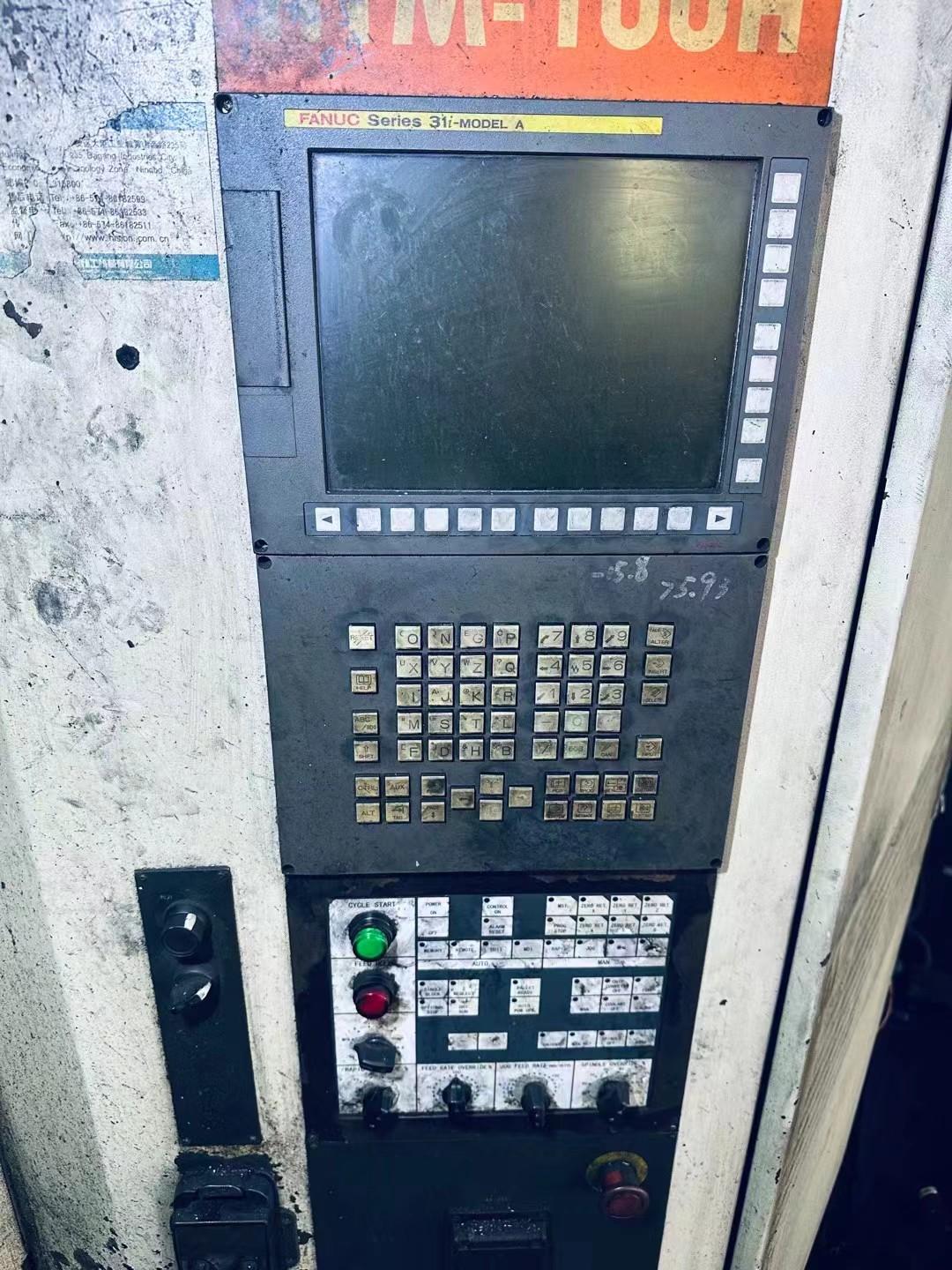

Fanuc CNC system
With glass scale
