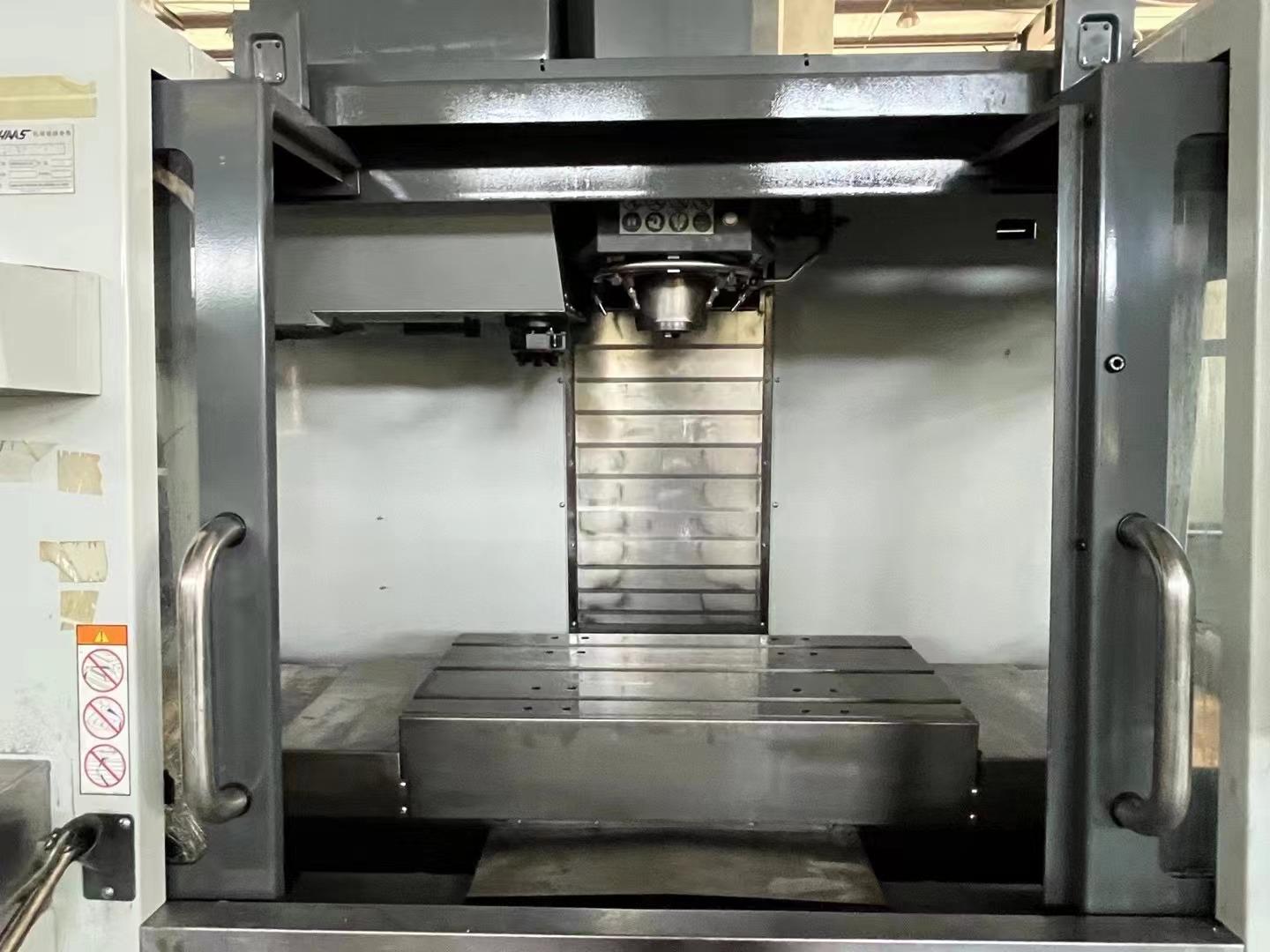

HAAS VF-2SS-V Machining centre

X*Y*Z axis travel: 762*406*508mm

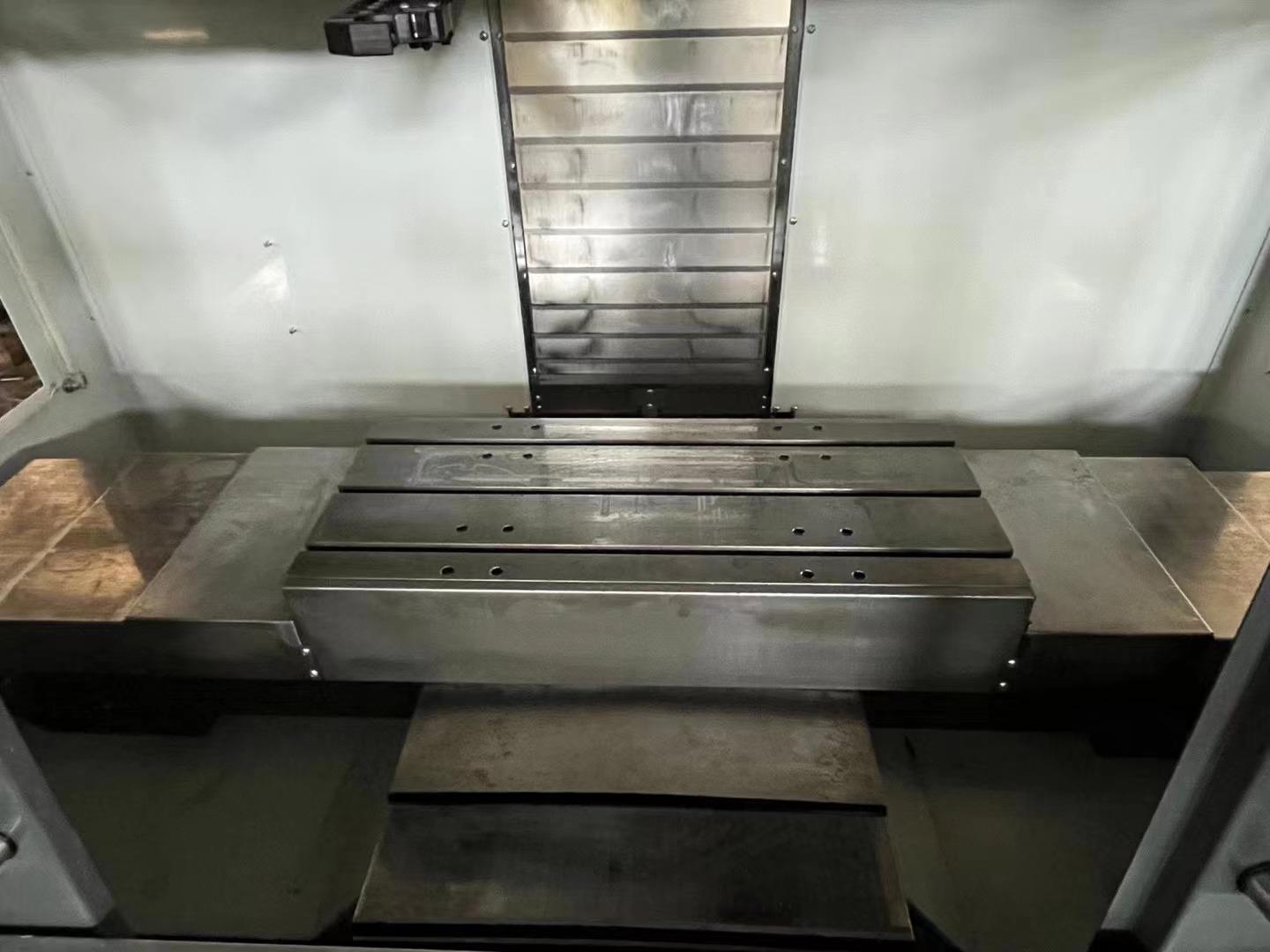

Worktable Length: 914mm

Worktable width: 356mm

Spindle speed: 12000rpm

Spindle drive system: coaxial,direct drive

Maximum torque: 122NM@2000rpm

Maximum power: 22.4kw

X*Y*Z axis feed rate: 35.6/35.6/35.6m/min

Maximum cutting rate: 21.2m/min

Magazine: 30+1

Tool holder type: SMTC

Maximum cutter diameter: 64mm

Coolant capacity: 208L
