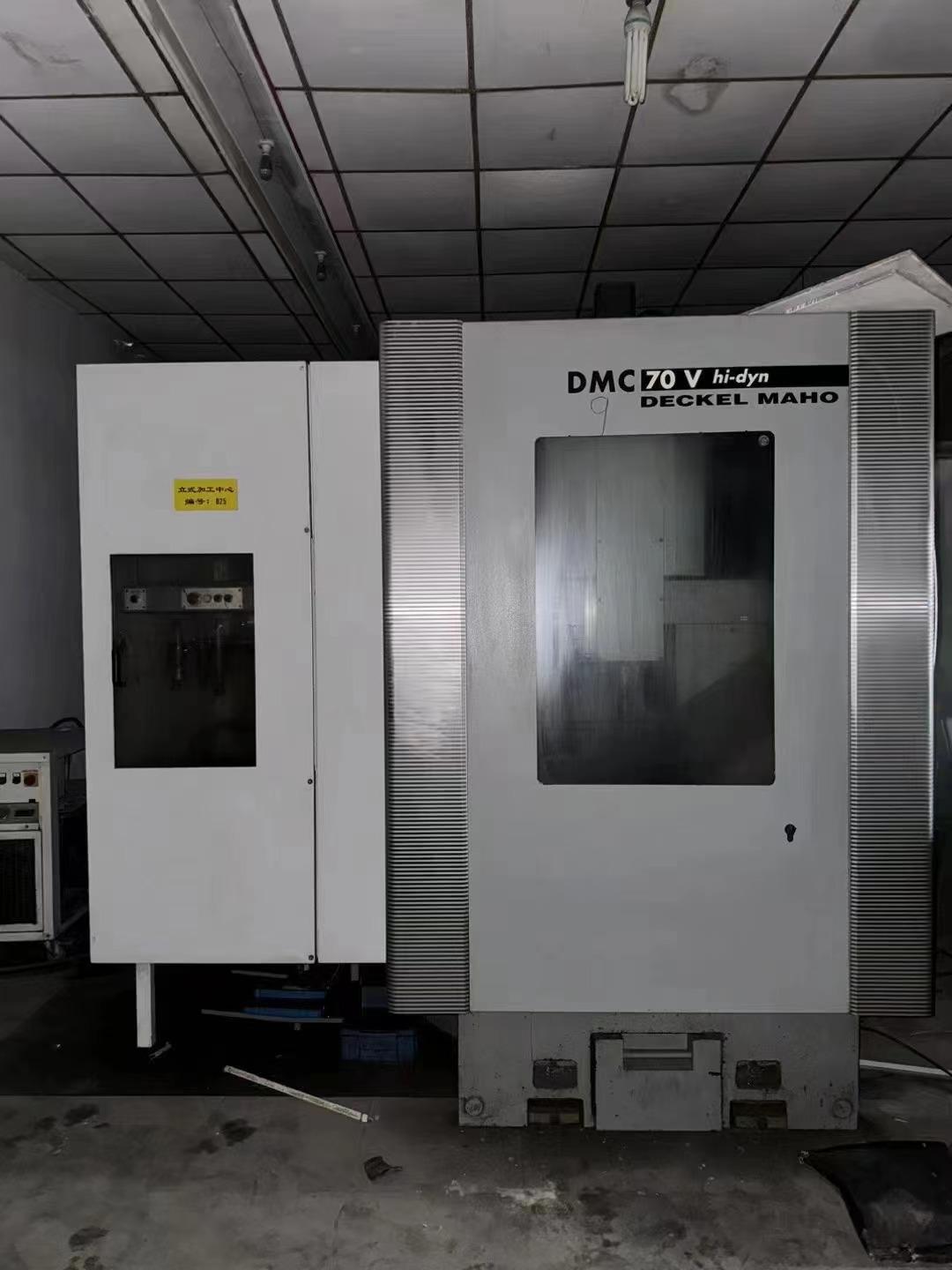

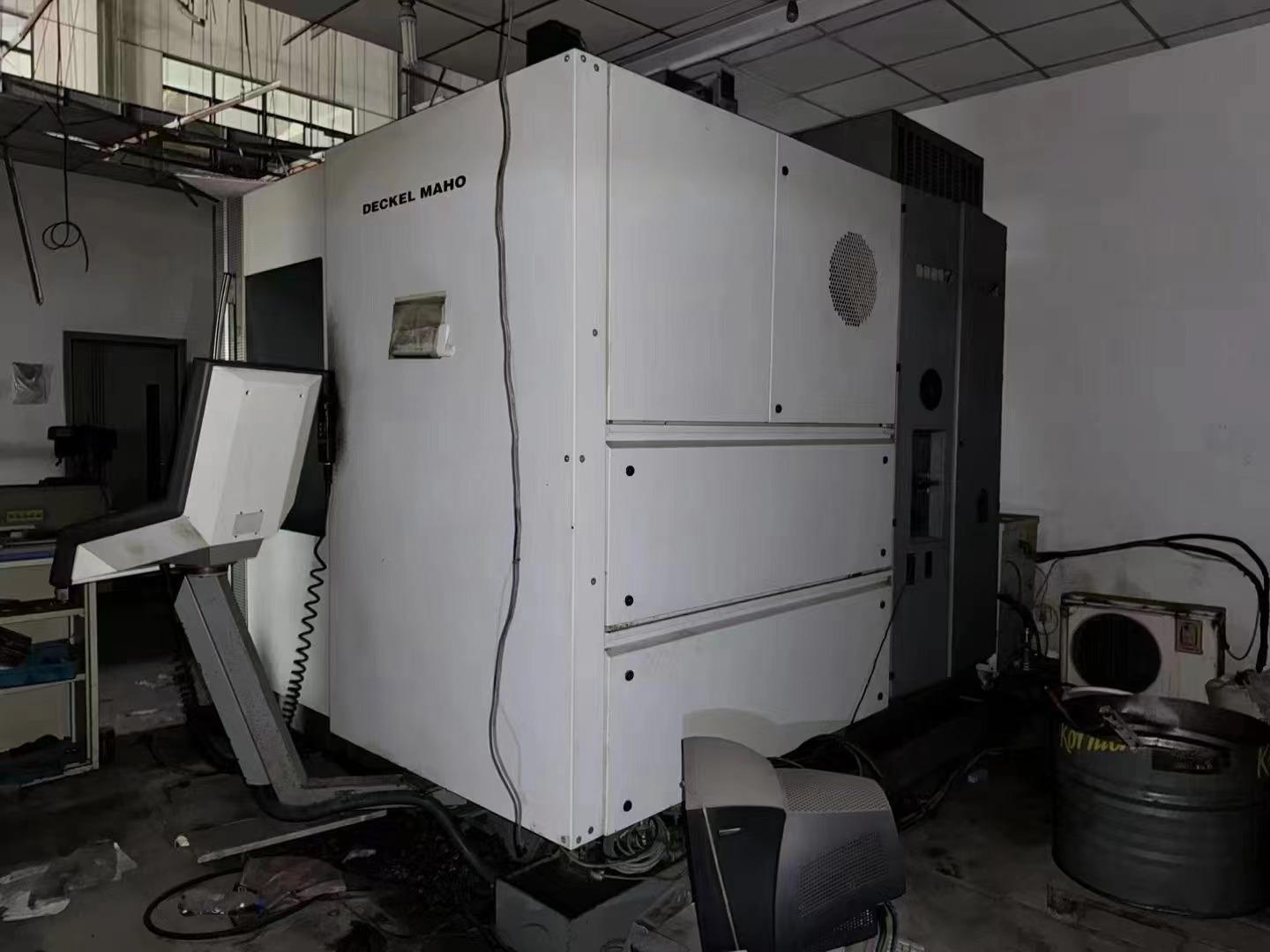

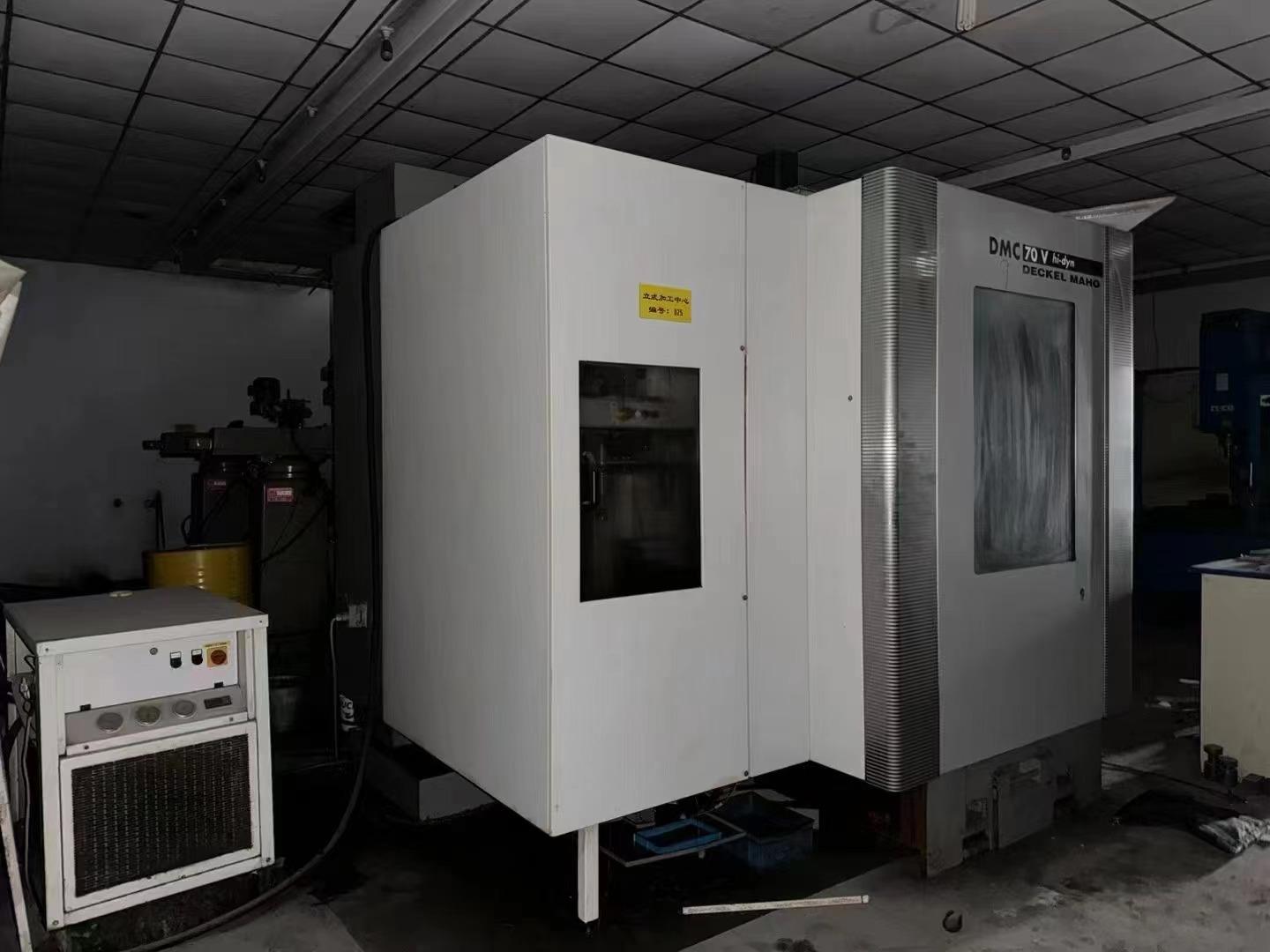

DMG DMC70V hi-dyn DECKEL MAHO Machining centre

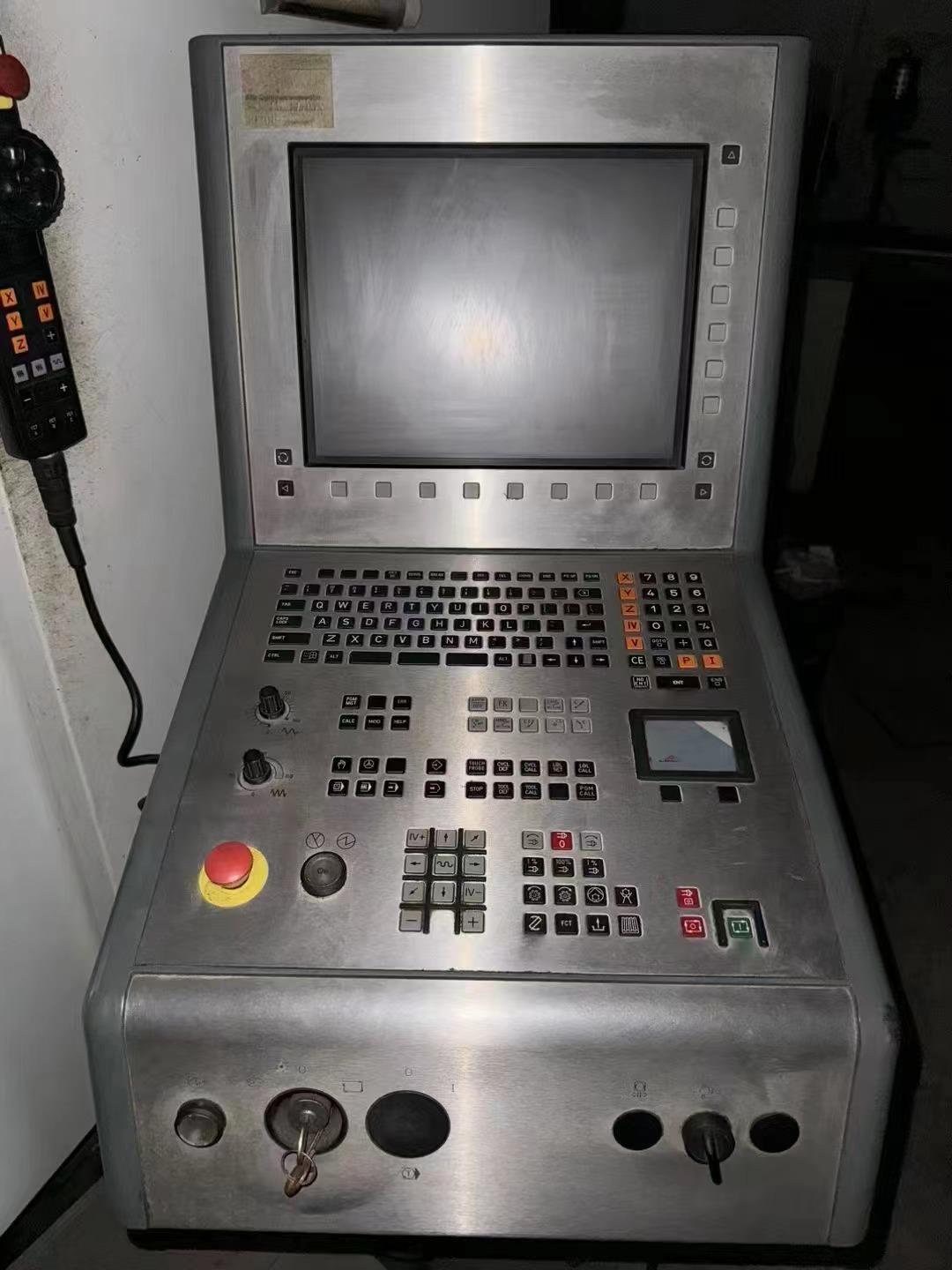

CNC System: Heidenhain TNC530

X*Y*Z axis travel :750*600*560mm

B-axis travel :-10+110

C-axis travel :360 degree

Distance from spindle to worktable surface :500mm

Spindle speed:18000rpm

Worktable size:750mm

Worktable load :600KG

Worktable rotation radius :325mm

5 axes machine radius :325mm

Fast moving rate :90m/min

Tool holder type :HSK63

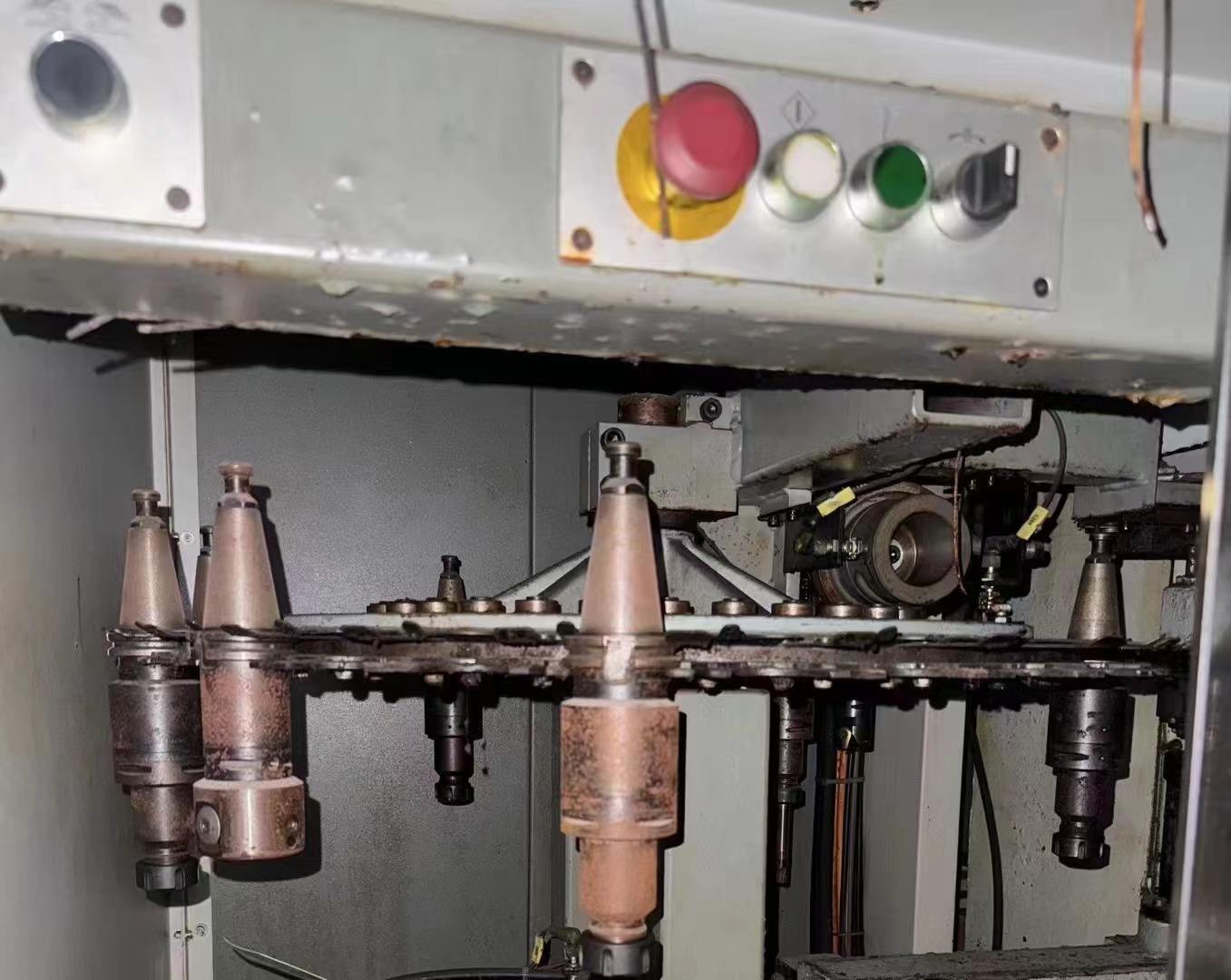

Tool magazine:30

With spiral type chip conveyor

Axis drive type: linear motor

Guideway: Linear guideway

Spindle drive mode:

Electric spindle gantry width :800mm

One swing head and one rotary worktable

worktable

Dimensions:3800*3000*2500mm

Full close loop glass scale

With tool aligner
