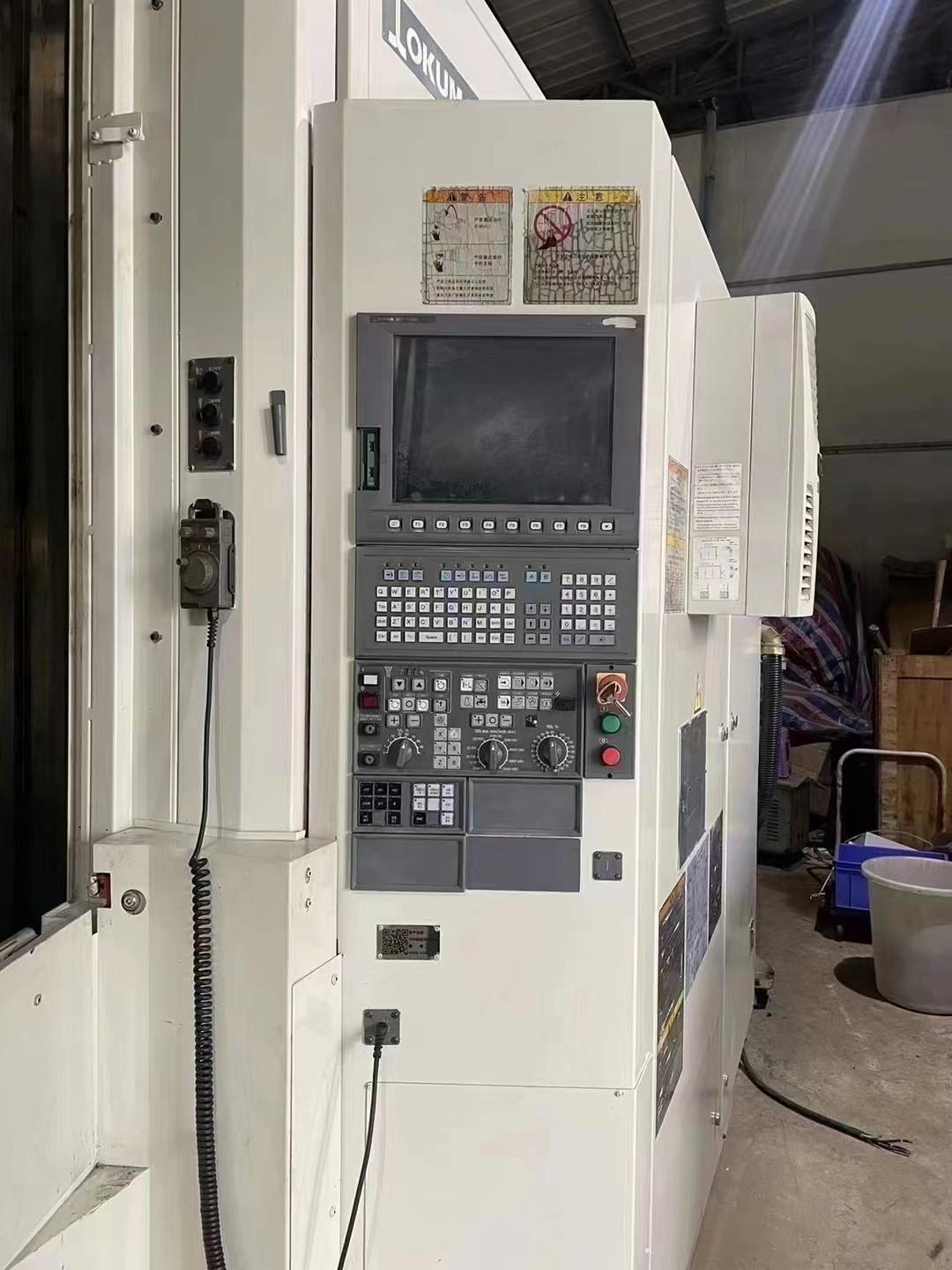

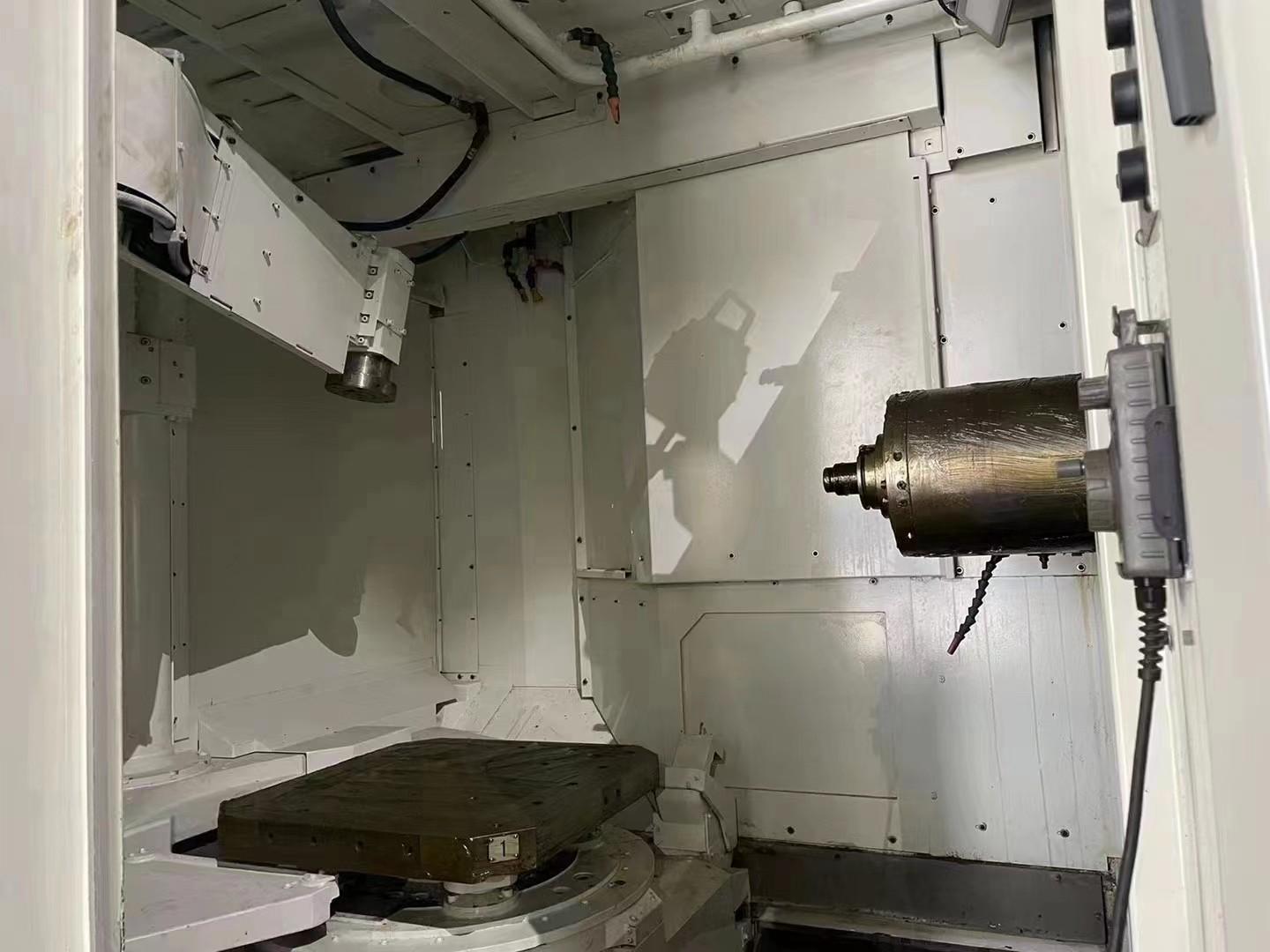

Okuma MA-600HB Horizontal Machining centre

X*Y*Z axis travels :1000*900*1000mm

Rotation axis:0.001deg

Worktable to spindle center height: 50~950mm

Spindle nose to switching worktable center: 70~1,070mm

Rotary worktable size: 630x630mm

Worktable load: 1200kg

Maximum workpiece size: 1000x1000mm

Spindle diameter: 250mm

Spindle speed: 12000rpm

Fast feed (X, Y, Z axis) : 60 m /min

Cutting feed (X, Y, Z axis) : 1~60,000mm/min

Main Motor VAC 30/22KW(10 min/continuous)

Worktable indexing motor: BL 4.0KW

Automatic tool changing device capacity: 100

Tool selection method: random

Tool holder type: HSK100

Maximum tool diameter (full chain) : 140mm

Maximum tool diameter (empty chain) : 240mm

Maximum tool length: 450mm

Maximum tool weight: 25kg

(T-T) Tool changing time (T-T) : 2 seconds

(C-C) Tool changing time (C-C) : 4.4 seconds

Automatic switching worktable switching time :12 s

Positioning accuracy: ±0.004mm/ whole

Repeated positioning accuracy: ±0.0015mm

Fully closed loop glass scale

Spindle stepless variable speed
