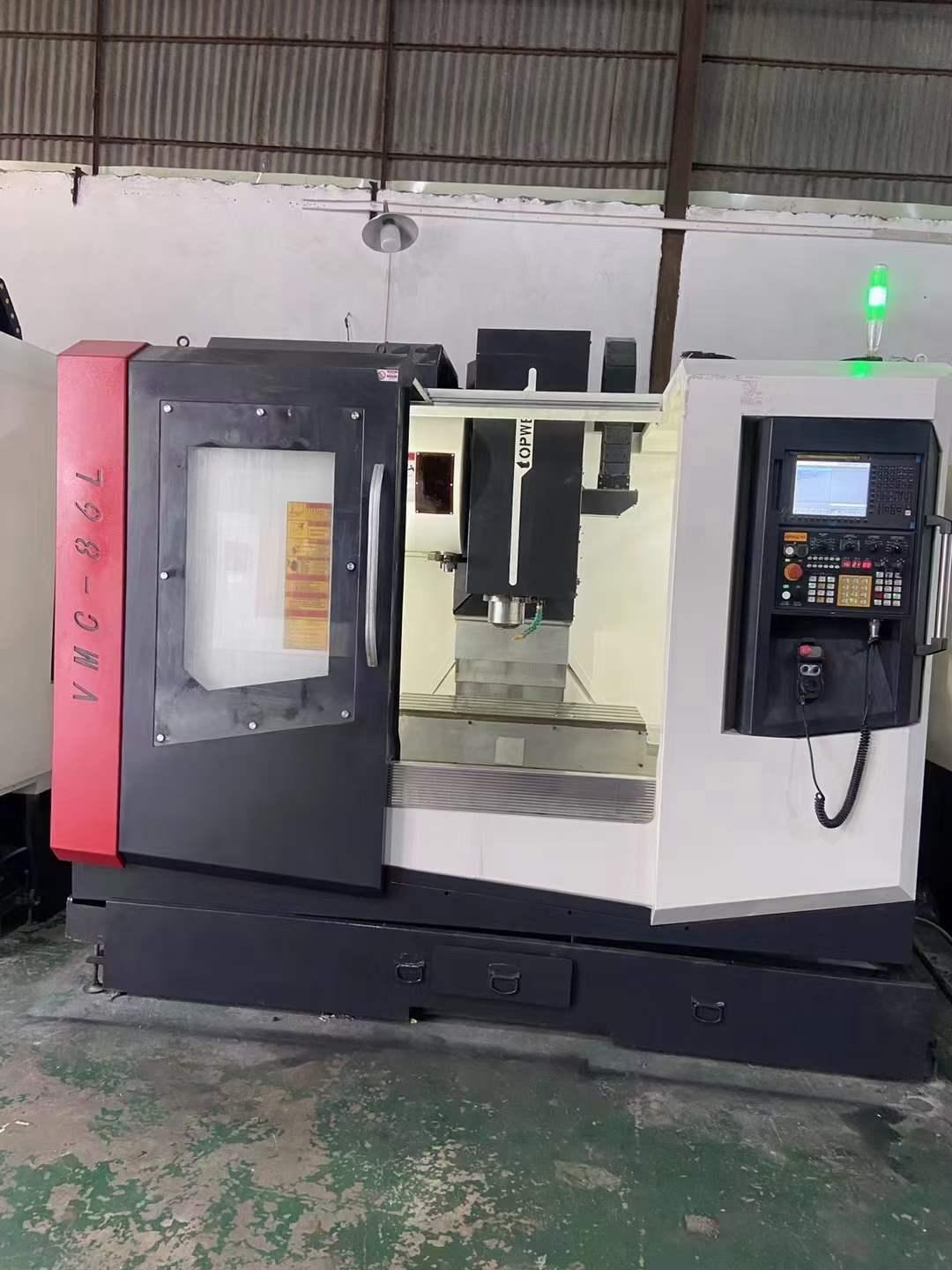

TOPONE VMC-86L Vertical Machining centre

[Product Information]:

spindle: Taiwan Royal BT40

Spindle speed: 10000rpm

tools magazine: 24

WorkWorktable size: 500x1050mm

T-slot size: 5-18x100mm

WorkWorktable load: 500kg

Distance from WorkWorktable to floor: 900mm

three-axis travel: 800x600x500mm

Distance from nose end of spindle to WorkWorktable: 175-675mm

Distance from Distance from spindle center to column slide: 600mm

Main motor power: 7.5-11kw
