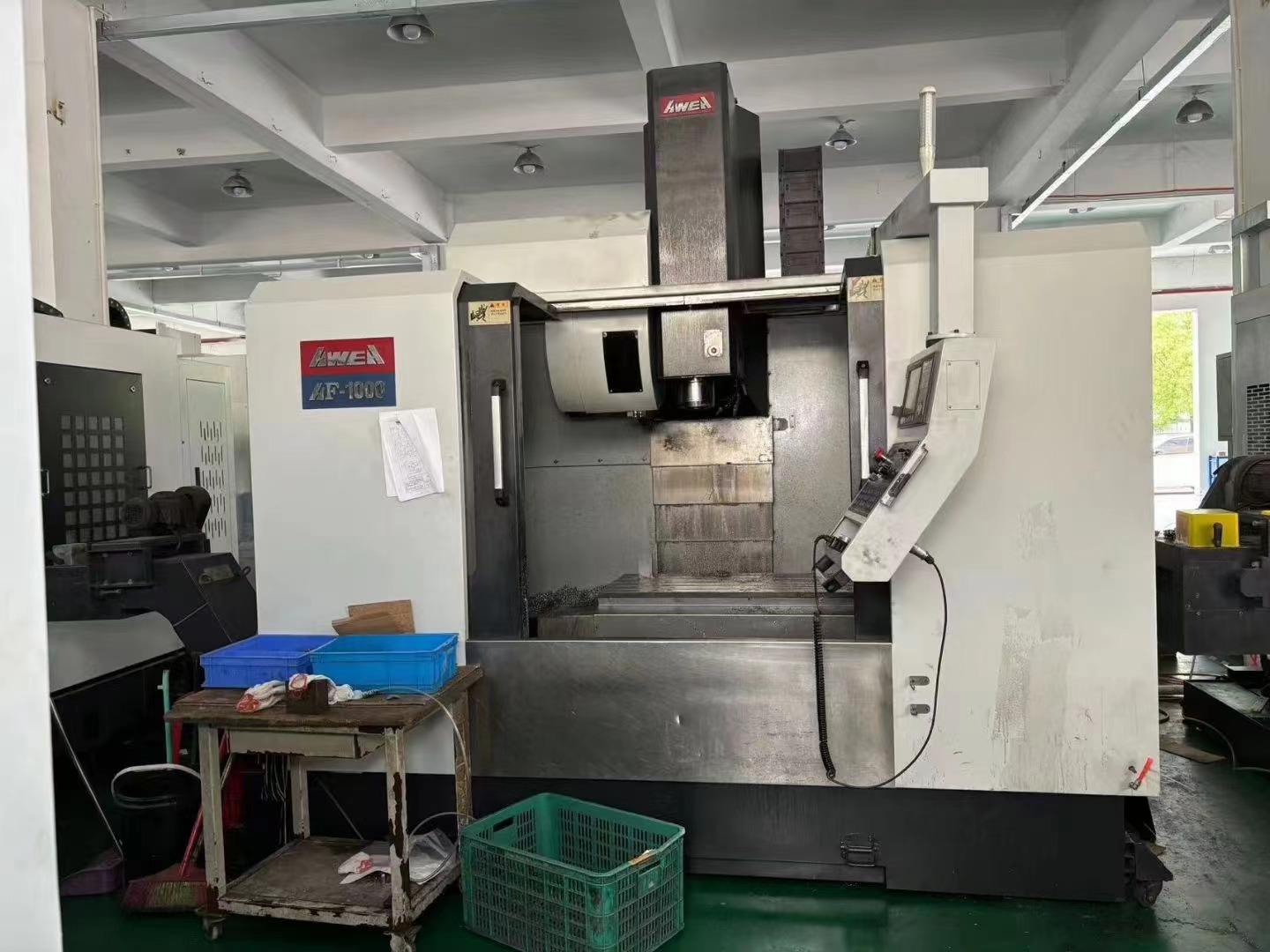

AWEA AF1000 Vertical Machining centre

[Product Information]:

Three-axis travel :1000*610*700mm

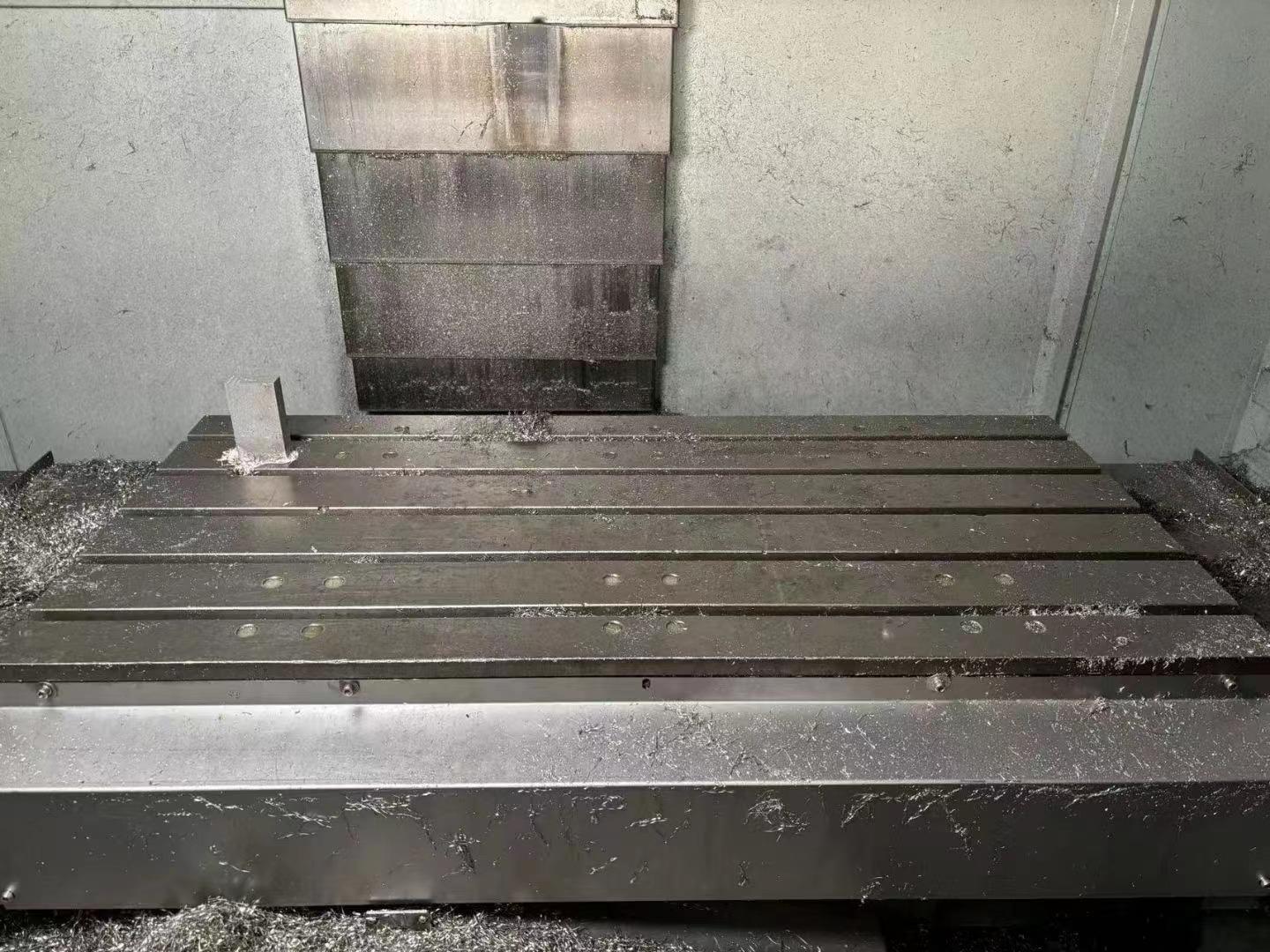

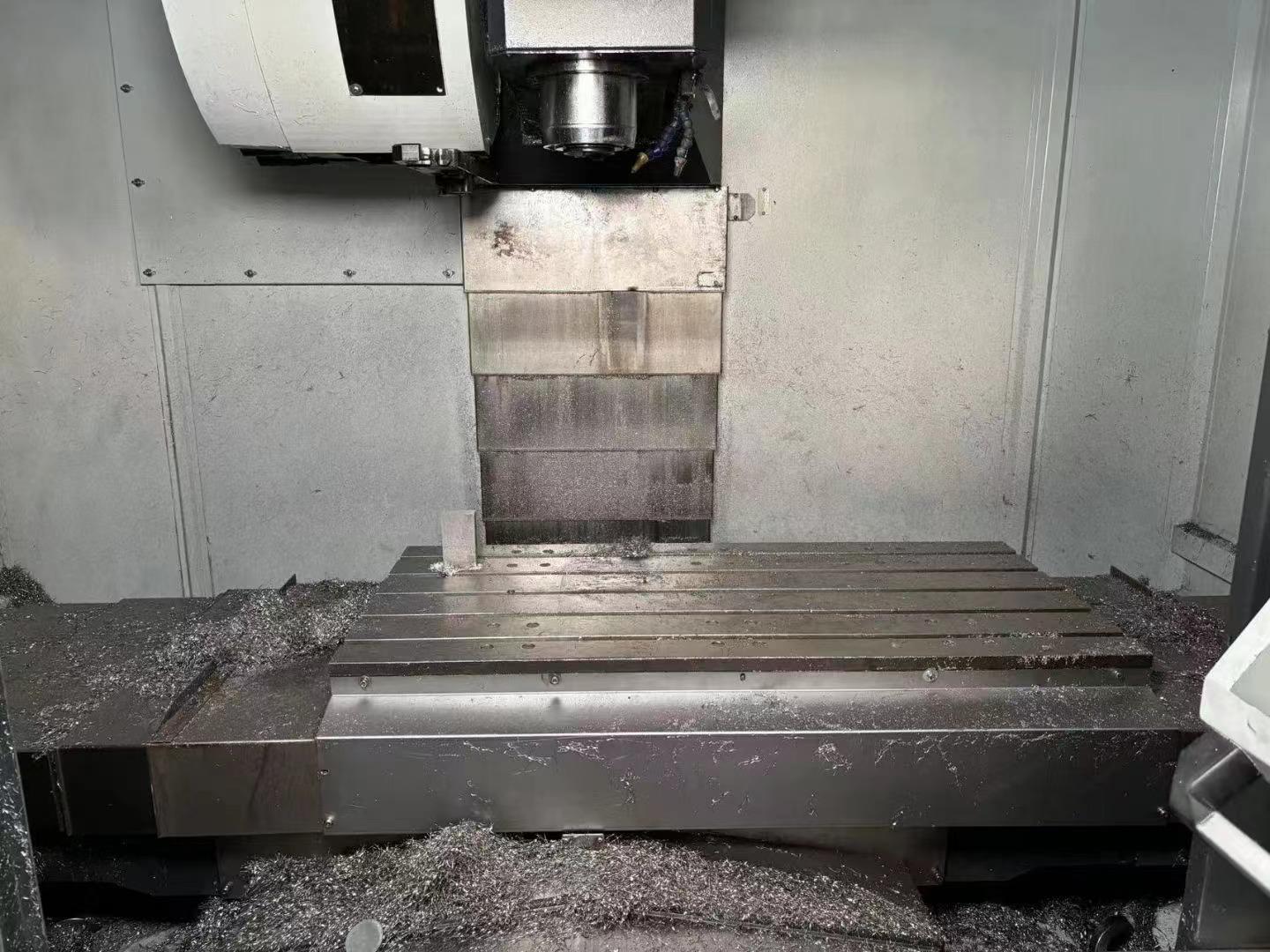

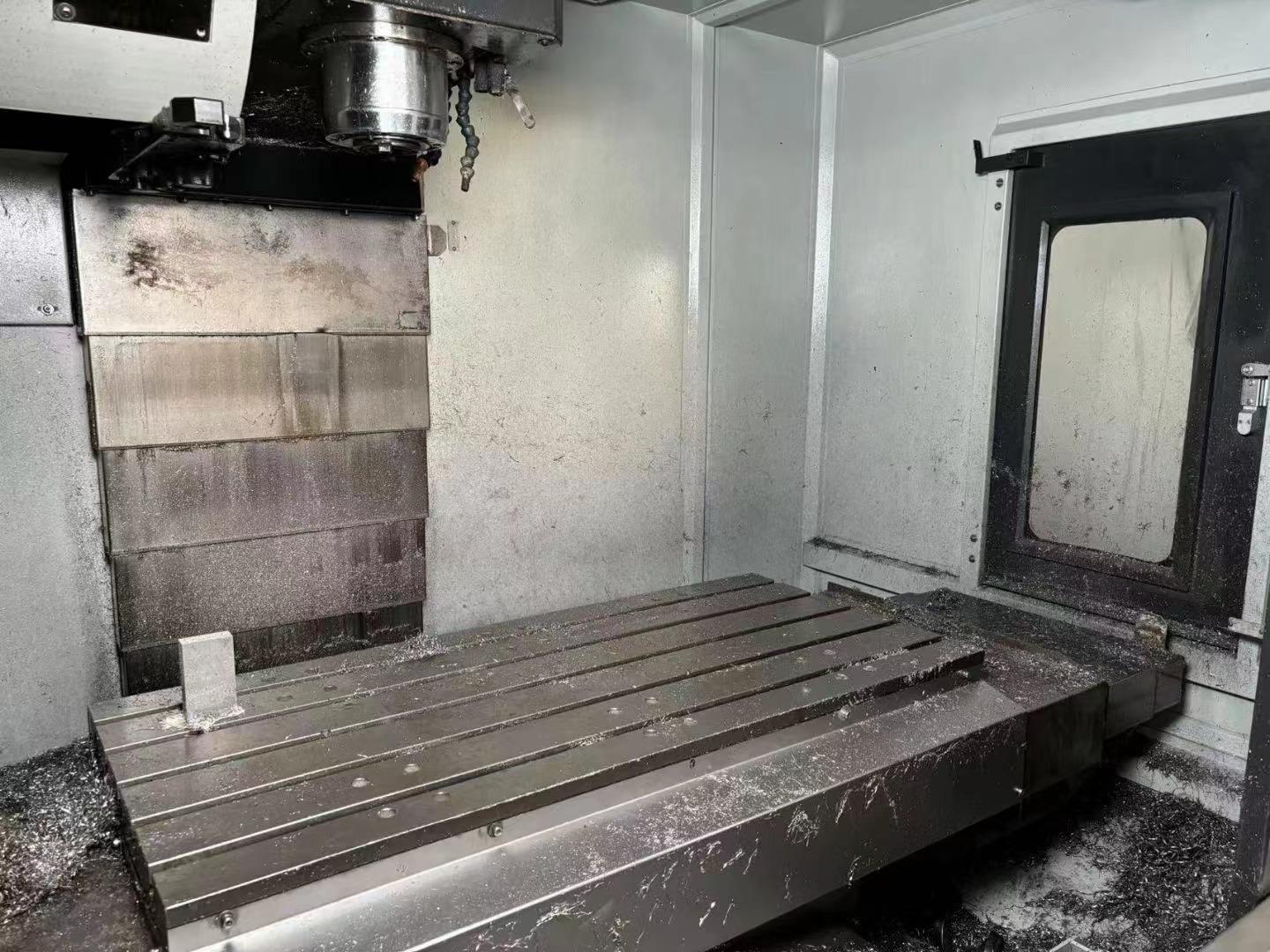

Worktable size :1200*550mm

Worktable load :700kg

Distance from spindle center to column guideway:610mm

Distance from spindle nose to worktable :100-735mm

Fast feed rate :36/36/24m/min

Cutting feed rate :10m/min

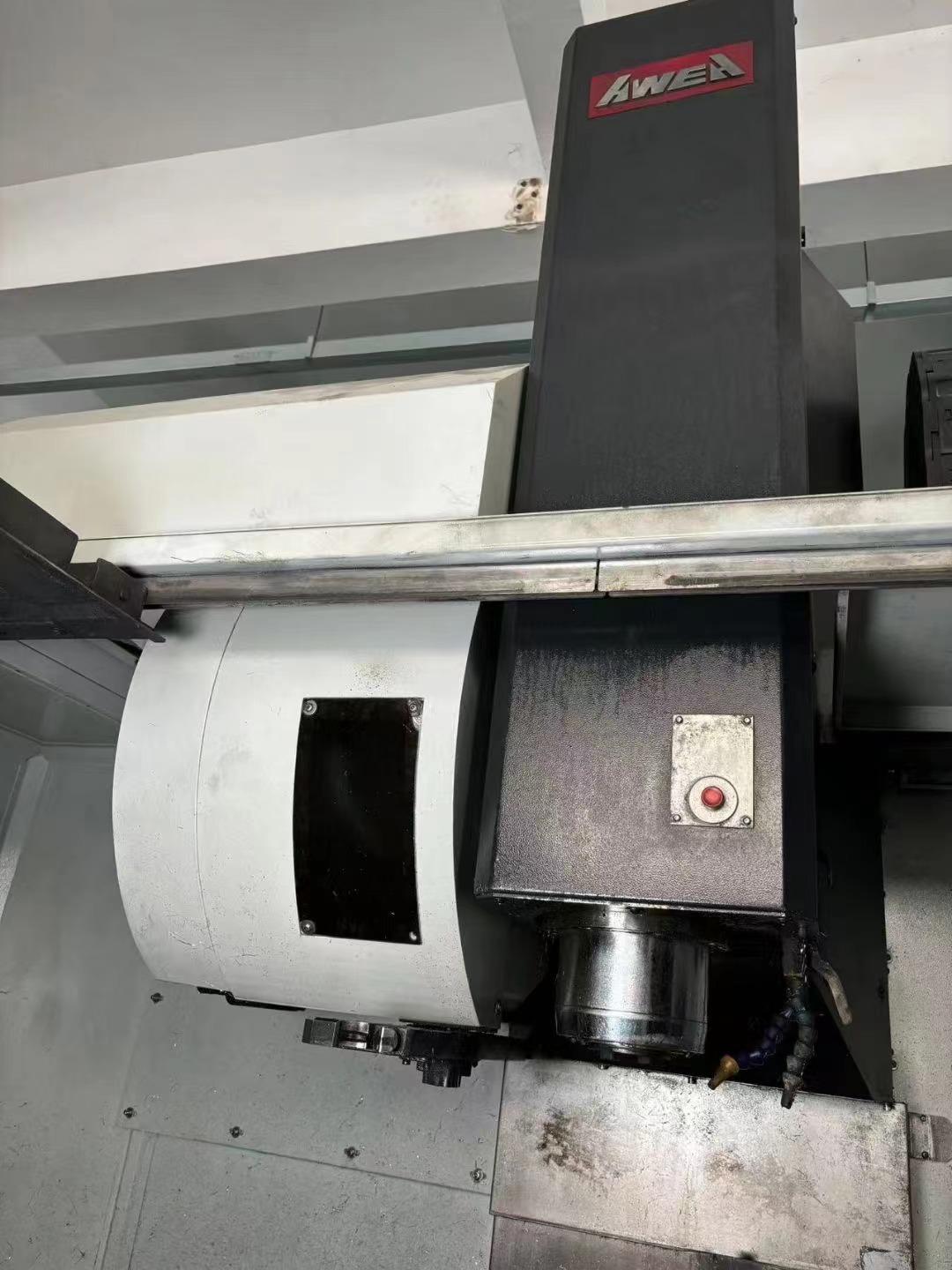

Spindle:BT50

Spindle speed:8000rpm

With oil chiller

Main motor power:7.5/11kw

Tool magazine:24

Weight :7000kg

PDF Download Click to Contact Seller
