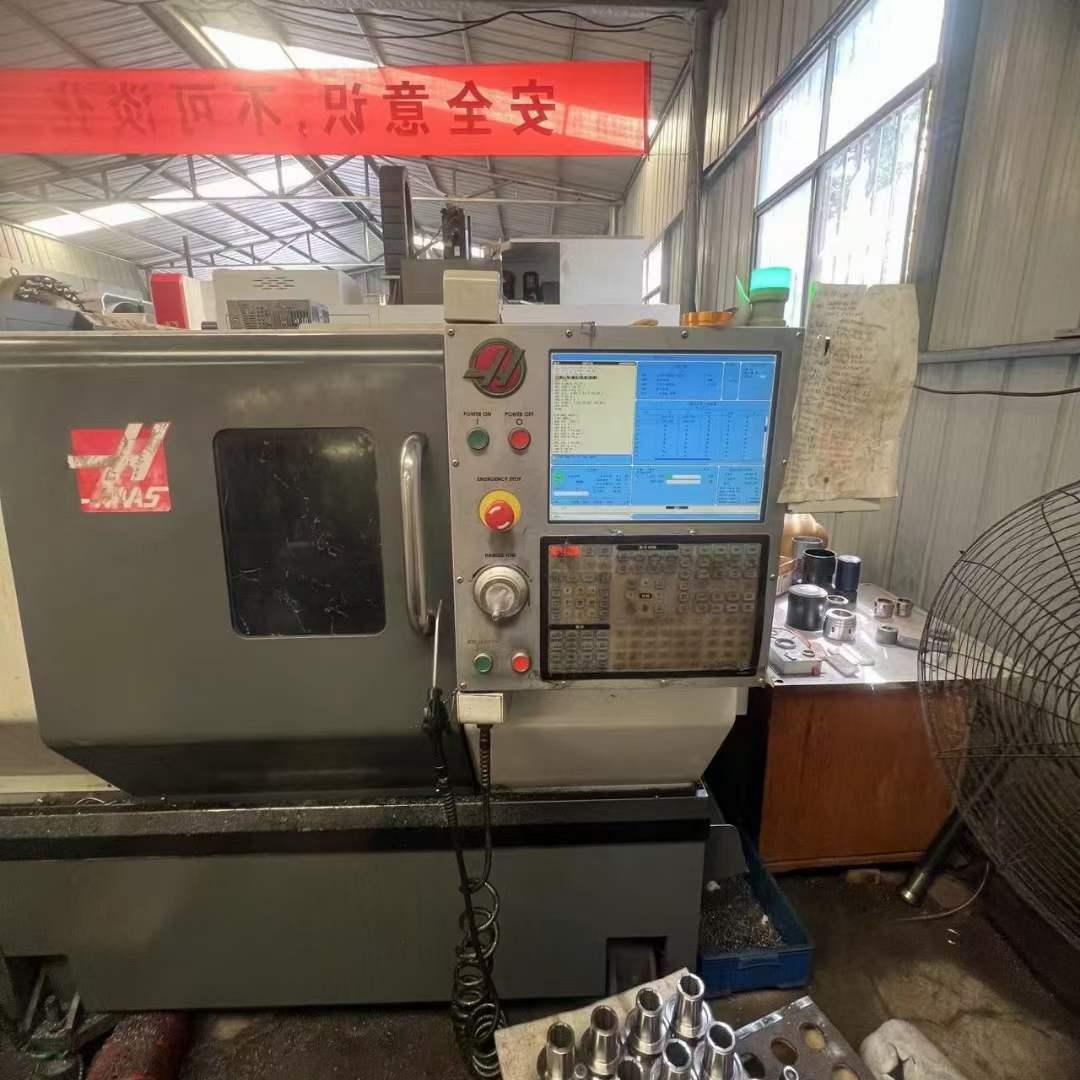

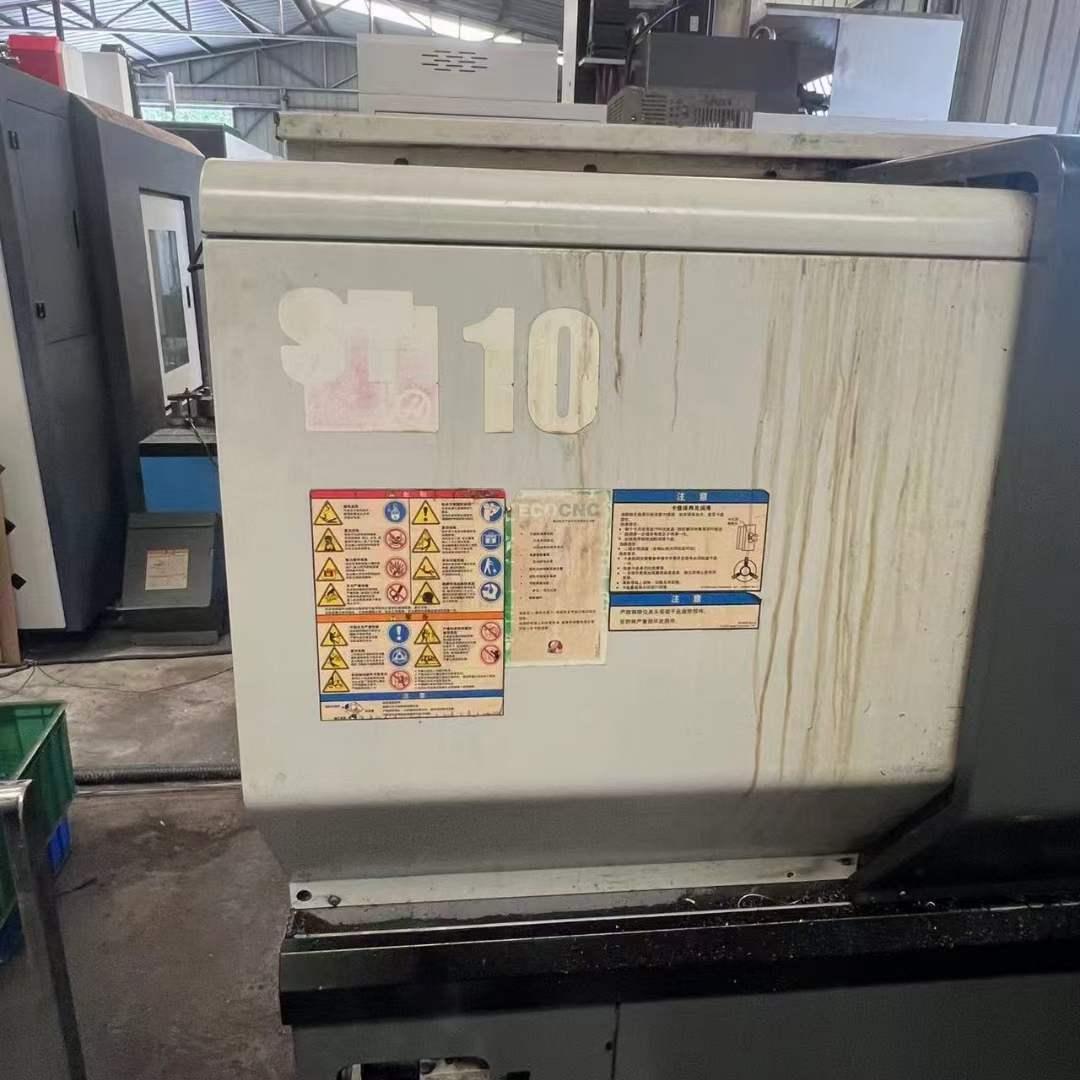

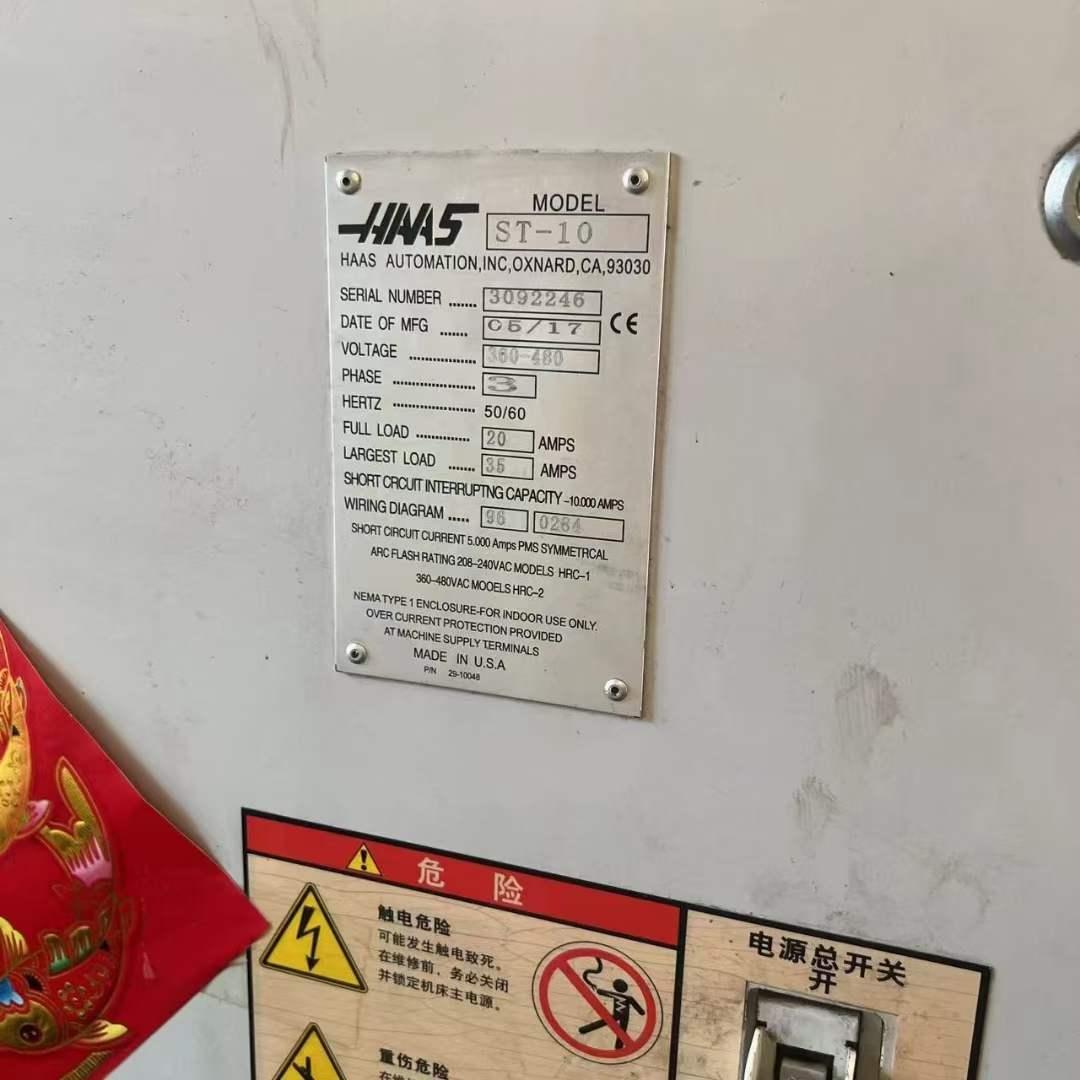

HAAS ST-10 other

[Product Information]:

Chuck size: 165 mm

Maximum turning diameter: 356mm

Maximum Machining length: 406mm

Bar capacity diameter: 44 mm

spindle maximum speed: 6000 rpm

Maximum motor power: 11.2kW

spindle nose end: A2-5

Spindle through hole diameter: 58.7mm

Maximum rotating diameter of bed: 641mm

Maximum turning diameter of slide plate: 419mm

lead rail form: Linear guideway

X*Z axis travel: 200* 406mm

X/Z axis fast speed: 30.5/30.5m /min

Turret position: 12
