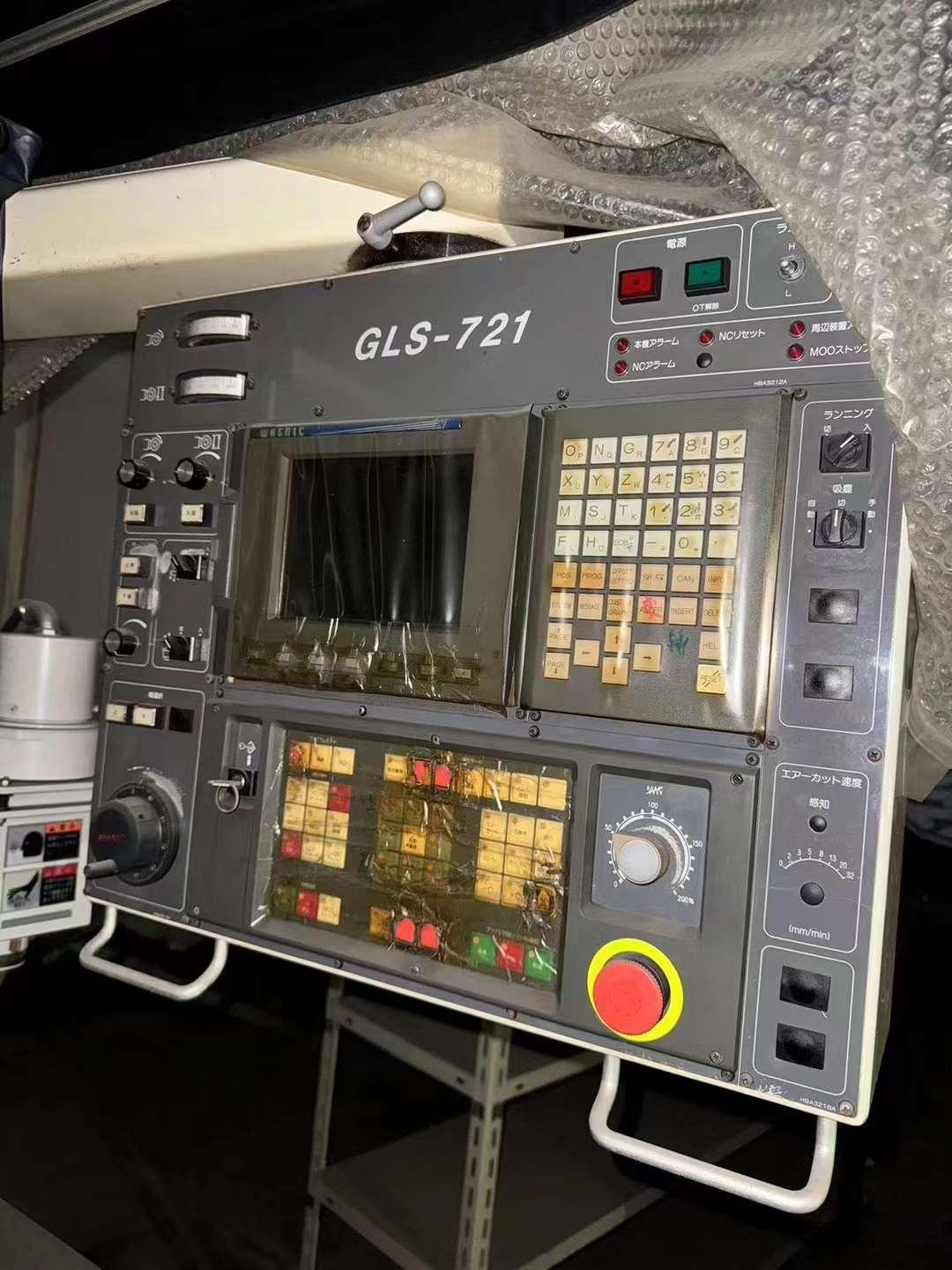

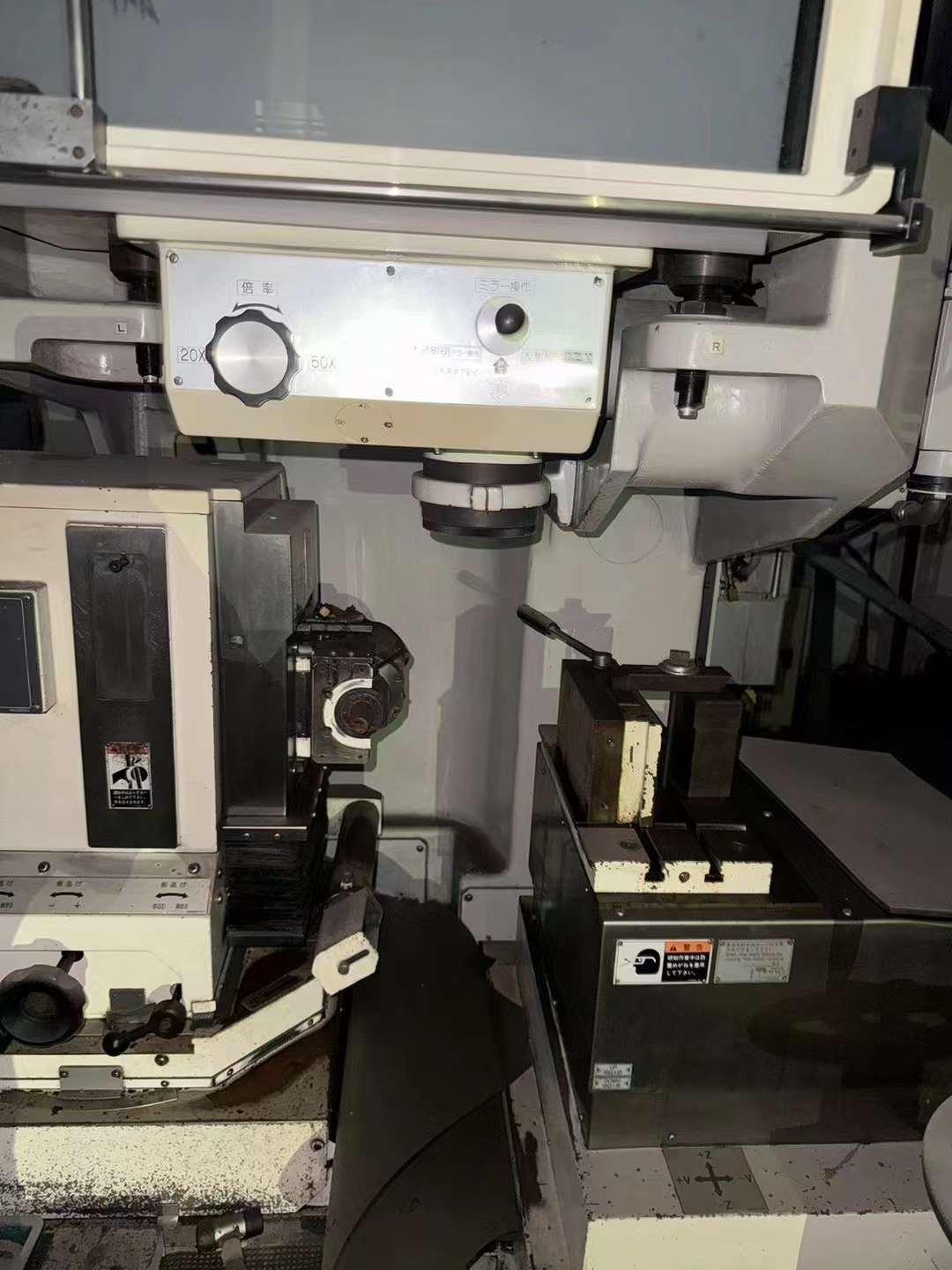

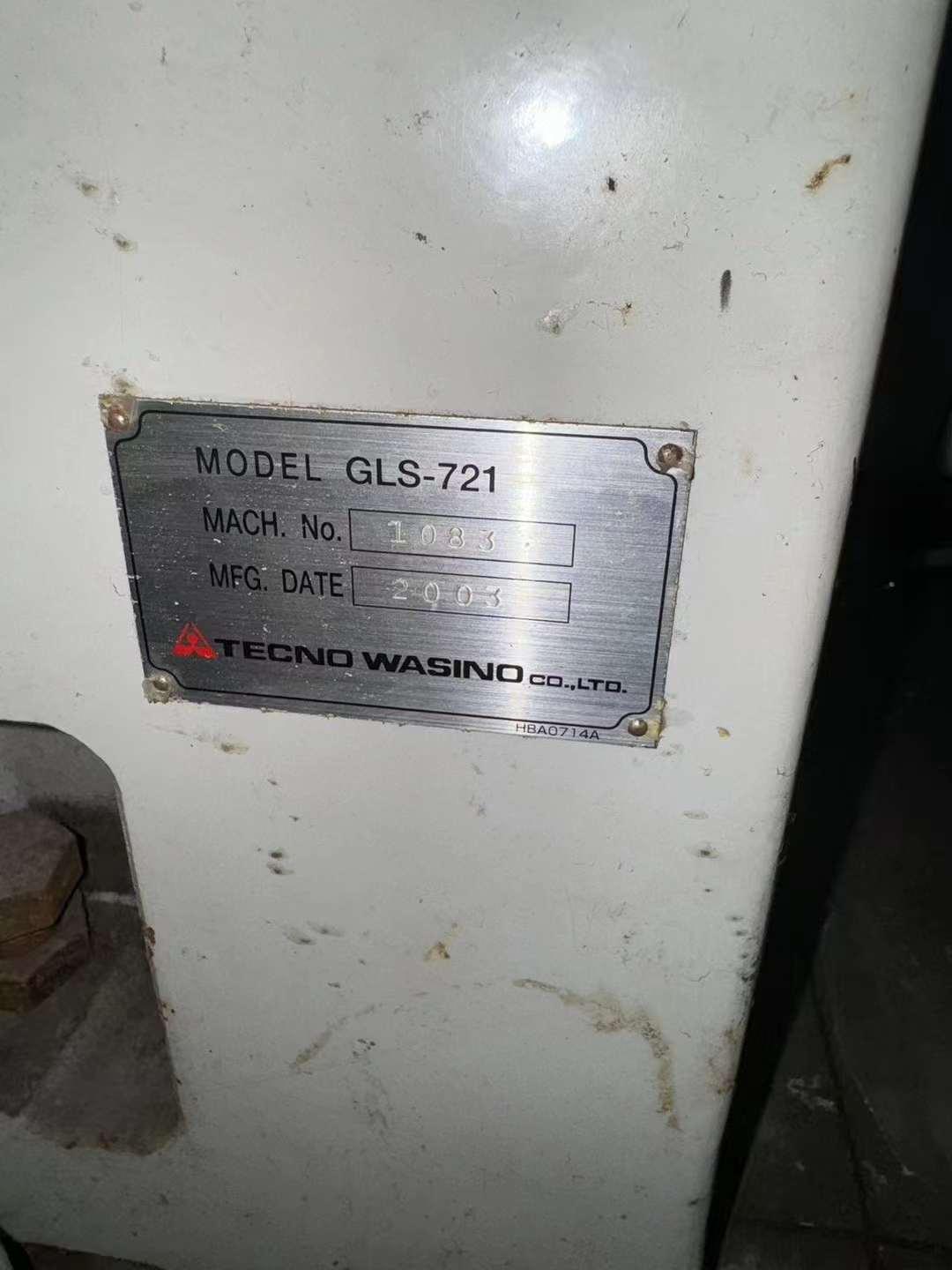

WASINO GLS-721 Optical profile grinding
[Product Information]:
- Inventory number：92019
- Brand：WASINO
- Model：GLS-721
- Origin：Japan
- Location：China
- Year：The Ex-factory date 2003
- Create Time：2024-05-29
Specifications:
WorkWorktable size: 300*155mm
Maximum grinding size: 130*80*70mm
Longitudinal feed distance: 200mm
Lateral feed distance: 135 mm
Minimum setting unit: 0.0001mm
grinding wheel lifting process: 0-60mm
Lifting process speed: 30-400m/min
grinding wheel travel X axis: 170mm
grinding wheel travel Y-axis: 100mm
Minimum setting unit: 0.0001mm
Front discharge Angle: 1 ~ +2
Horizontal discharge Angle: ±1
Rotation Angle: ±10
Projector screen size: 420*520mm
Magnification: 50x, 20x
Sand wheel shaft: size (external diameter * width * Internal diameter) : Φ120 ~ 150 × 6× Φ31.75mm
speed: 2000-20000m/min
Motor capacity: 1.5 (2) *4 KW-P
Body area (length * width) : 1850*1900mm
Machine weight: 4000kg
Power capacity: 18kva
