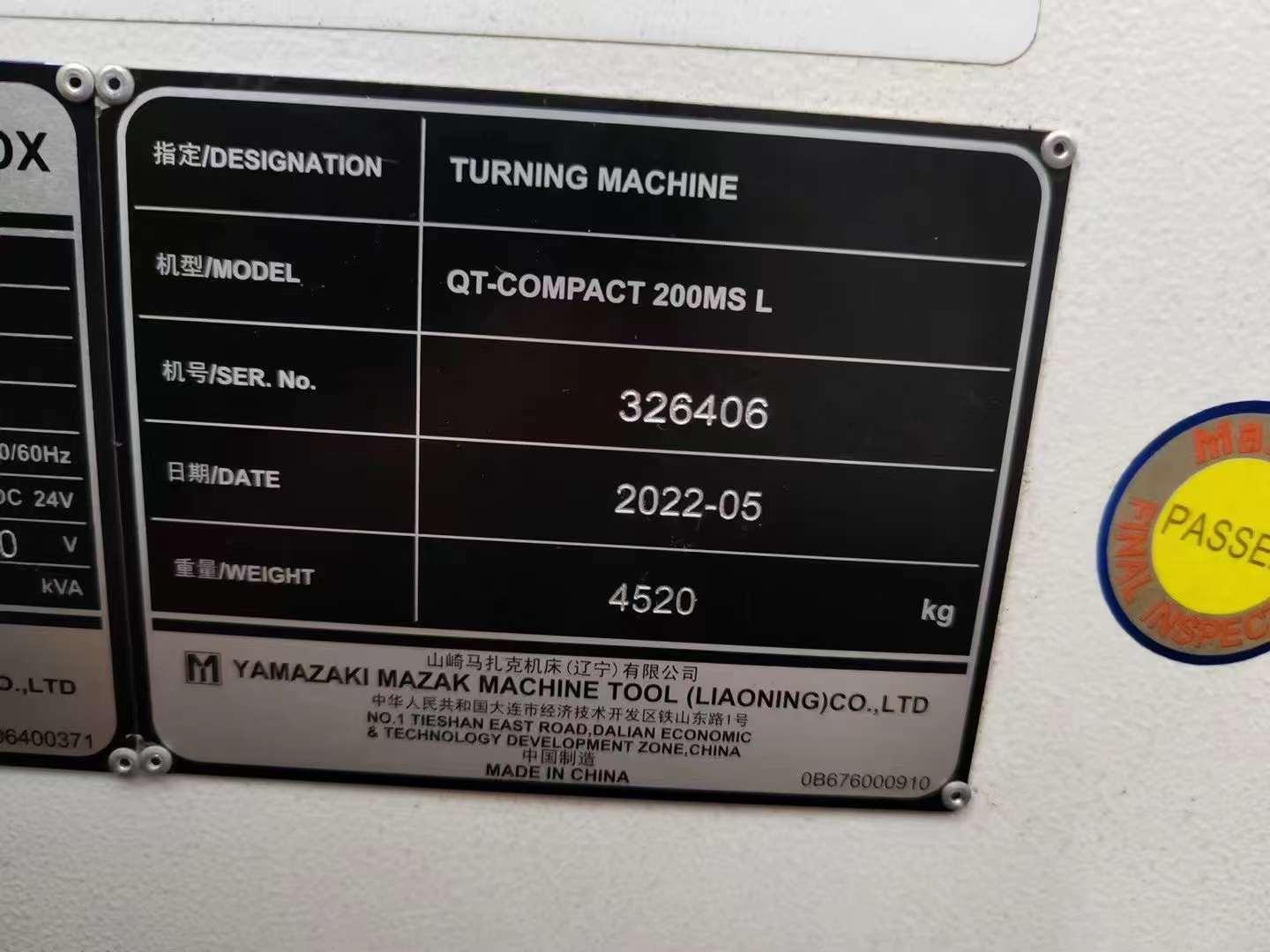

MAZAK QTC 200MSL Turn Mill Machining Centre

[Product Information]:

Maximum rotating diameter: 695mm

Maximum machining diameter: 340mm

X axis travel: 215mm

Z-axis travel: 605mm

W axis travel: 585mm

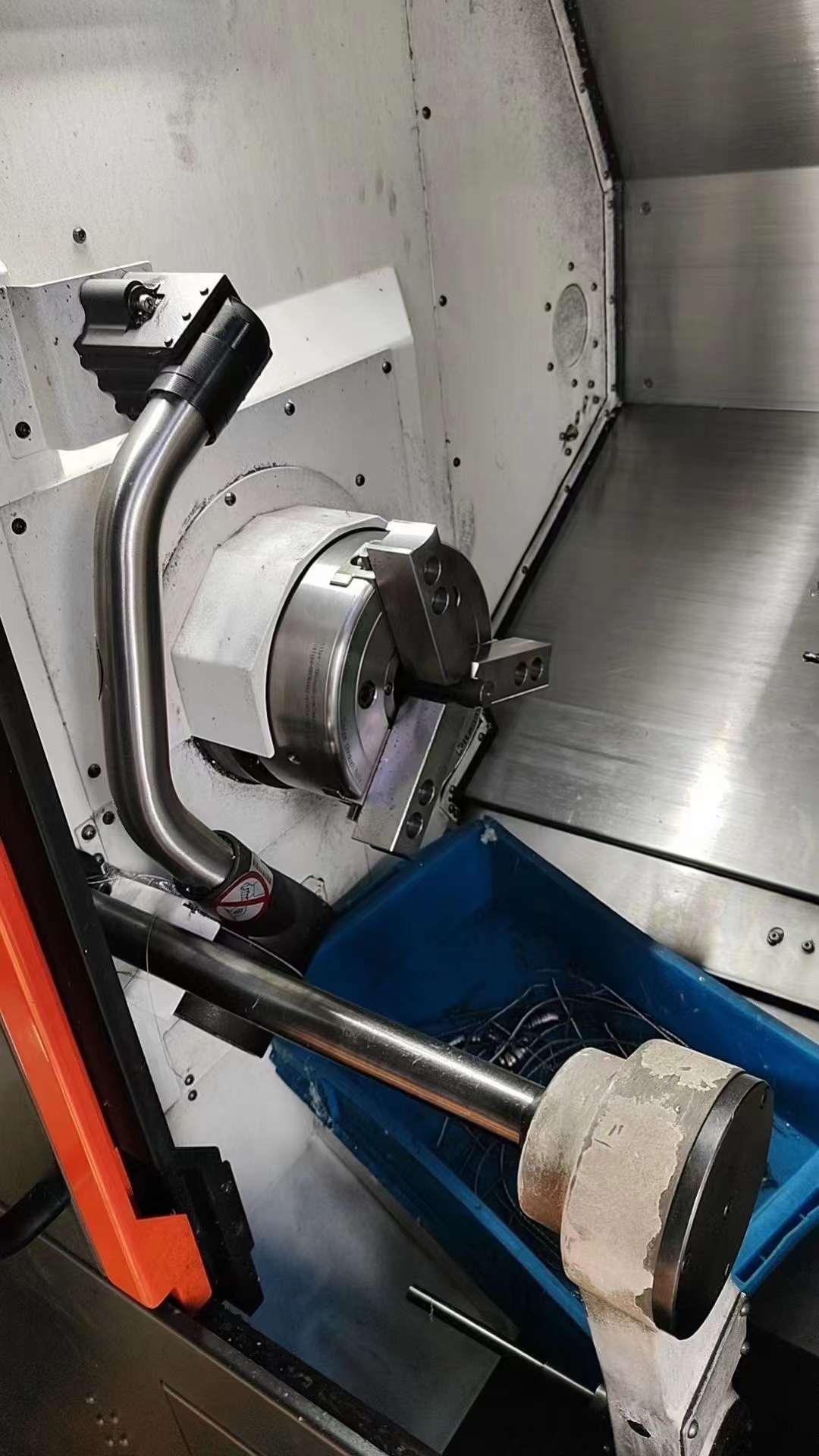

spindle: 8 "hollow chuck , through hole diameter 76mm, 6000rpm

Secondary spindle: 6-inch hollow chuck , through hole diameter 53mm, 6000rpm

X*Z*C axis feed Fast moving rate: 30000*30000*555rpm/min

Chip conveyor with faucet

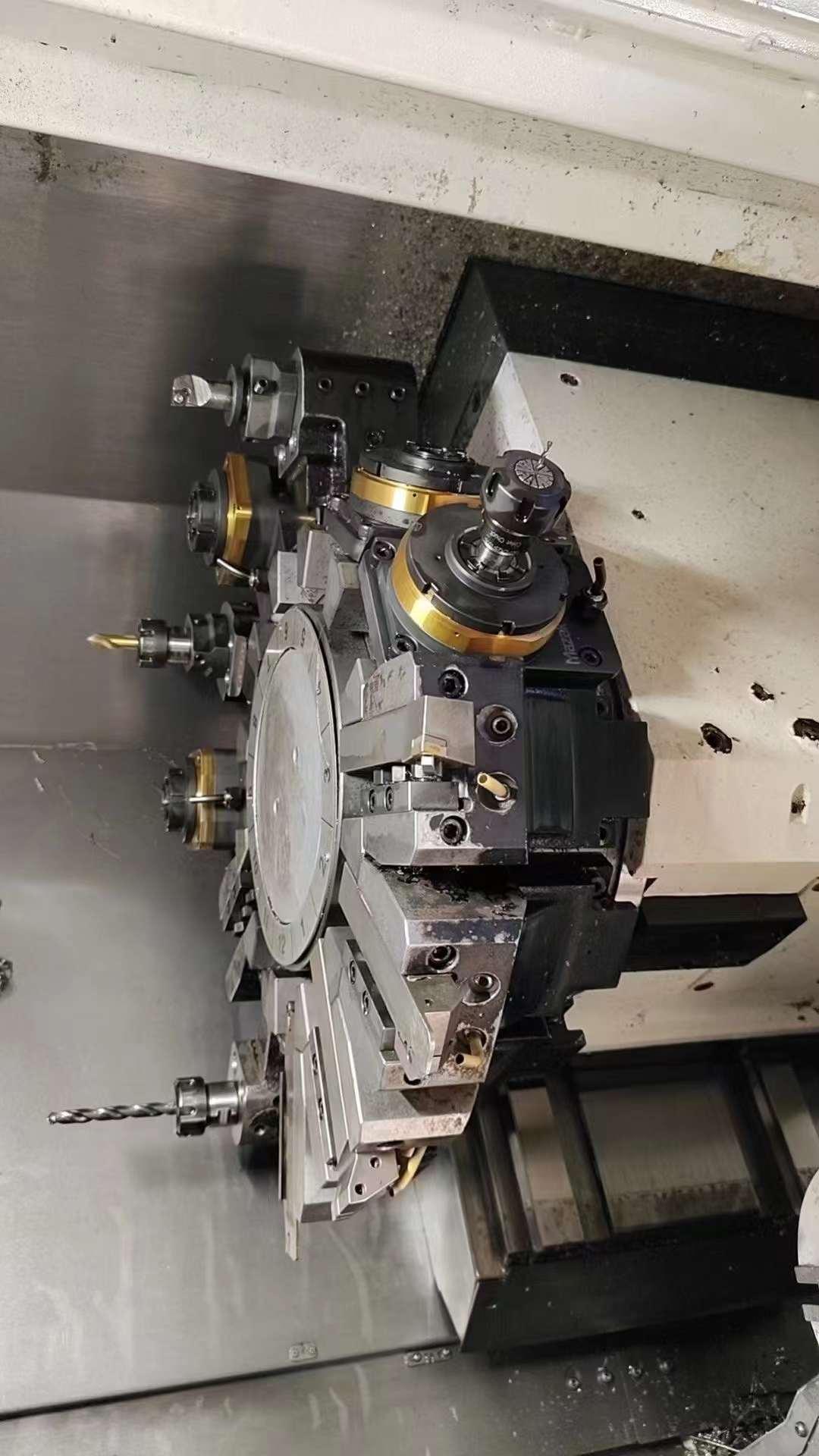

12 positions private turret
