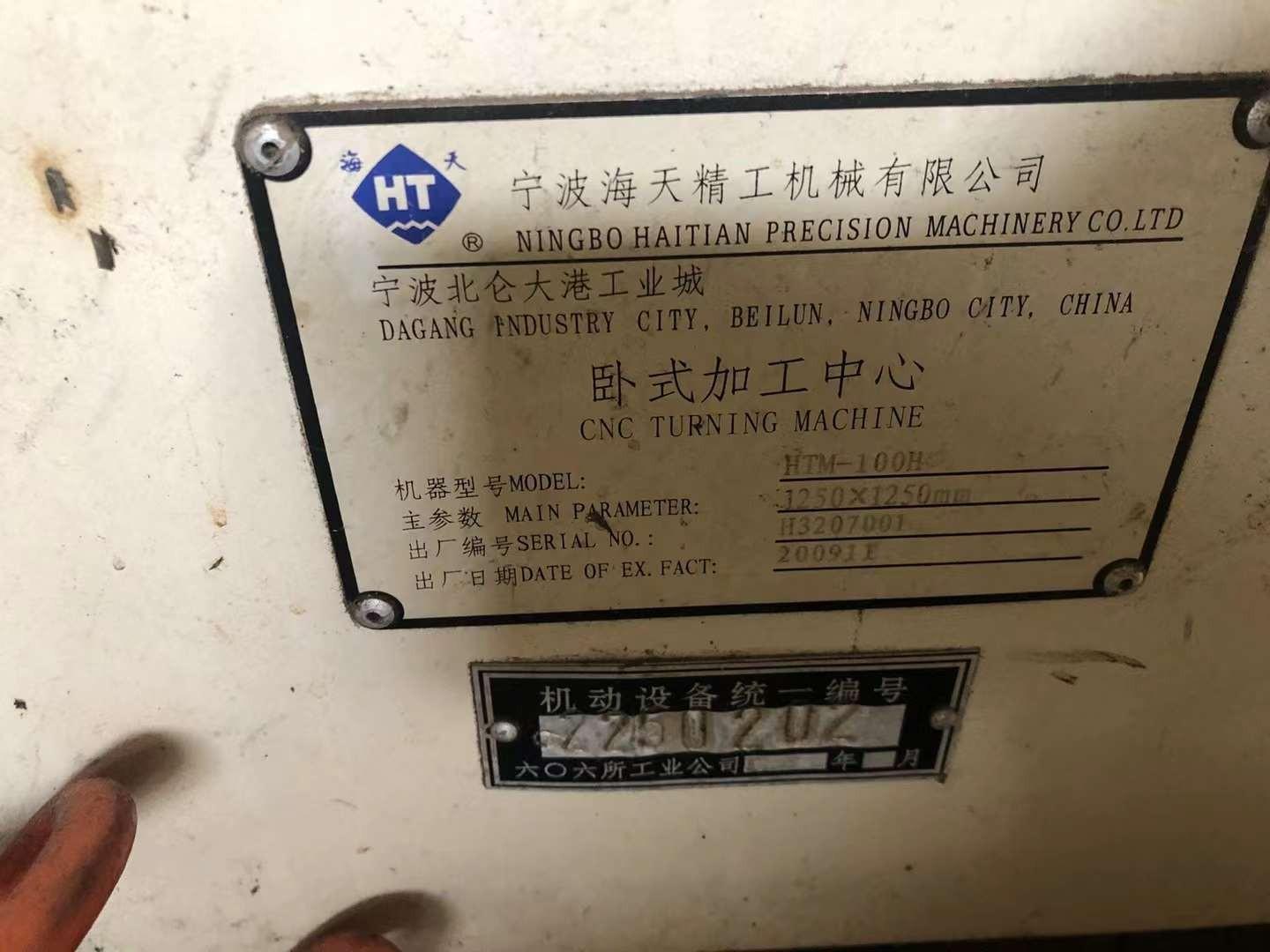

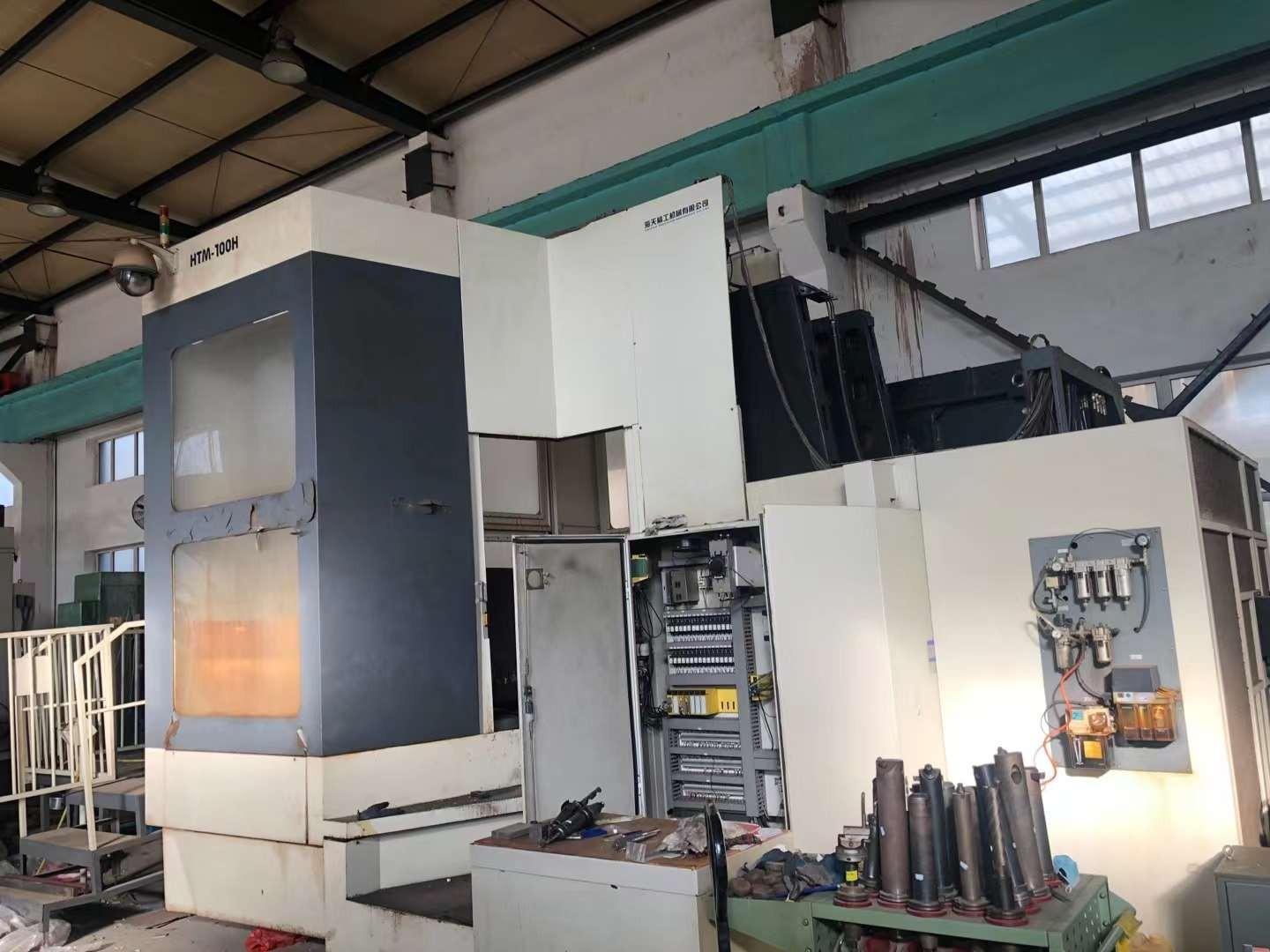

Hision HTM-100H Horizontal Machining centre

X-axis travel: 2000mm

Y-axis travel: 1500mm

Z-axis travel: 1200mm

Height from spindle center to worktable surface: 50-1550mm

Distance from spindle nose to table center: 280-1480mm

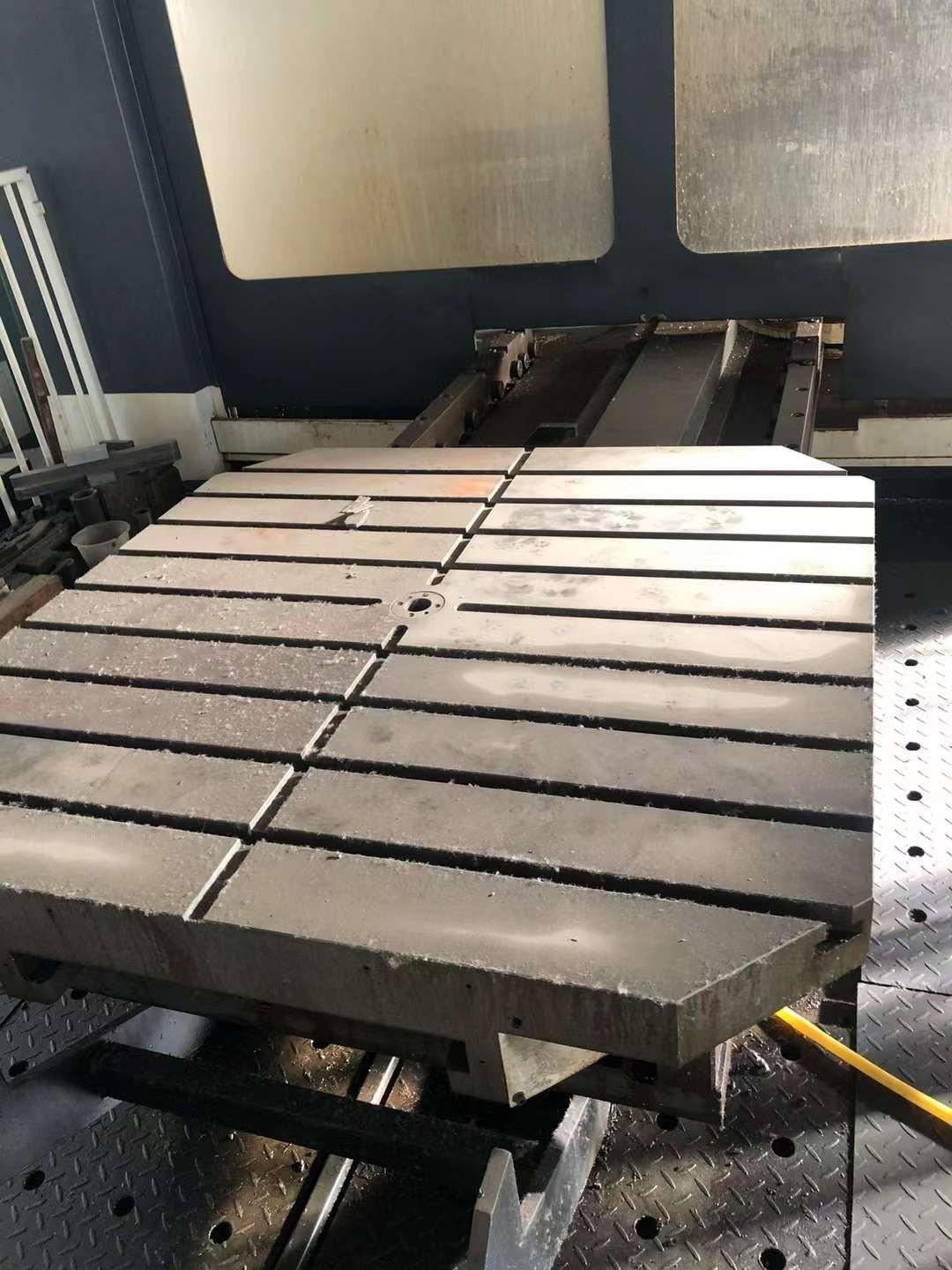

Worktable size: 1250×1250mm

Maximum Worktable load: 5000kg

Spindle motor power: 22/18.5kw

Spindle speed: 20-4500rpm

Maximum spindle torque: 837Nm

Tool holder type: BT50

Tool maximum length: 500mm

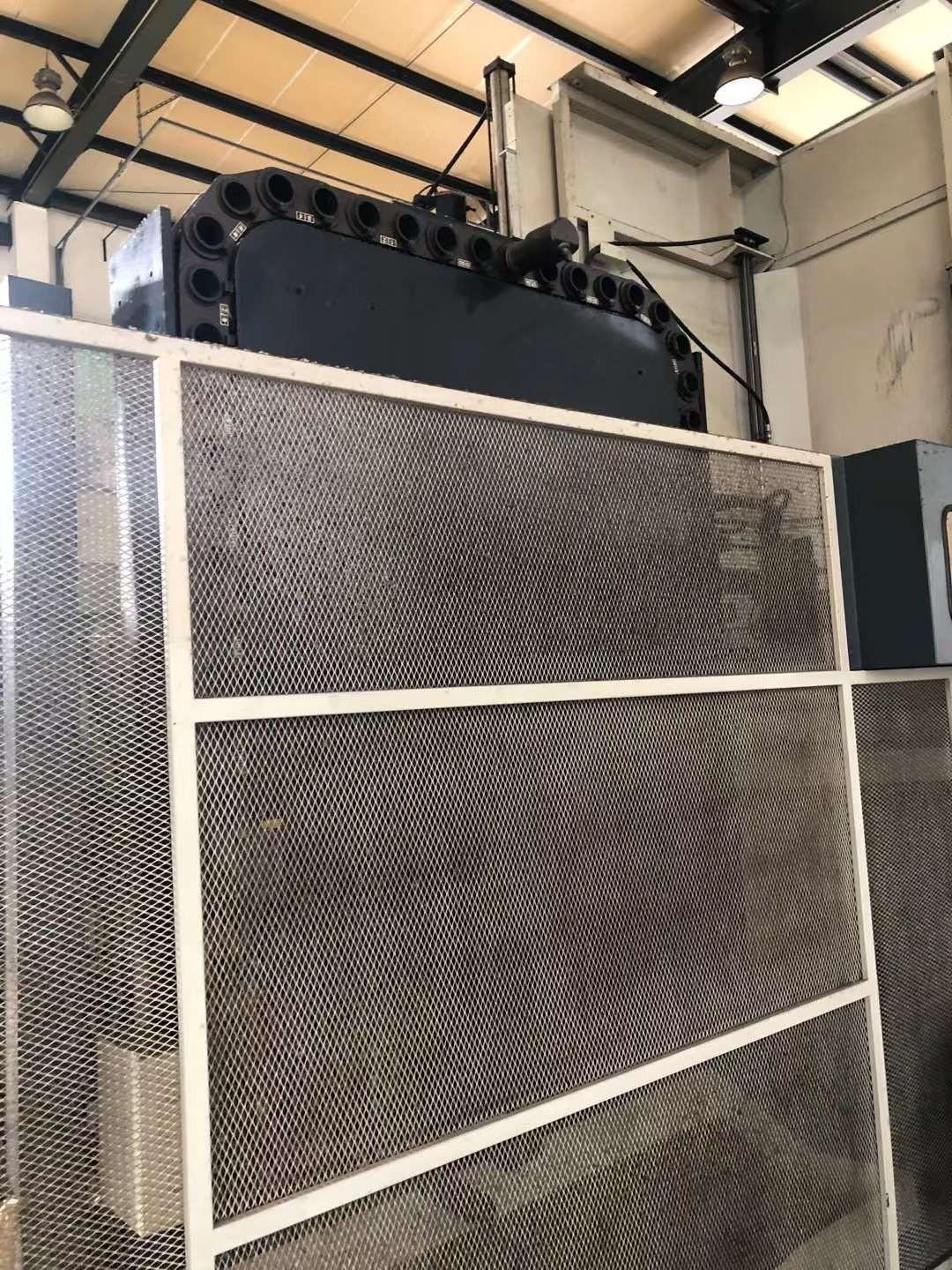

Tool magazine capacity: 60

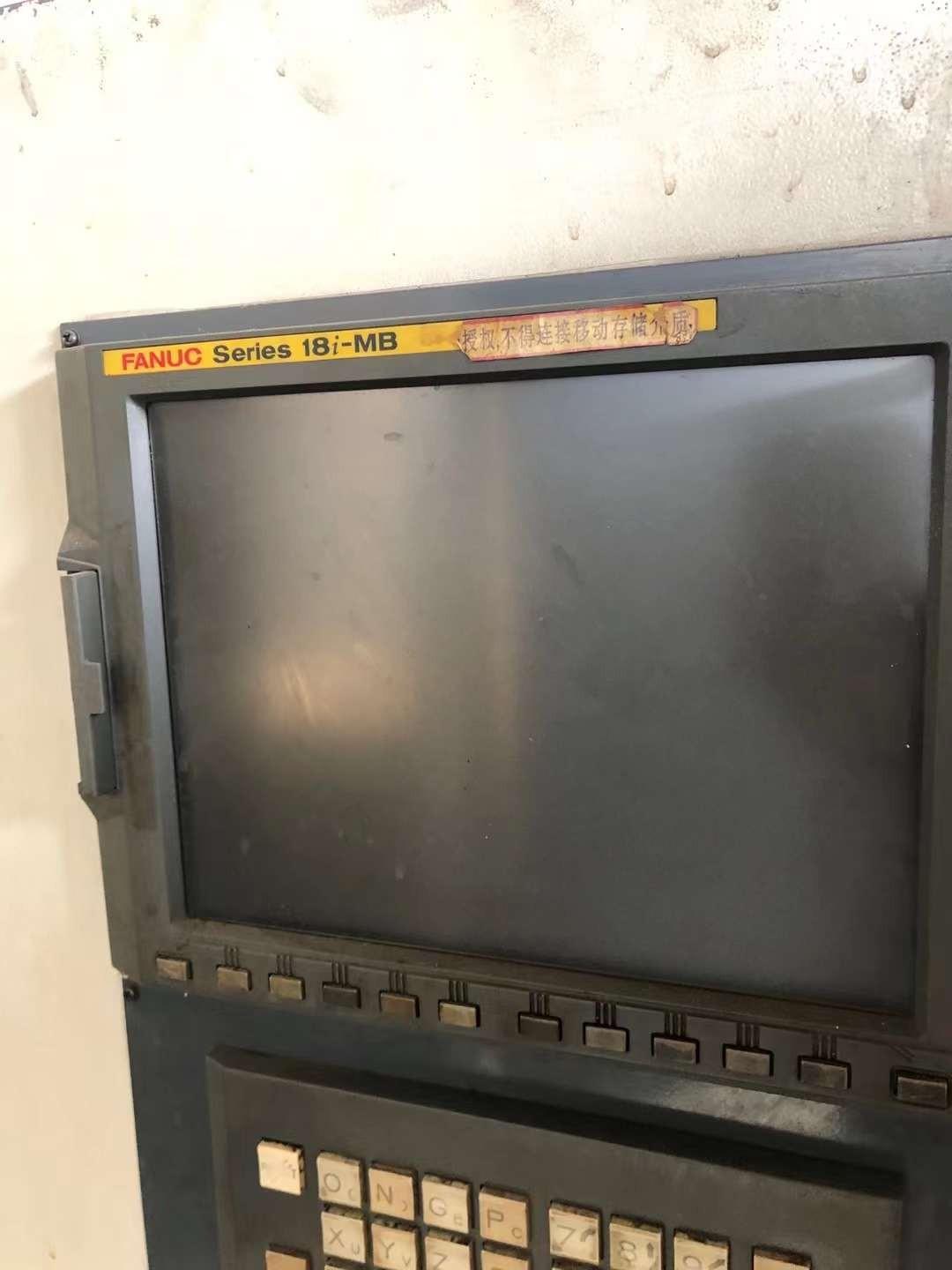

System: Fanuc
