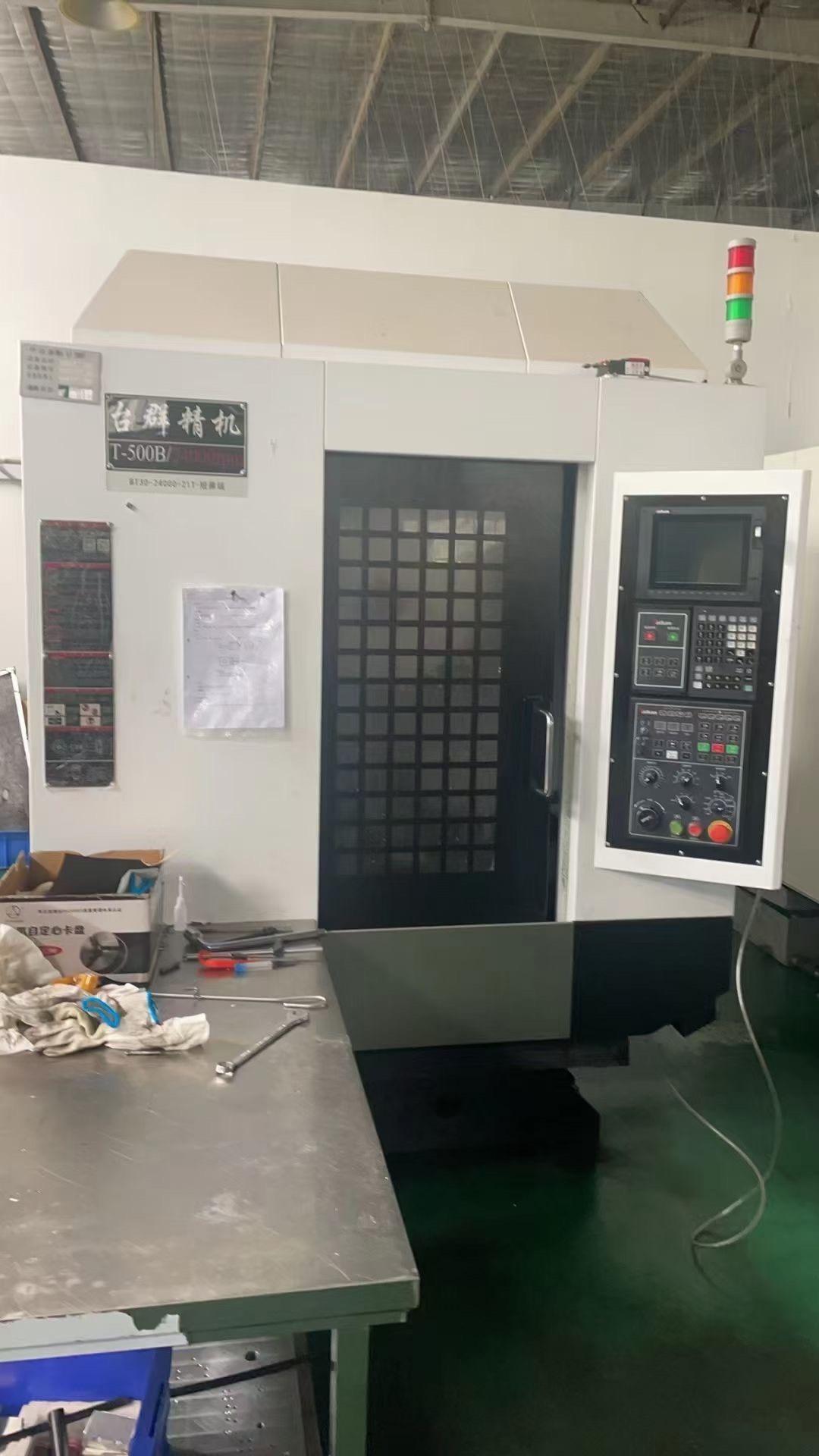

Taikan T-500B Tapping machine

X-axis travel: 500mm

Y-axis travel: 400mm

Z-axis travel: 320mm

Distance from spindle nose to worktable surface: 160-480mm

Distance from column center to guideway surface: 445mm

Worktable size: 620*400mm

Worktable load: 250kg

T-slot: 3*14*120mm

Motor power: 2.2/3.7kw

Motor torque: 7/17.7Nm

Spindle speed: 24000rpm

Spindle diameter: 100mm

Spindle taper: BT30

Cutting feed rate: 1-30000mm/min

Three axes fast feed rate: 48m/min

Positioning accuracy: 0.006mm

Repositioning accuracy: 0.004mm

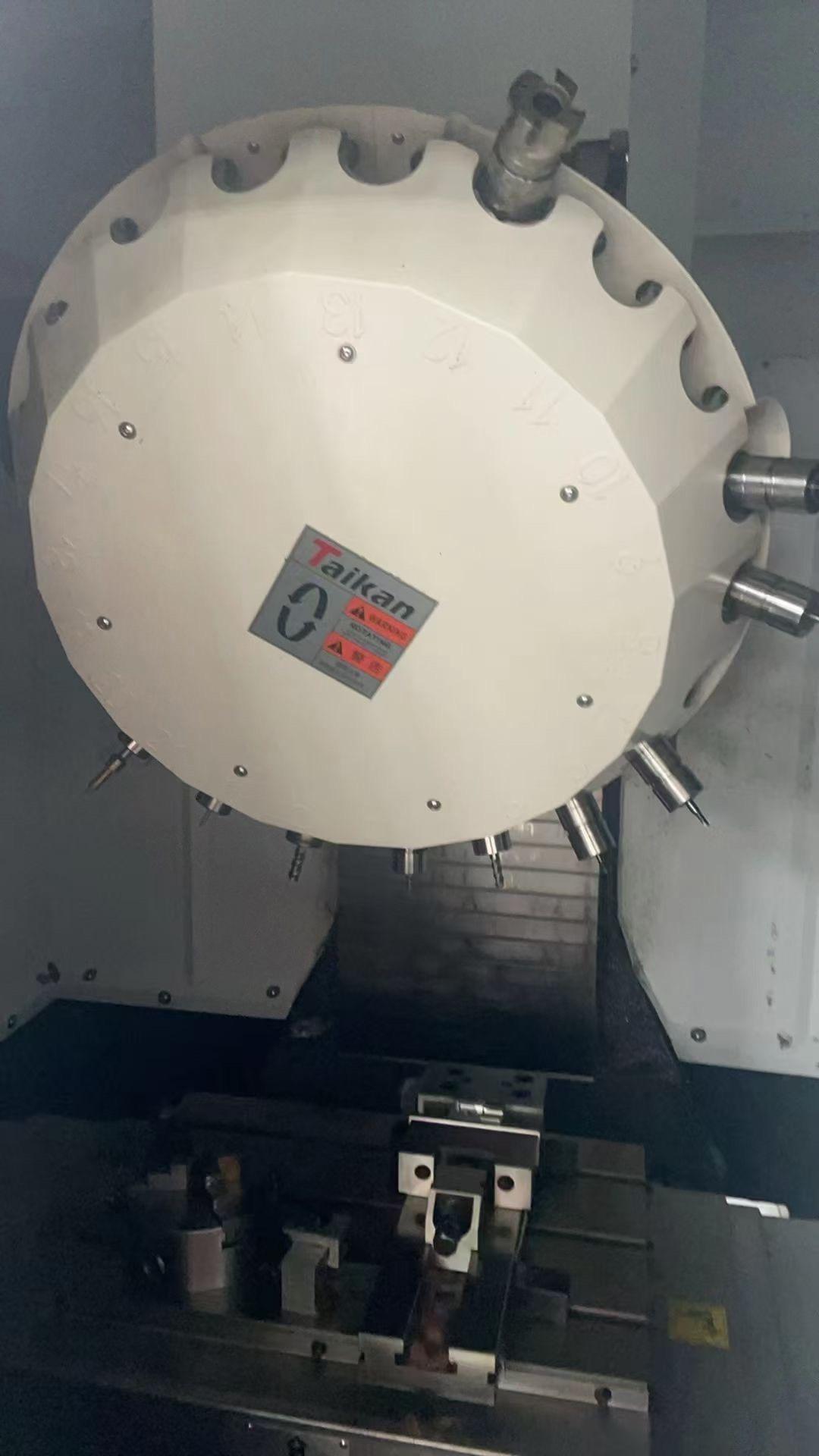

Tool magazine: 21

Tool maximum weight: 3kg

Tool maximum length: 200mm

Tool maximum diameter: 60/80mm

Machine dimension: 1600*2600*2300mm

Machine weight: 3100kg
