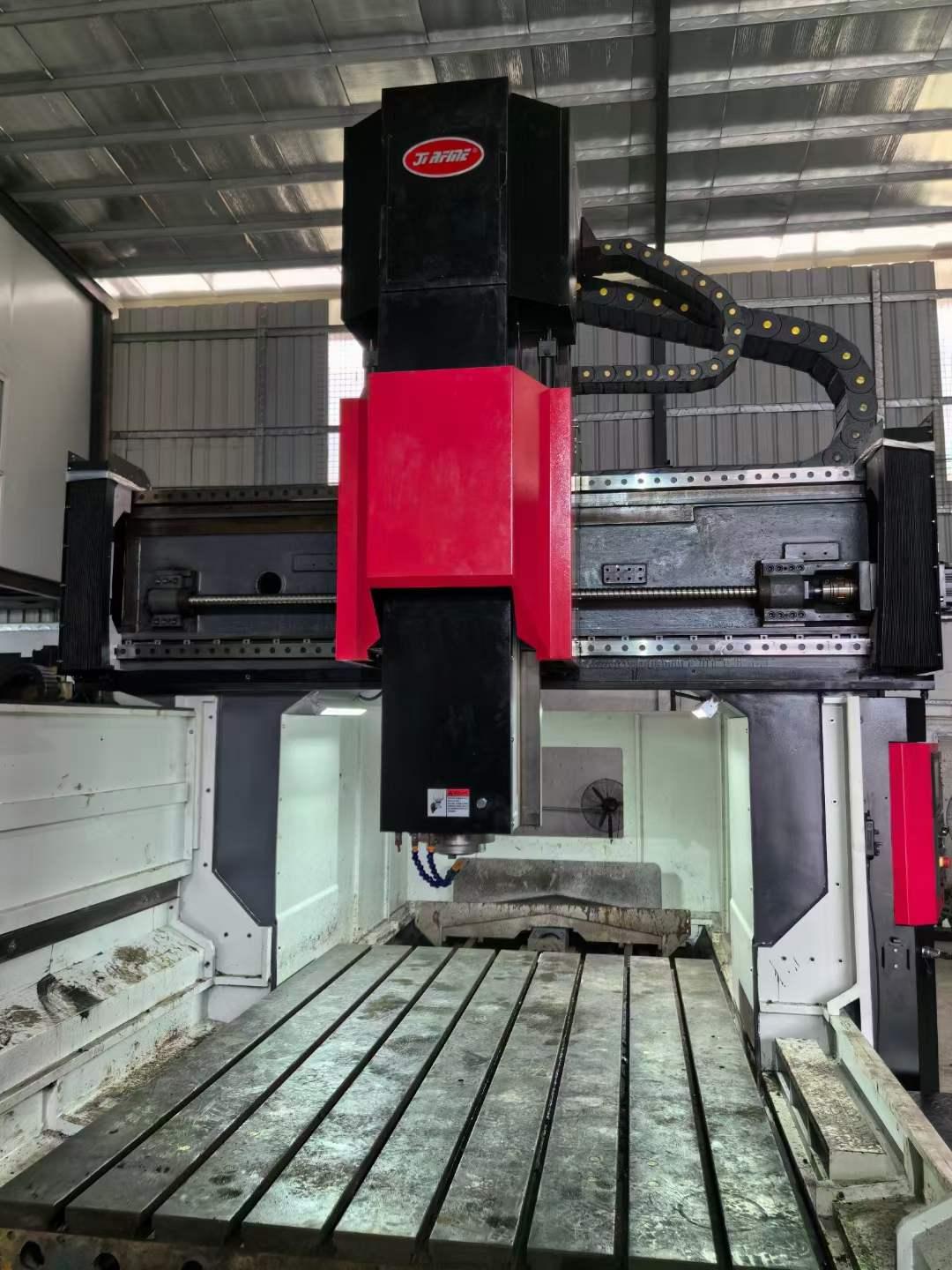

JIRFINE LM-2317 Gantry machining centre

Mitsubishi M80 CNC system

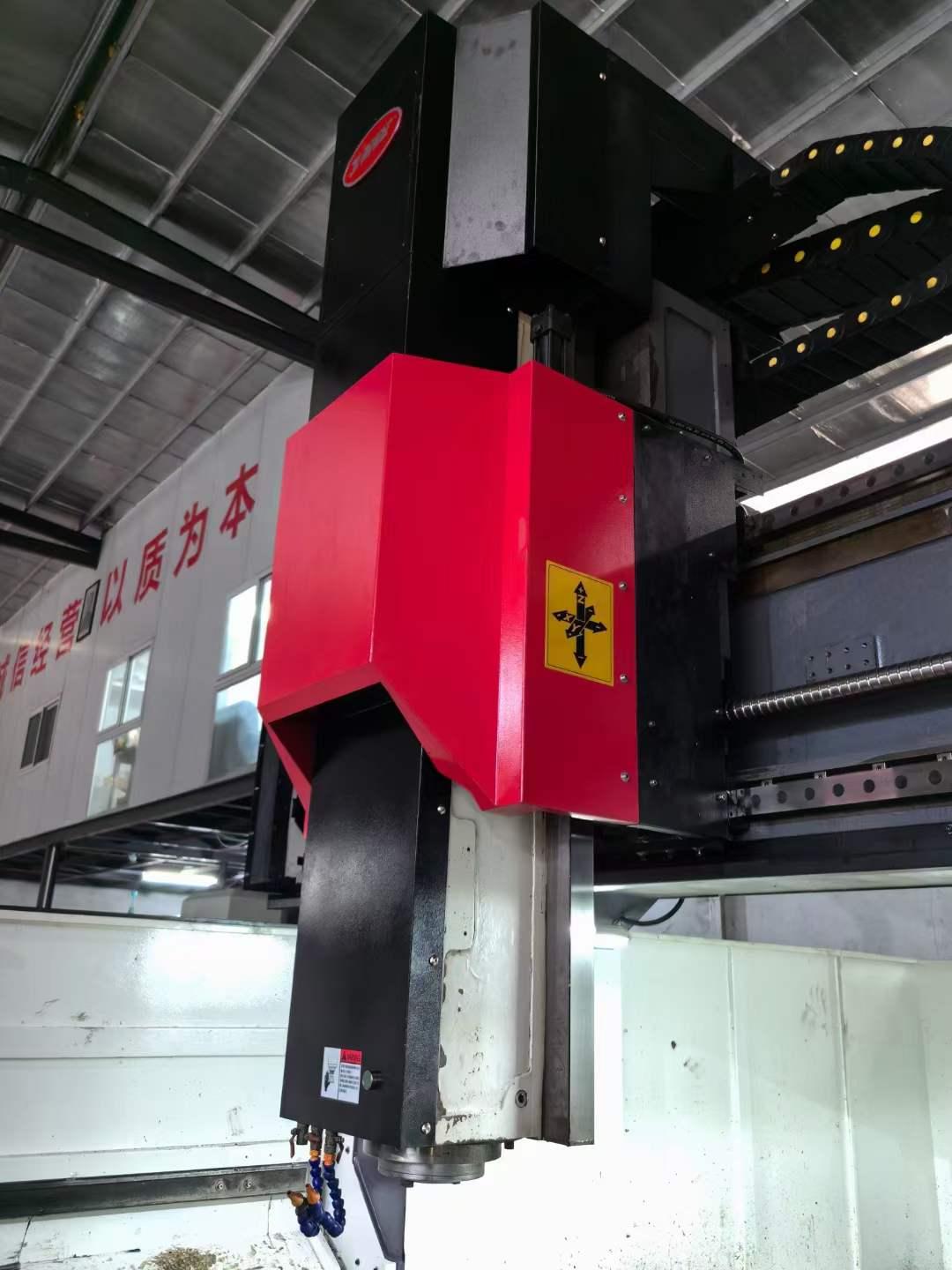

Spindle: BT50

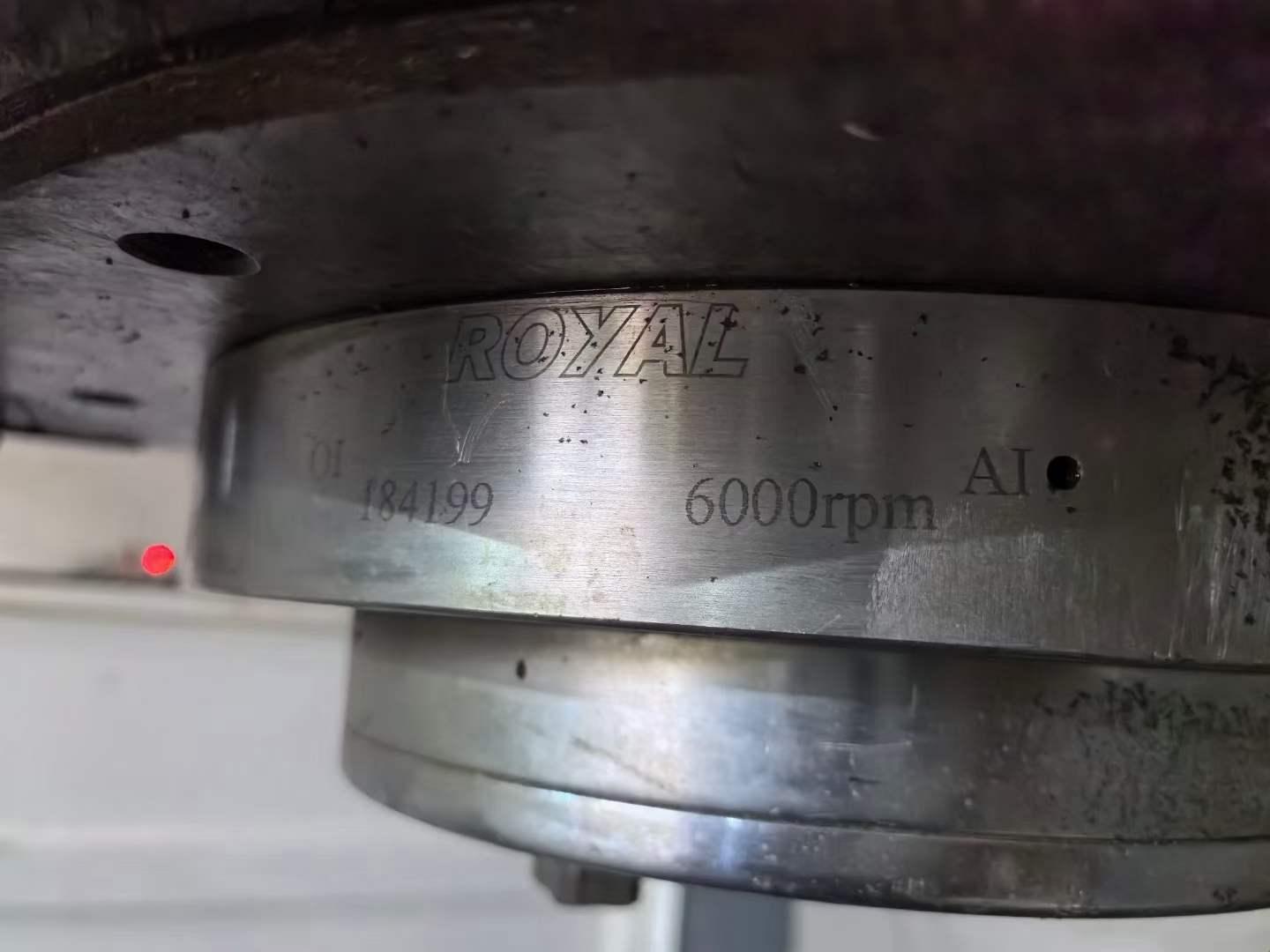

Spindle speed: 6000rpm

Spindle power: 22kw

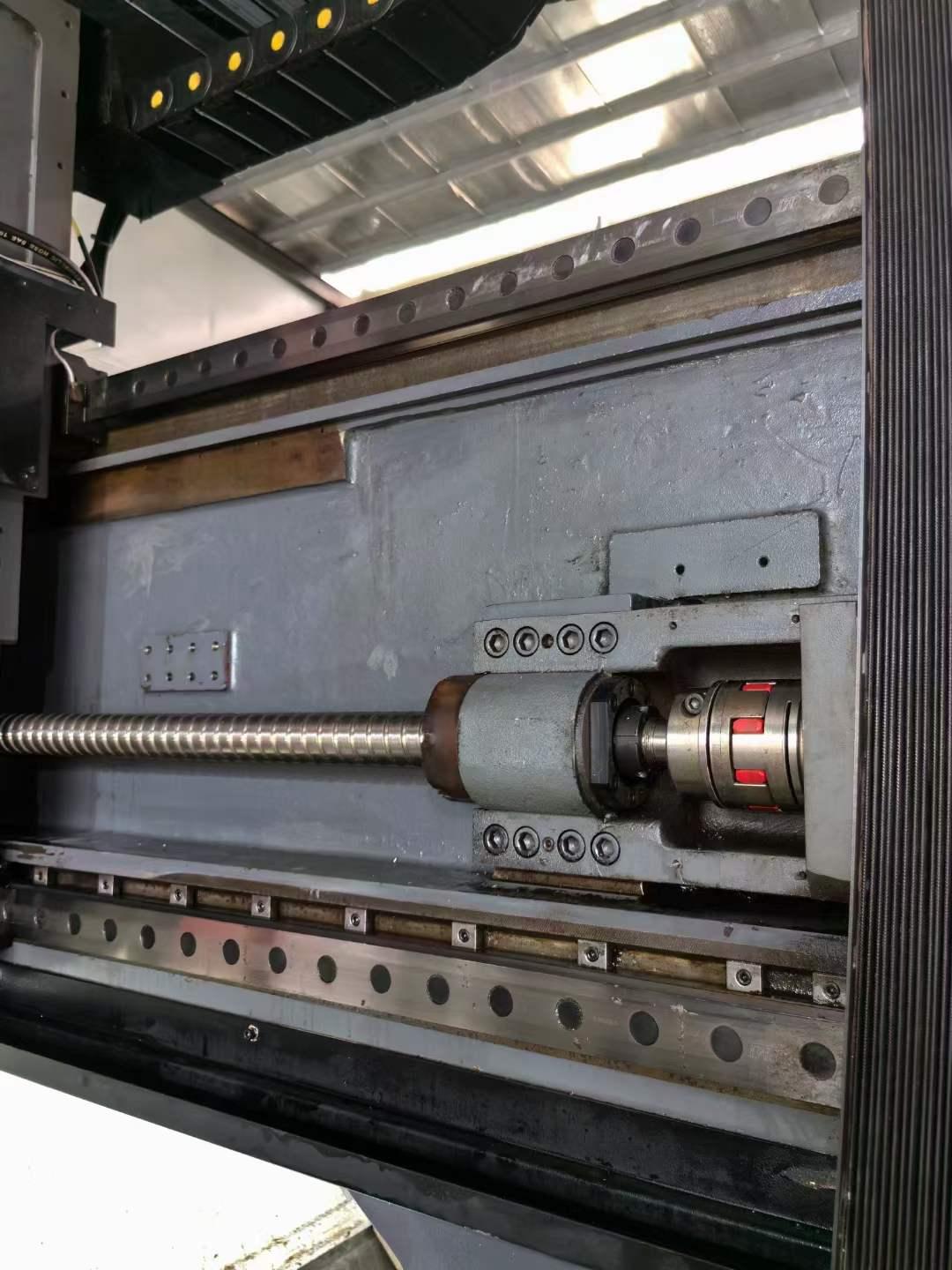

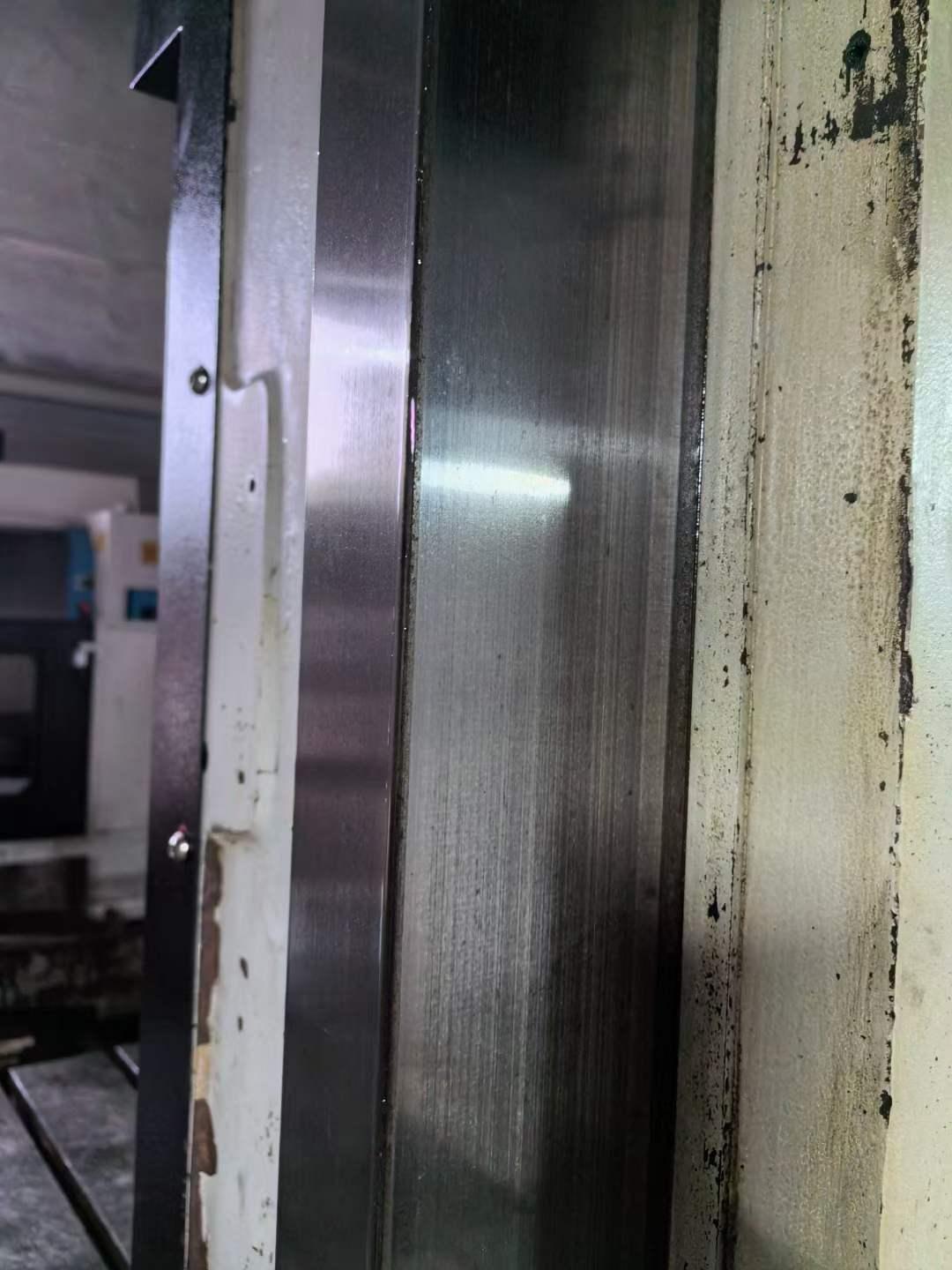

Two linear guideways and one rigid guideway

Three axes travel: 2350*1800*800mm

Distance from spindle nose to worktable: 240-1040mm

Gantry width: 1700mm

T-slot: 22*8*170mm

X/Y axis fast feed rate: 15000mm/min

Z-axis fast displacement: 12000mm/min

Worktable size: 2300*1500mm

Machine dimension: 5705*3286*4160mm

Machine weight: 21t

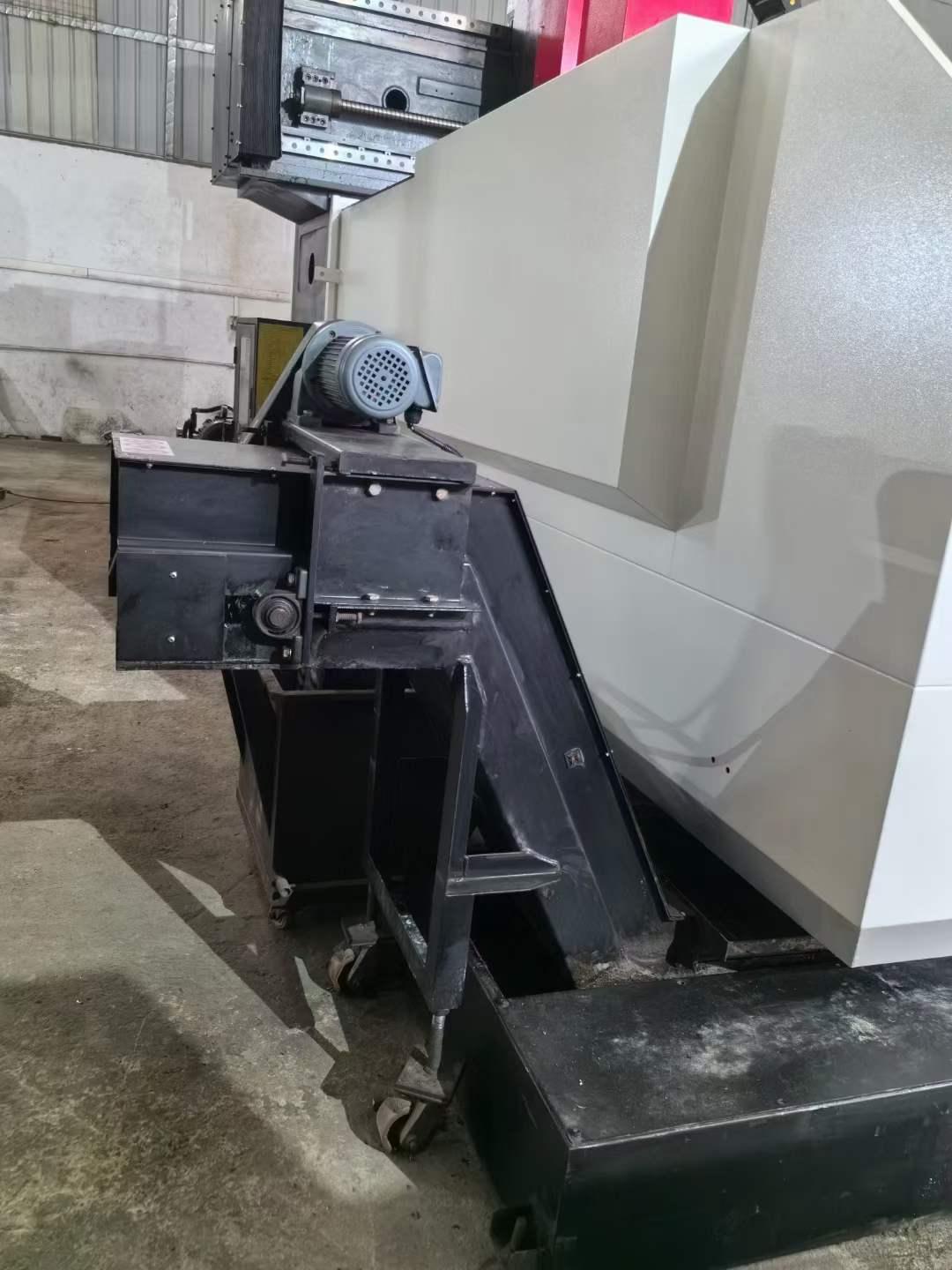

With chip conveyor
