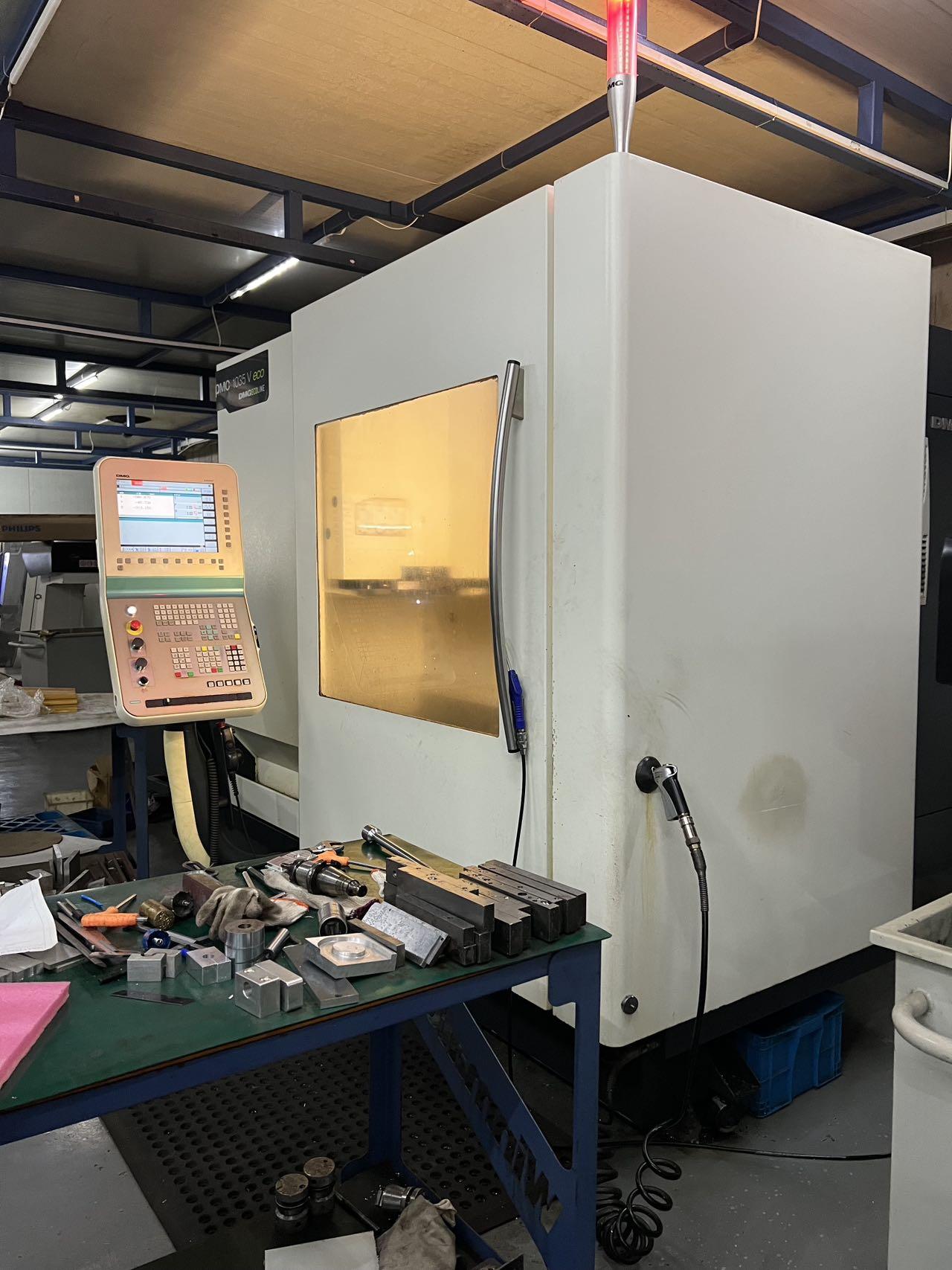

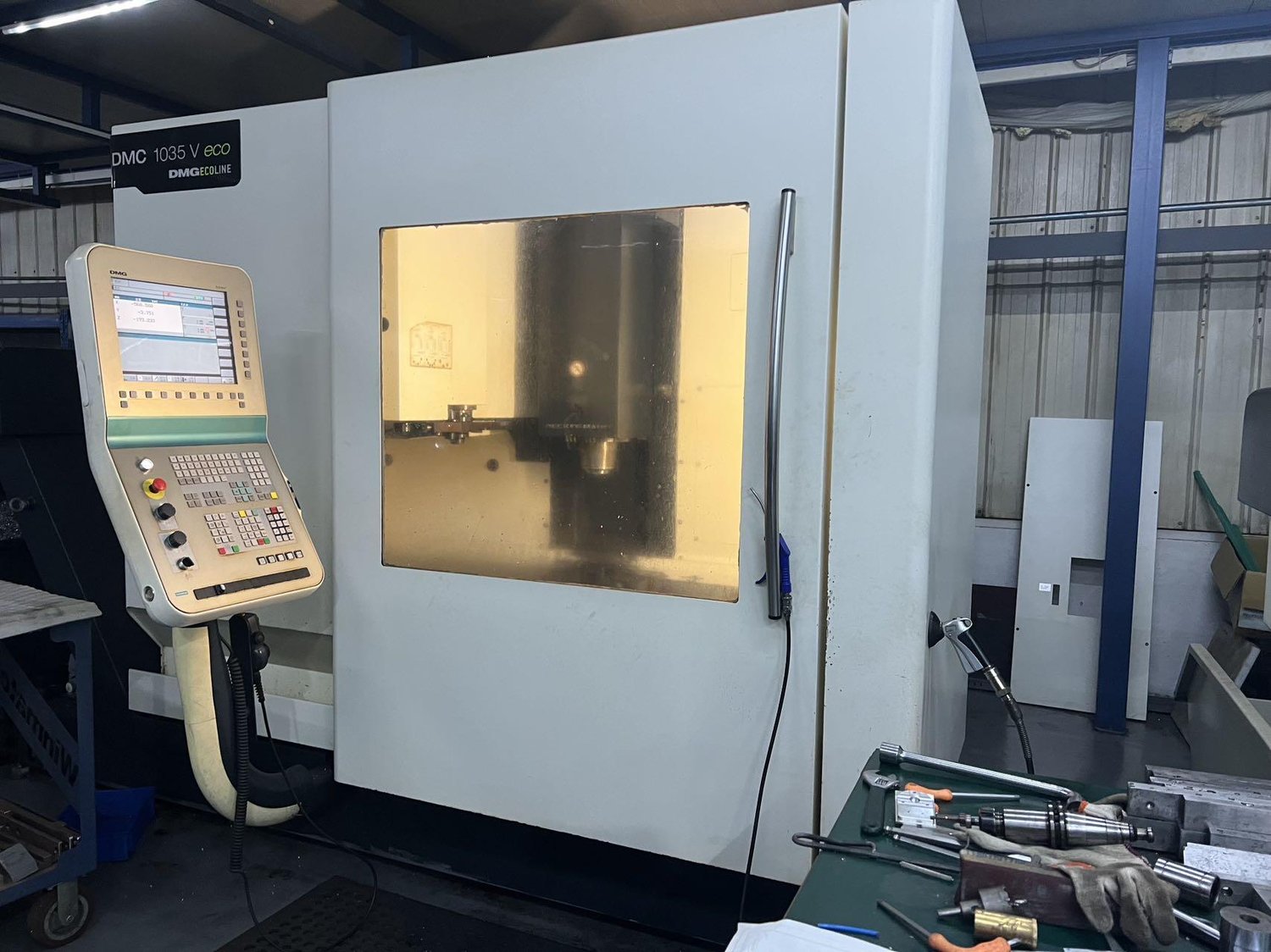

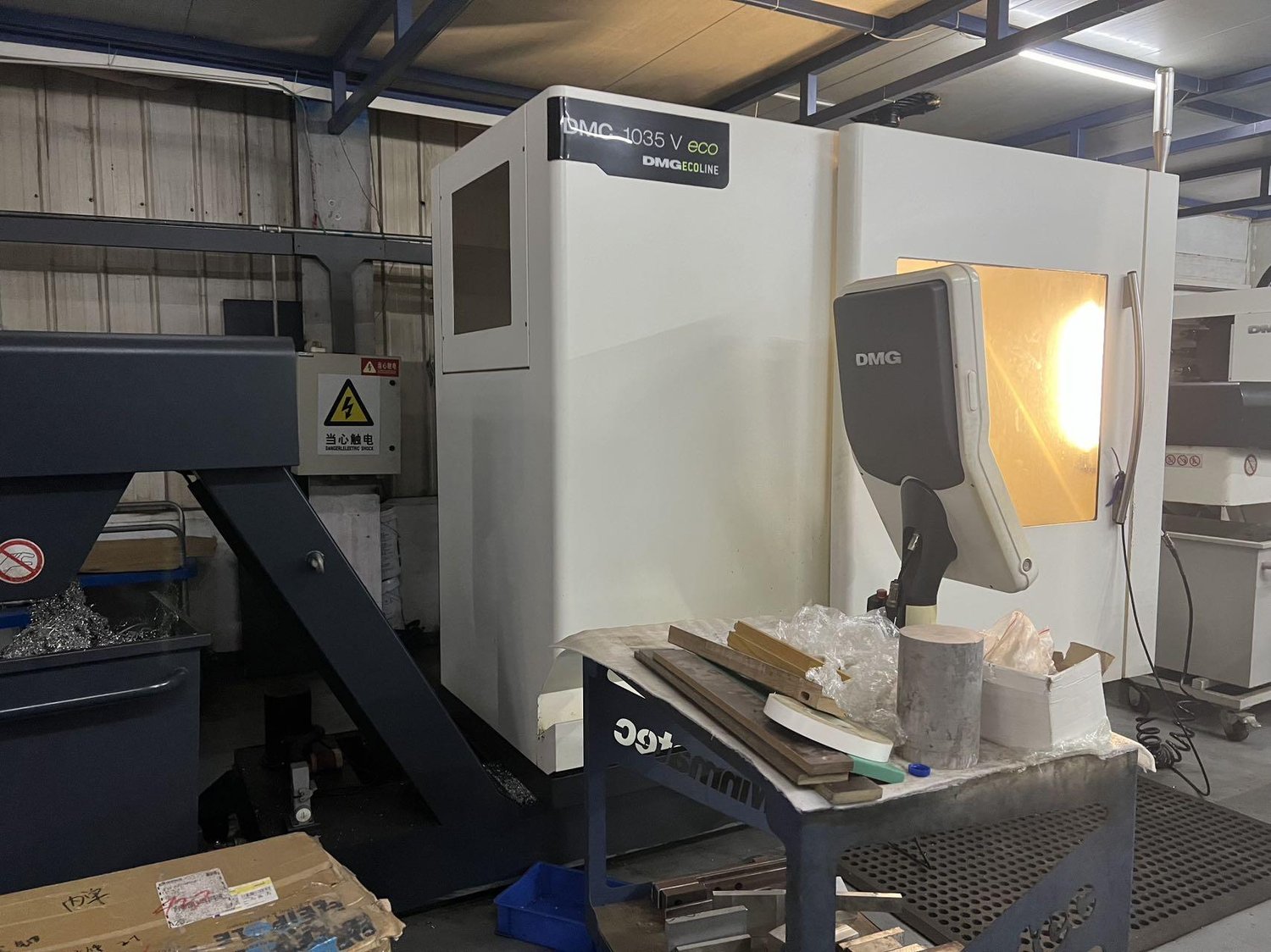

DMG DMC 1035 eco Machining centre

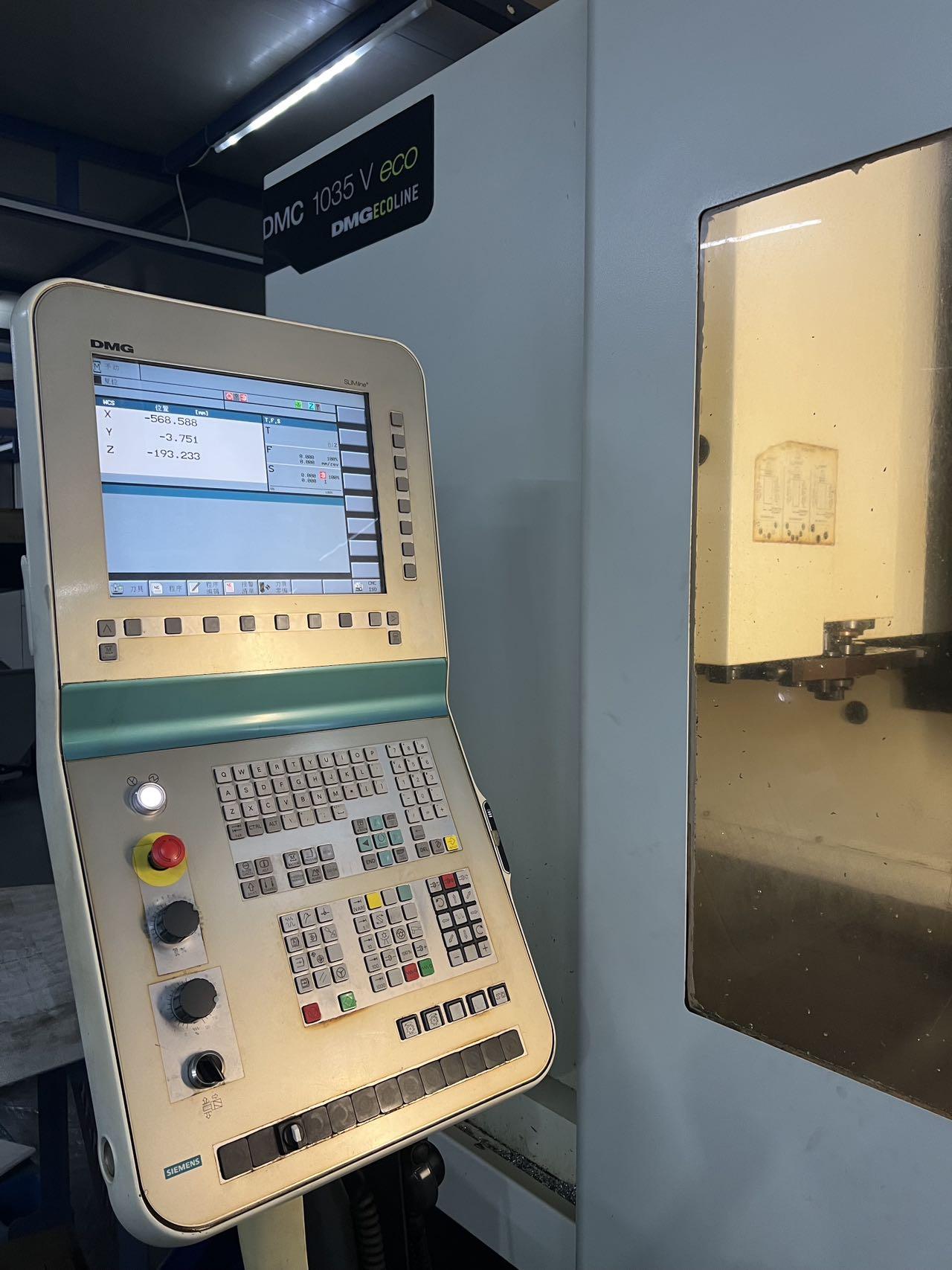

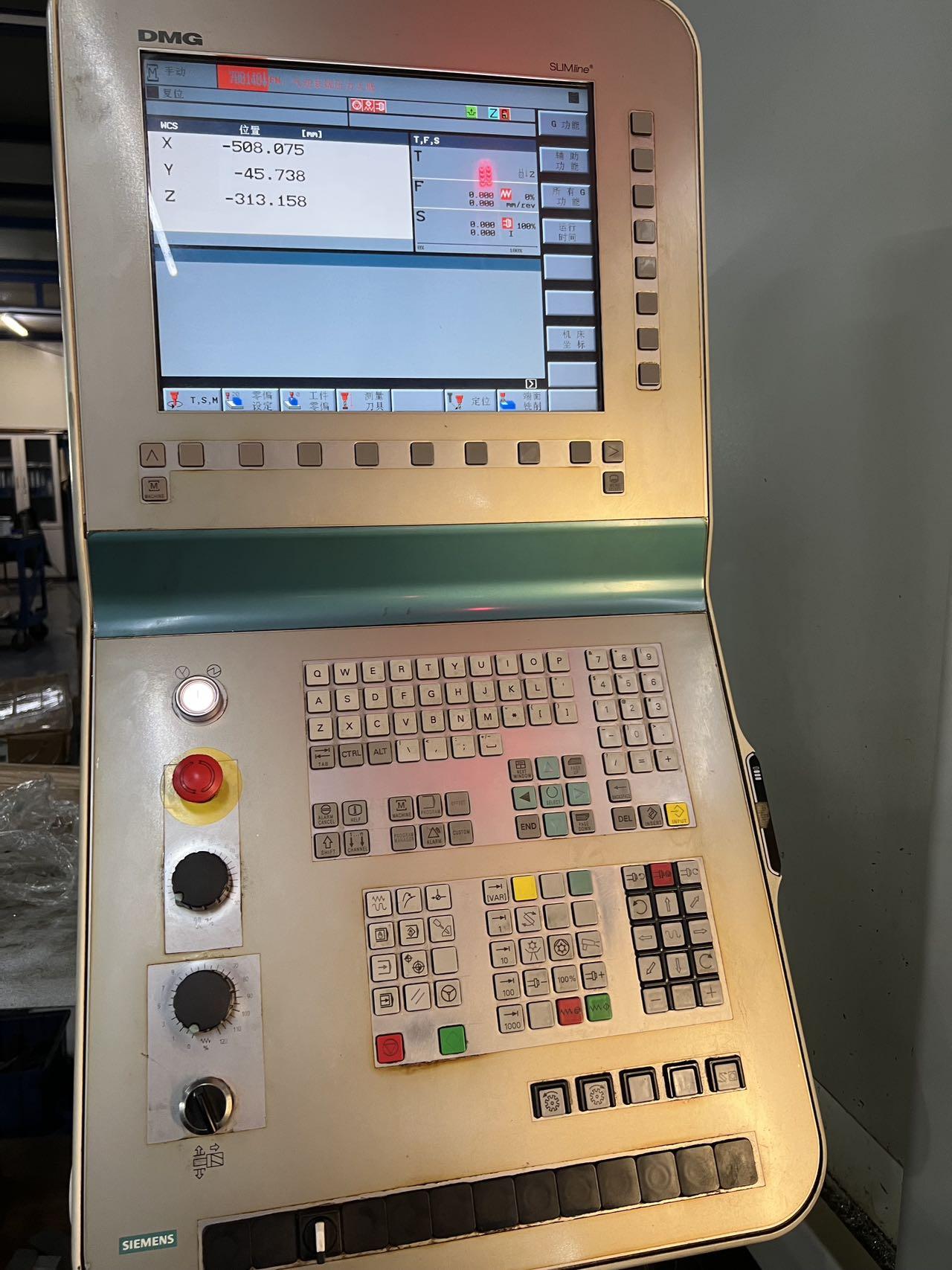

CNC system: Siemens 840

X-axis travel: 1035mm

Y-axis travel: 560mm

Z-axis travel: 510mm

Feed rate: 20m/min

Fast feed rate: 25m/min

Maximum machining spindle(standard) speed: 18000rpm

Power: 15kW

Tool holder: SK 40

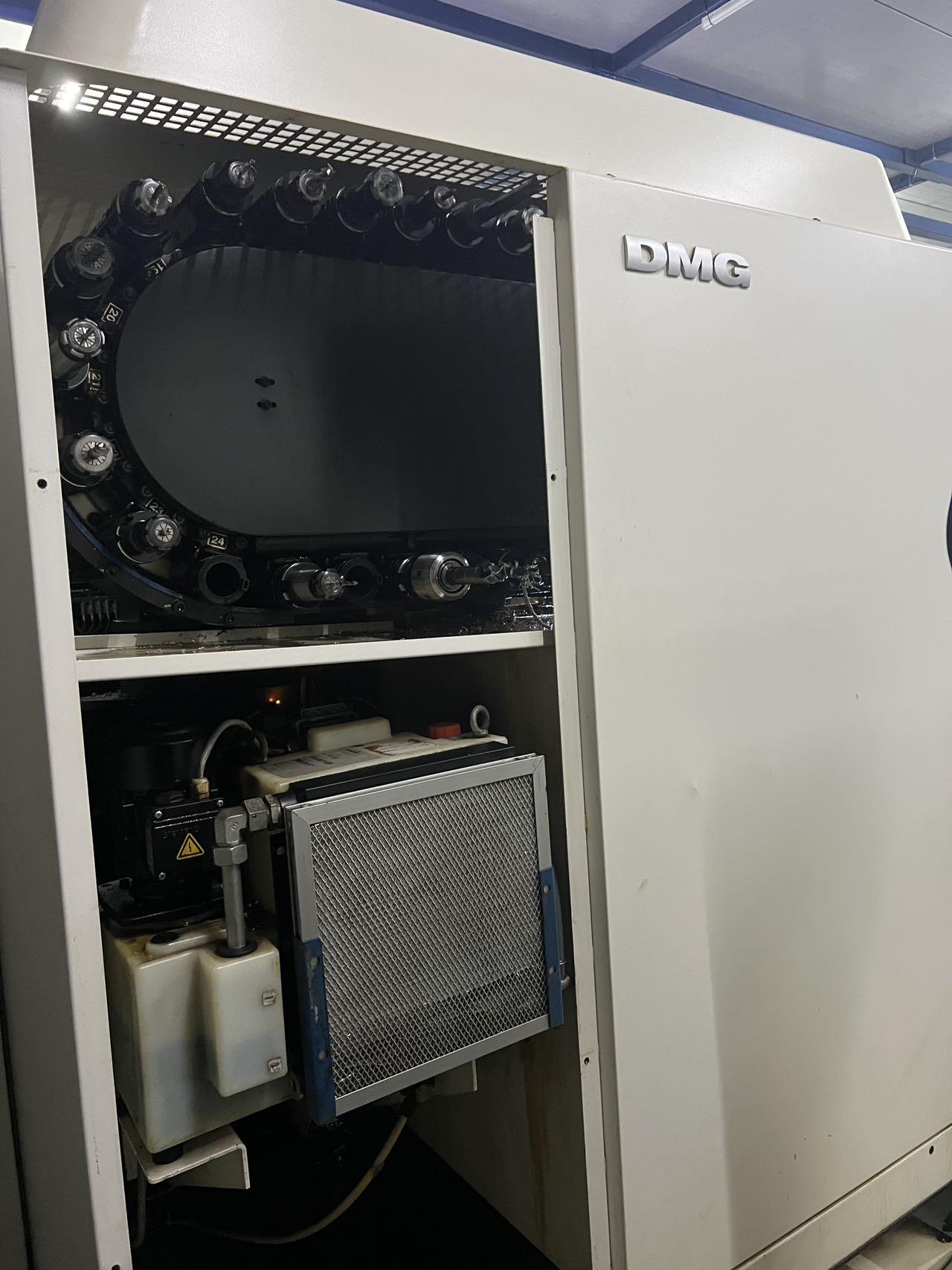

Tool magazine: 20

Maximum tool diameter: 80mm

Maximum tool diameter (any adjacent tool position) : 130mm

Clamping area with T-slot: 1200 x 560 mm

Die height (worktable top) : 720mm

Worktable load (load on worktable center ) : 1000kg

Machine height: 2665mm

Machine width (with chip conveyor): 3892mm

Machine length: 2918mm

Spindle tool holder: SK40

Power-on time: 23652.17h

Machining time: 9603.53h
