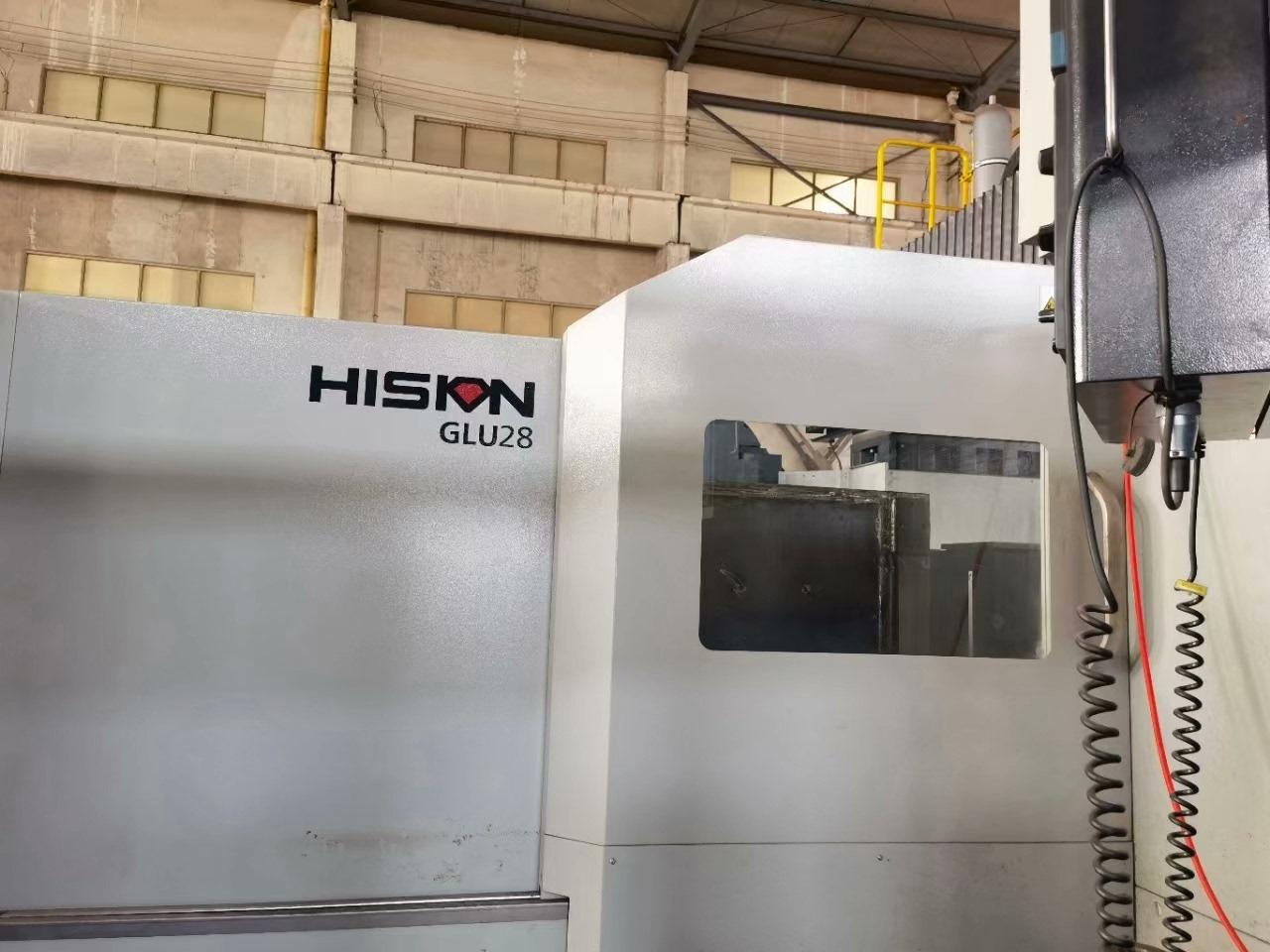

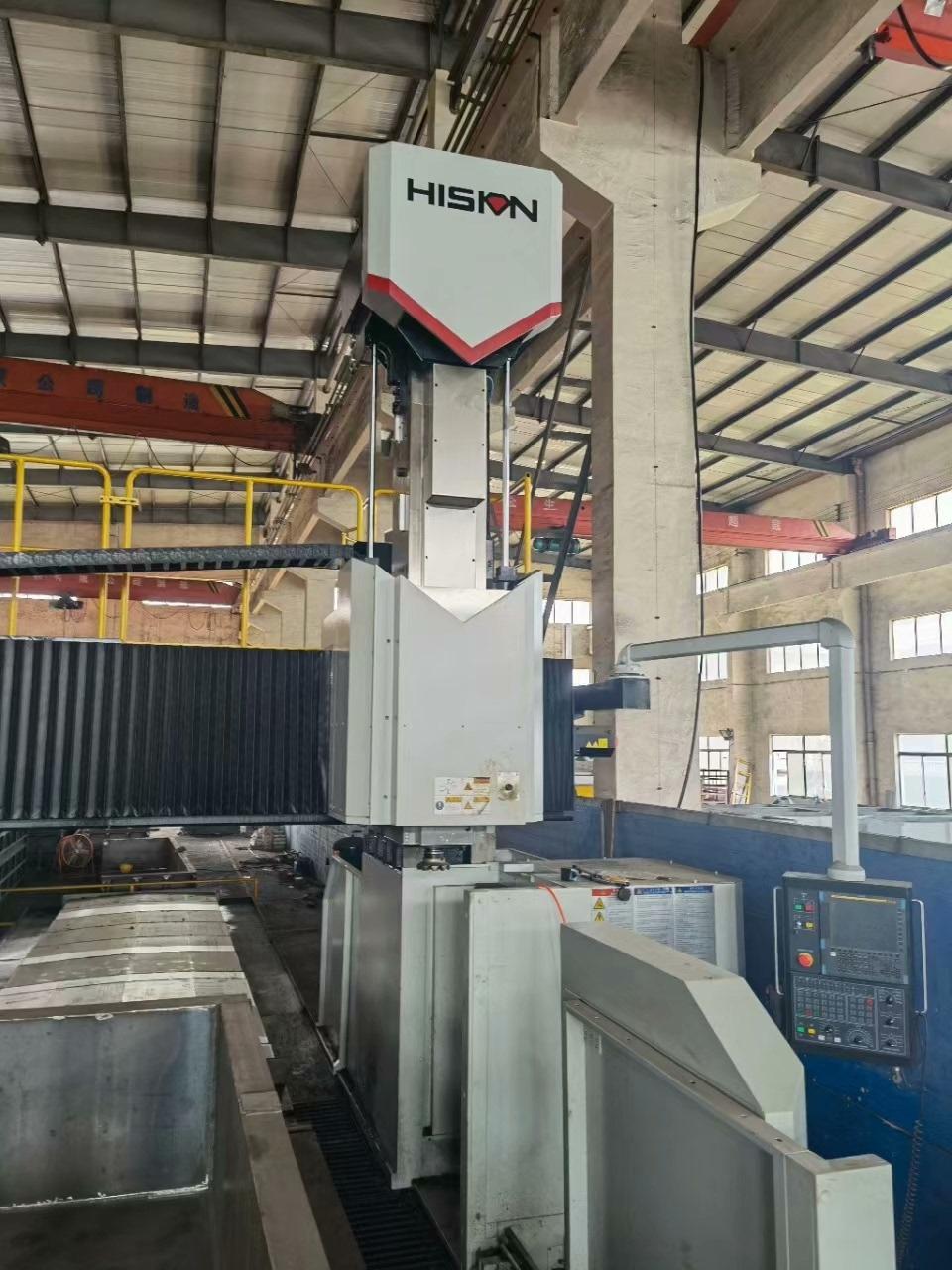

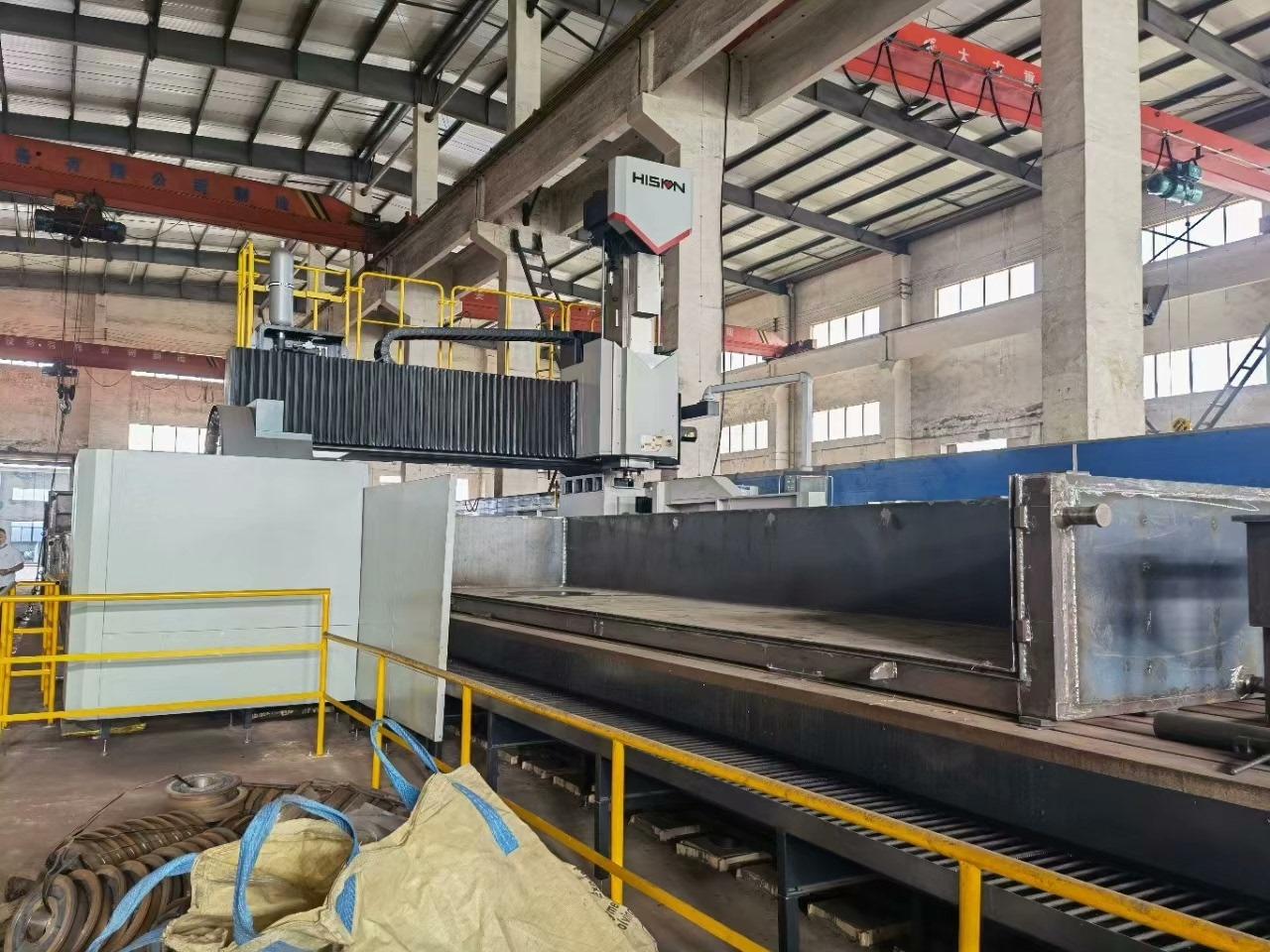

Hision GLU28×80 Gantry machining centre

Three axes travel: 8500*2700*1000mm

Gantry width: 2790mm

Distance from spindle nose to worktable: 250-1250mm

Worktable size: 8000*2000mm

Maximum load: 25t

Spindle speed: 10-6000rpm

Main motor power: 22/26kw

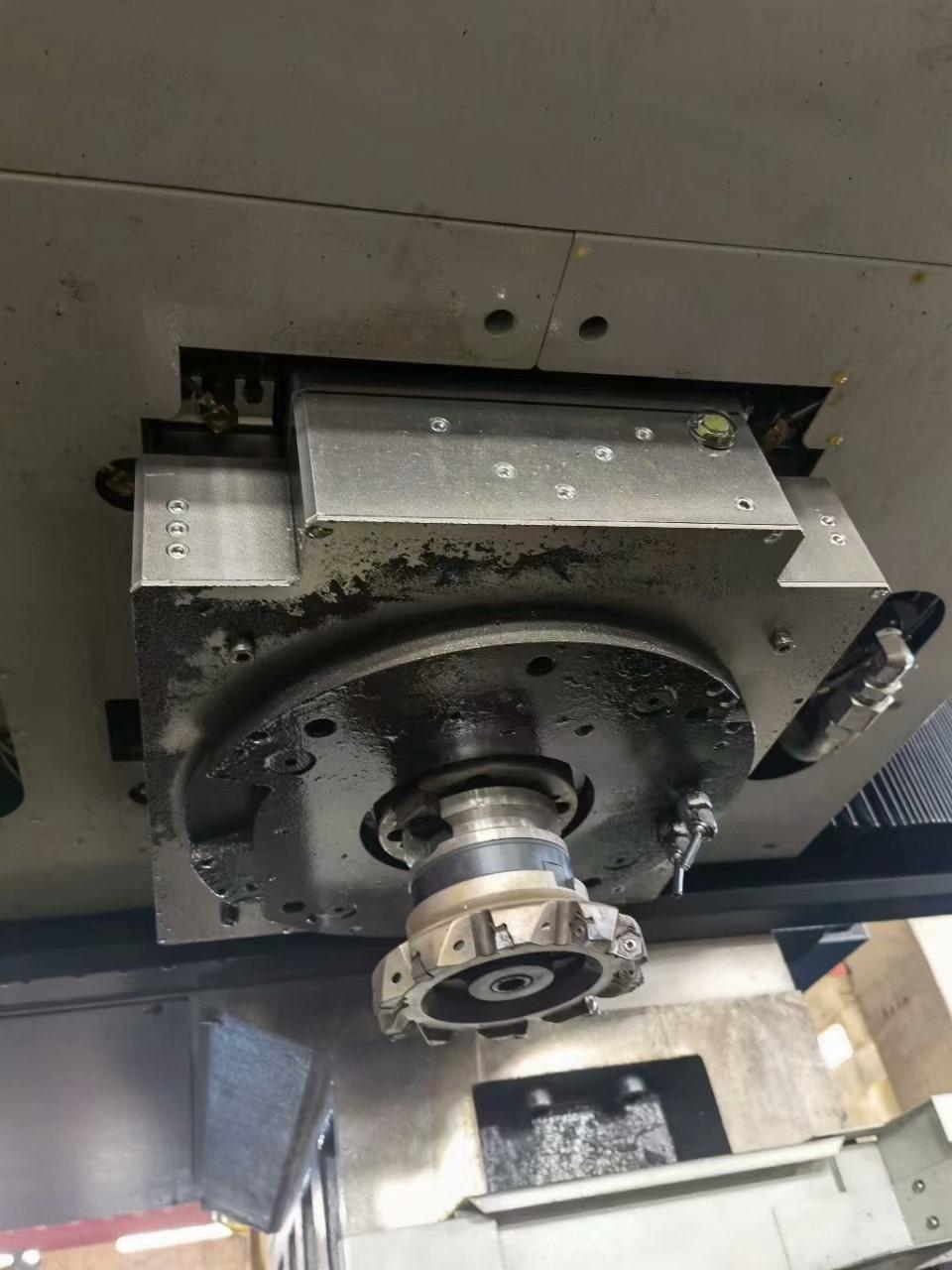

Spindle diameter: 100mm

X/Y/Z axis fast feed rate: 10/20/15mm

X/Y/Z axis feed rate: 6/10/10min

Tool holder type: BT50

Tool magazine: 24

Maximum tool diameter: 110/220mm

Maximum tool length: 300mm

Maximum tool weight: 20kg

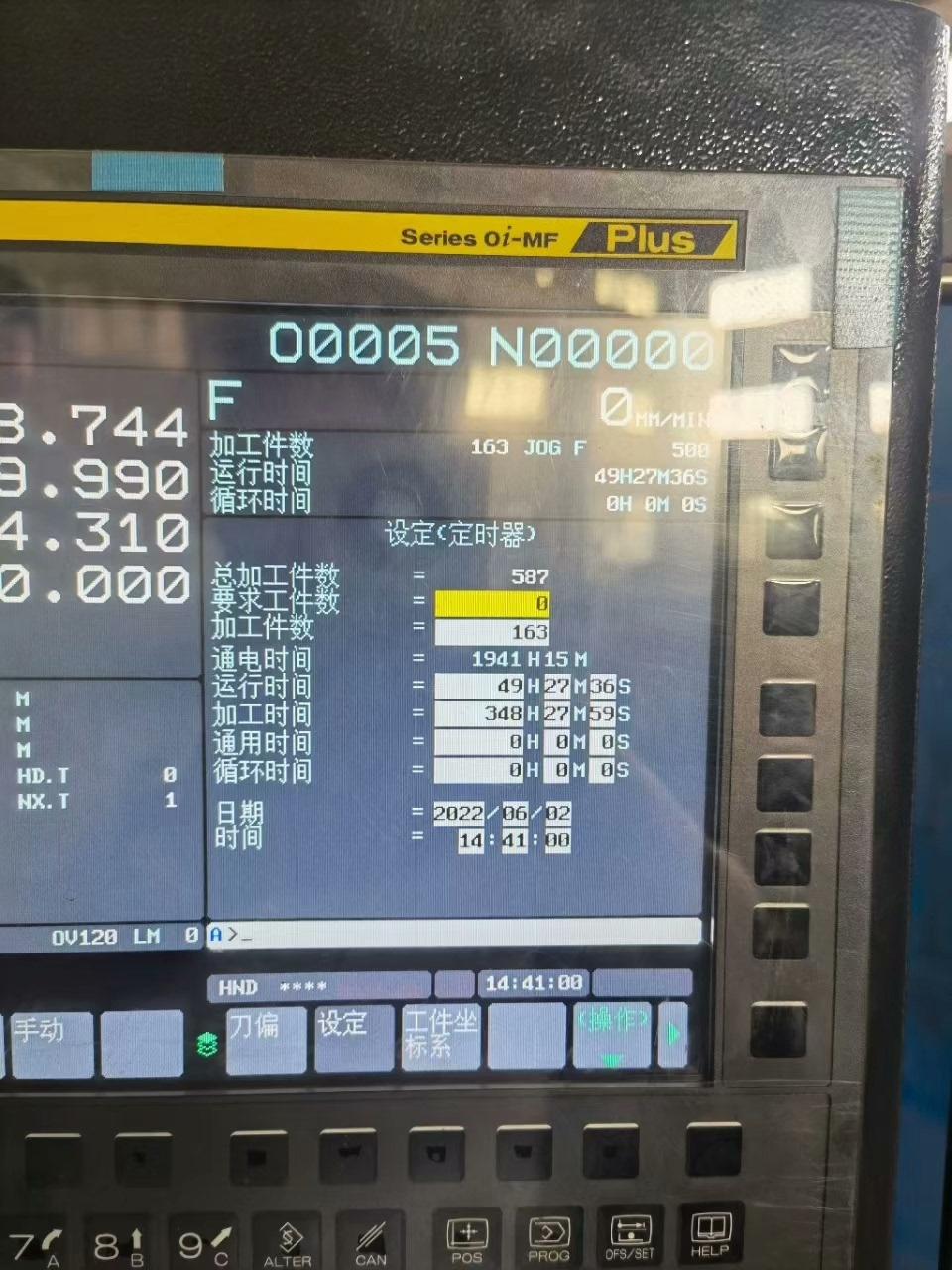

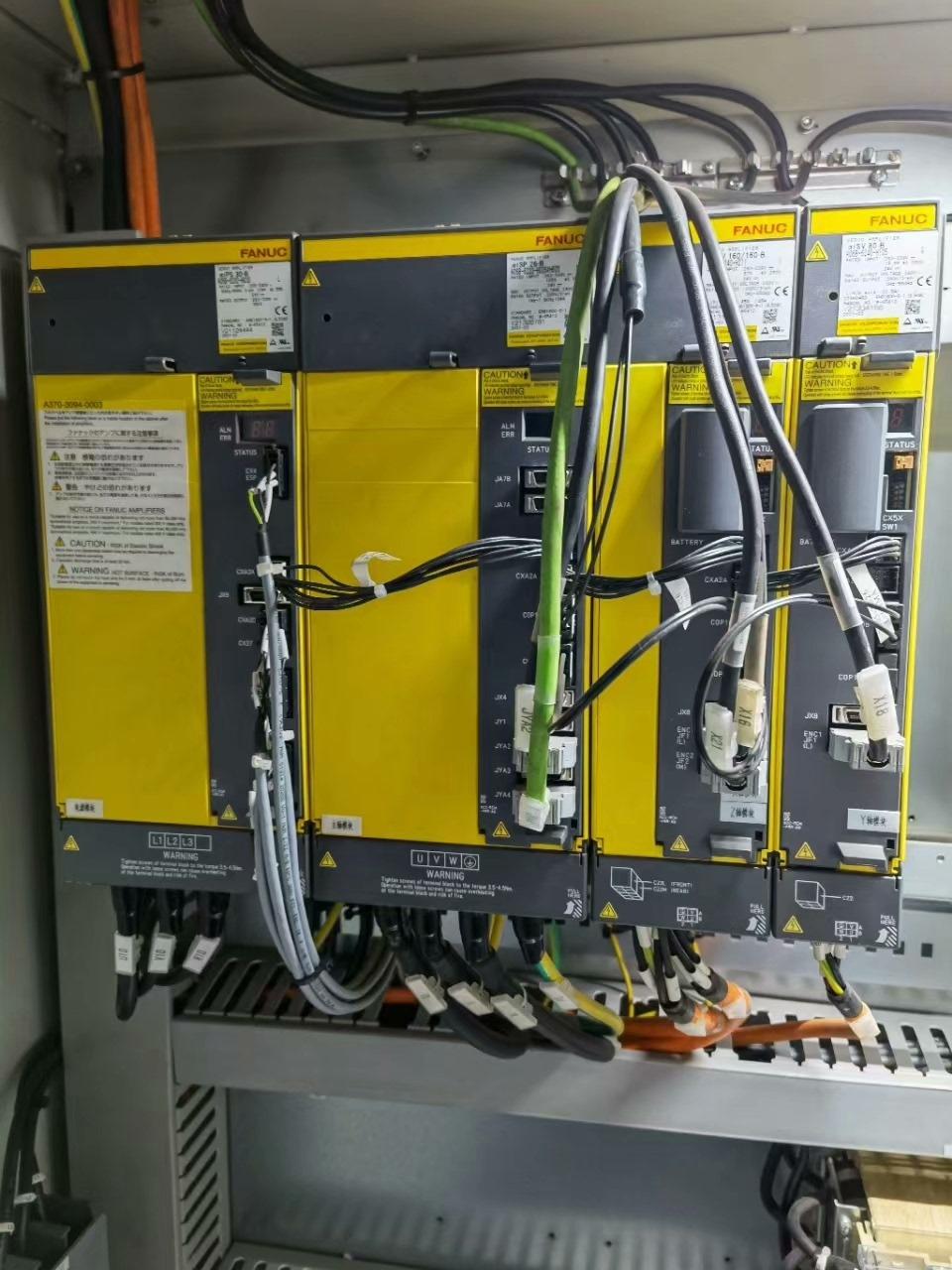

Fanuc oi-MF Plus CNC system

With spindle center flushing
