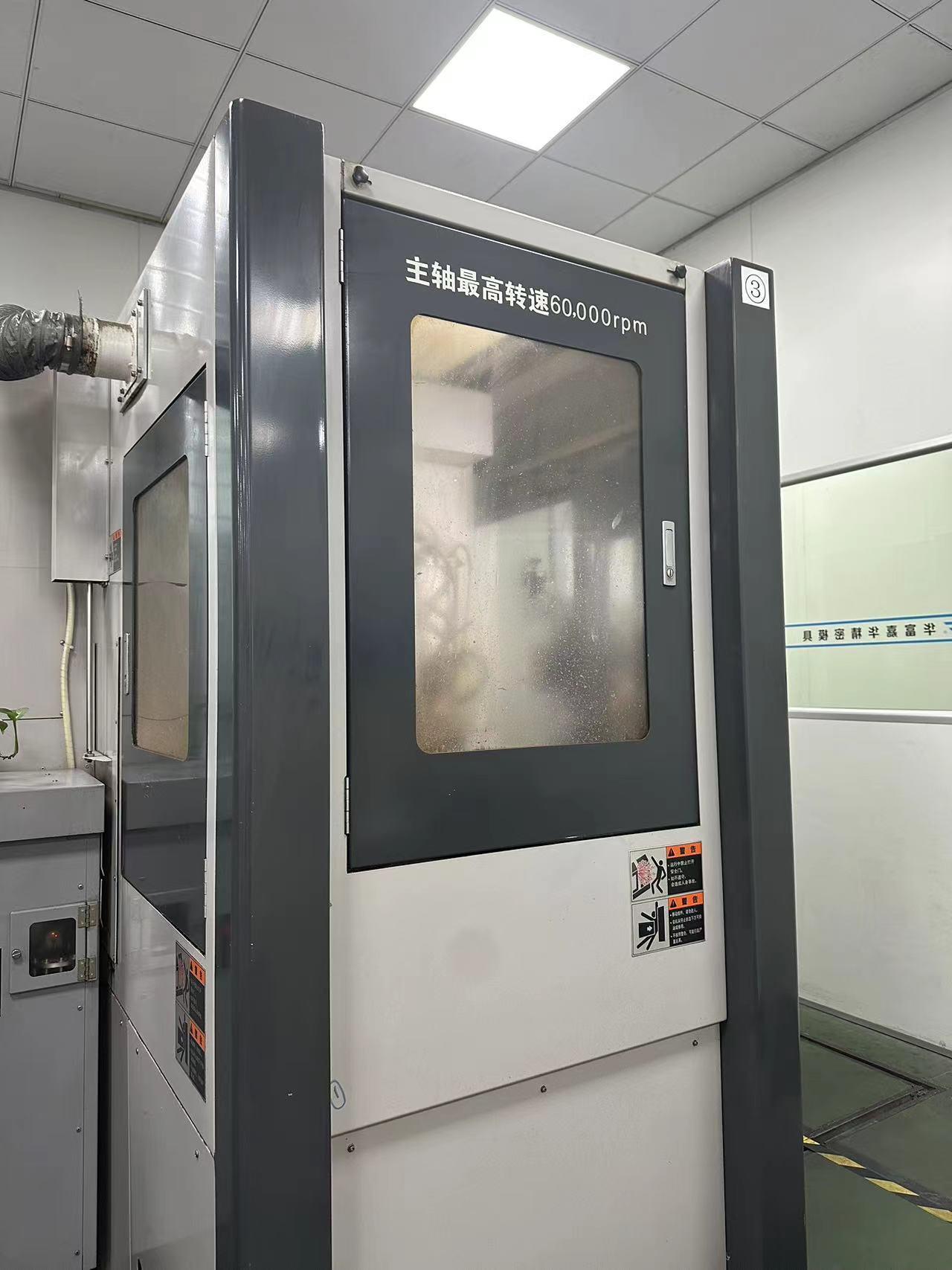

Toshiba UVM-450C High speed Machining centre
[Product Information]:
- Inventory number：61028
- Brand：Toshiba
- Model：UVM-450C
- Origin：Japan
- Location：China
- Year：2015
- Create Time：2024-05-17
Specifications:

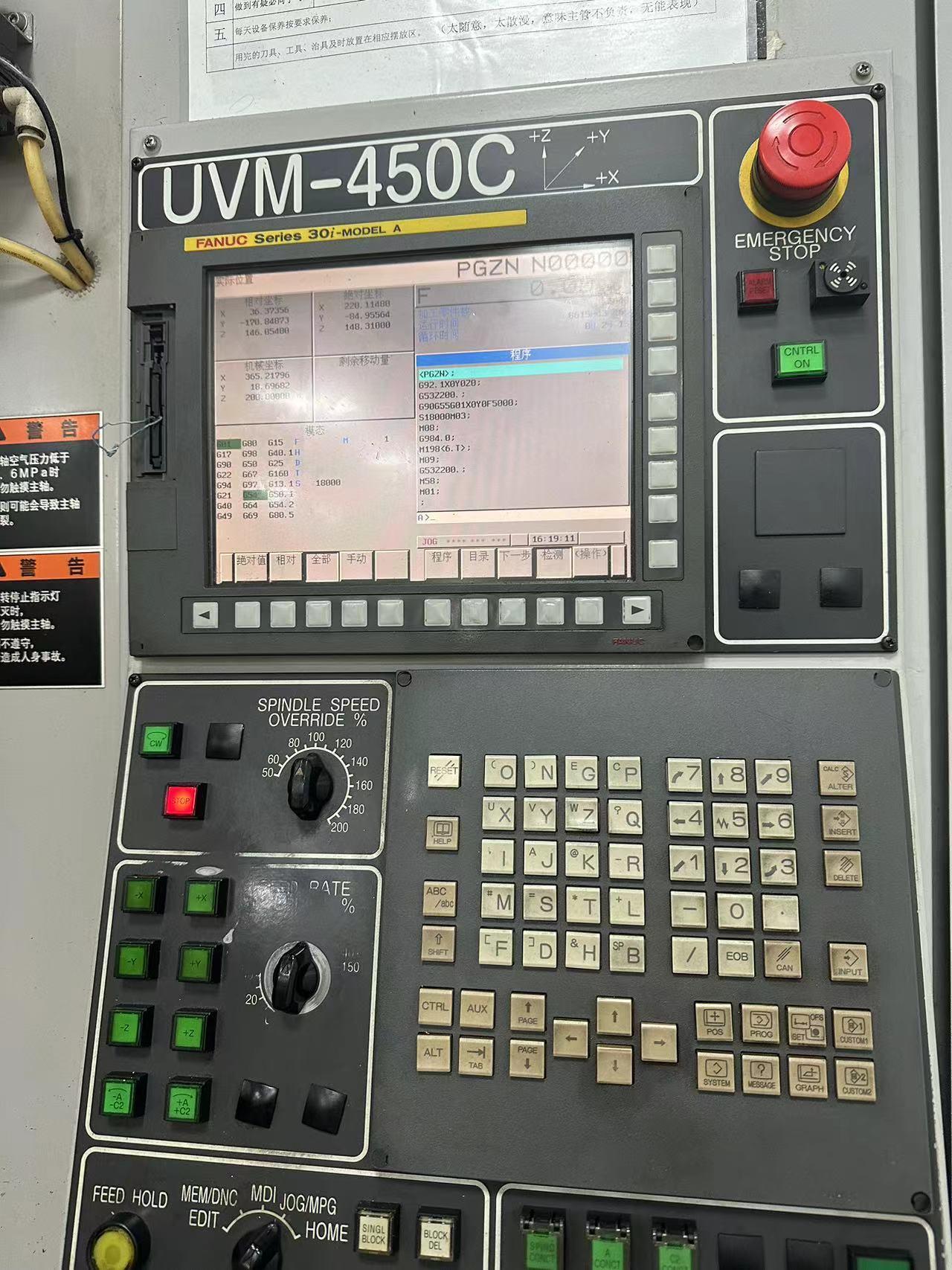

CNC system: FANUC 30i-Model B
X-axis travel: 450mm
Y-axis travel: 450mm
Z-axis travel: 250mm
Worktable size: 500*500mm
Maximum load: 100kg
Minimum available unit: 0.01Lm
Spindle speed: 6000-60000rpm
X/Y axis fast feed rate: 15000mm/min
Z-axis fast feed rate: 10000mm/min
X/Y axis cutting feed rate: 0.1-15000mm/min
Z-axis cutting feed rate: 0.1-10000mm/min
Machine dimension: 2110*2105*2300mm
