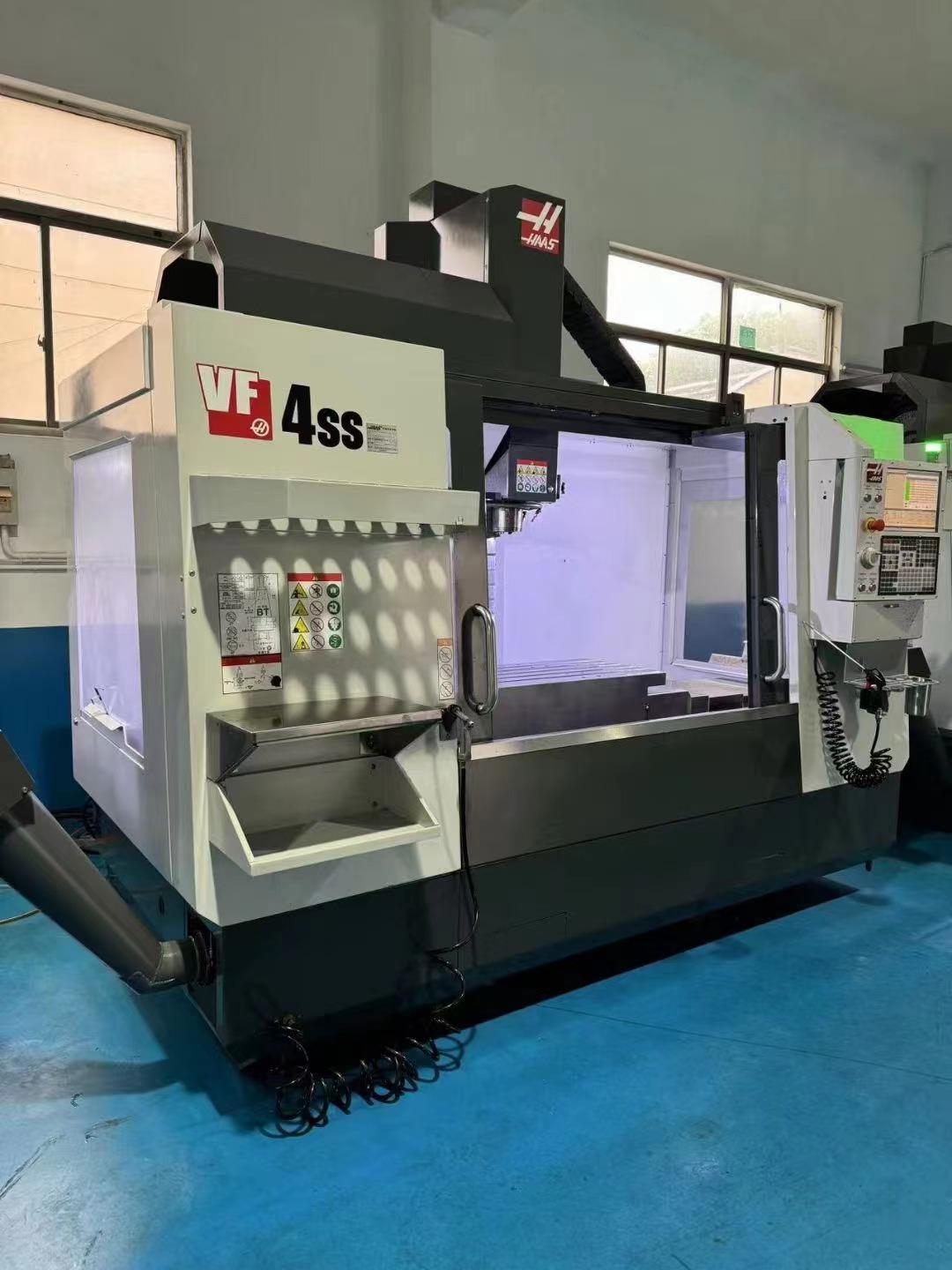

HAAS VF-4SS-V Vertical Machining centre

X*Y*Z axis travel: 1270*508*635mm

Worktable length: 1321mm

Worktable width: 457mm

Spindle speed: 12000rpm

Spindle drive system: coaxial direct drive

Maximum spindle torque: 122NM@2000rpm

Maximum spindle power: 22.4kw

X*Y*Z axis feed rate: 35.6/35.6/35.6m/min

Maximum cutting rate: 21.2m/min

Magazine capacity: 30+1

Tool holder model: SMTC

Maximum cutter diameter: 64mm

Coolant water tank capacity: 208L
