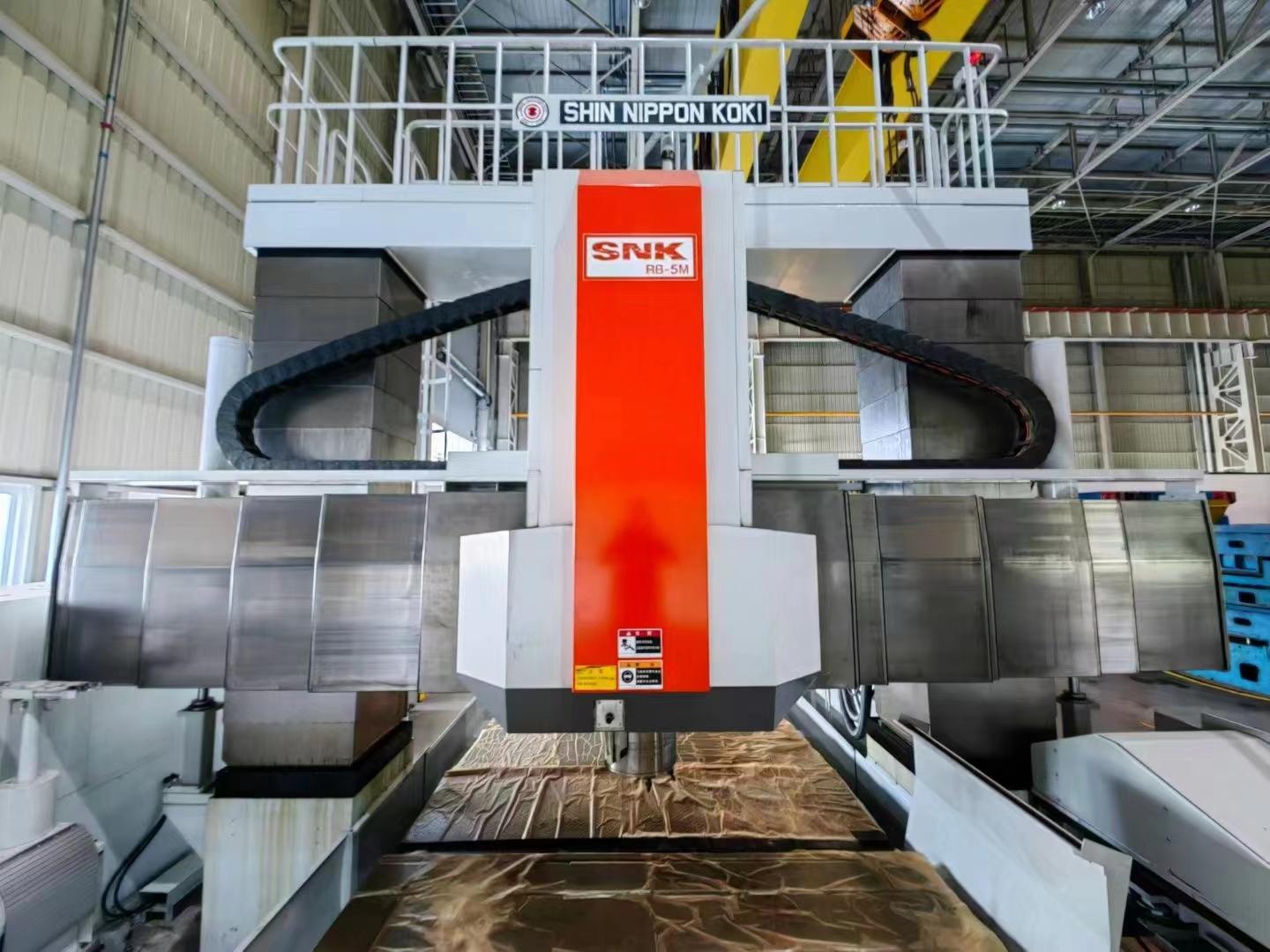

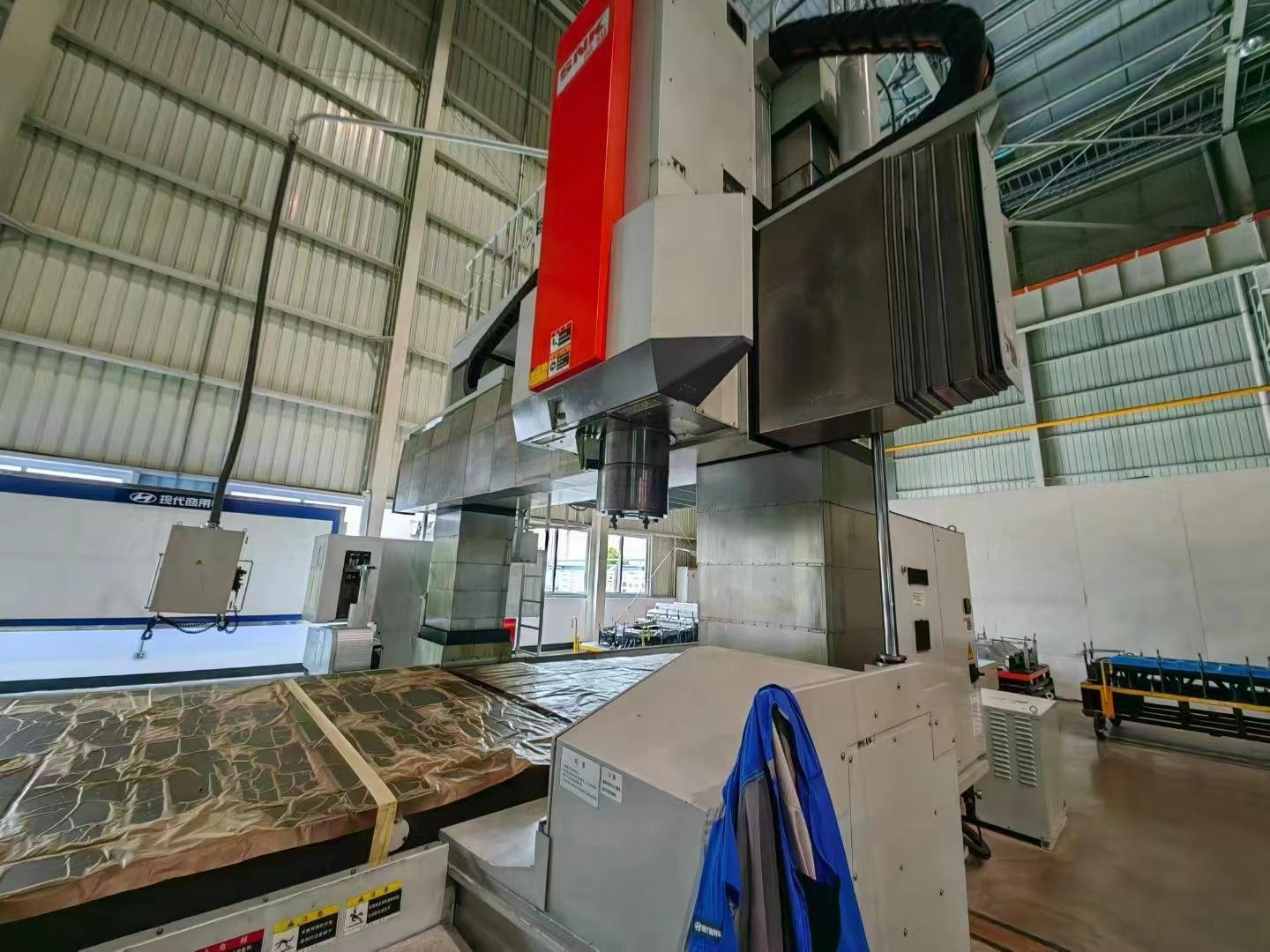

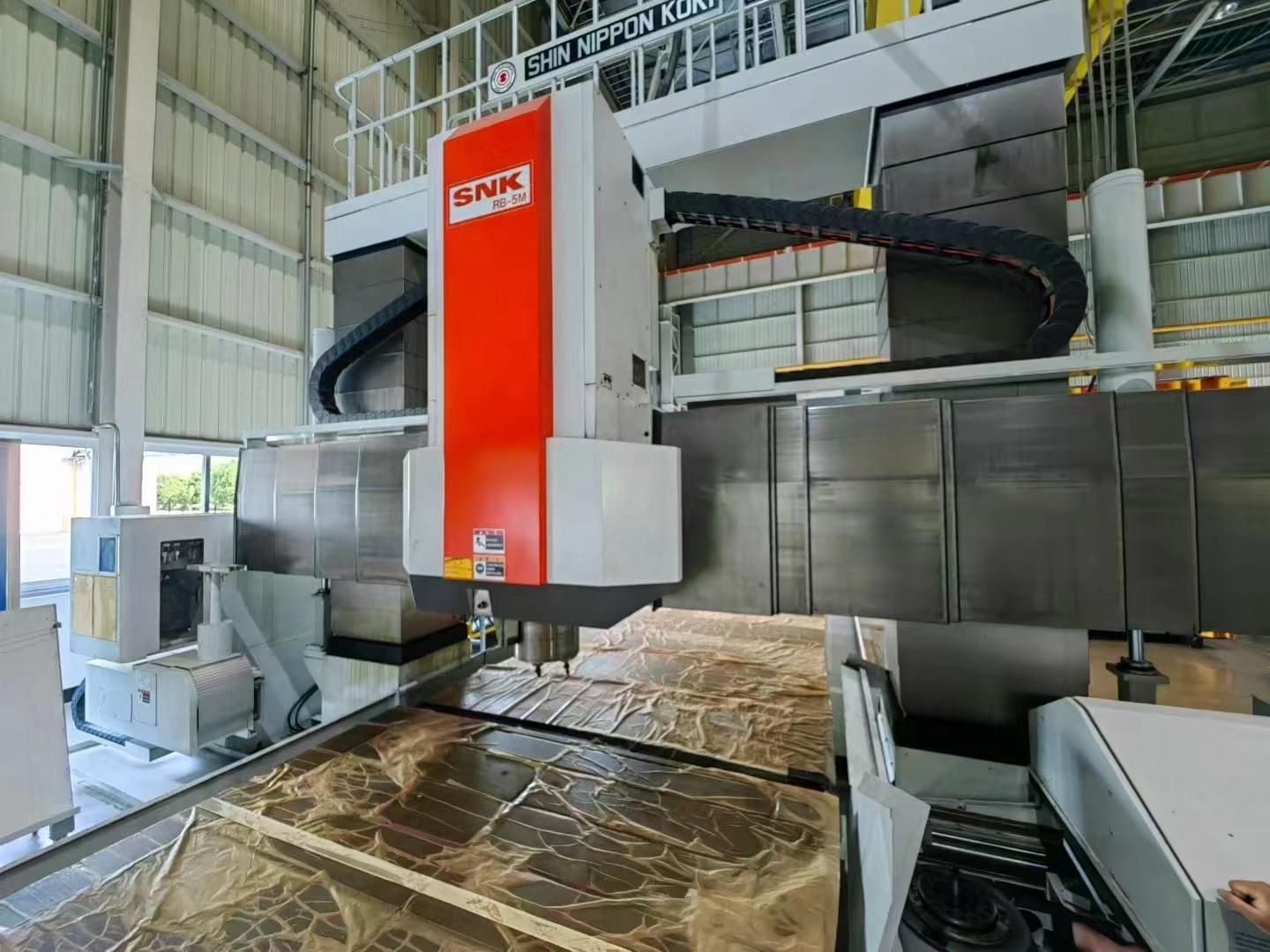

SNK RB-5M Gantry machining centre

[Product Information]:

Three axes travel: 5250*3400*600mm

W-axis travel: 1400mm

Worktable size: 2500*5000mm

Worktable load: 5000kg

Spindle external diameter: 300mm

Spindle internal diameter: 90mm

Spindle motor power: 25kw

Spindle speed: 40-6000rpm

X/Y axis fast feed rate: 25m/min

Z-axis fast feed rate: 8m/min

W-axis fast feed rate: 6m/min

X/Y axis cutting feed rate: 1-10000mm/min

Z-axis cutting feed rate: 1-8000mm/min

W-axis cutting feed rate: 1-6000mm/min

Machine weight: 4300kg
