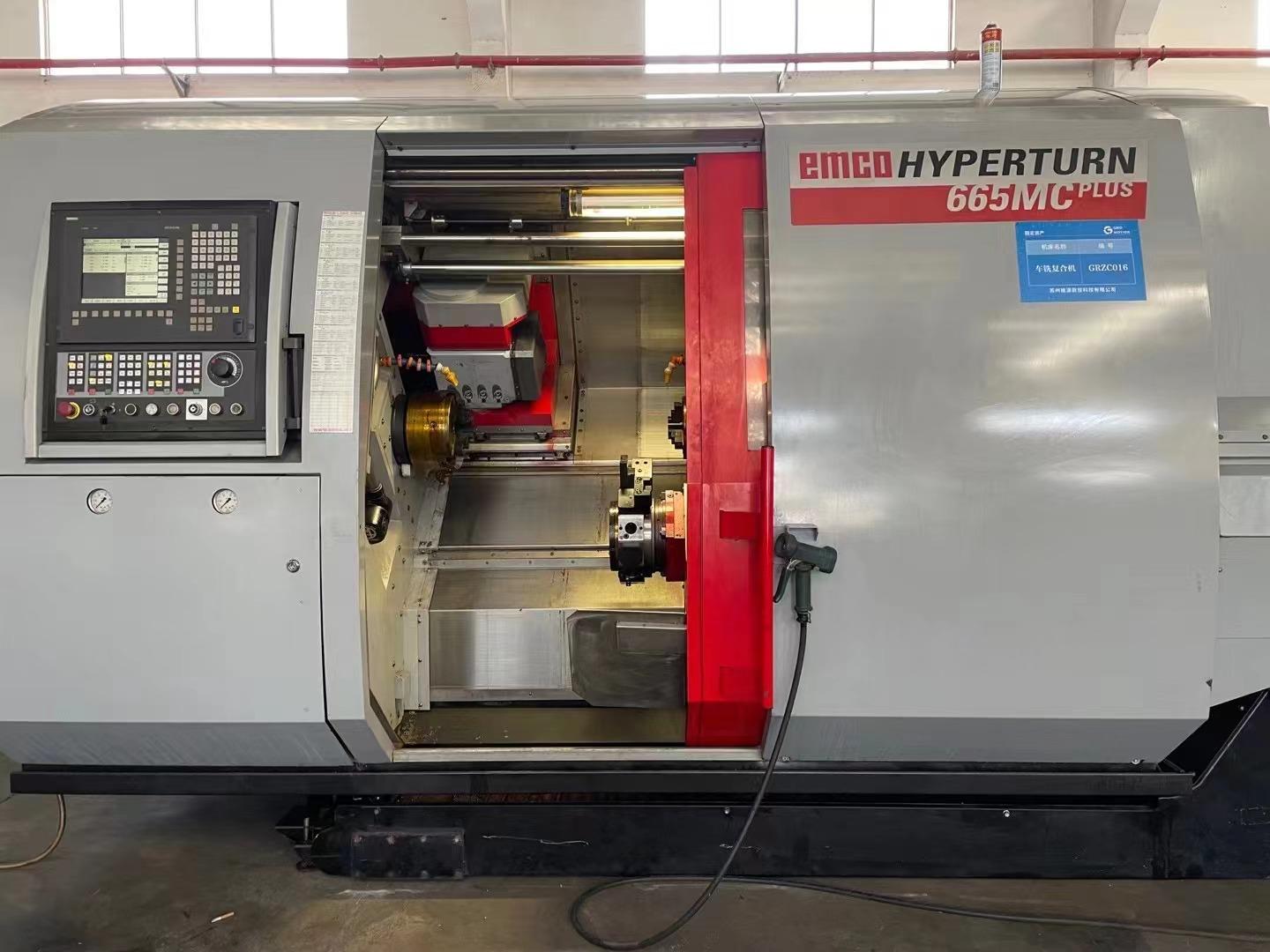

EMCO 665MC PLUS Turn Mill Machining Centre

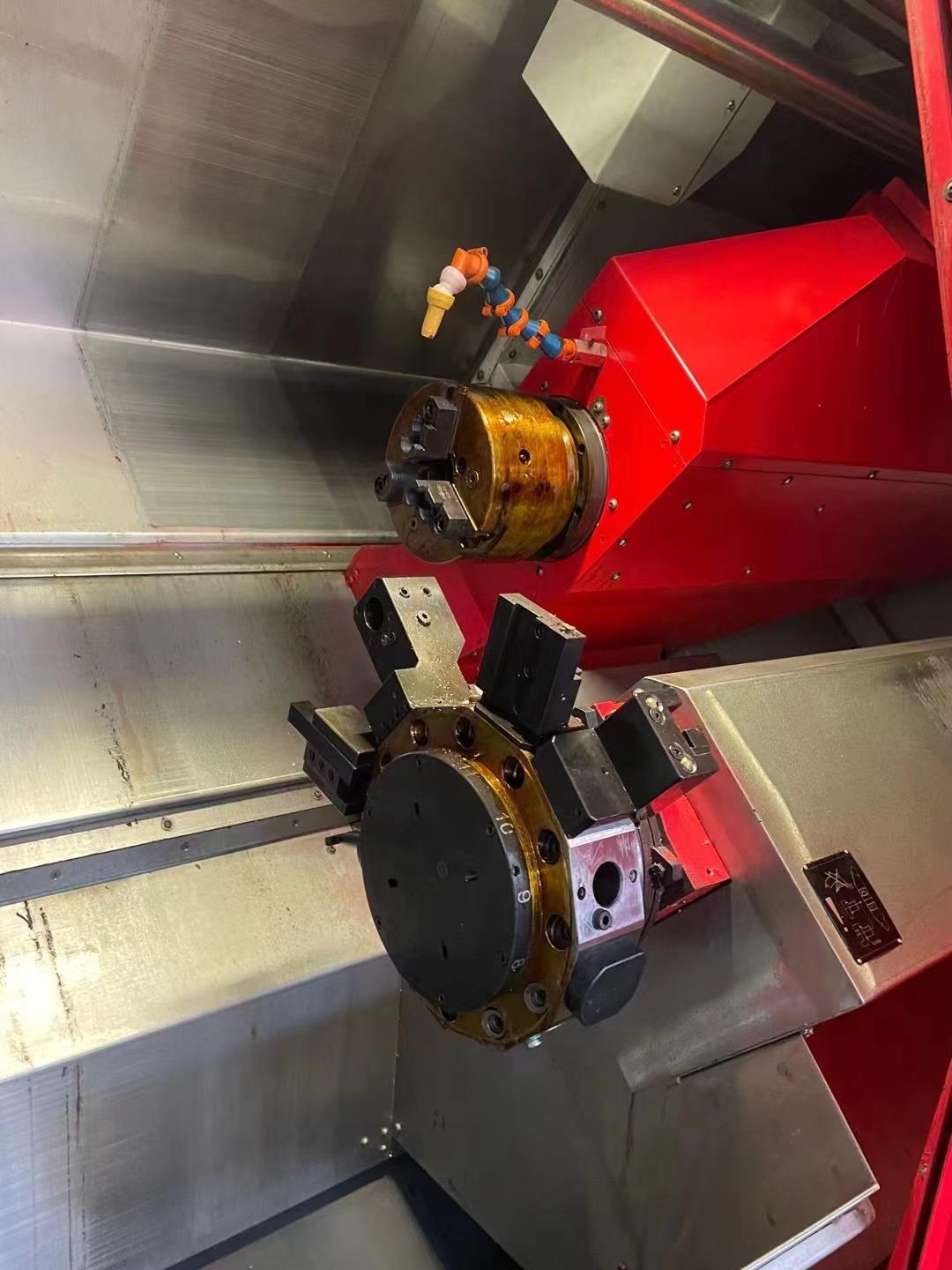

Spindle Chuck size: 10 inches

Spindle connection type: KK6

Spindle motor power: 22KW

Spindle speed: 0-7000rpm

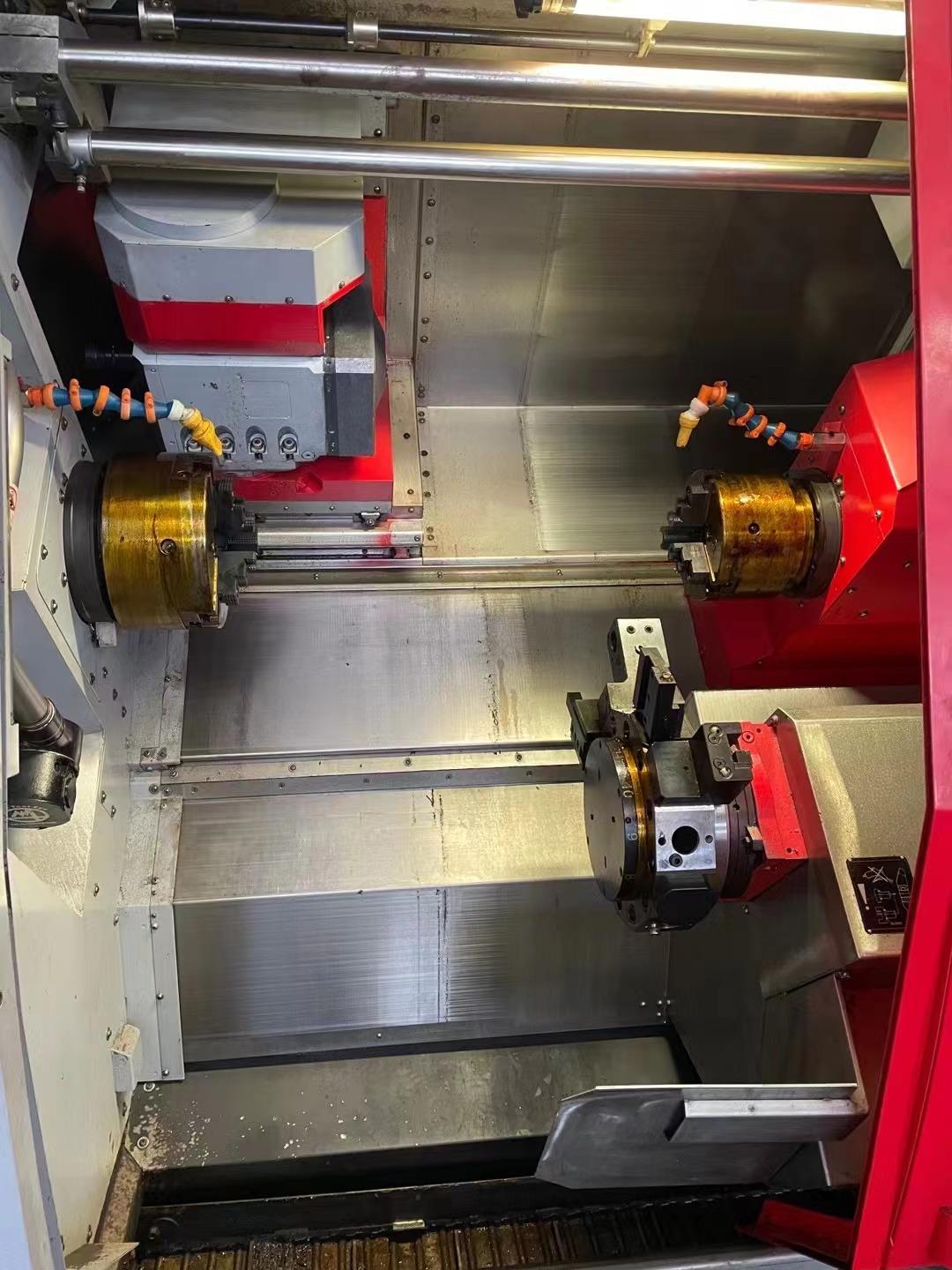

Secondary spindle chuck size: 8 inches

Distance between two spindle nose: 1000mm

Maximum rotating diameter: 600mm

Rotation diameter on supporting plate: 500mm

Maximum machining diameter: 430mm

Maximum machining length: 744mm

Number of upper turret live tool bases：12

Tool base motor power: 6.7KW

Number of lower turret live tool bases: 12

Speed: 0-5000rpm

Tool base motor power: 6.7KW

X-axis travel: 280mm

X1-axis travel：205mm

Z-axis travel: 750mm

Z2-axis travel: 750mm

Z3-axis travel: 750mm

Y-axis travel: 100mm

X-axis moving rate: 24m/min

Y-axis moving rate：10m/min

Z-axis moving rate: 30m/min
