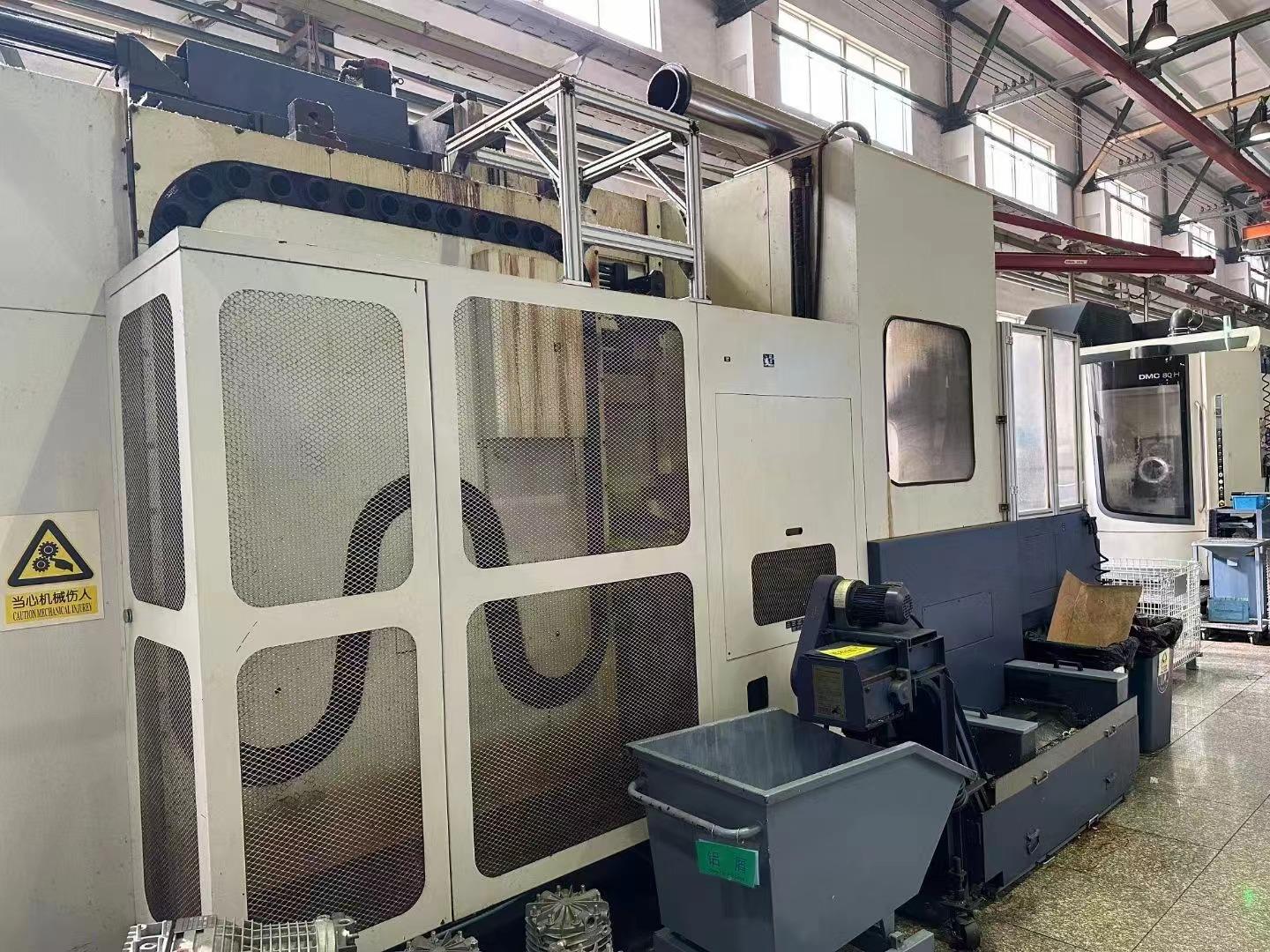

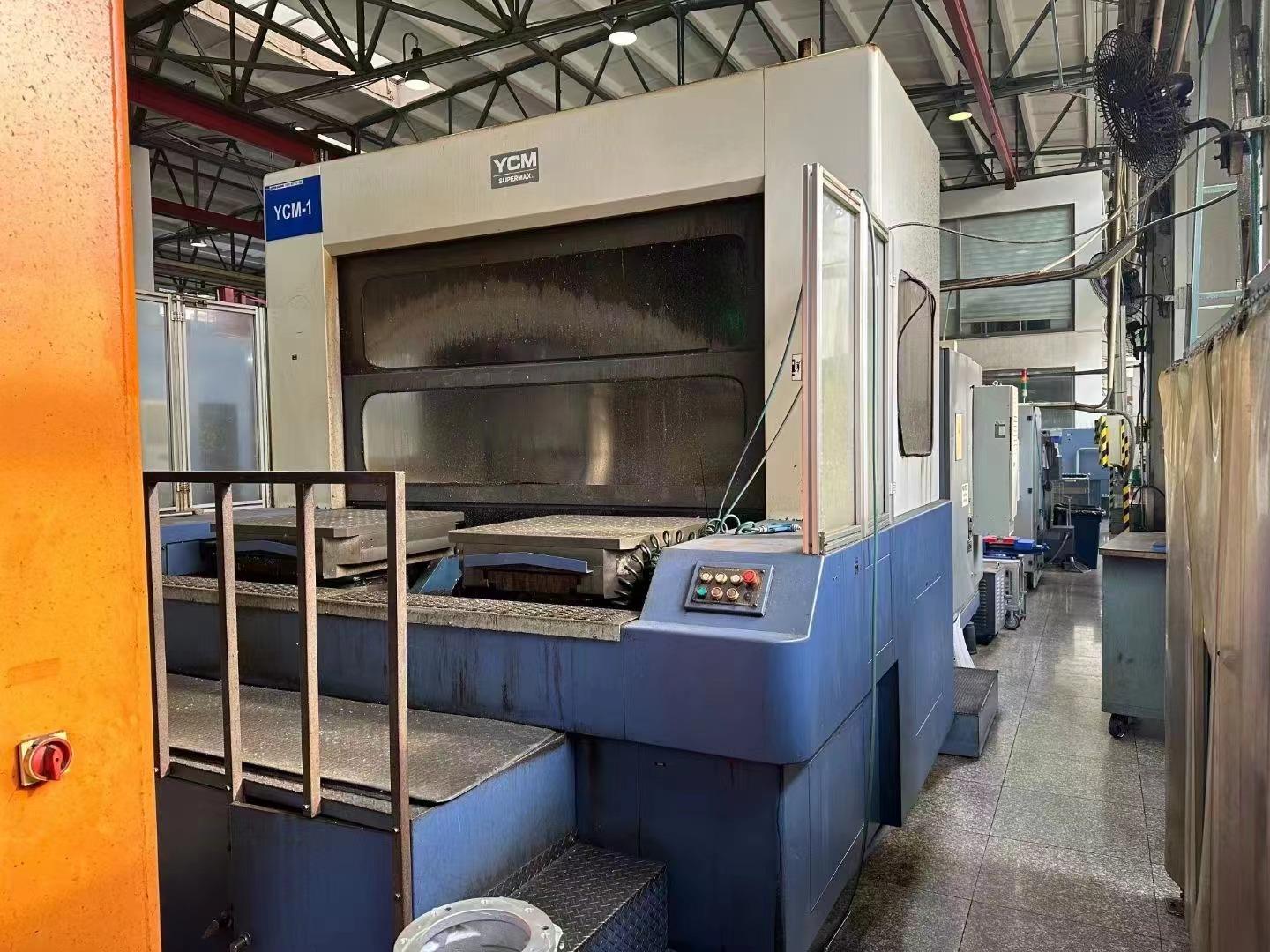

YCM YCM-H800B Horizontal Machining centre

Spindle speed: 45-4500rpm

Spindle taper: BT50

Spindle bearing diameter: 100mm

X*Y*Z axis travel: 1300*1050*1150mm

X*Y*Z axis fast feed rate: 15/12/12m/min

Distance from spindle center to worktable: 100-1150mm

Distance from spindle nose to worktable center: 250-1400mm

Worktable size: 800*800mm

Maximum worktable load：2000kg

Distance from worktable to floor：1335mm
