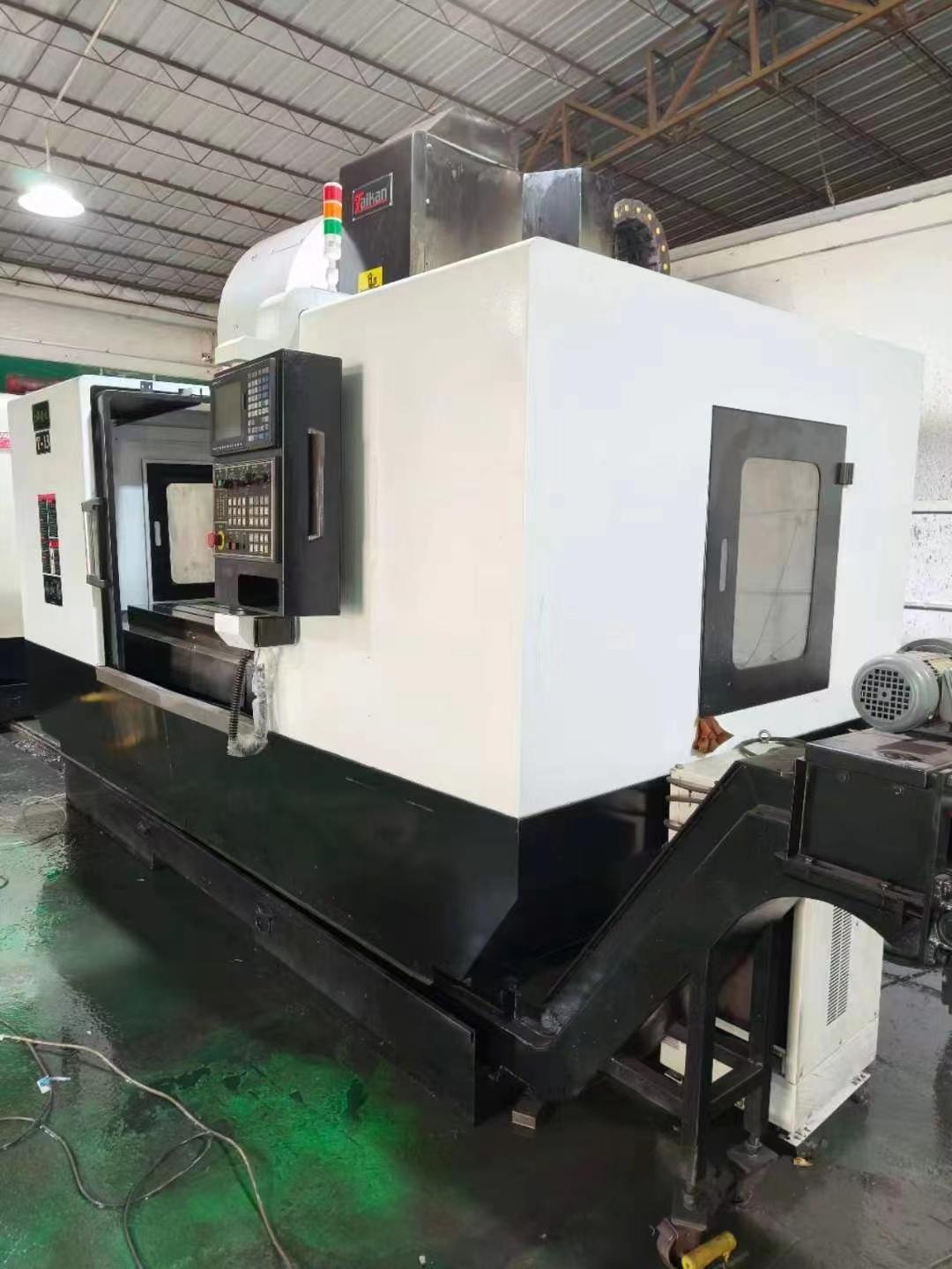

Taikan T-13 Machining centre

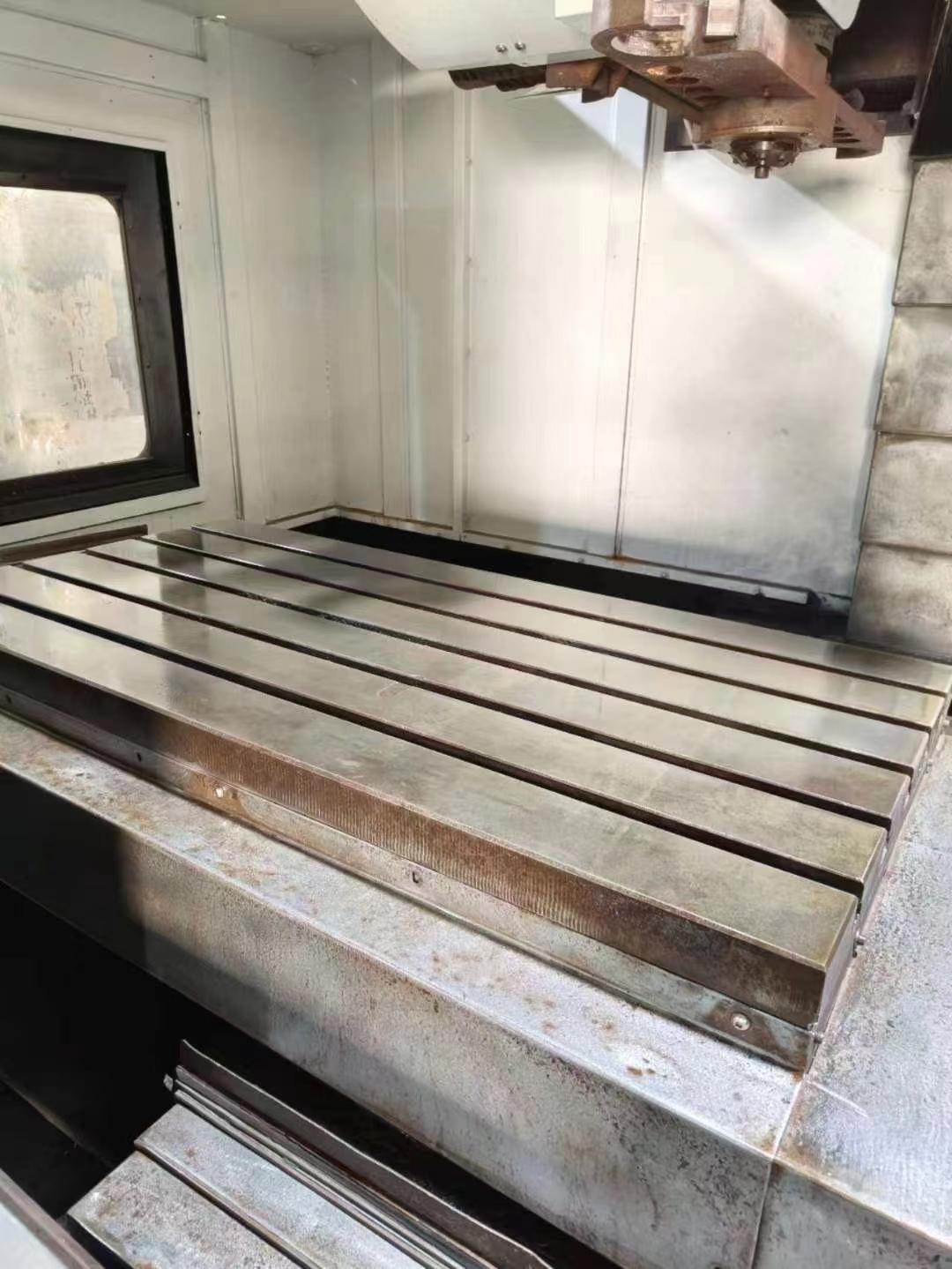

Worktable size: 1400x700mm

X-axis travel: 1300mm

Y-axis travel: 700mm

Z-axis travel: 700mm

T-slot: 5-18x152.5mm

Distance from spindle nose to worktable: 150-800mm

Distance between spindle center and column guideway surface: 785mm

Spindle speed: 8000rpm

Main motor power: 15kw

Load: 1000kg

Machine weight: 10500kg

Machine dimension: 4000x3000x3450mm

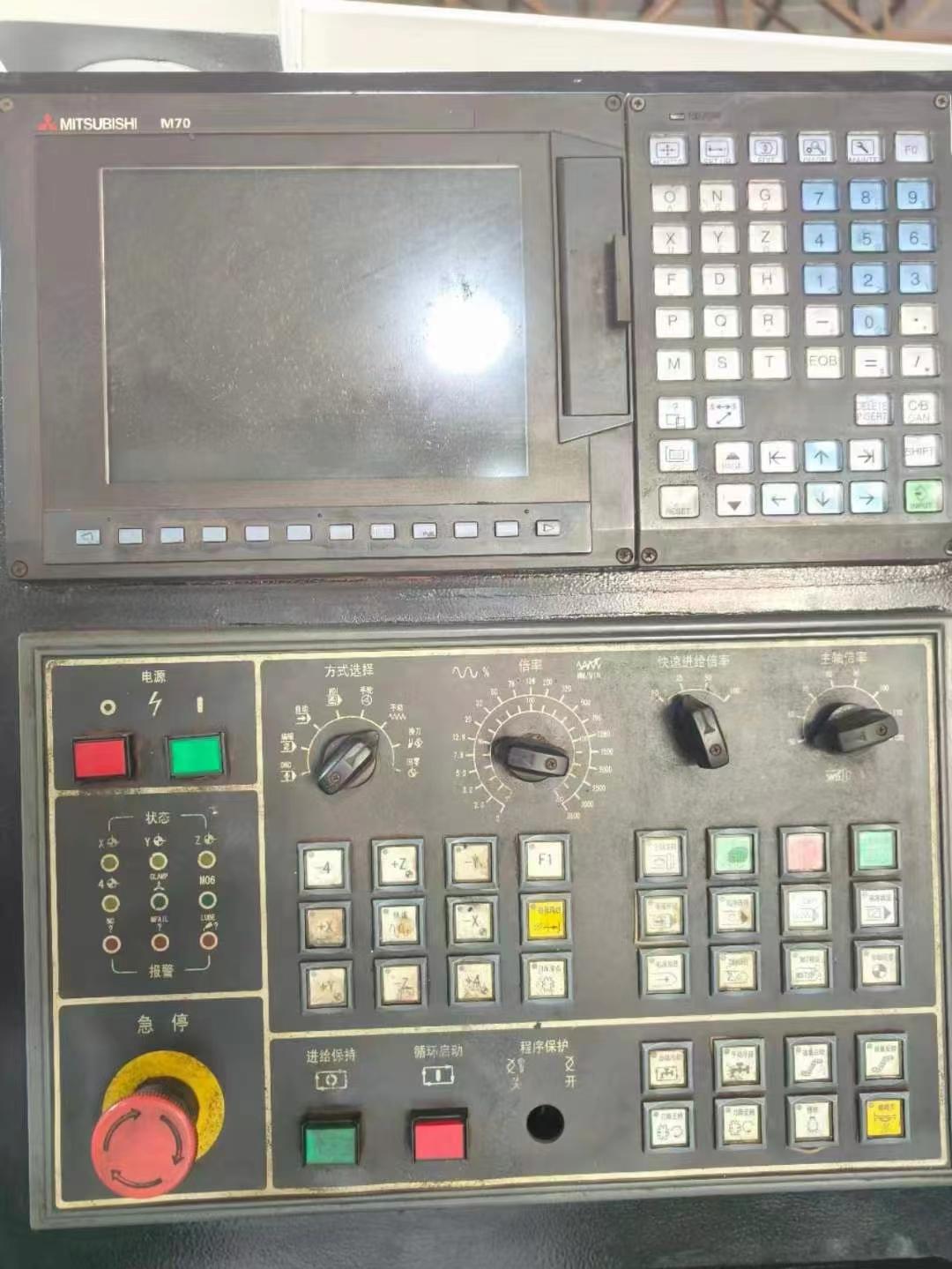

Mitsubishi M70 CNC System

Three axes rigid guideways

BT50 spindle

Arm-type tool magazine: 24
