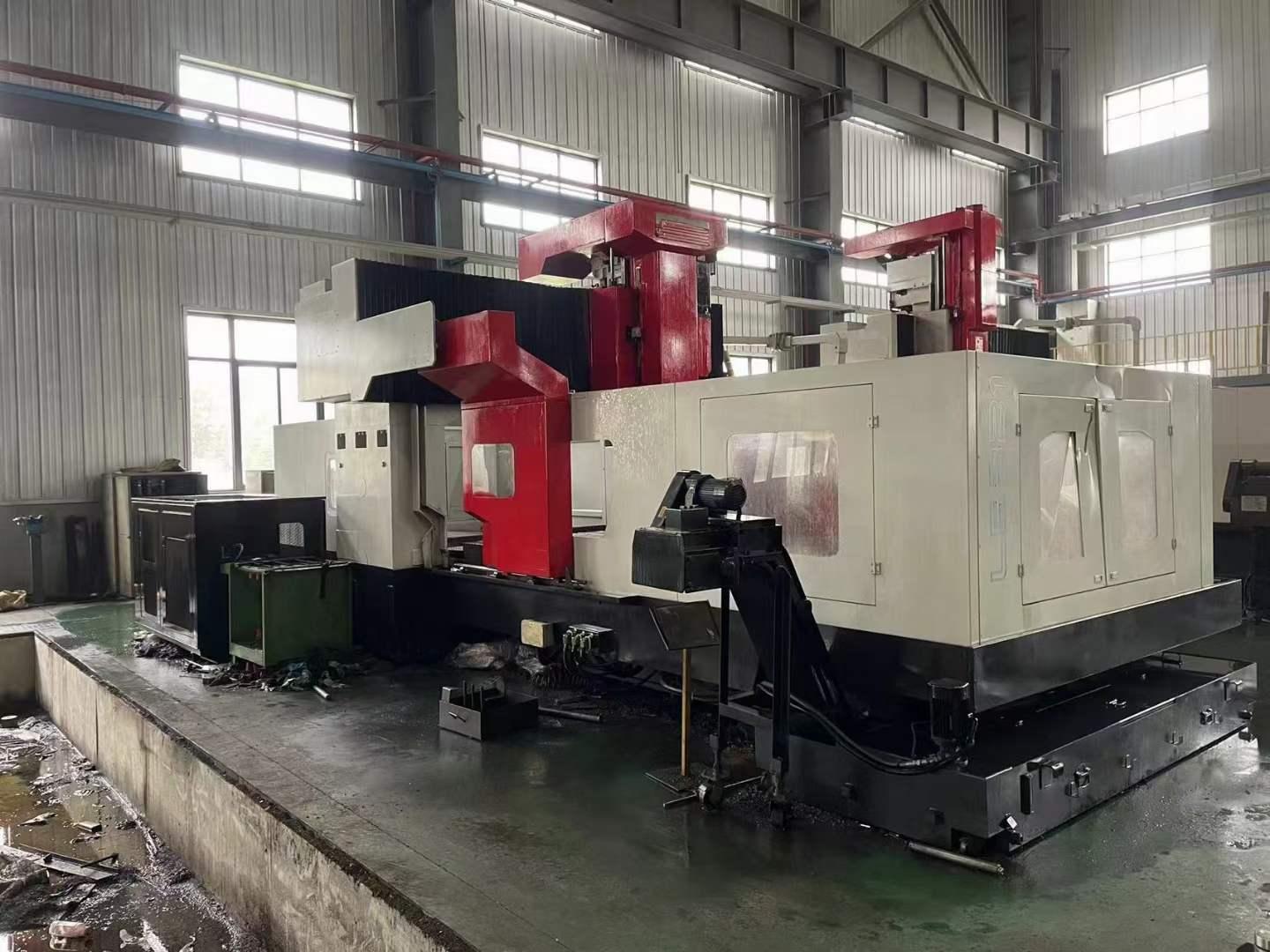

WELE LB-321 Gantry machining centre

[Product Information]:

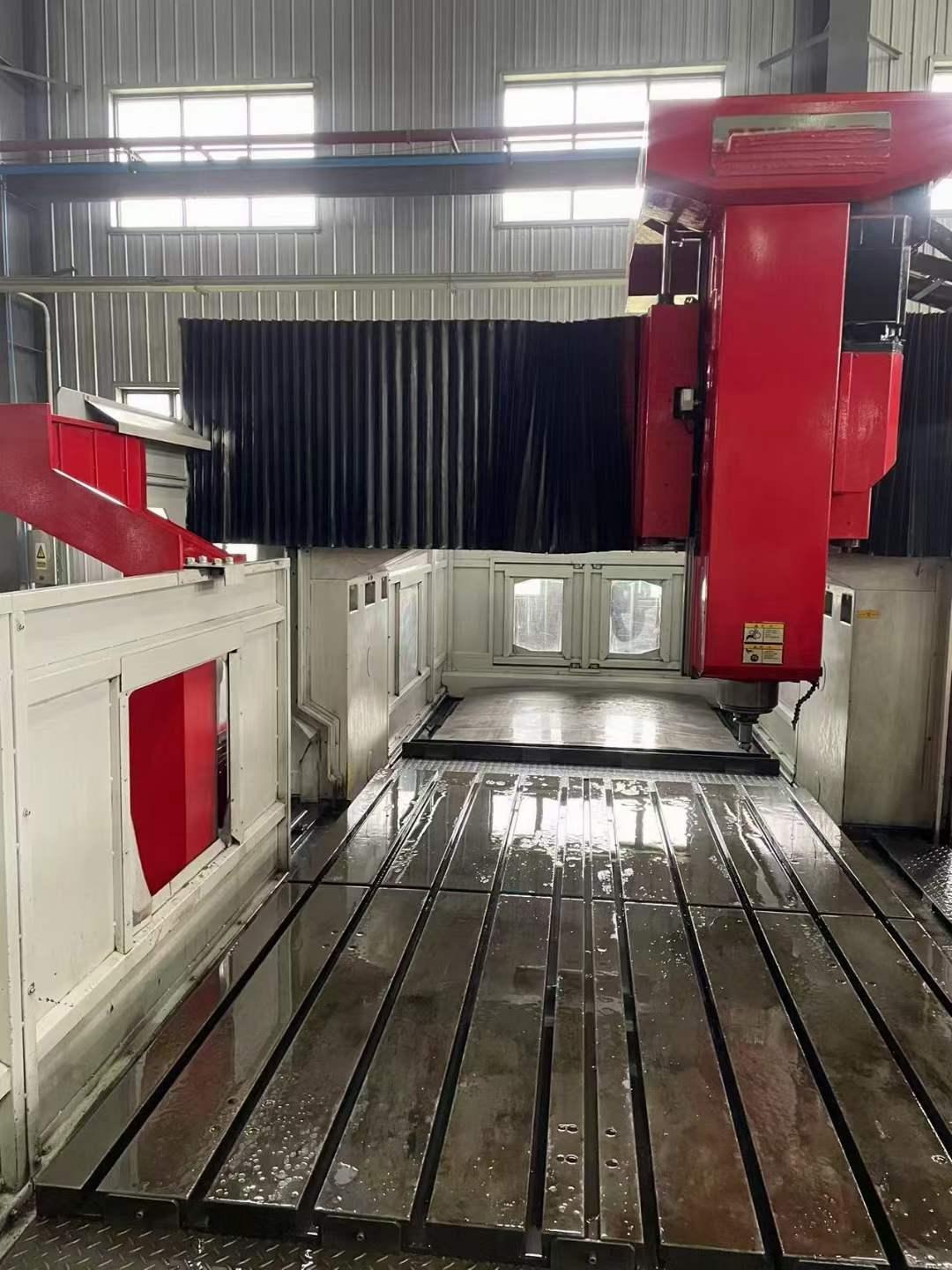

Worktable size: 3000x2000mm

X-axis travel: 3060mm

Y-axis travel: 2150mm

Z-axis travel: 800mm

Gantry width: 2300mm

Distance from spindle nose to worktable surface: 200-1000mm

T-slot: 28x200x10mm

Load: 12000kg

Main motor power: 22-26kw

Spindle speed: 10-6000rpm

Machine weight: 29500kg
