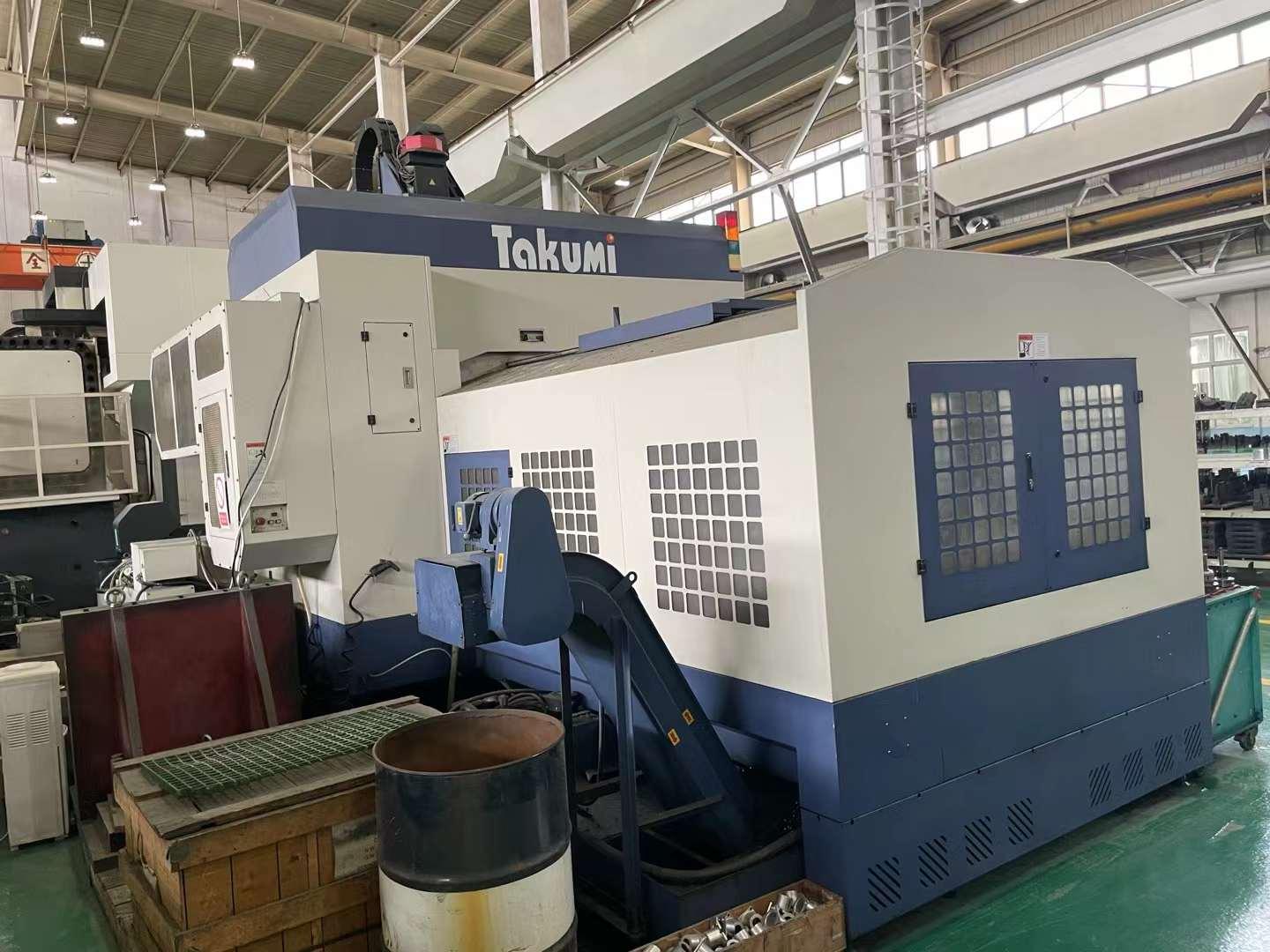

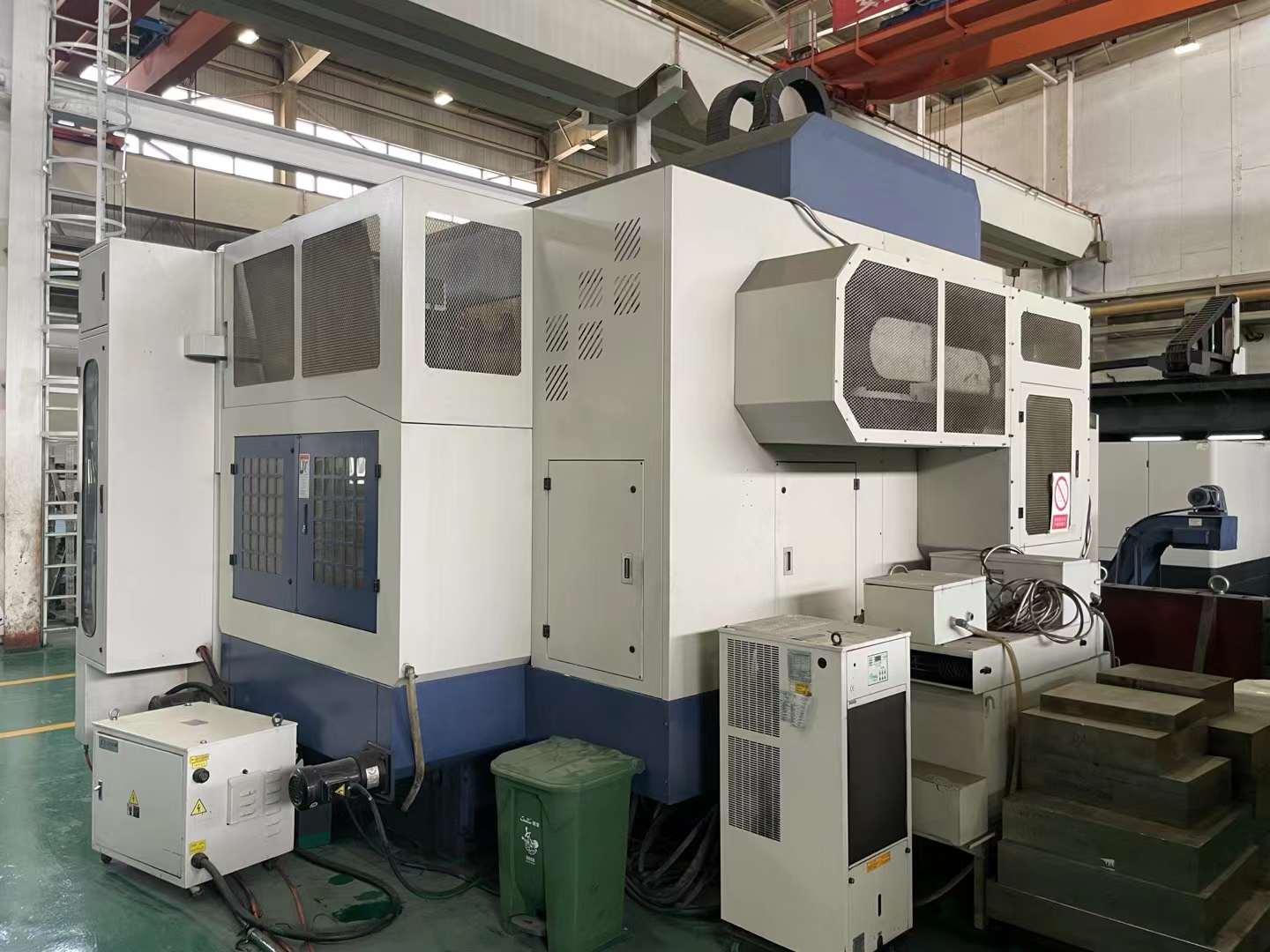

TAKUMI H22S Gantry machining centre
[Product Information]:
- Inventory number：91725
- Brand：TAKUMI

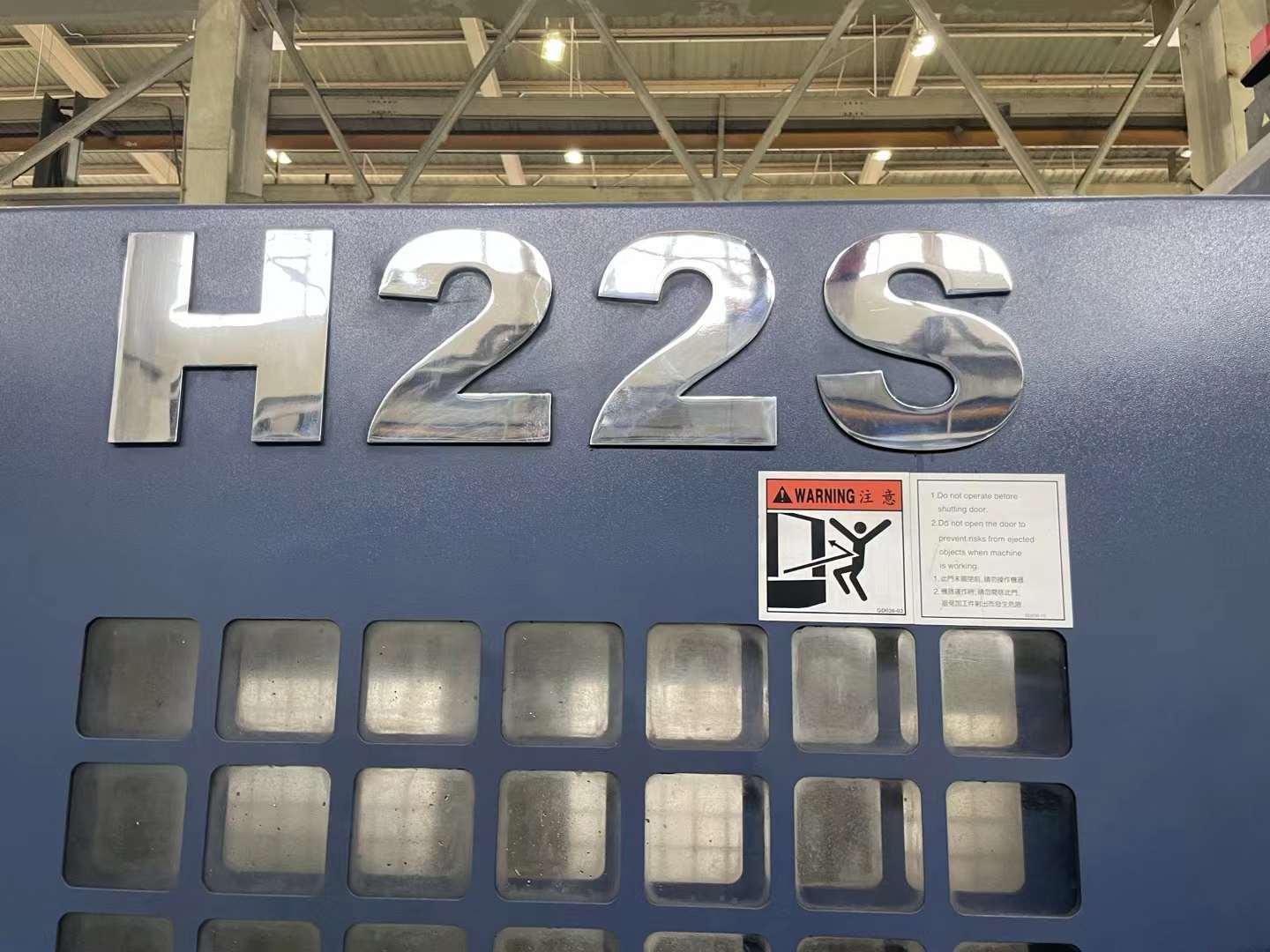

- Model：H22S
- Origin：Taiwan
- Location：China
- Year：2008
- Create Time：2024-04-17
Specifications:
Three-axis travel: 2200*1600*800mm
Worktable size: 2400*1600mm
Gantry width: 1750mm
Distance from spindle nose to worktable: 150-950mm
Load: 8000kg
Spindle speed: 12000rpm

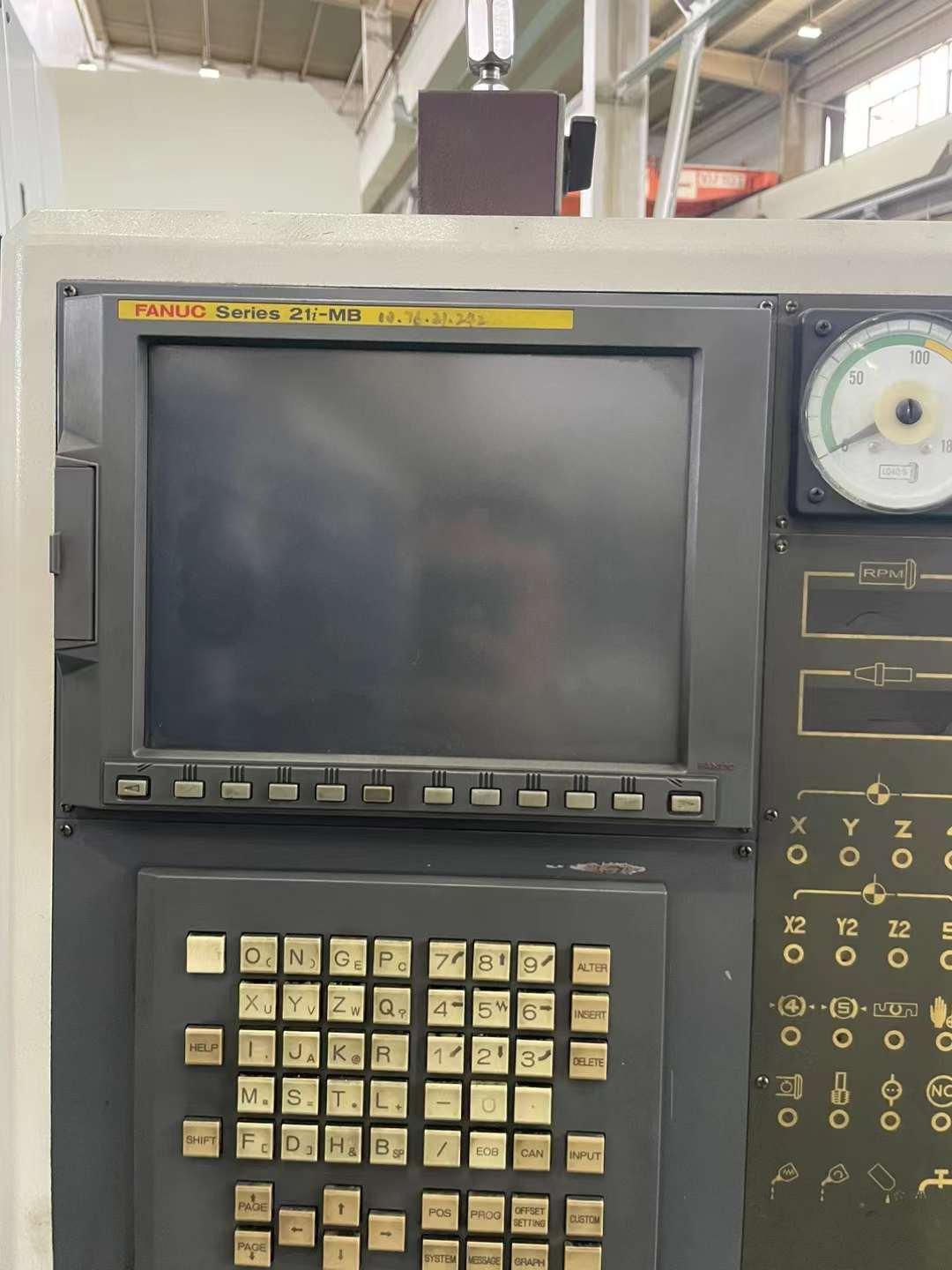

Fanuc 21iMB CNC System
Main motor power: 22/35kw
Dimensions: 6740*4860*3900mm
