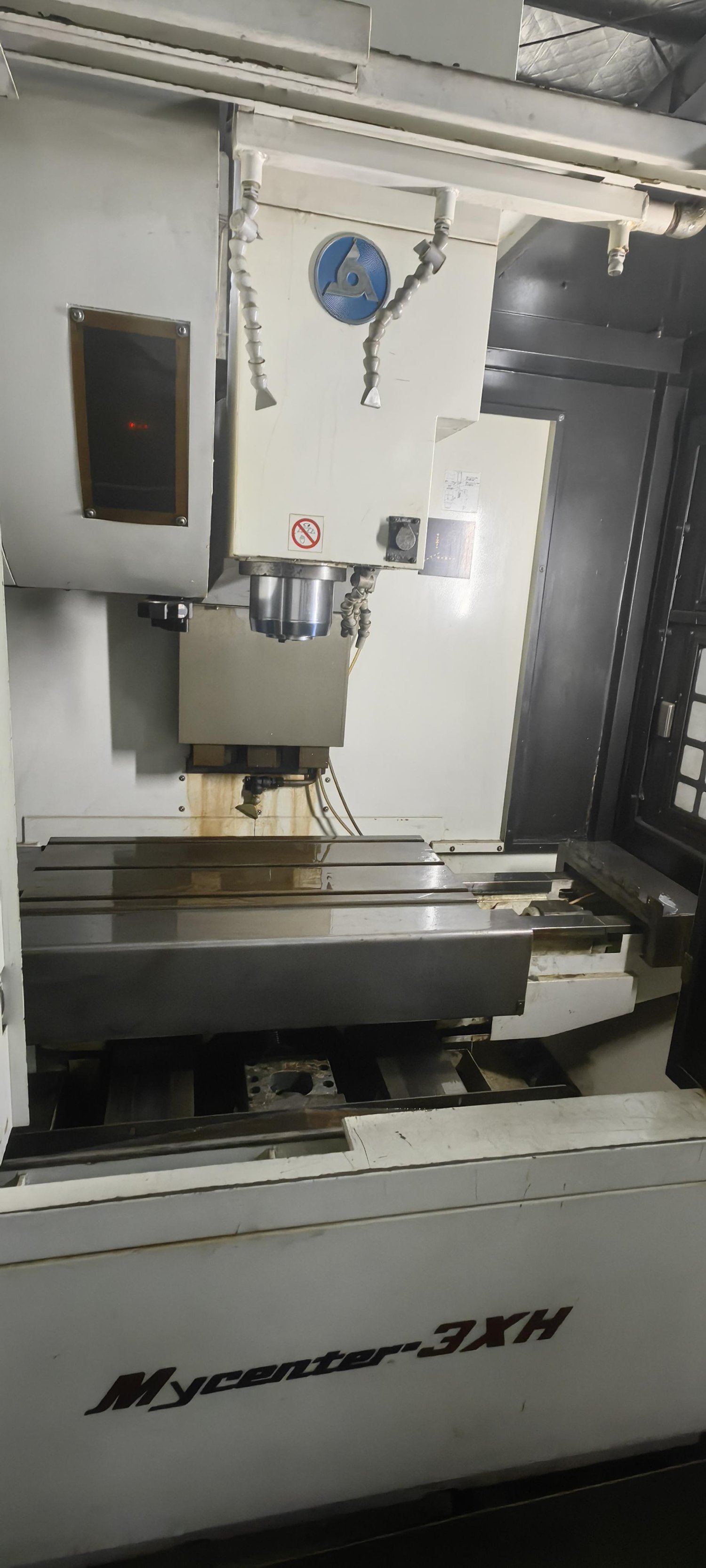

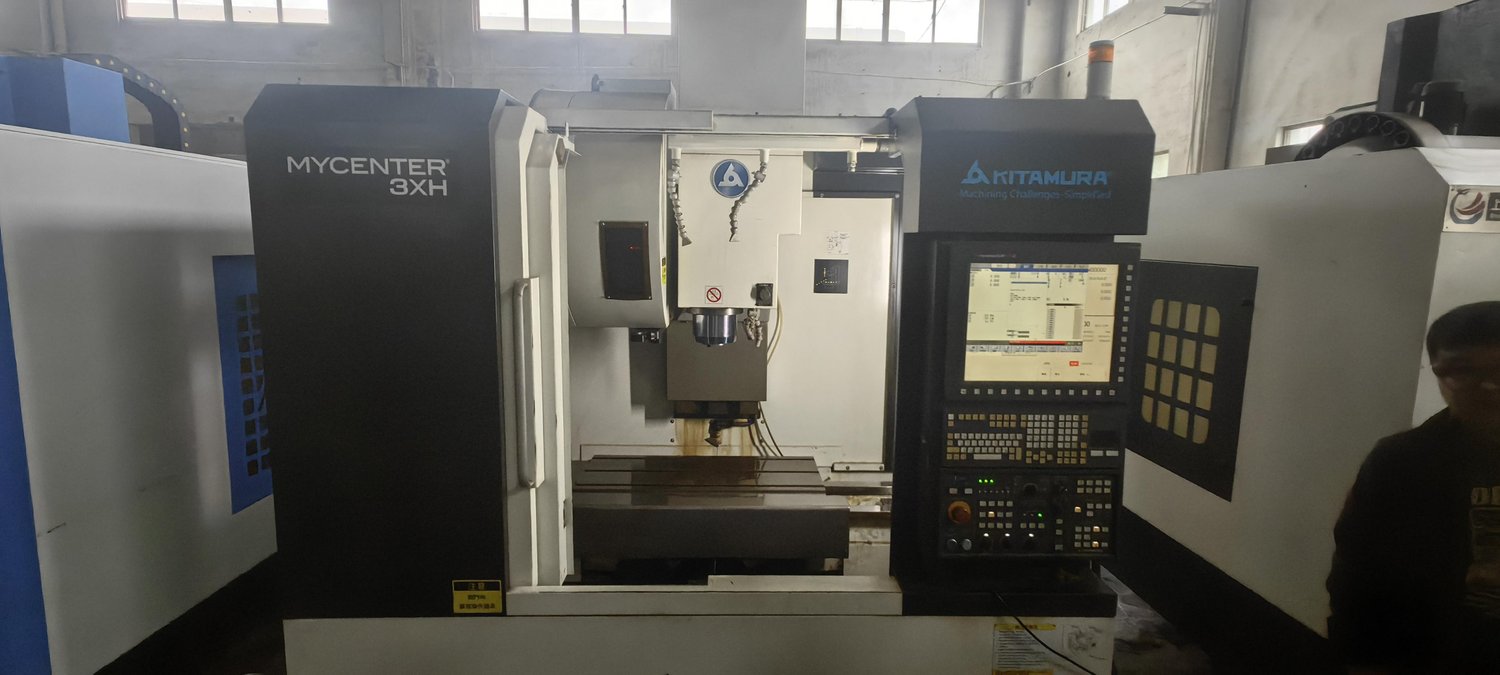

Kitamura Mycenter-3XH Vertical Machining centre

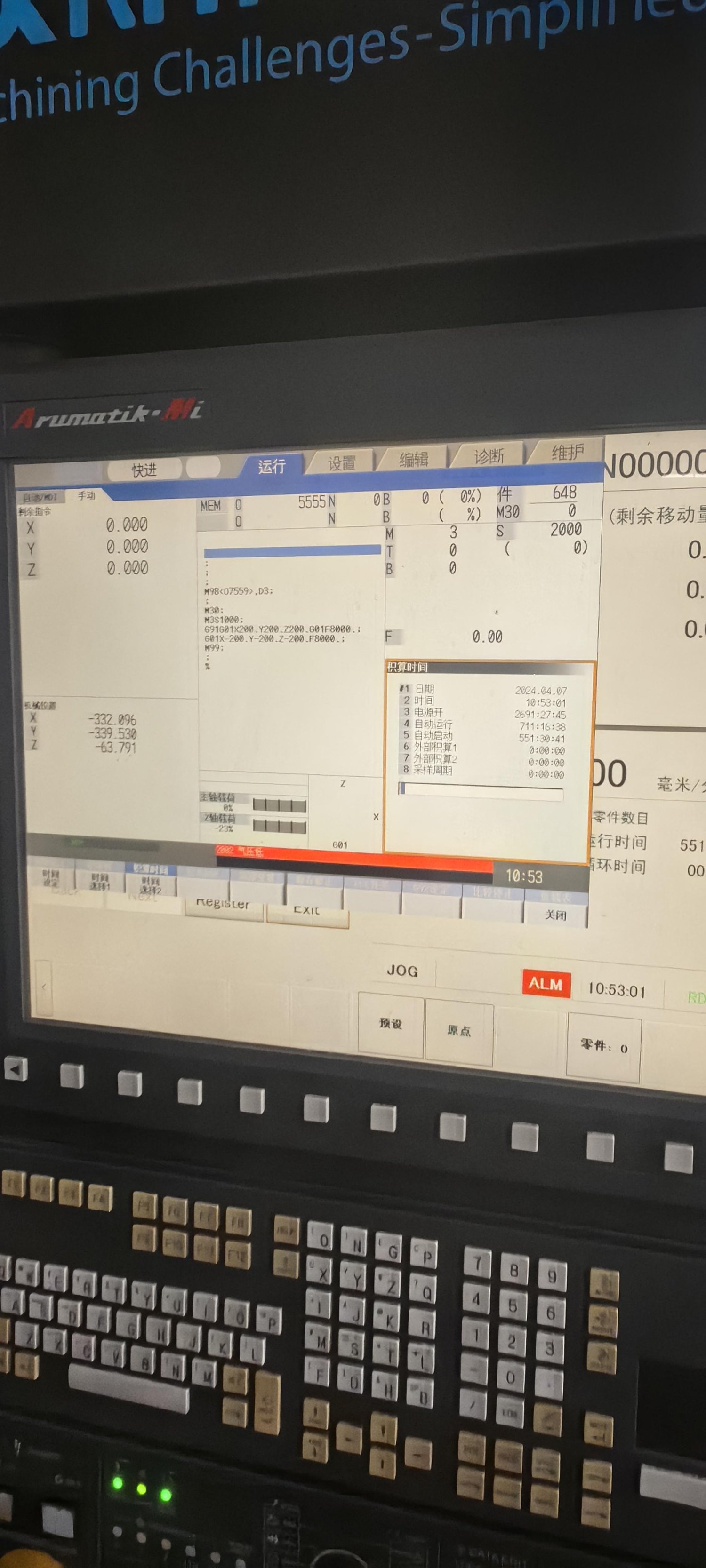

CNC System: Mitsubishi M-750V

X*Y*Z axis travel: 760*455*460mm

Worktable size: 410*900nm

Maximum load: 500kg

Spindle speed: 40-15000rpm

Spindle taper: NST.NO.40

Spindle motor power: 15kw

Spindle torque: 95.5Nm

Fast feed rate: 50000mm/min

Cutting feed rate: 0-36000mm/min

Tool magazine :30

Distance from worktable to spindle nose: 110*570mm

Machine weight: 5740kg

Dimensions: 2235*2370*2882.4mm
