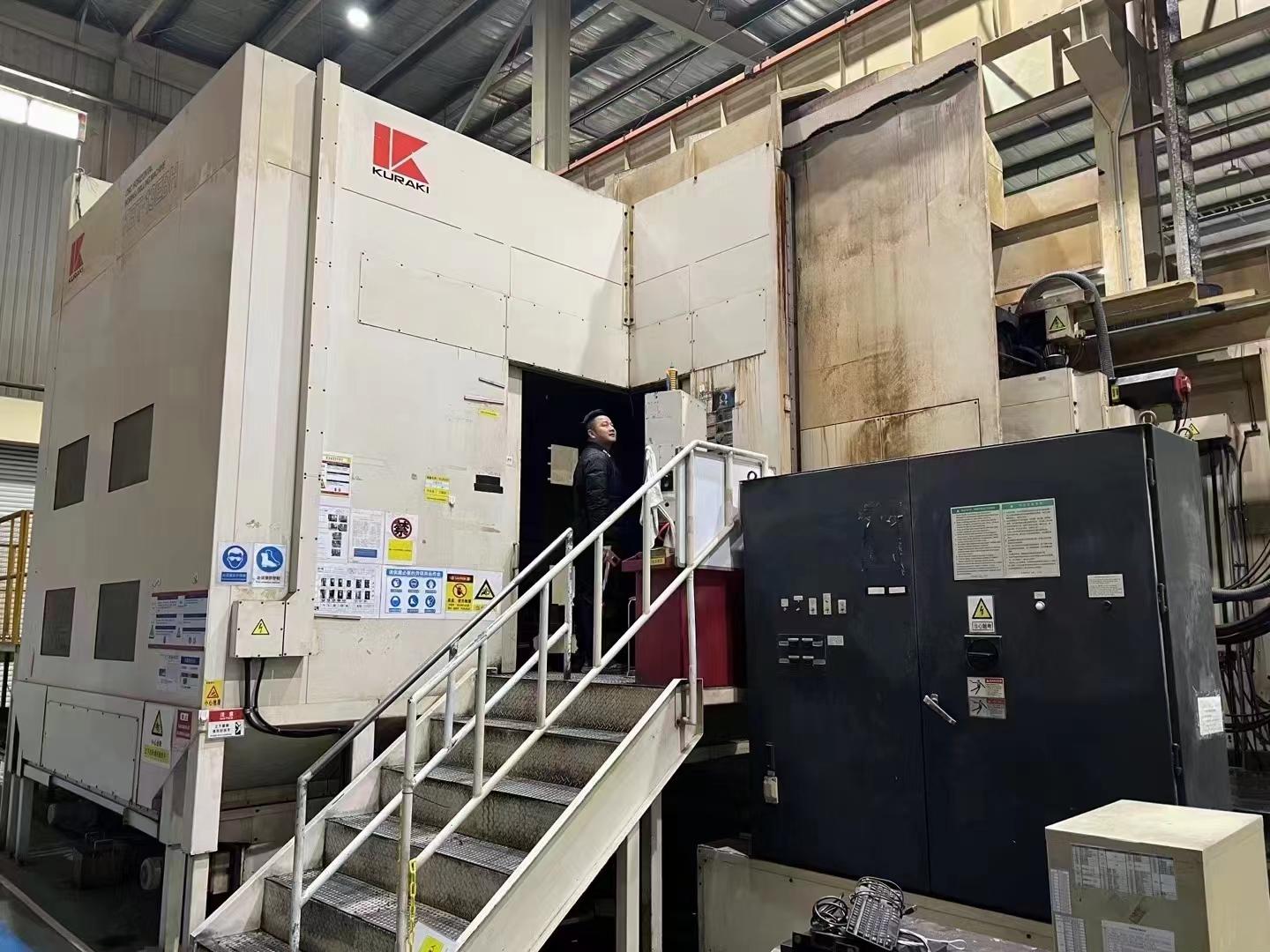

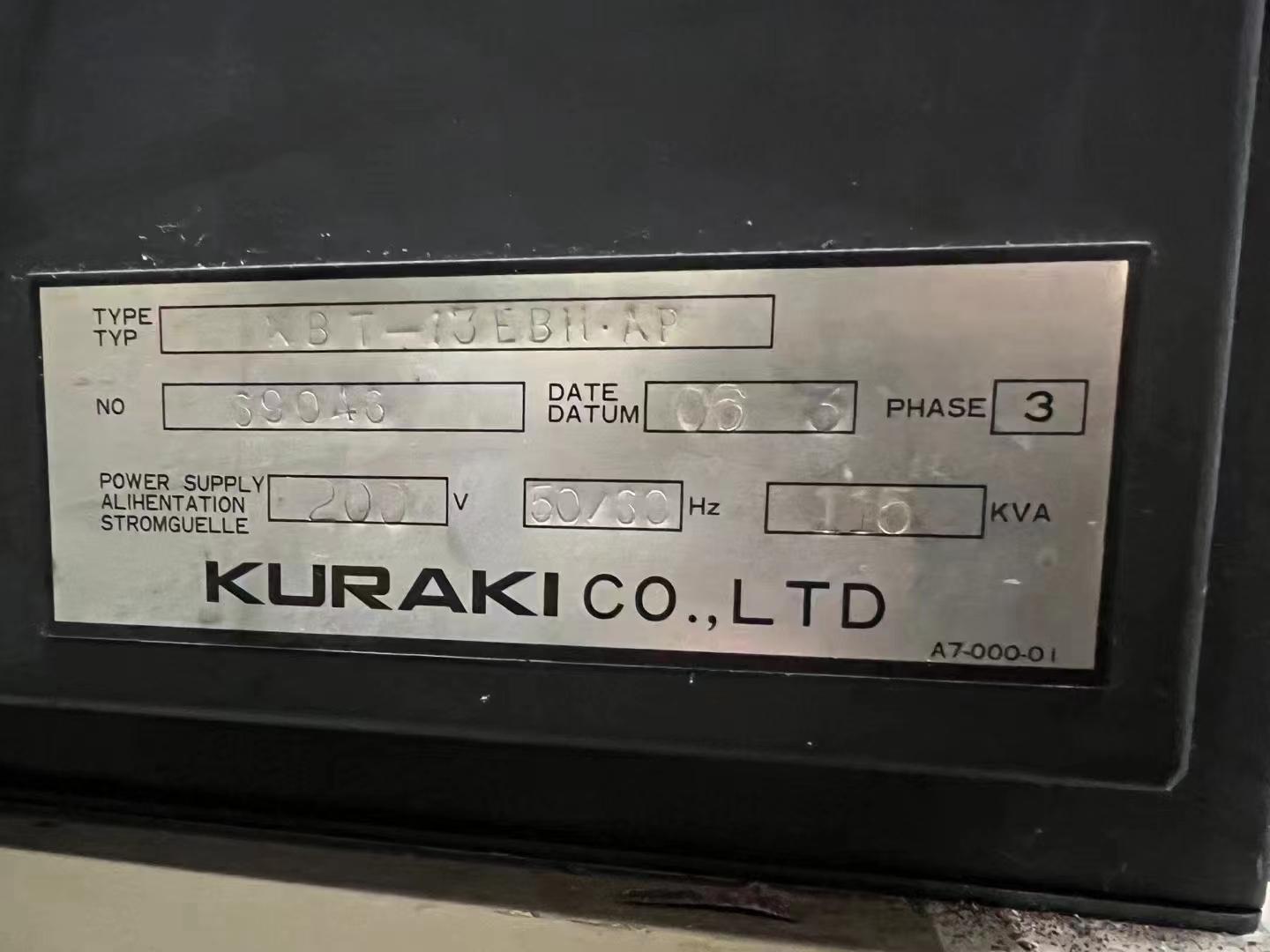

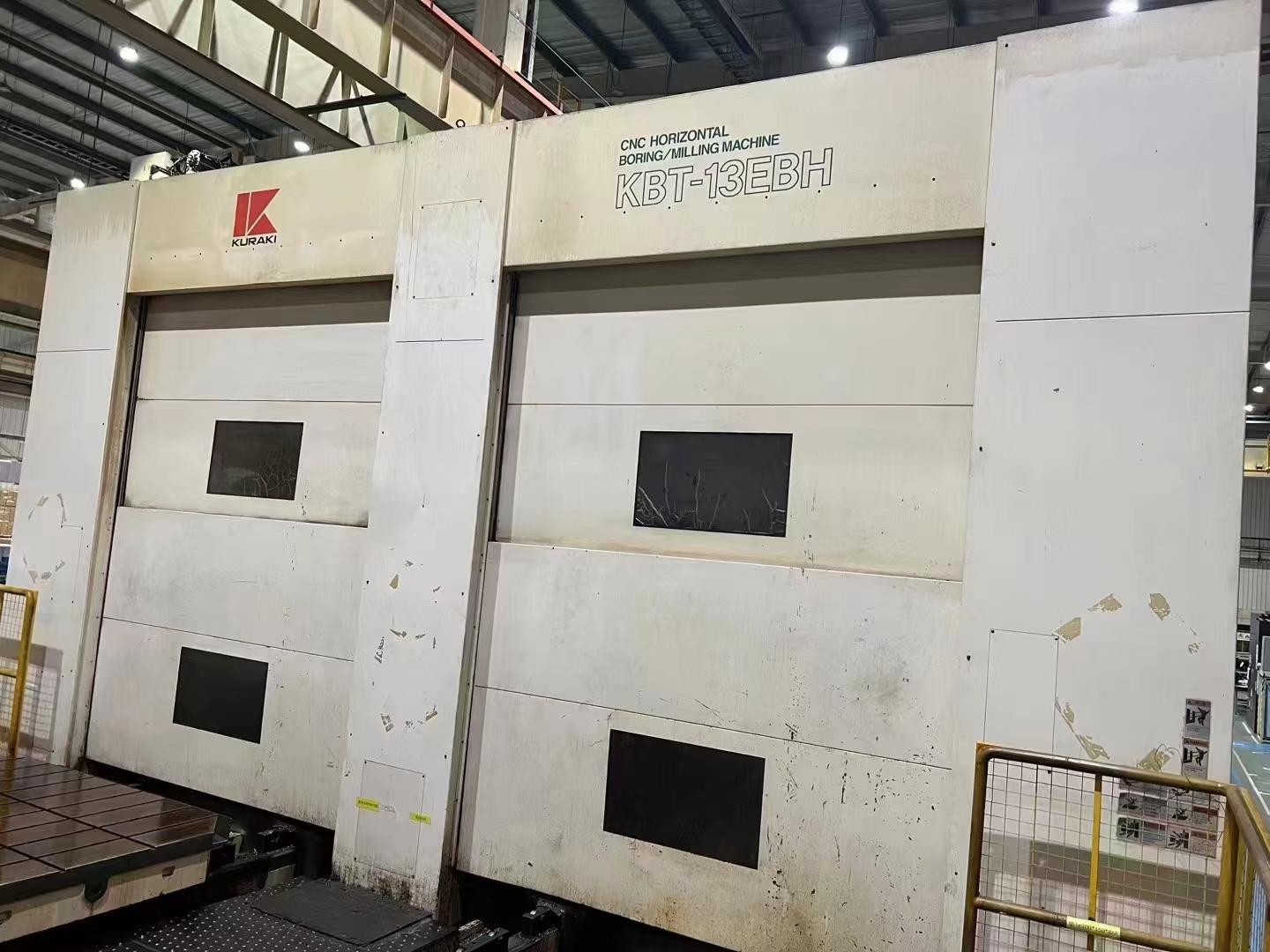

KURAKI KBT-13EBAPH Horizontal Machining centre

X*Y*Z*W axis travel: 3000*2300*1600*550mm

Distance from worktable to spindle center: 220-2080mm

Distance from center of rotation to spindle end: 850-2450mm

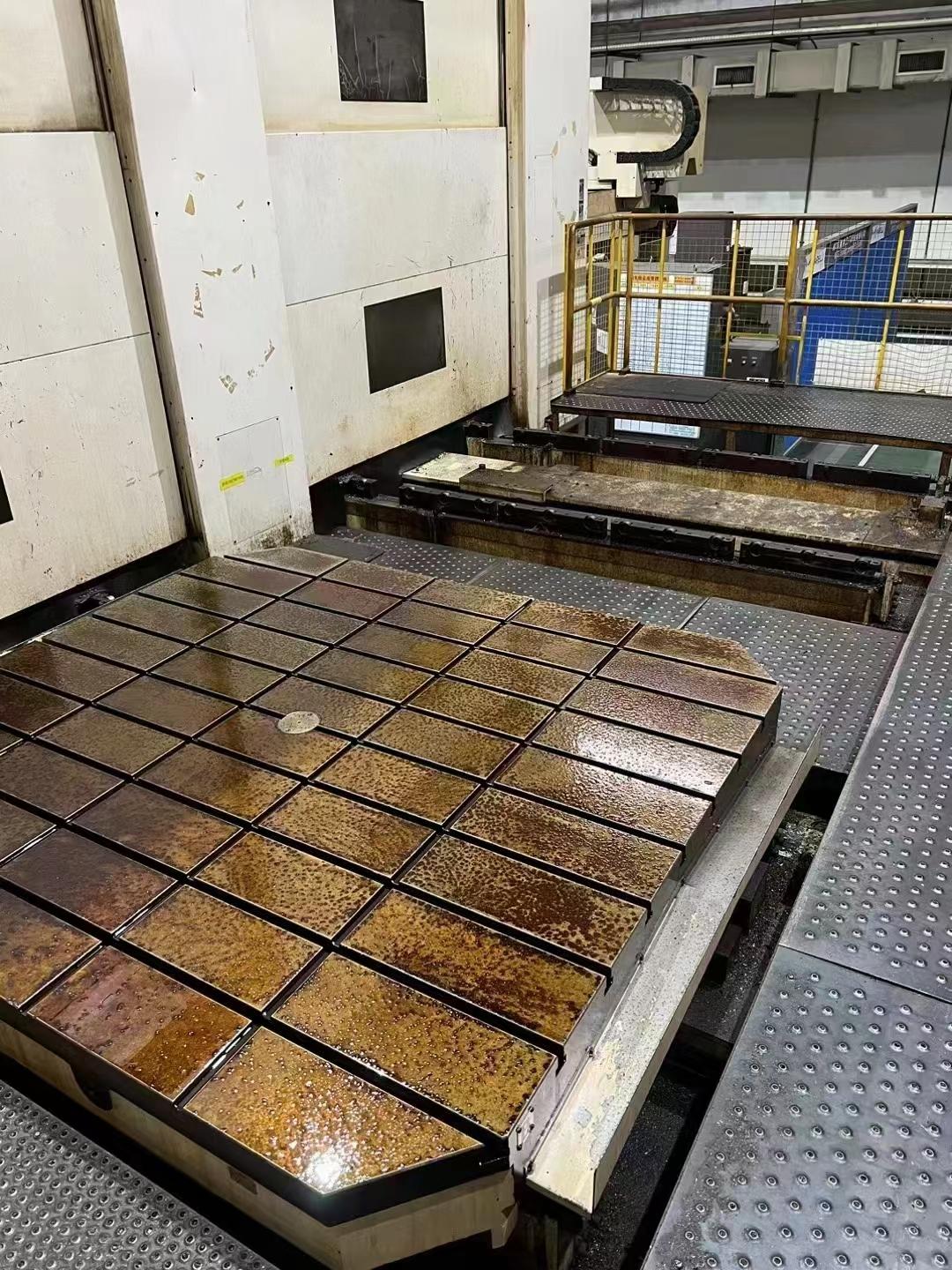

Worktable size: 2200*2000mm

Maximum load: 15000kg

T-slot：22*9mm

Worktable indexing resolution：90°

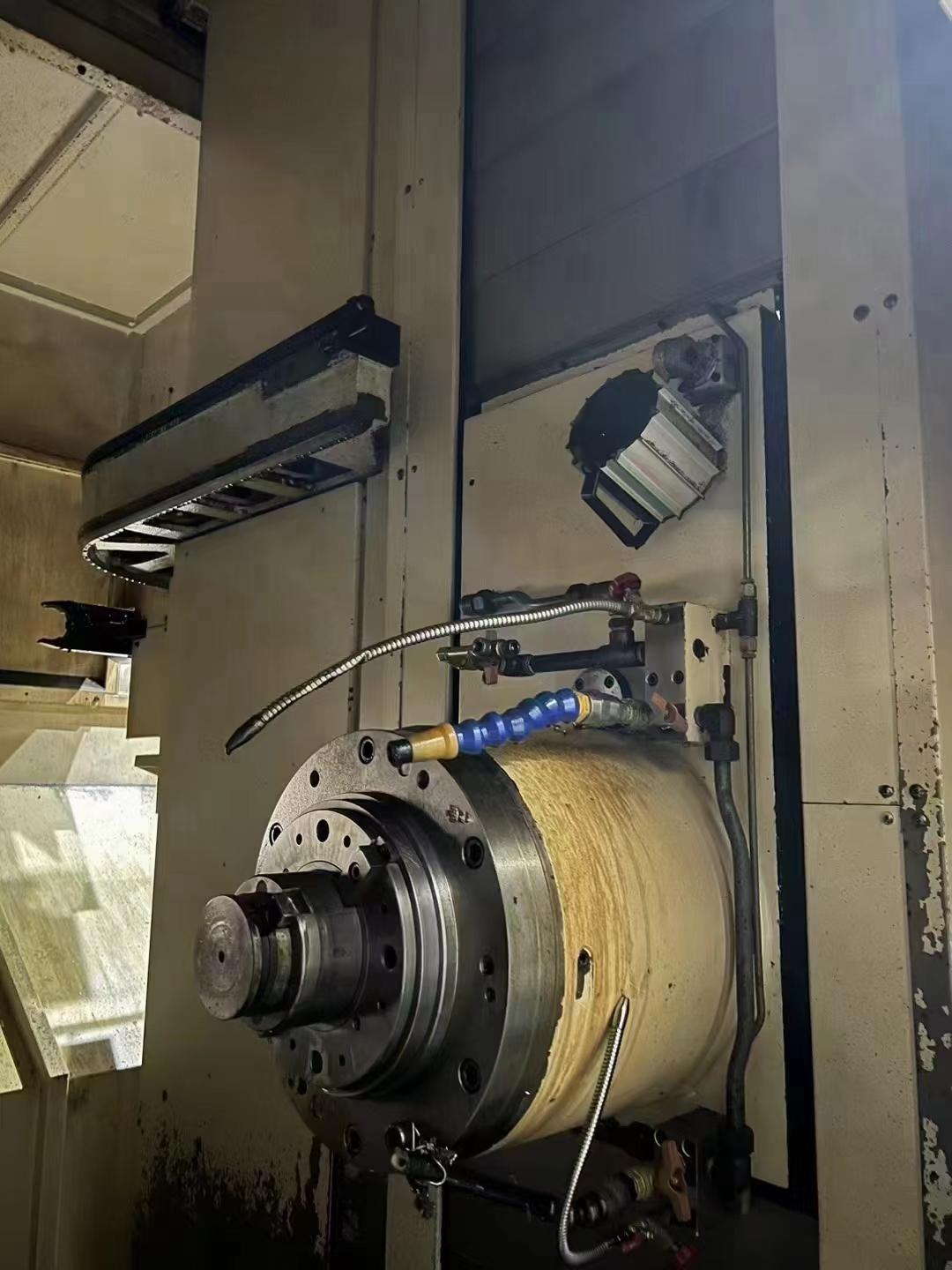

Spindle diameter: 130mm

Spindle speed: 4000rpm

Spindle taper: 50

X*Y*Z axis fast feed rate: 16m/min

Cutting speed：8000rpm

Worktable rotating speed：360deg/min
