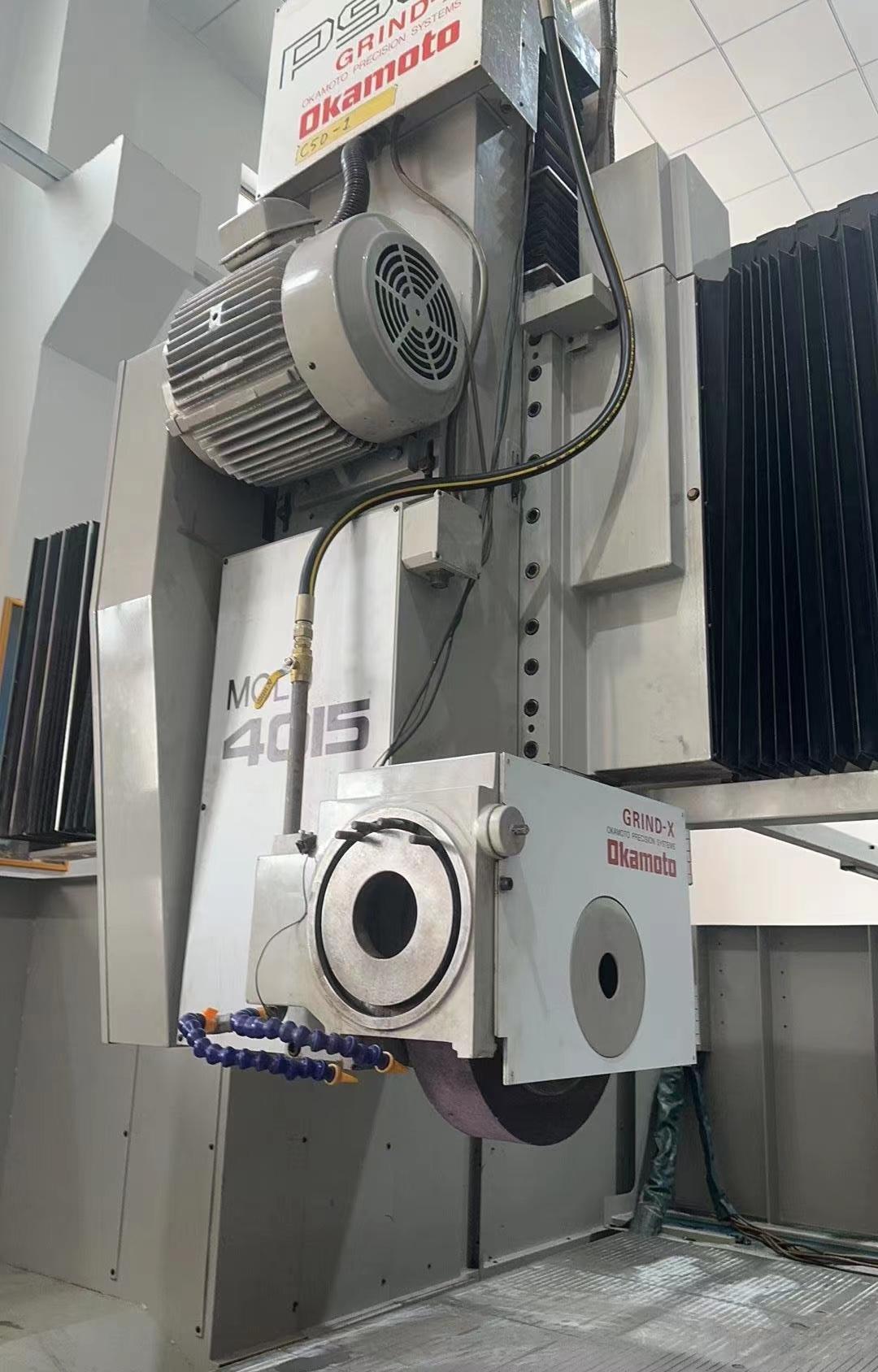

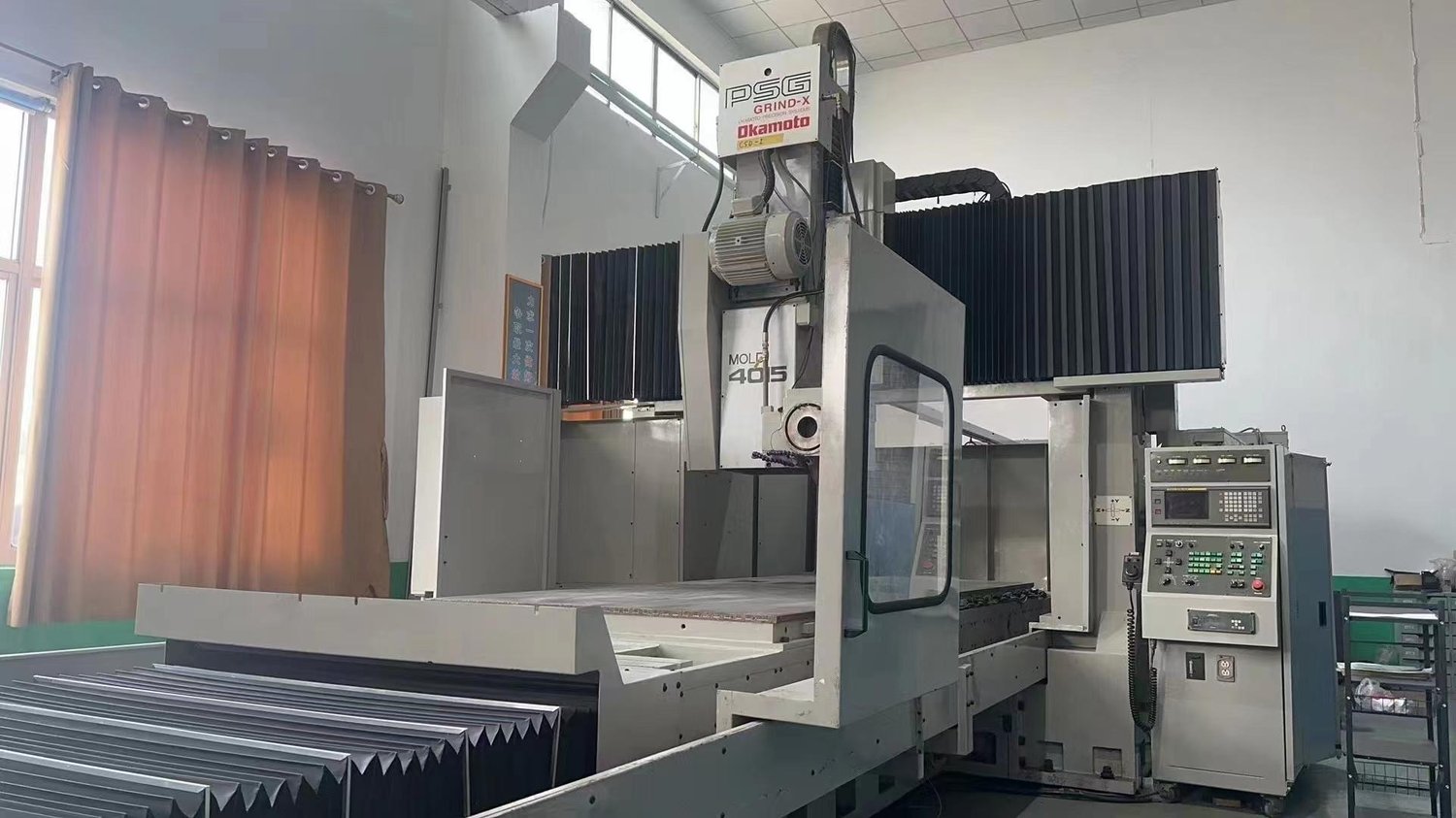

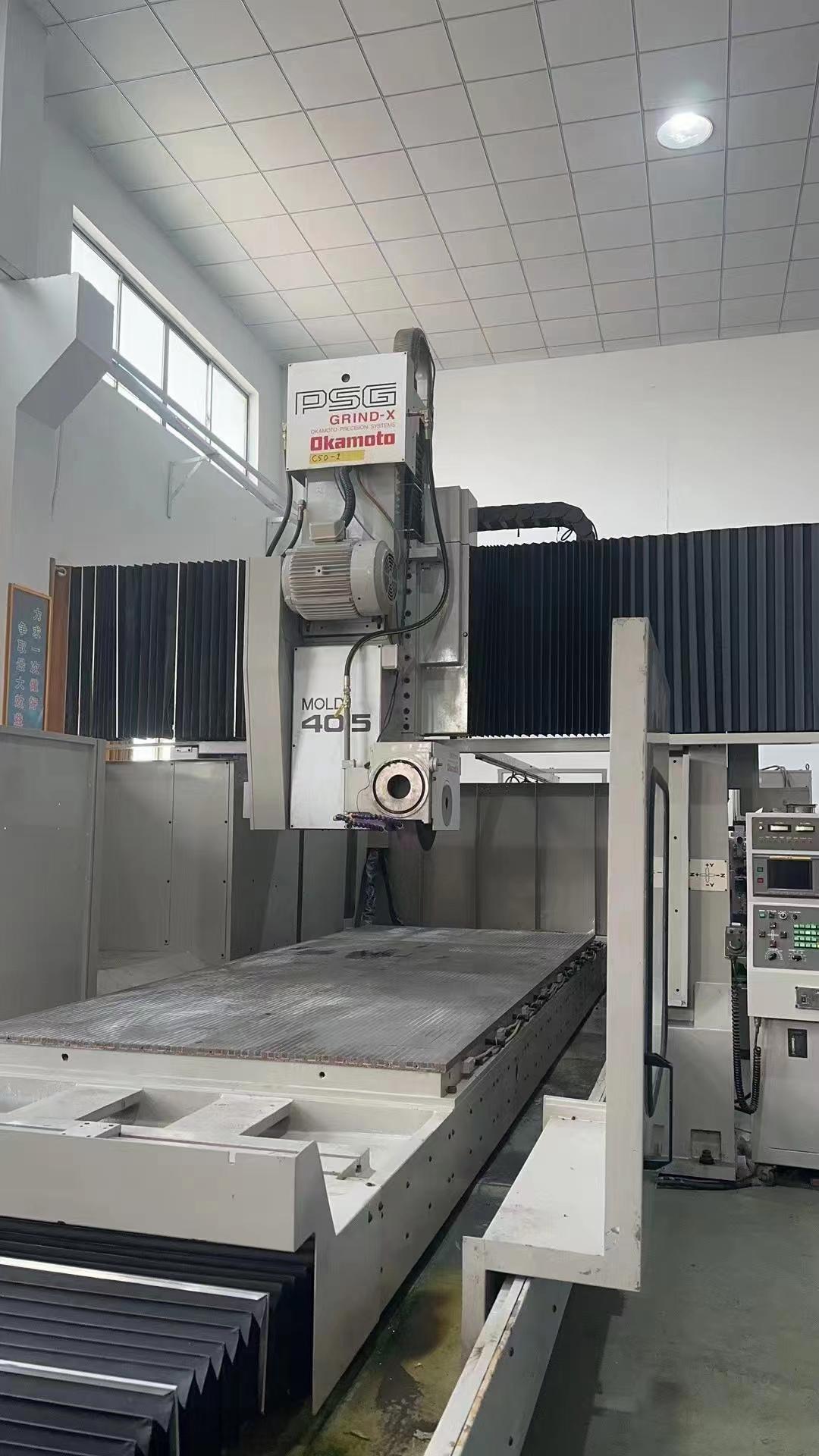

Okamoto 4015NC Surface grinder

[Product Information]:

CNC system: FANUC

Worktable: 4050*1550 mm

X-axis travel: 4250 mm

Y-axis travel: 2070 mm

Z-axis travel: 860 mm

Worktable load: 10800 kg

Feeding rate: 30 m/min

Minimum feeding rate: 0.0001mm

Grinding wheel size(external diameter x thickness x internal diameter): 510*100*203.2 mm

Machine dimension: 10950*4600*4340mm

Weight: 30000 kg
