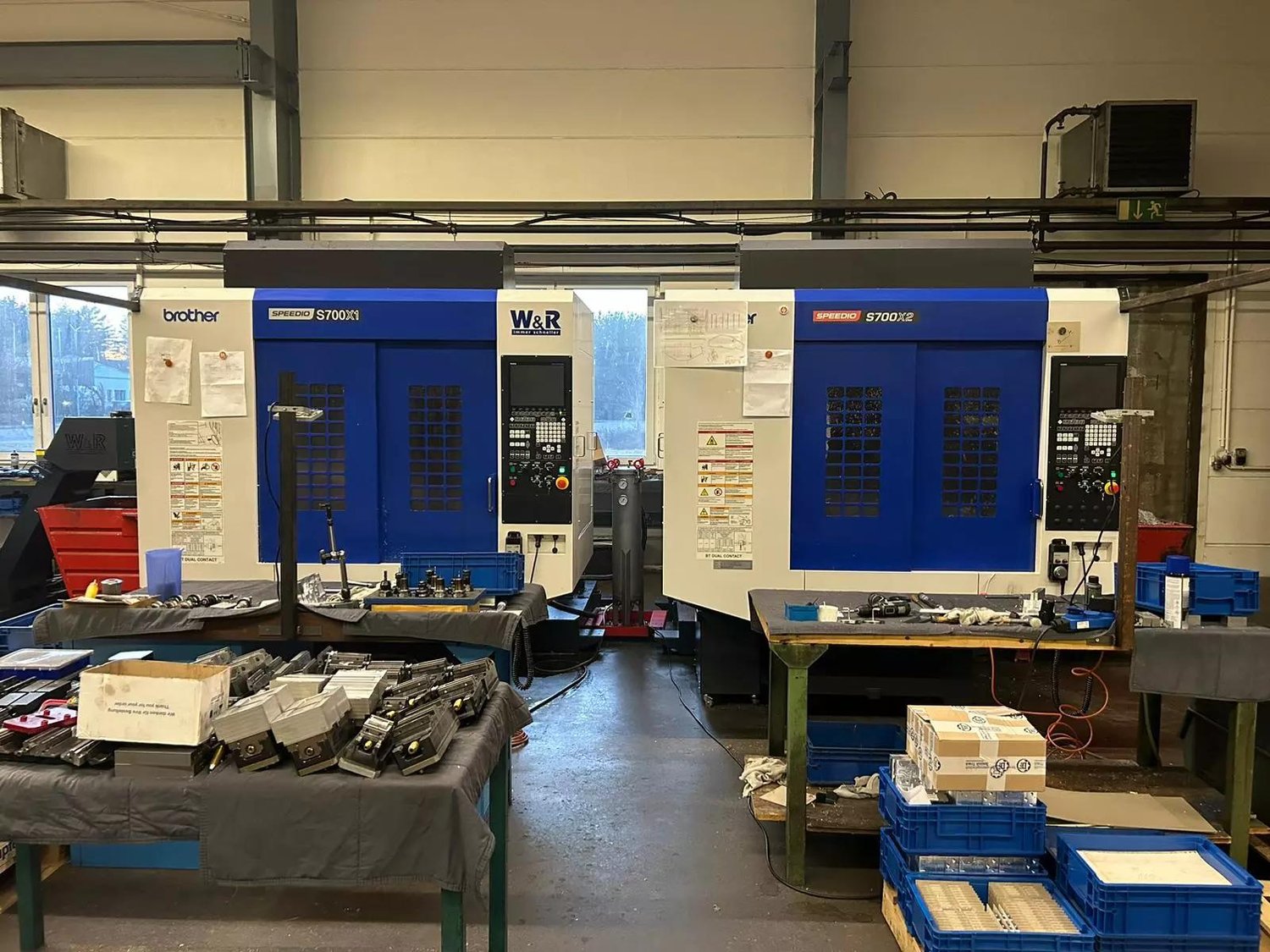

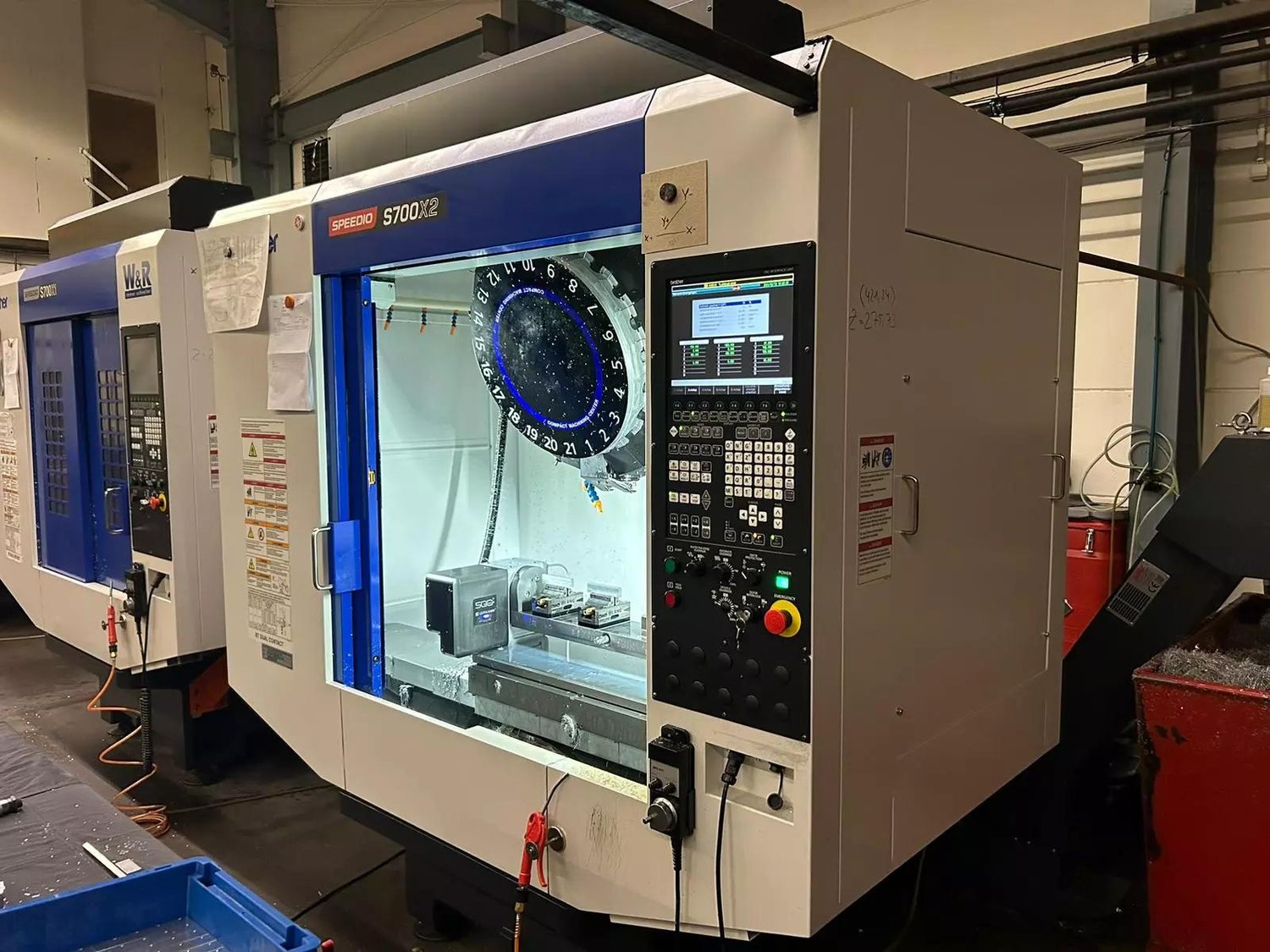

Brother Speedio S700X1 Vertical Machining centre

Travel:

X-Axis: [mm] 700

Y-Axis: [mm] 400

Z-Axis: [mm] 300

Rapid motion: (X/Y/Z) [m/min.] 50/50/56

Feed: (X/Y/Z) [m/min.] 30

Distance table surface - spindle nose: [mm] 330 - 630

Spindle speeds: [rpm] 16 - 6.000

Spindle power: [kW] 4,9

Tool: BBT 30

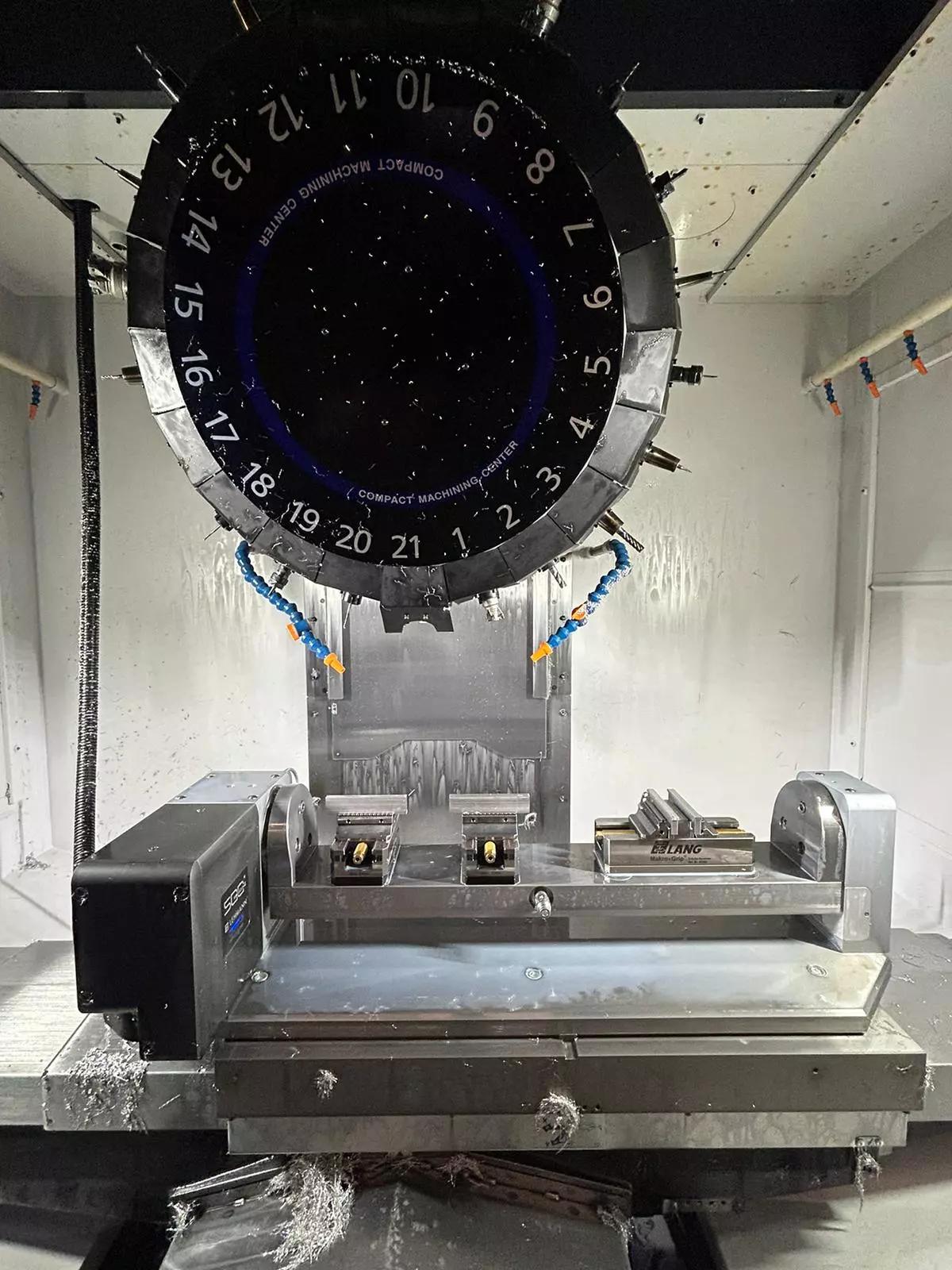

Toolchanger

Time for tool change: [s] 0,8

Tool capacity: 21

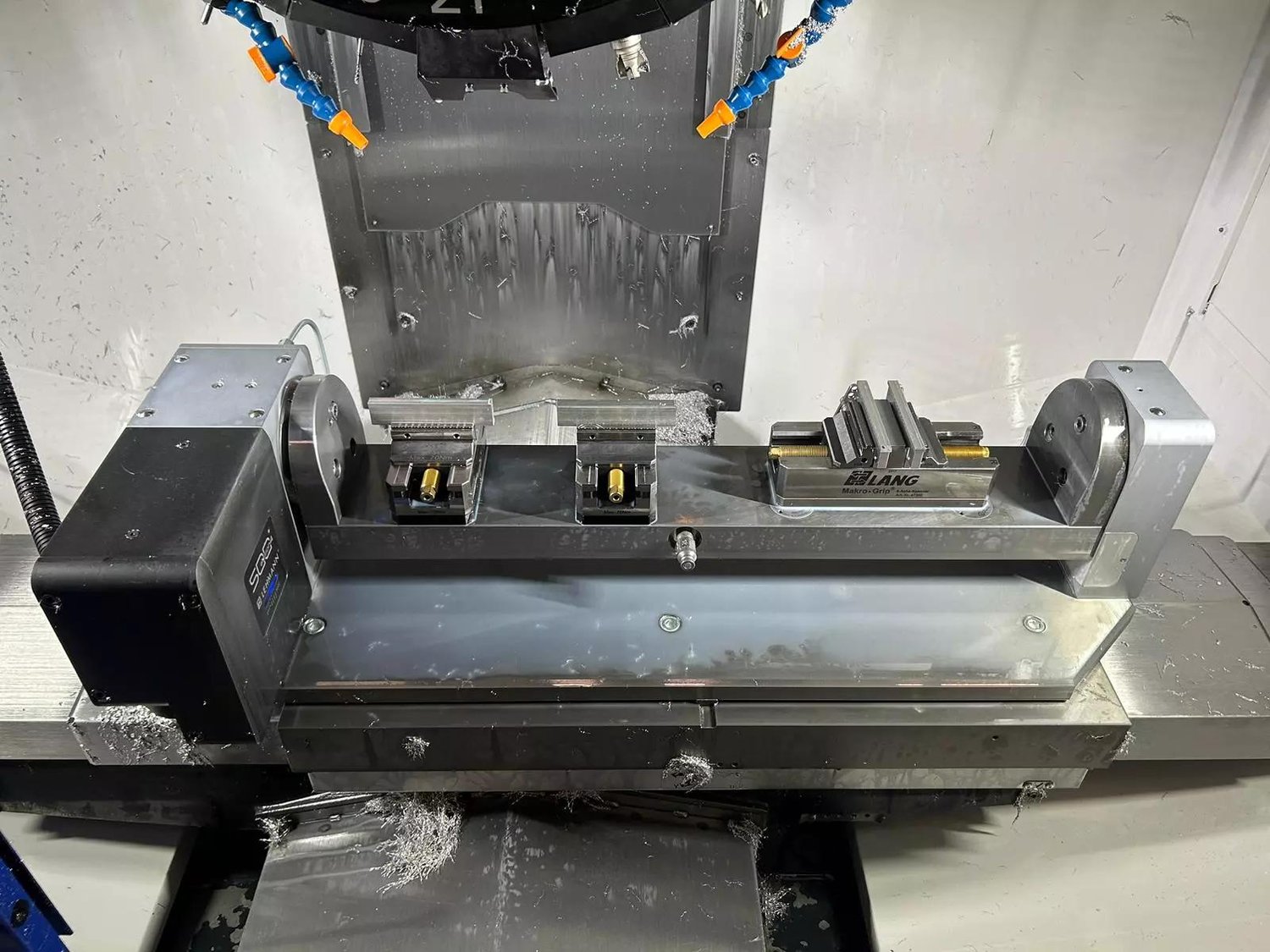

Table size: [mm] 800 x 400

Max. Table Load: [kg] 250

Power consumption: [KW] 9,5

Req. space (LxBxH): [m] 2,05 x 2,22 x 2,497

Machine weight: [kg]2.400
