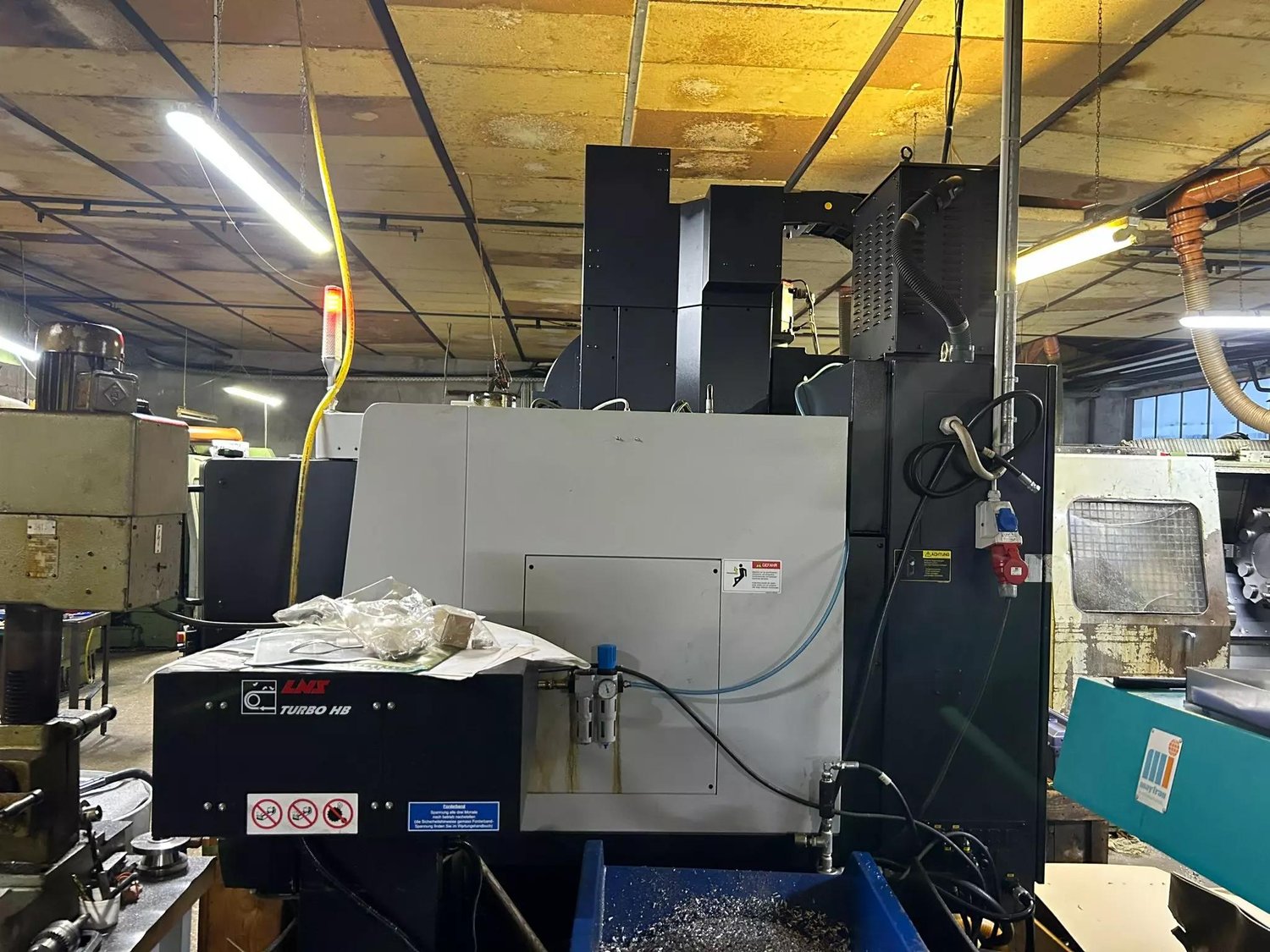

Doosan DNM 4500 Vertical Machining centre

Travel:

X-Axis: [mm] 800

Y-Axis: [mm] 450

Z-Axis: [mm] 510

Rapid motion: (X/Y/Z) [m/min.] 36 / 36 / 30

Distance table surface - spindle nose: [mm] 150 - 775

Spindle speeds: [rpm] 8.000

Spindle motor: [kW] 18,5

Tool: BT 40

Tool capacity: 30

Max. tool weight: [kg] 8

Tool lenght: [mm] 300

Tool diameter: [mm] 80 / 125

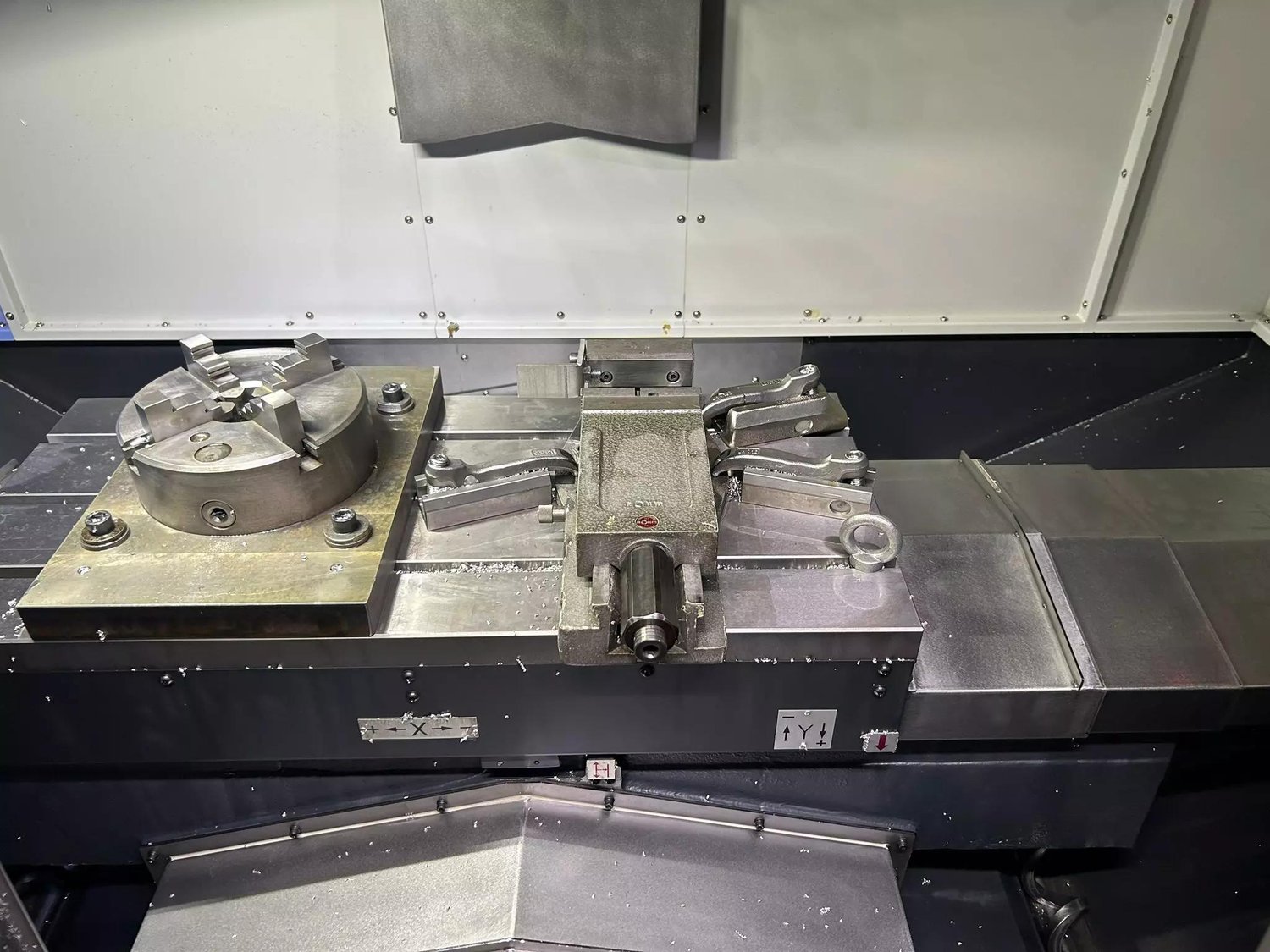

Table size: [mm] 1.000 x 450

Max. Table Load: [kg] 600

Req. space (LxBxH): [m] 2,158 x 2,615 x 2,985

Machine weight: [kg]5.000

Equipment

Chip conveyor

Internal cooling: [bar]

cooling system

Electronical handwheel

Caliper
