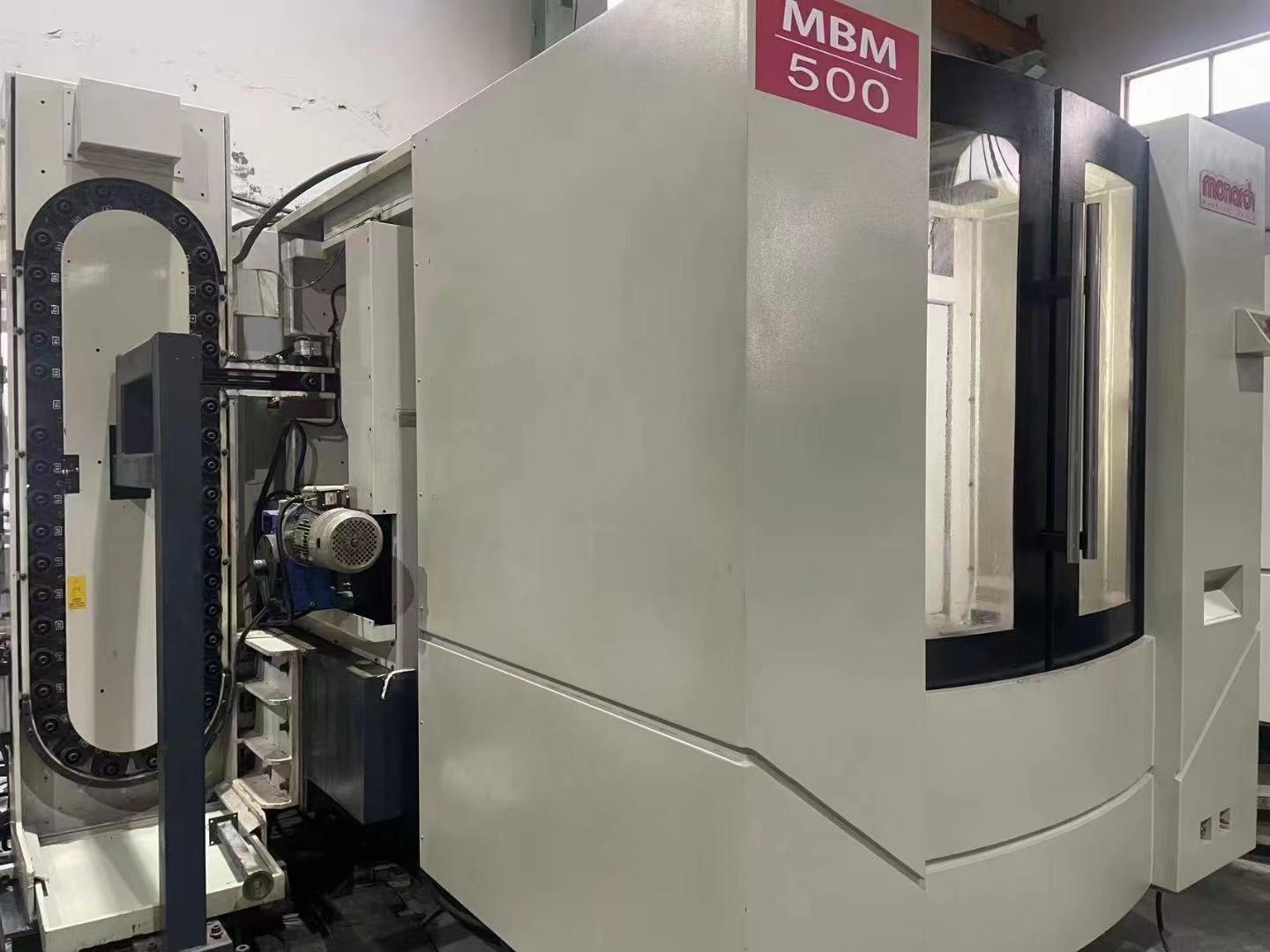

Mecheline MBM-500 Horizontal Machining centre

X*Y*Z axis travel: 900*720*800mm

X/Y/Z axes fast feed rate: 60/60/60m/min

3 axes glass scale

Spindle taper: HSK63

Maximum speed: 14000rpm

Maximum torque: 266NM

Spindle power: 22/25KW

Distance from spindle nose end to worktable: 100-800mm

With center flushing

Worktable size: 500*500mm

Worktable indexing resolution:0.001°

Maximum cutter weight: 8kg

Maximum length: 500mm

Maximum diameter: 140mm

Tool magazine: 40/60

Rear chip conveyor
