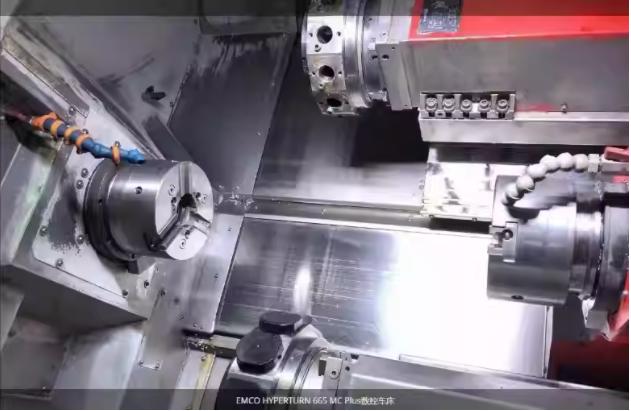

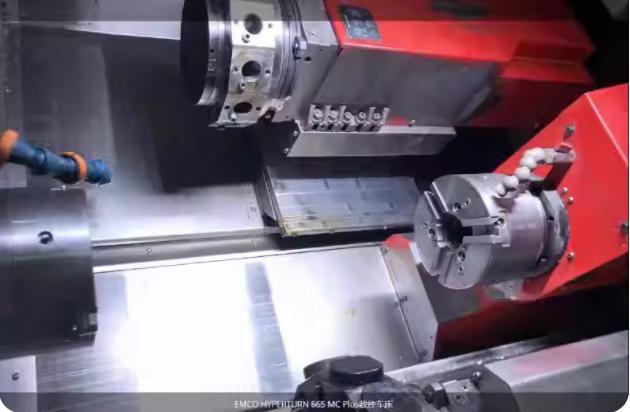

EMCO 665MC PLUS Turn Mill Machining Centre
[Product Information]:
- Inventory number：450614
- Brand：EMCO
- Model：665MC PLUS
- Origin：Austria
- Location：China
- Year：
- Create Time：2024-02-15
Specifications:
Spindle chuck size: 10 inches
Subspindle chuck size: 8 inches
Spindle motor power: 22KW
Spindle speed: 0-7000rpm
Maximum rotating diameter: 600mm
Rotary diameter on pallet: 500mm
Maximum machining diameter: 430mm
Maximum machining length: 744mm
X-axis travel: 280mm
X1-axis travel: 205mm
Z-axis travel: 750mm
Z2-axis travel: 750mm
Z3-axis travel: 750mm
Y-axis travel: 100mm
X-axis feeding rate: 24m/min
Y-axis feeding rate: 10m/min
Z-axis feeding rate: 30m/min
