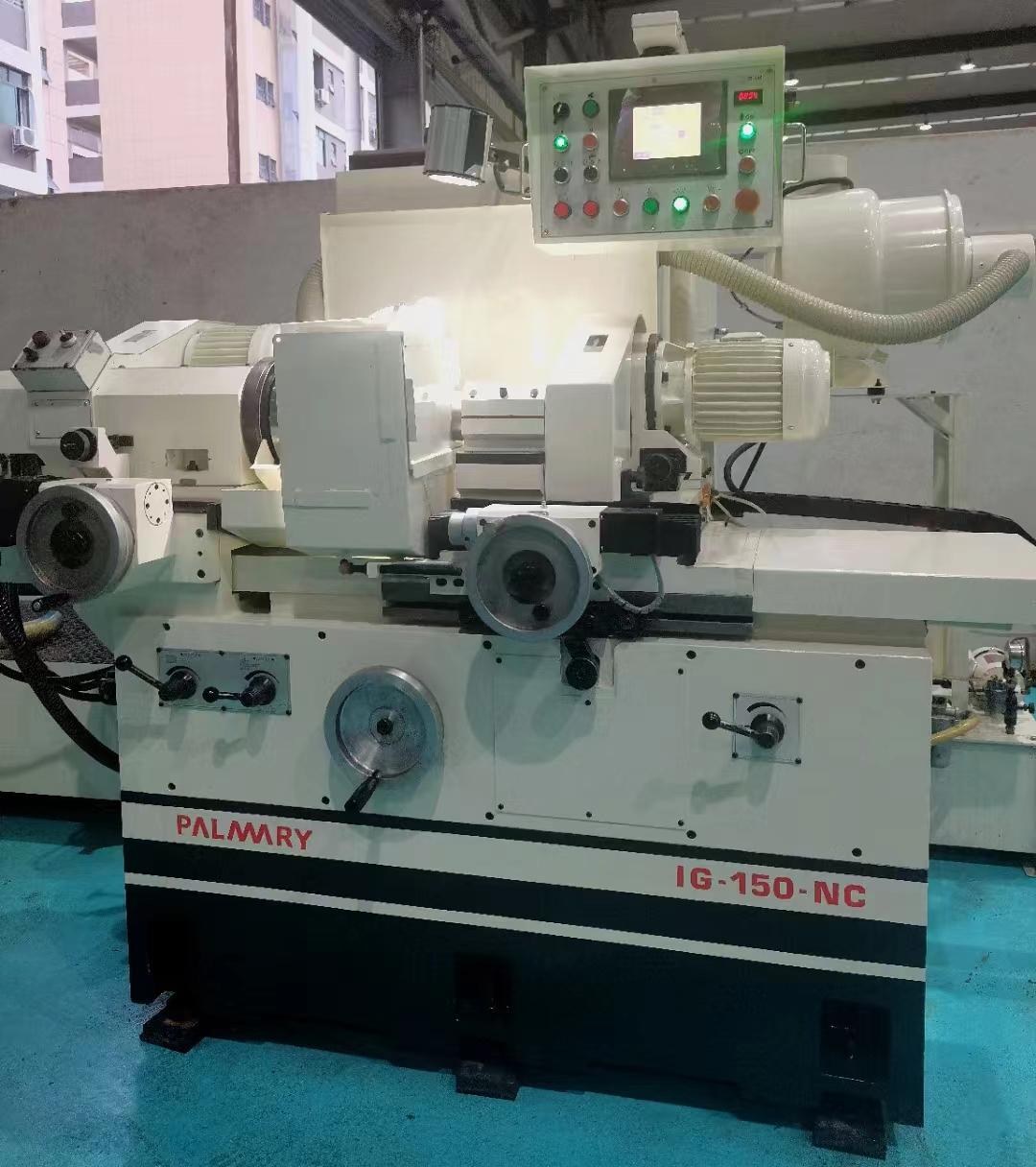

PALMARY IG-150NC CNC Internal grinder

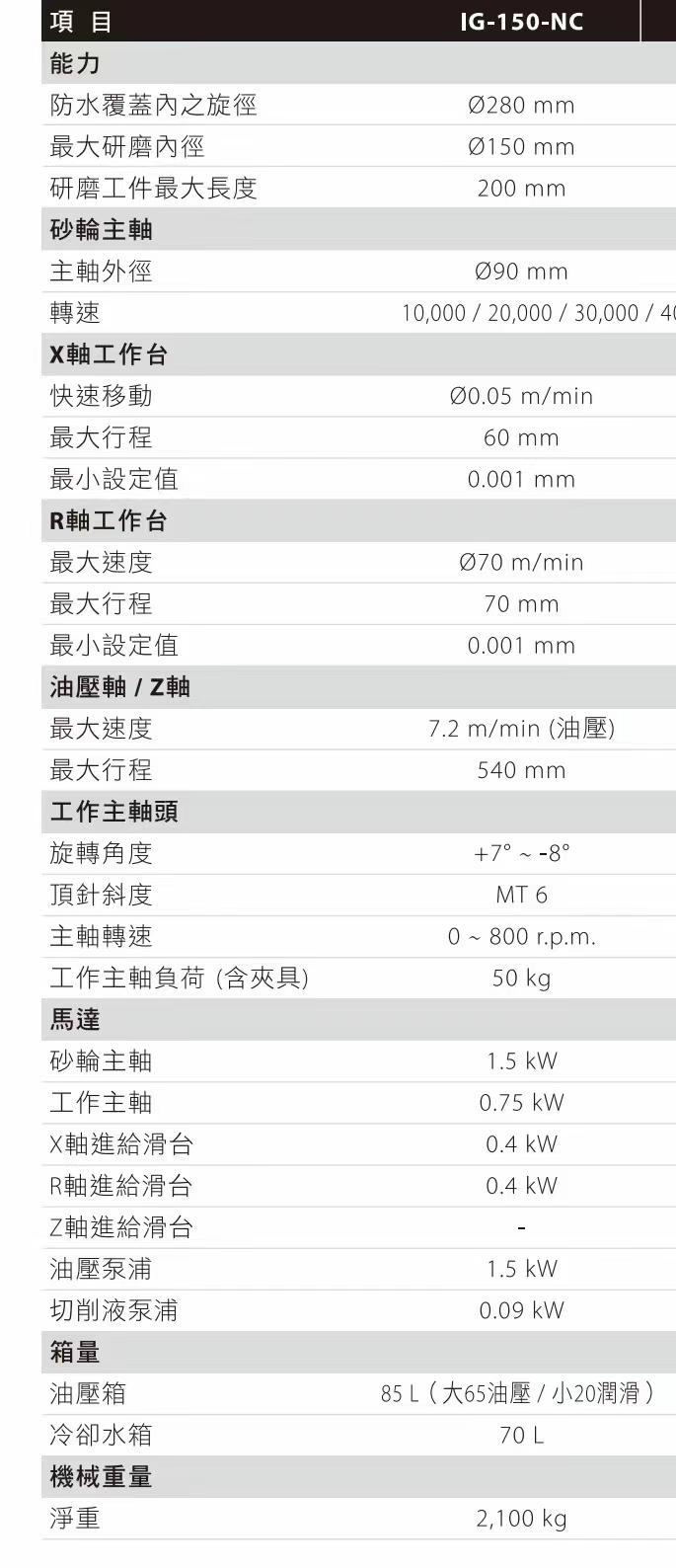

[Product Information]:

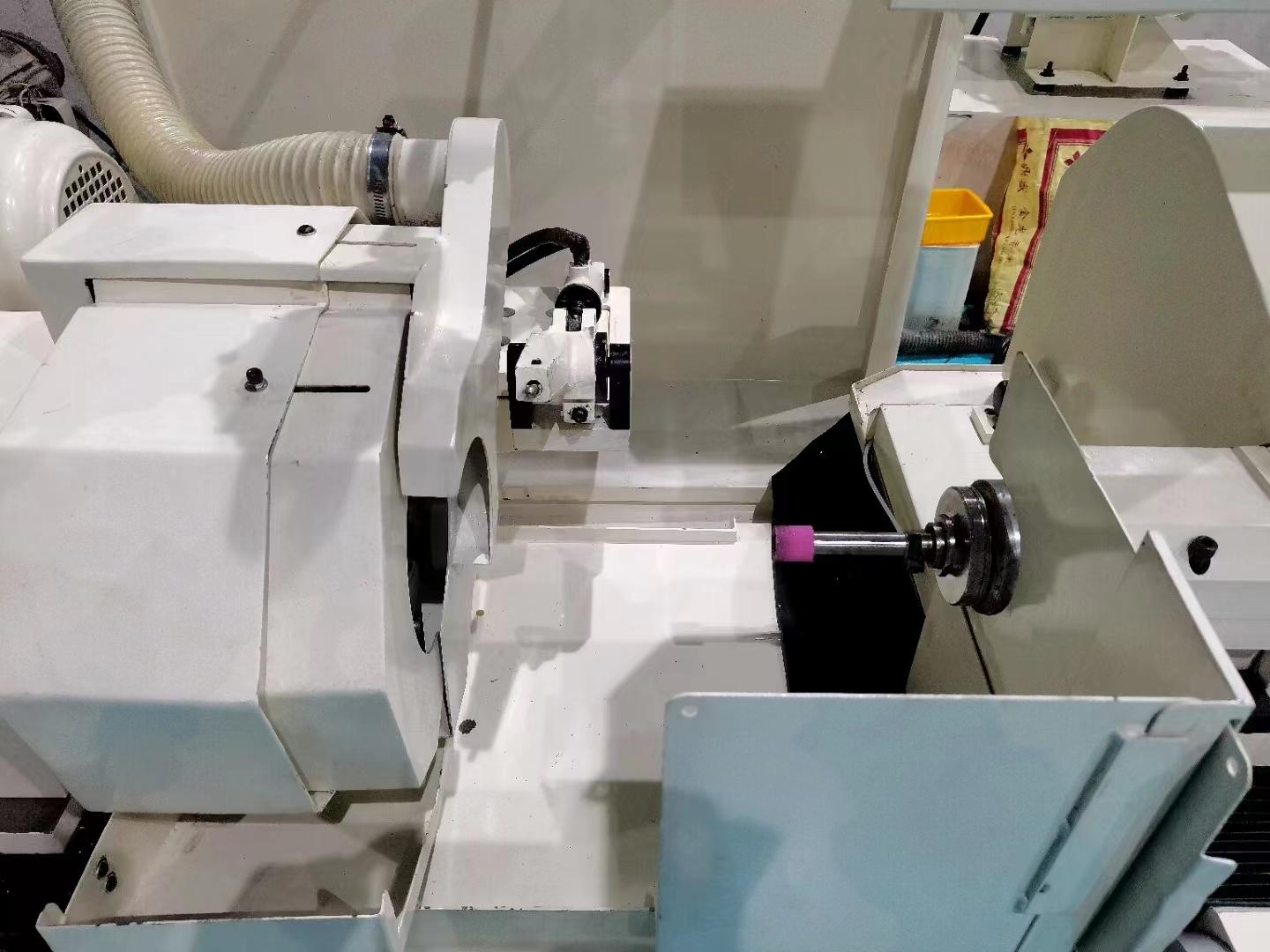

Grinding wheel spindle external diameter: 90mm

Standard machining internal hole: 6-150mm

Maximum depth: 150mm

Upper grinding rod: 200mm

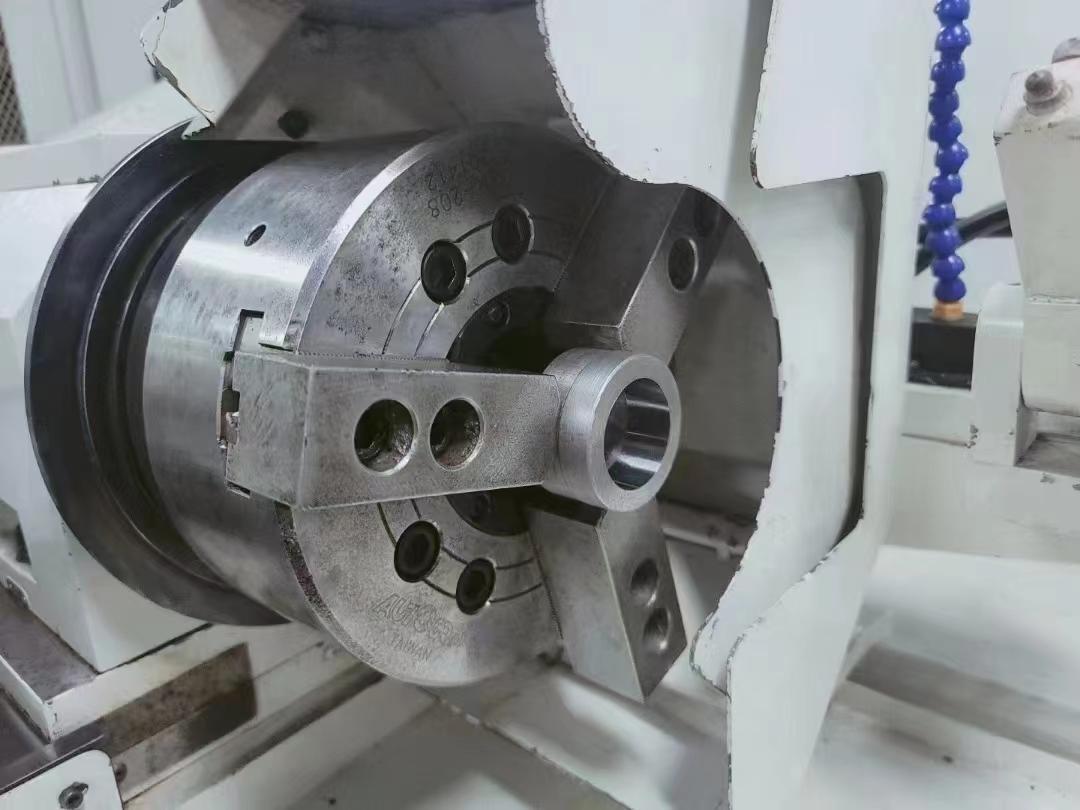

chuck rotating diameter: 520mm

Maximum worktable travel：540mm

X axis travel: 60mm

R-axis travel: 70mm

Z-axis travel: 540mm

Spindle speed: 800rpm
