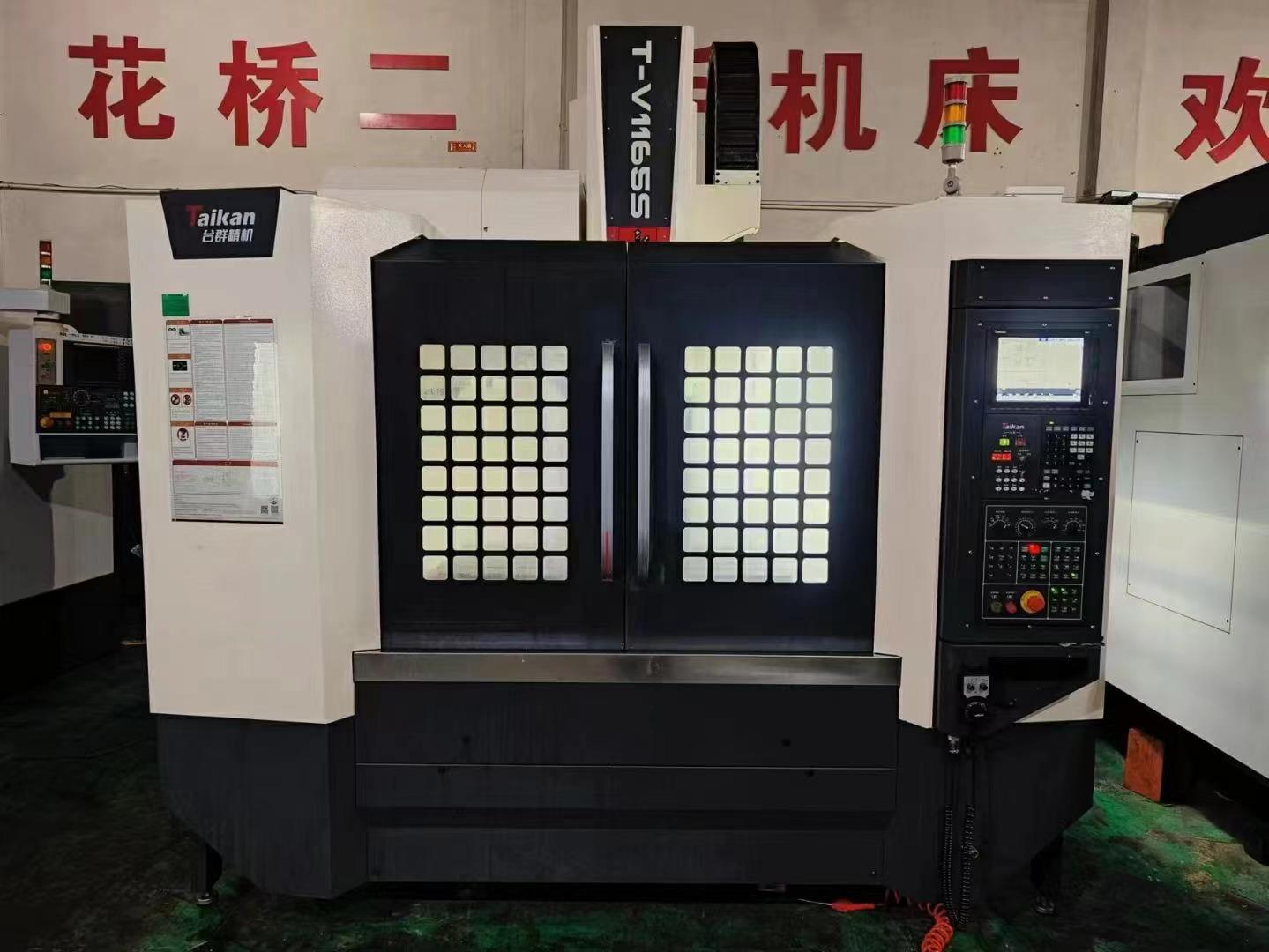

Taikan T-V1165S Vertical Machining centre

[Product Information]:

Three-axis travel :1100*650*580mm

Distance from spindle nose to worktable surface :140-720mm

Distance between spindle center and column guideway :707mm

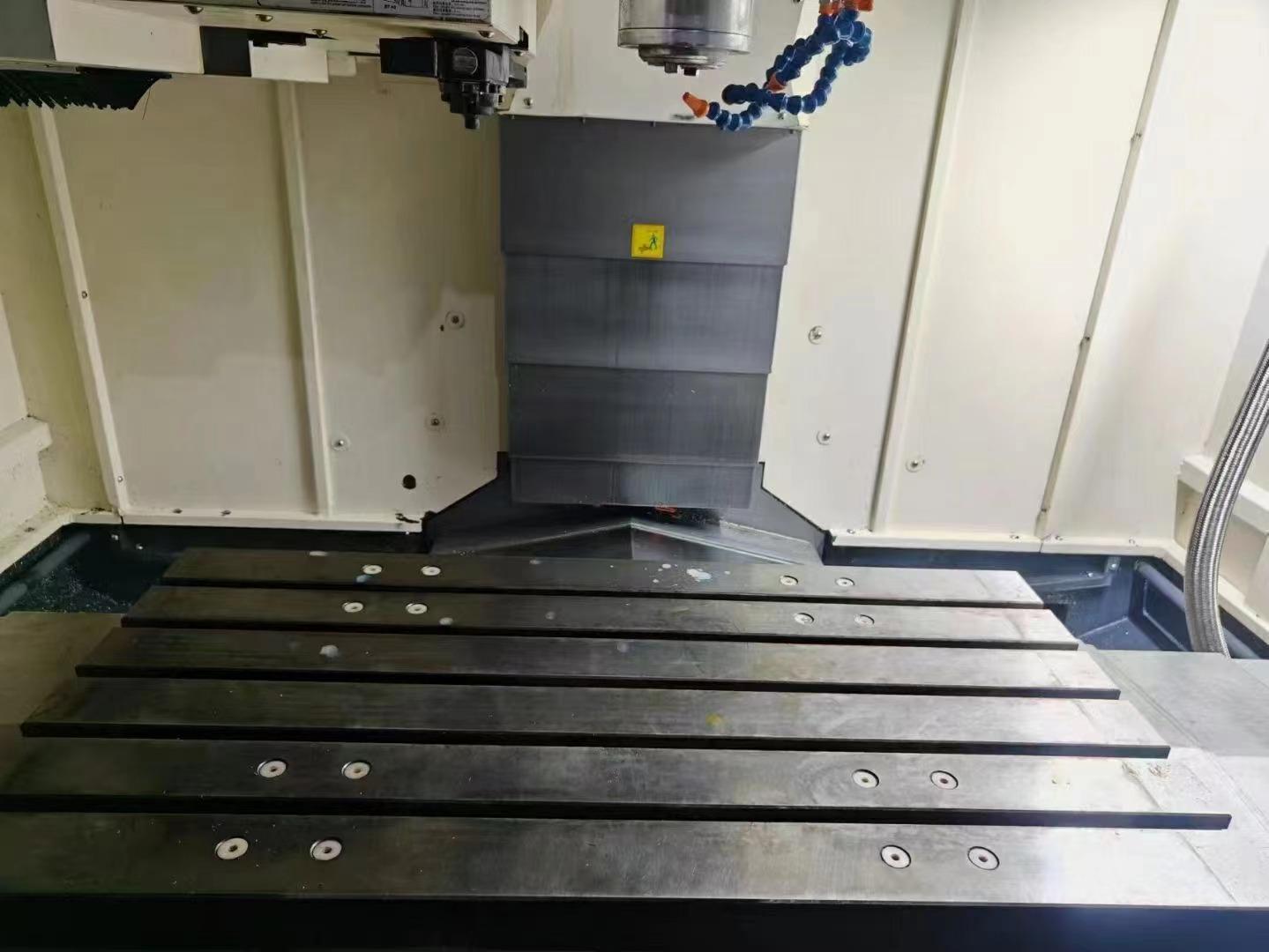

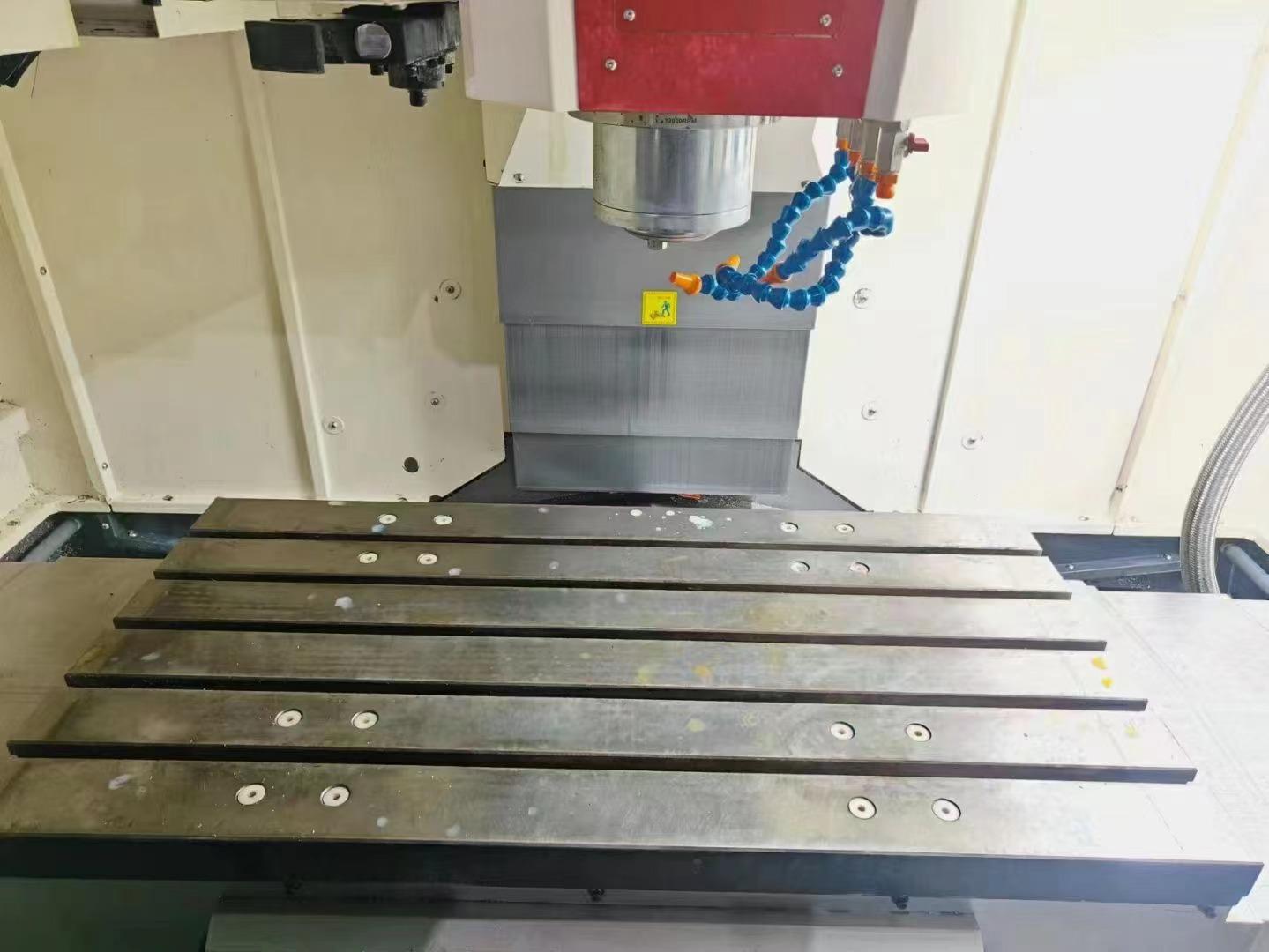

Worktable size :1200*600mm

Worktable load :800kg

Motor power :7.5/11kw

Motor torque :35.8/70nm

Spindle speed range :50-12000rpm

Spindle diameter :150mm

Cutting feed rate :10000mm/min

Feed rate :36/36/36m/min

Weight :7000kg

Dimensions :2700*3200*3000mm
