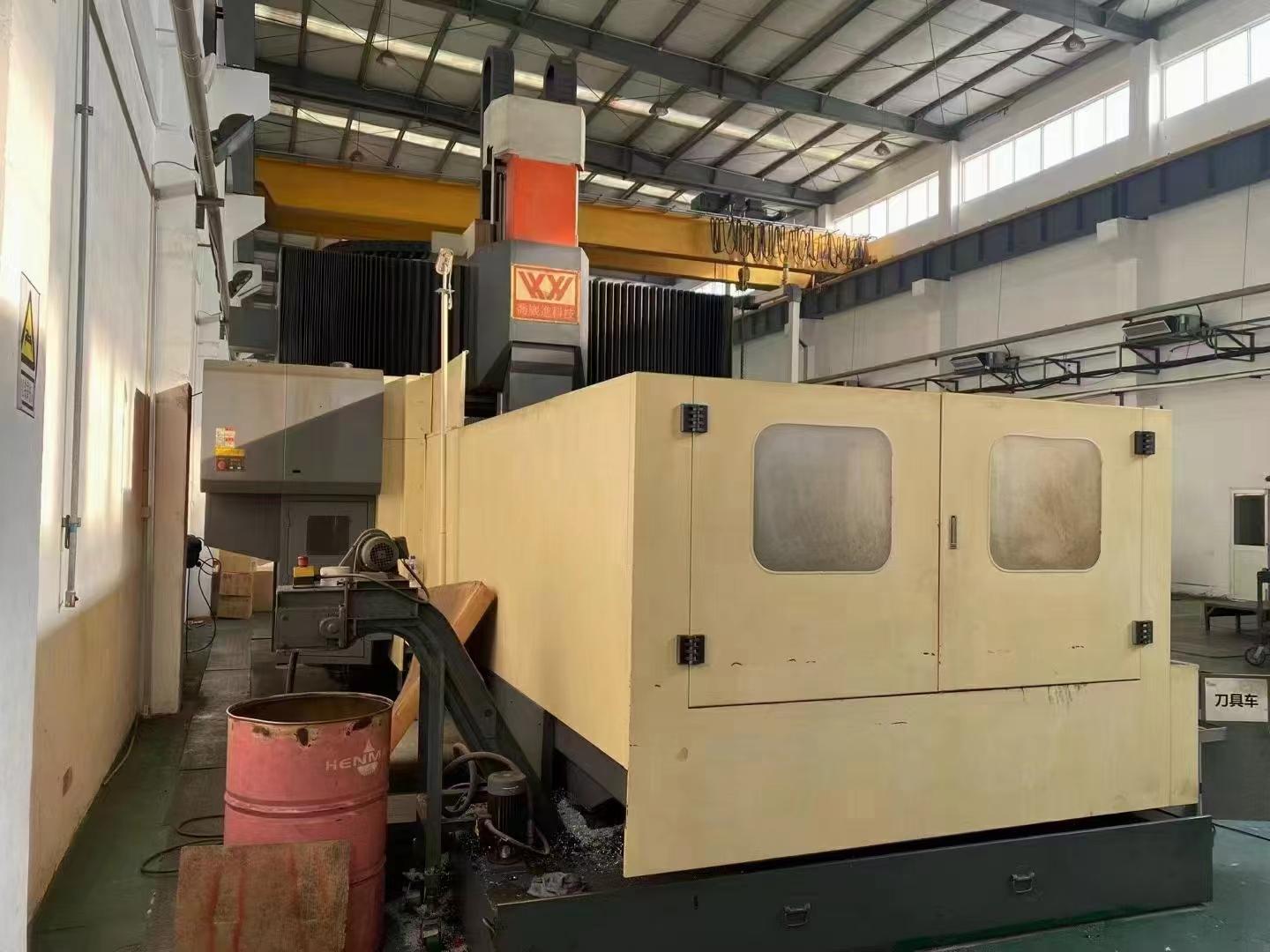

VISION WIDE NF-4223 Gantry machining centre

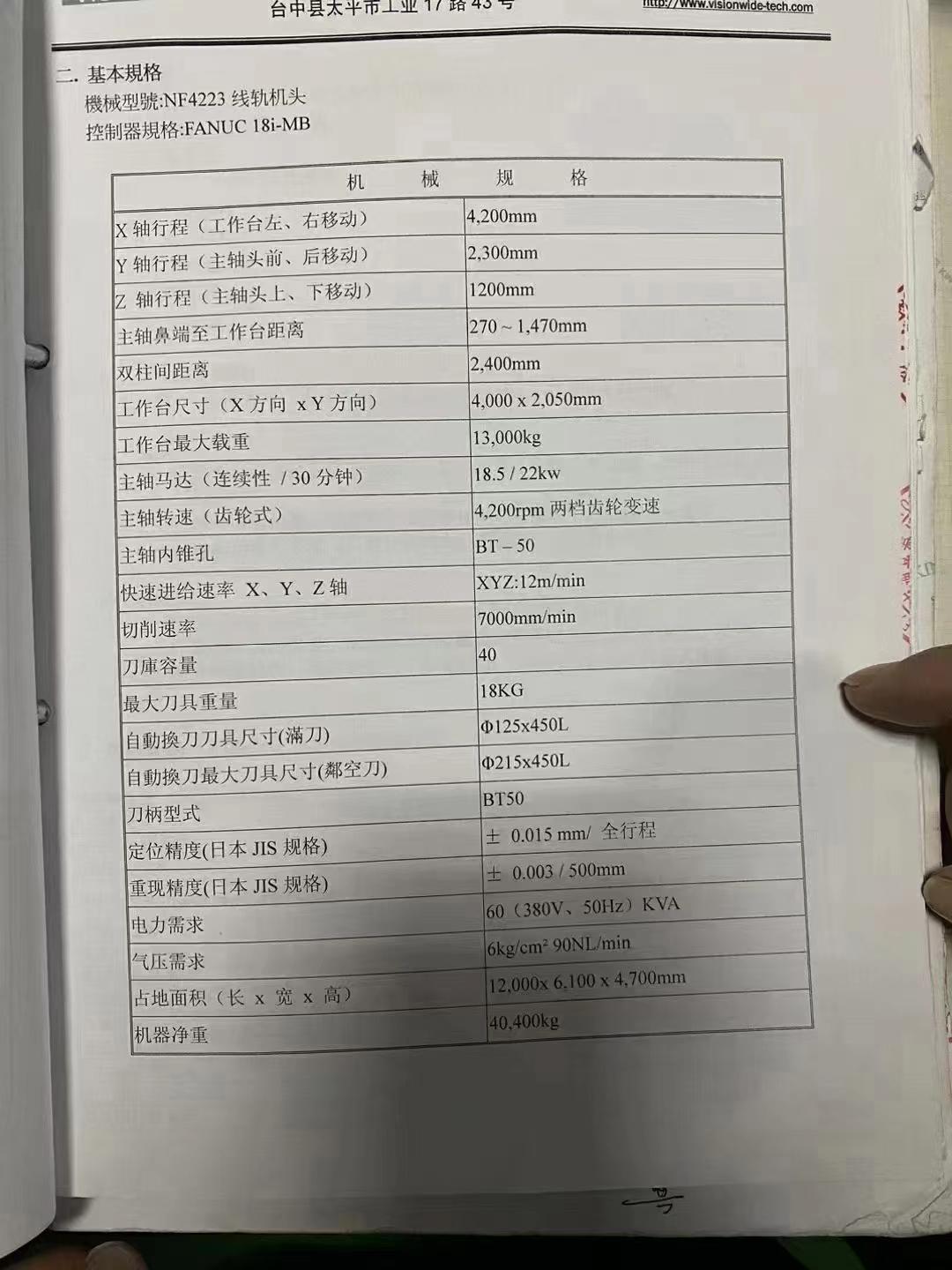

[Product Information]:

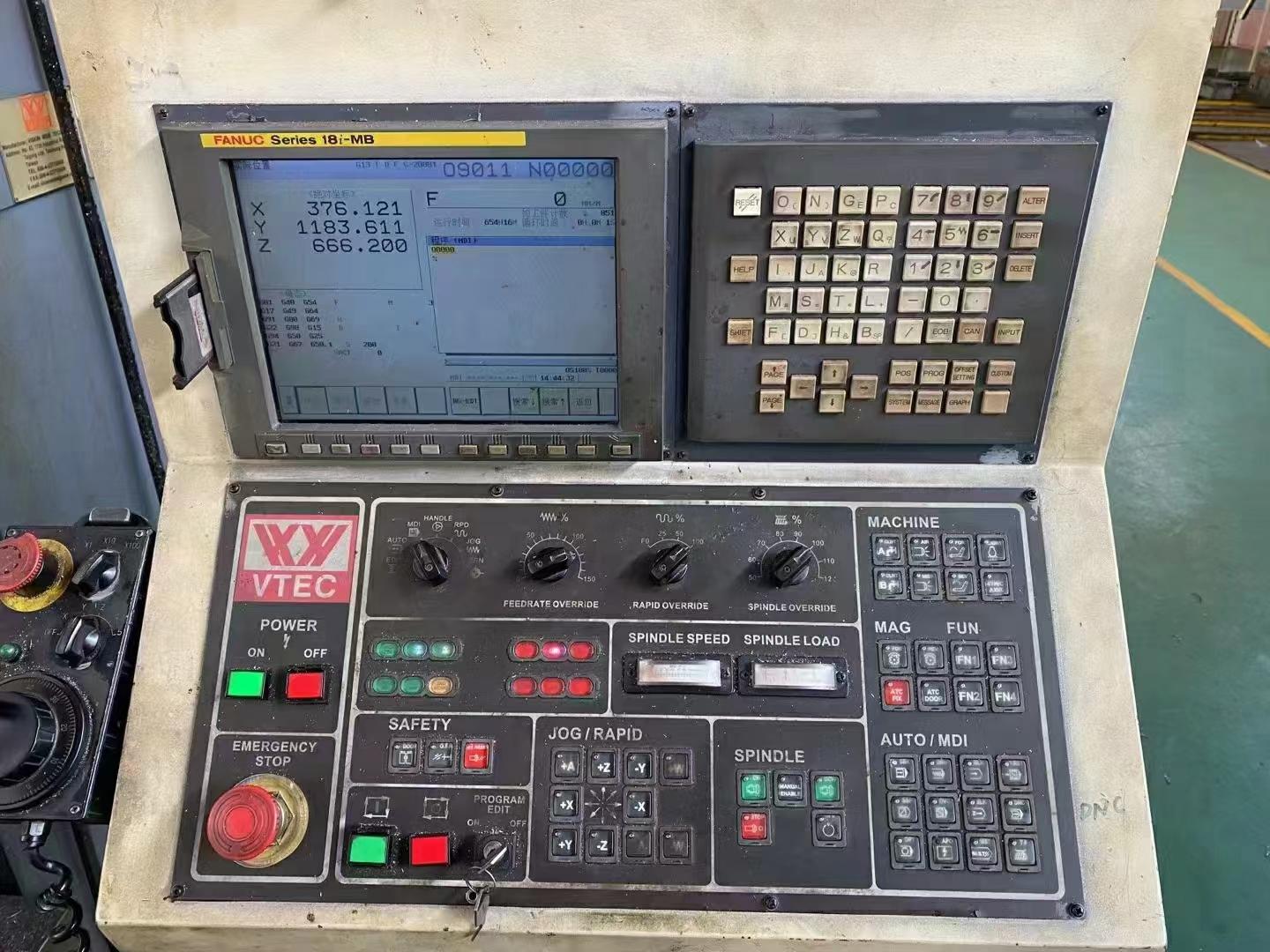

CNC System: Fanuc 18i-MB

X*Y*Z axis travel: 4200*2300*1200mm

Distance from spindle nose to worktable: 270~1470mm

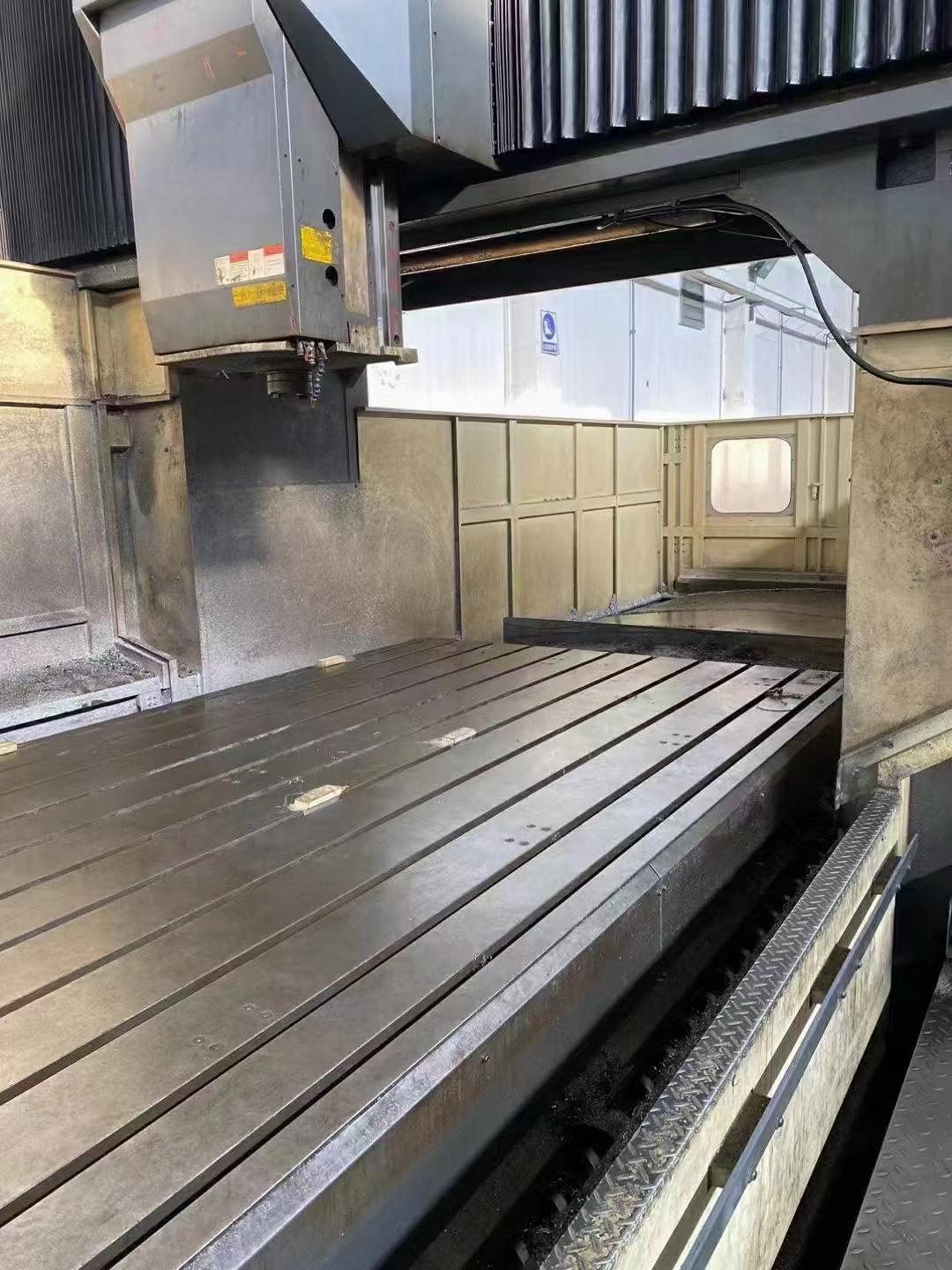

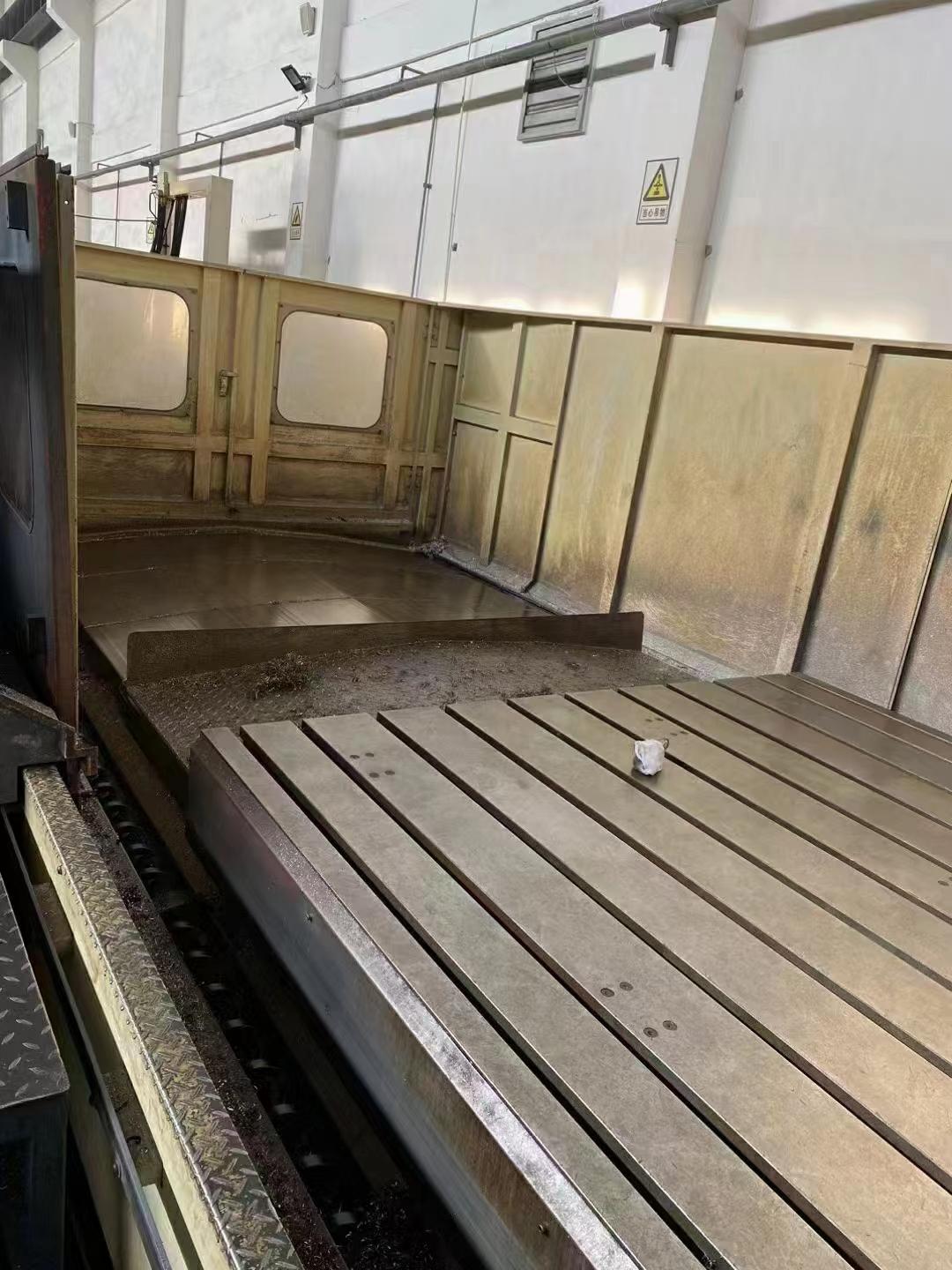

Worktable size: 4000*2050mm

Maximum worktable load: 13000kg

Spindle speed: 4200rpm

Spindle taper: BT50

X*Y*Z axis feed rate: 12/12/12m/min

Cutting rate: 7000mm/min

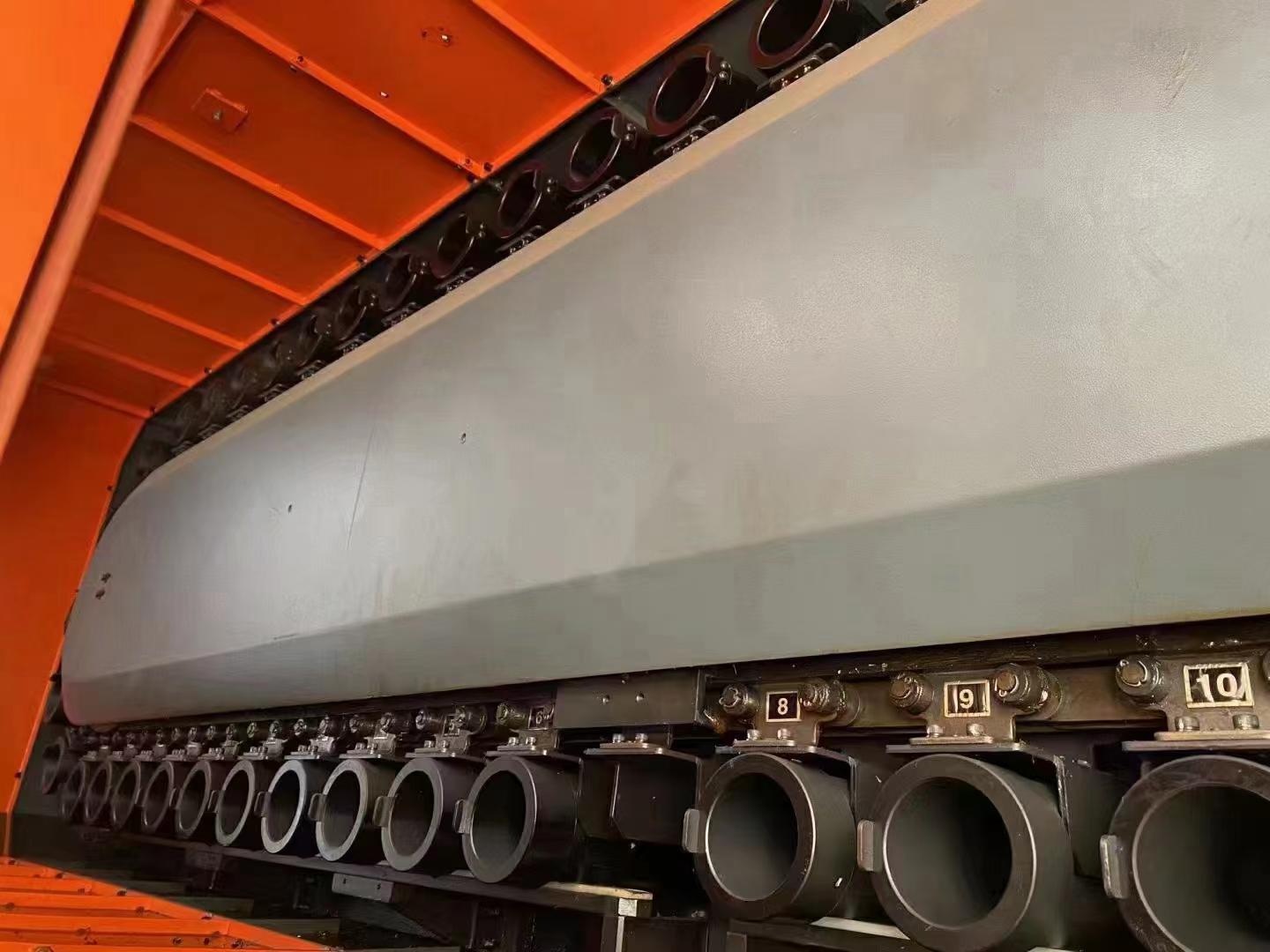

Tool magazine: 40

Gantry width: 2400mm

Gantry height: 1500mm

Dimensions: 12000*6100*4700mm

Machine weight: 40400kg
