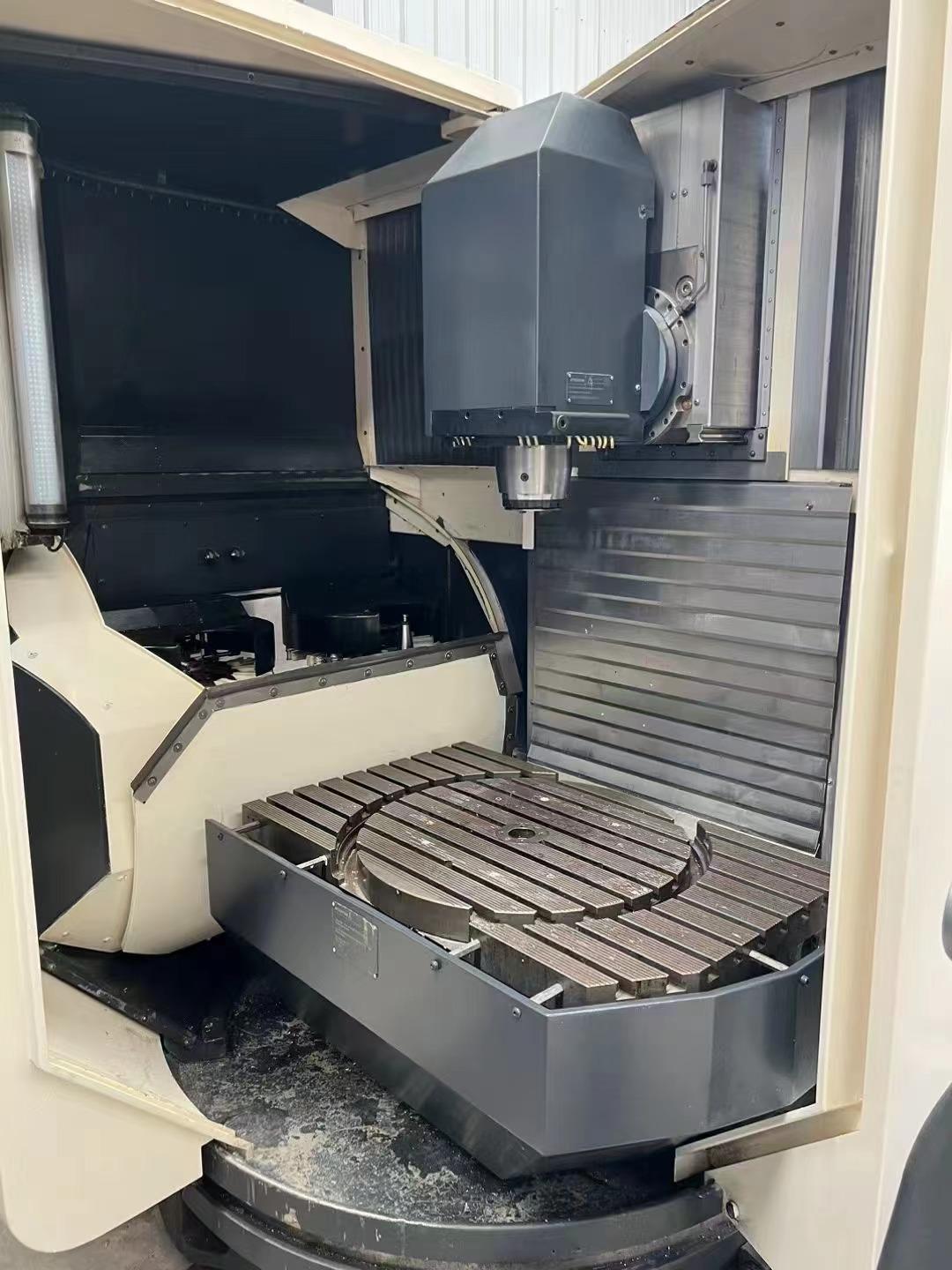

DMG DMU 60 nomoBLOCK 5 axis machining centre
[Product Information]:
- Inventory number：83075
- Brand：DMG
- Model：DMU 60 nomoBLOCK
- Origin：Germany.
- Location：China
- Year：2011
- Create Time：2024-01-03
Specifications:
X*Y*Z axis travel: 730*560*560mm

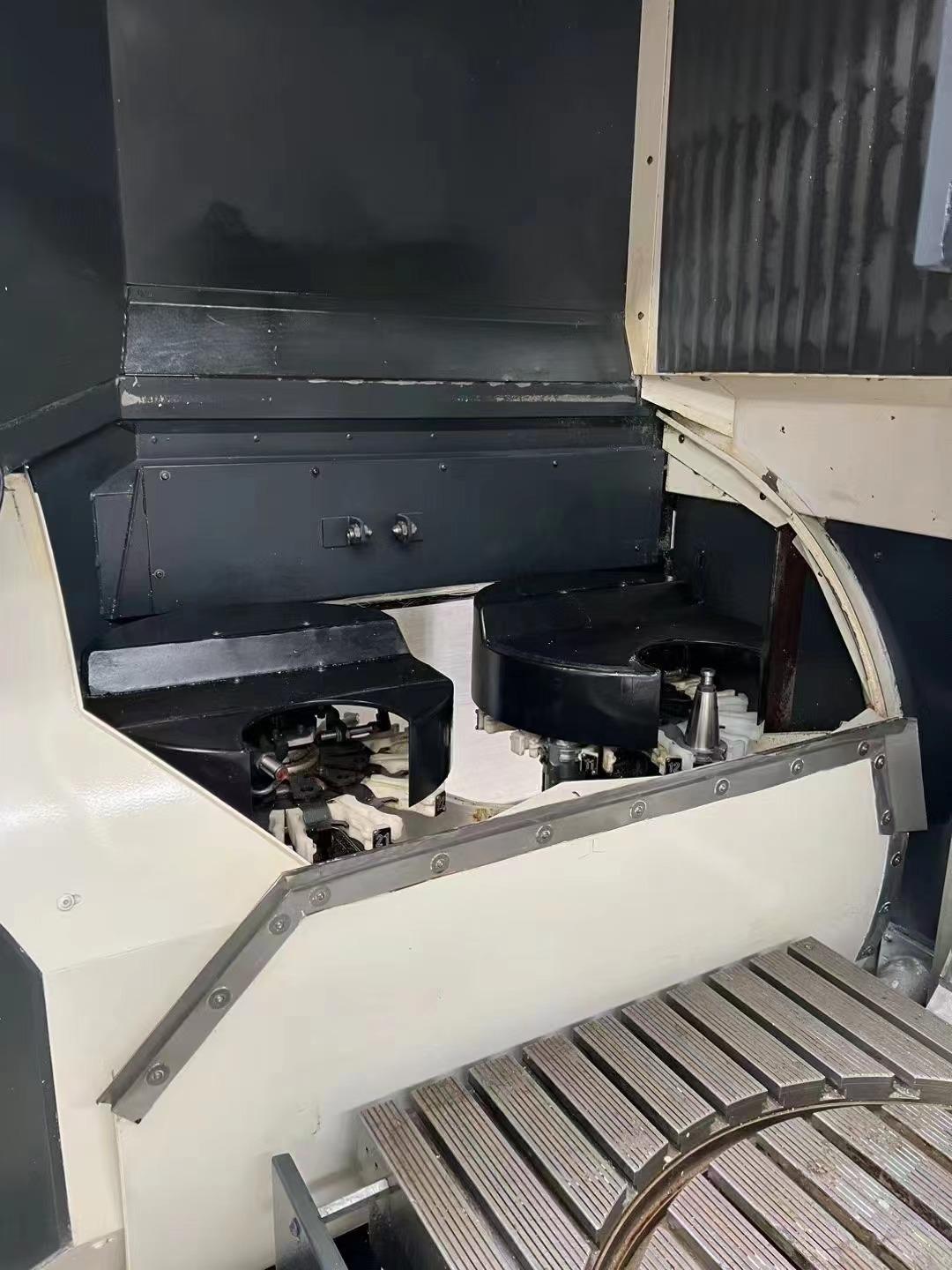

Tool magazine: 24
Tool holder type: SK40
With chip conveyor
1,000 mm x 600 mm / 39.4 in x 23.6 in
Slot spacing: 63 mm / 2.4 in
Maximum load: 500 kg
Spindle offset 100 mm / 4 in
Swing range -120°/+30°
The travel of the X-axis movement is reduced by 100 mm / 4in

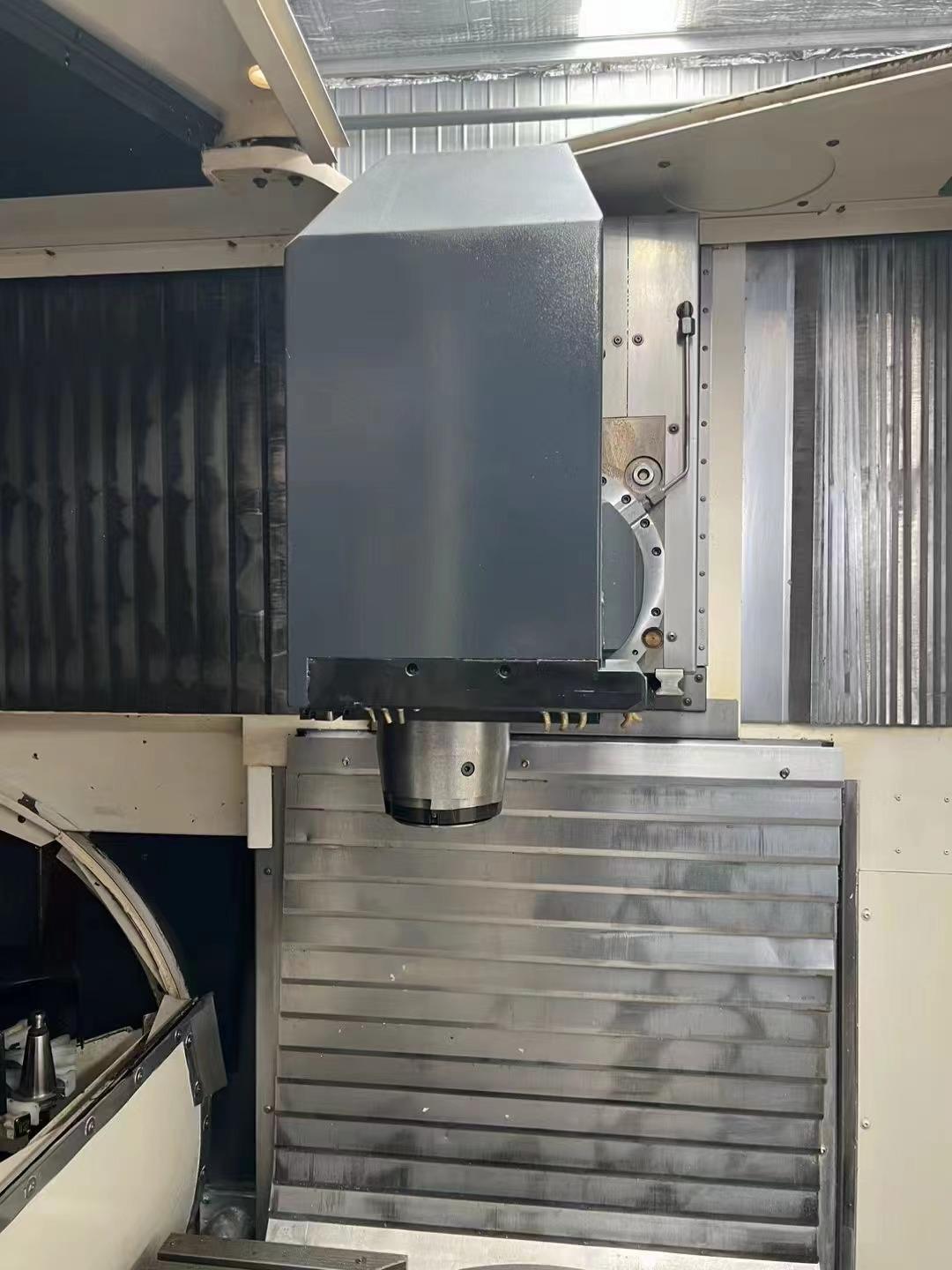

Electric spindle: SK40
Spindle maximum speed: 18000rpm
Drive power: 35 kW / 46.9hp (40% load cycle)
25 kW / 33.5 hp (100% load cycle)
Spindle torque: 119 Nm /88 ft lbs (40% load cycle)
85 Nm /63 ft lbs (100% load cycle)
A tool for controlling and compensating the motion characteristics of a 5-axis machine tool
Bidirectional allocation precision: A < = 0.006 mm
Bidirectional repetitive allocation precision: R < 0.004 mm
