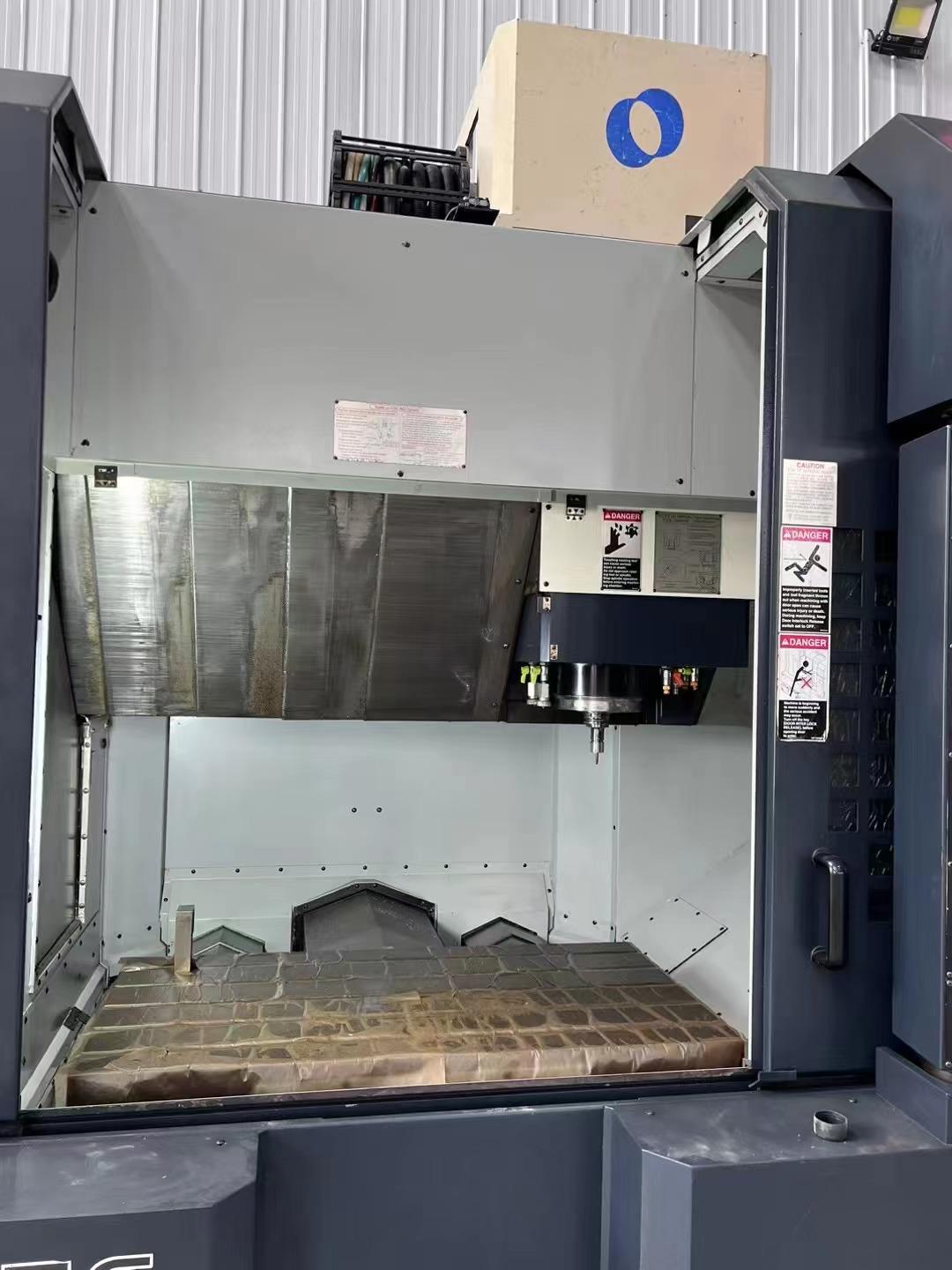

Makino V56 Machining centre

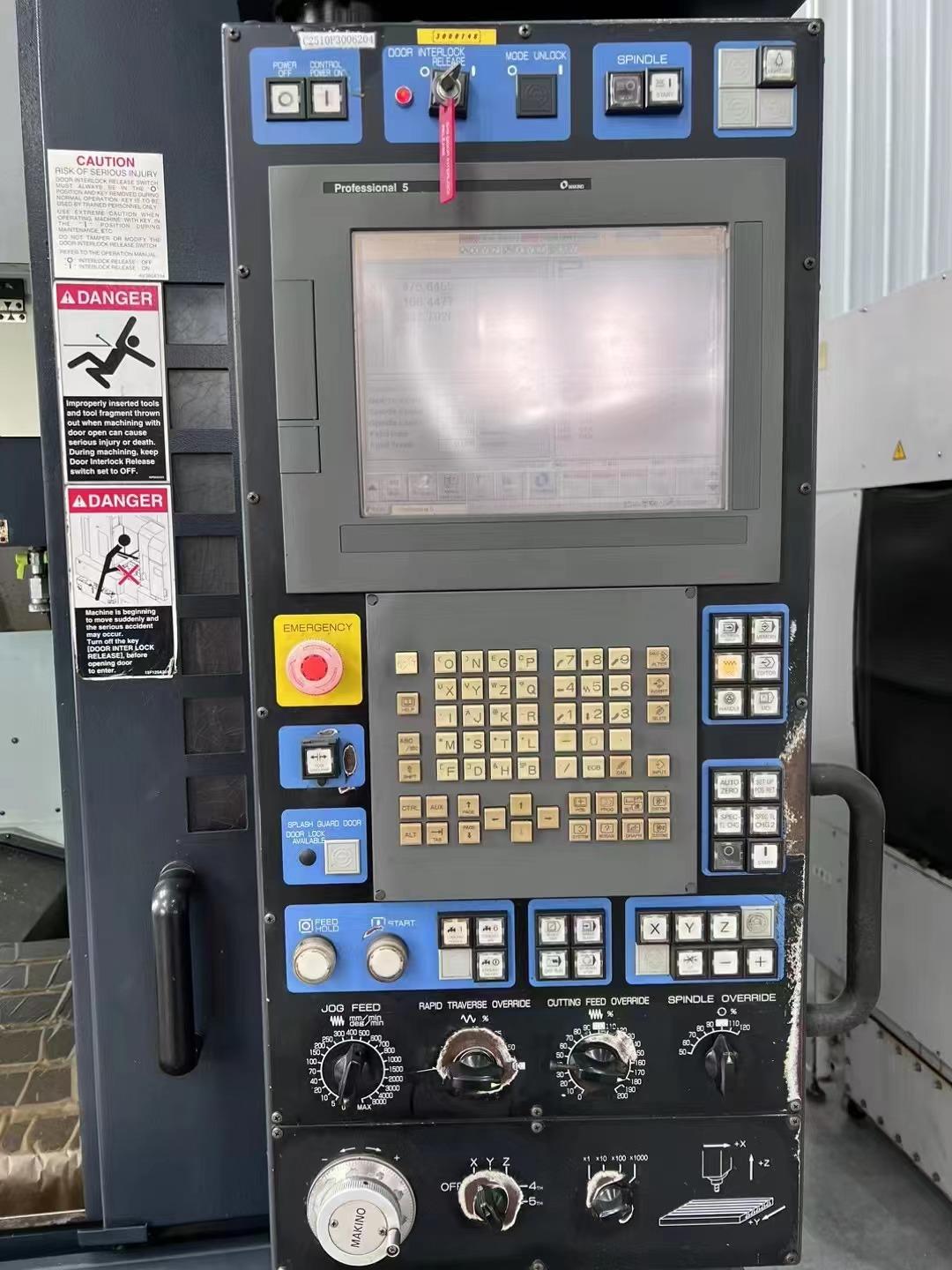

CNC System :professional 5

Three-axis travel :900*550*450mm

Worktable size :1050*550mm

Spindle drive motor :18.5/15kw

Spindle speed range :50-20000rpm

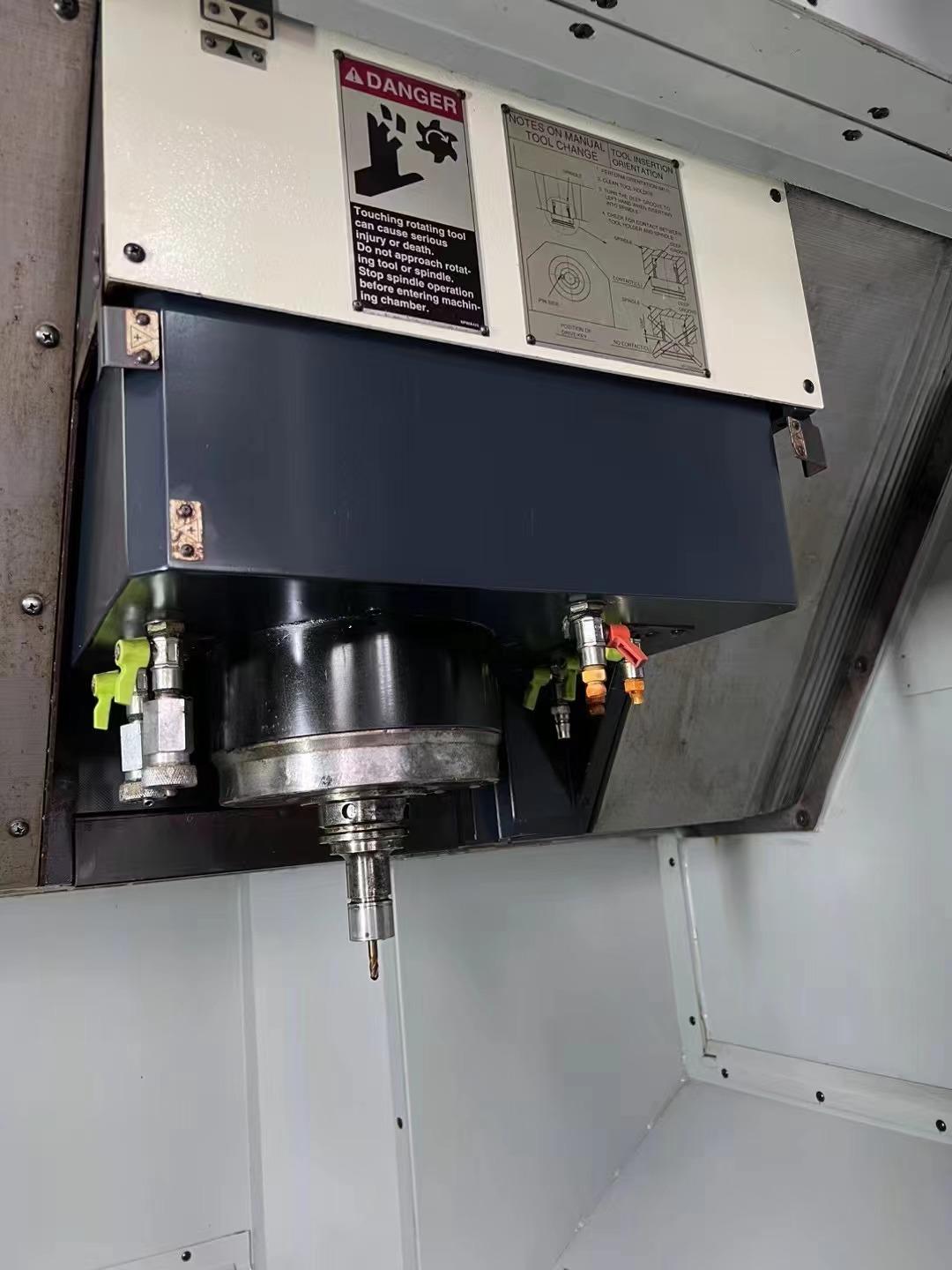

Spindle taper :HSK f63

Maximum workpiece size :1050*720*450mm

Maximum load :800kg

Machining  feed rate :1-20000mm/min

Fast positioning rate :20000mm/min

Worktable height :850mm

Tool magazine :30

Dimensions:2500*2450*2925mm

Machine weight :10300kg
