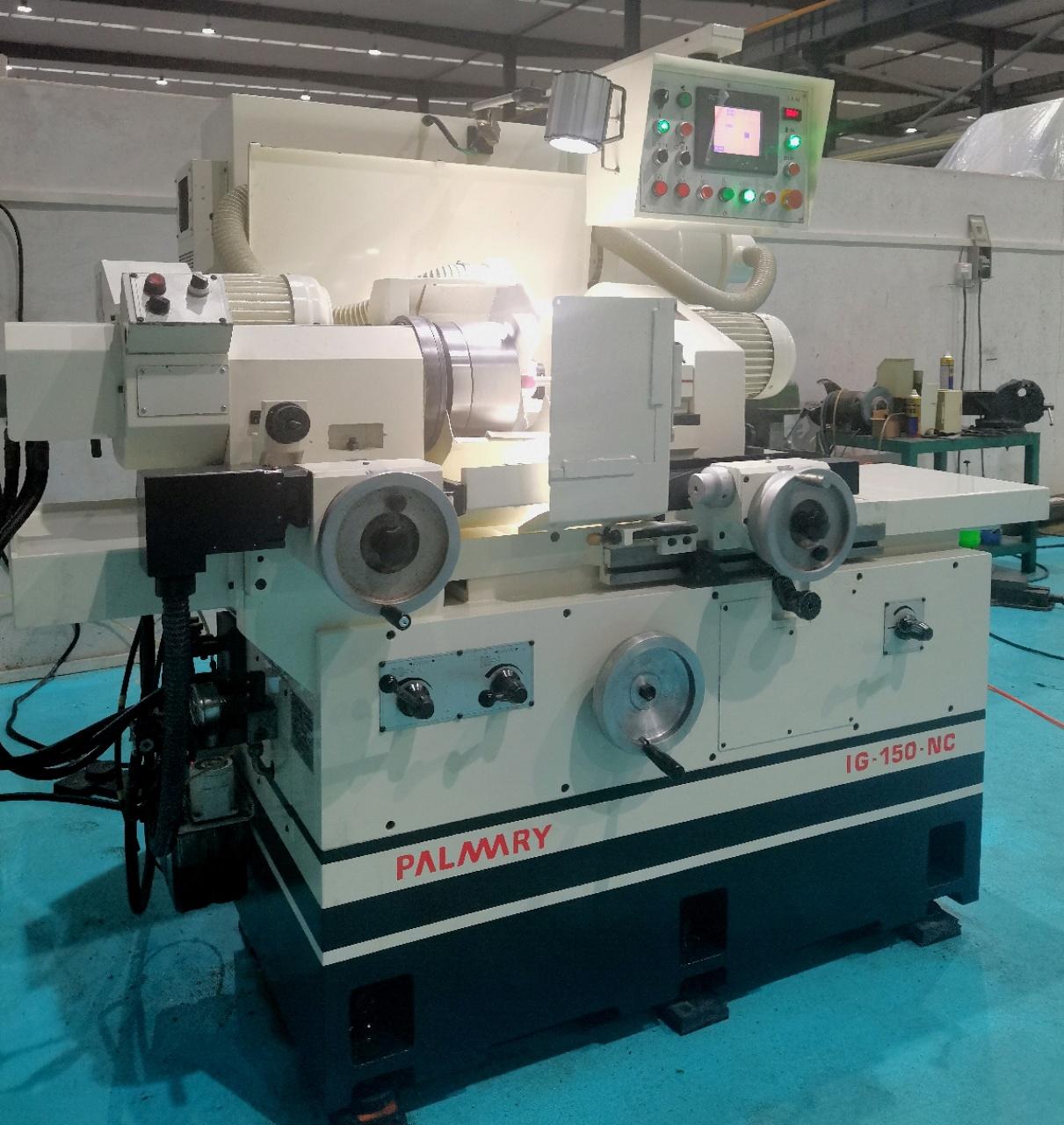

PALMARY IG-150NC Internal grinder

Standard machining  range 6-150mm

Standard depth 150mm

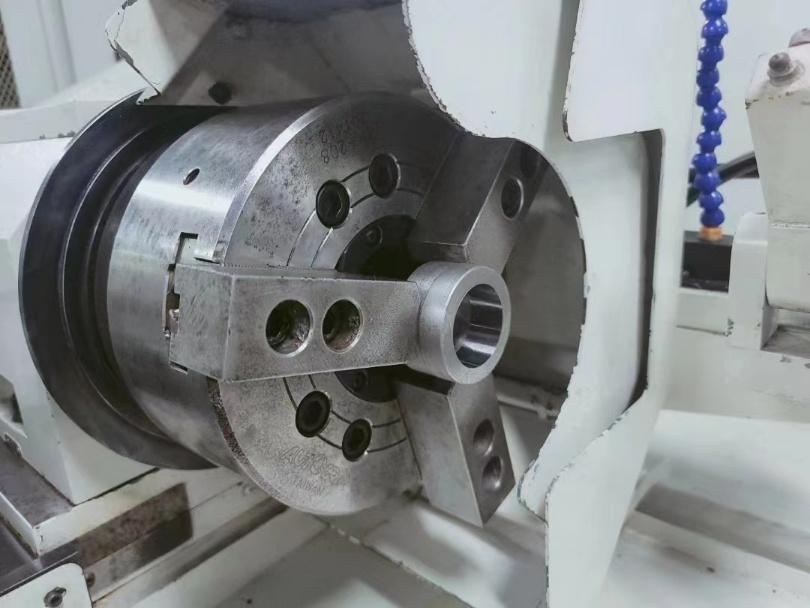

chuck  maximum rotating diameter 520mm

Maximum travel 540mm

Maximum speed of Z-axis of Worktable 7.2m/min

X axis feed maximum speed 50m/ s

The minimum movement of X axis is 0.001mm

spindle Worktable can rotate 8 degree in front and 7 degree in back

machine tool made of Meehan sodium cast iron

Self weight 2.5T

Length, width and height 2600x1400x1700
